YH-U2600B 2600mAh Battery Pack for Recliner & Lift Chair, with 4 Adapter Plugs and Isolation Switch

2600mAh Li-ion pack, about 150 reclines per charge. Includes an isolation switch that stops backlight and USB drain, 4 adapter plugs (one 5-pin for La-Z-Boy furniture) and a mounting bracket.

Runs cord-free

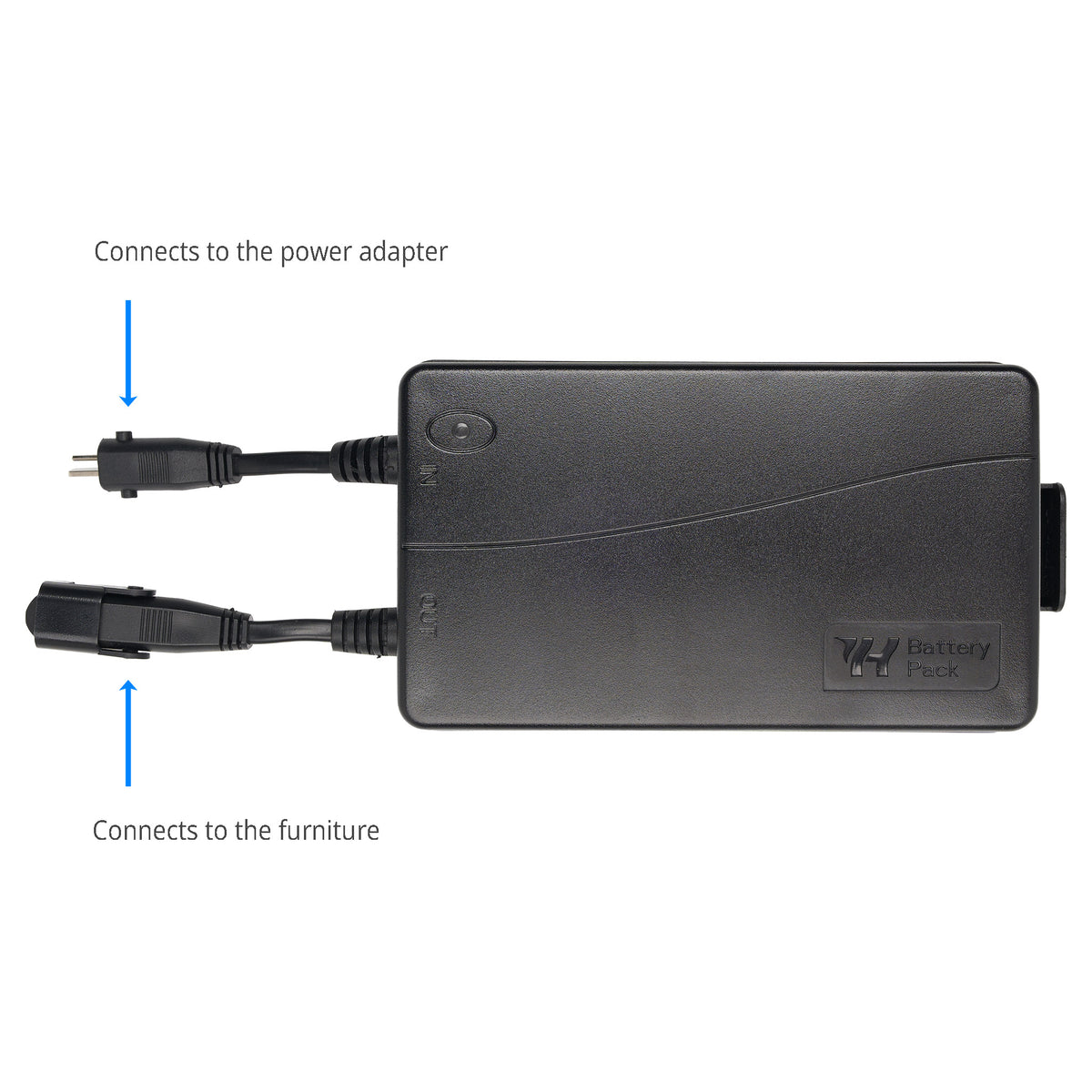

• Power a recliner, lift chair or sofa with no cable to the wall. The 25.9V, 2600mAh (67.34Wh) pack covers about 150 reclines per charge, measured at 10–15 seconds per recline and 75 W. It charges through the chair's own 24–30VDC supply and passes power through, so the chair works while charging.

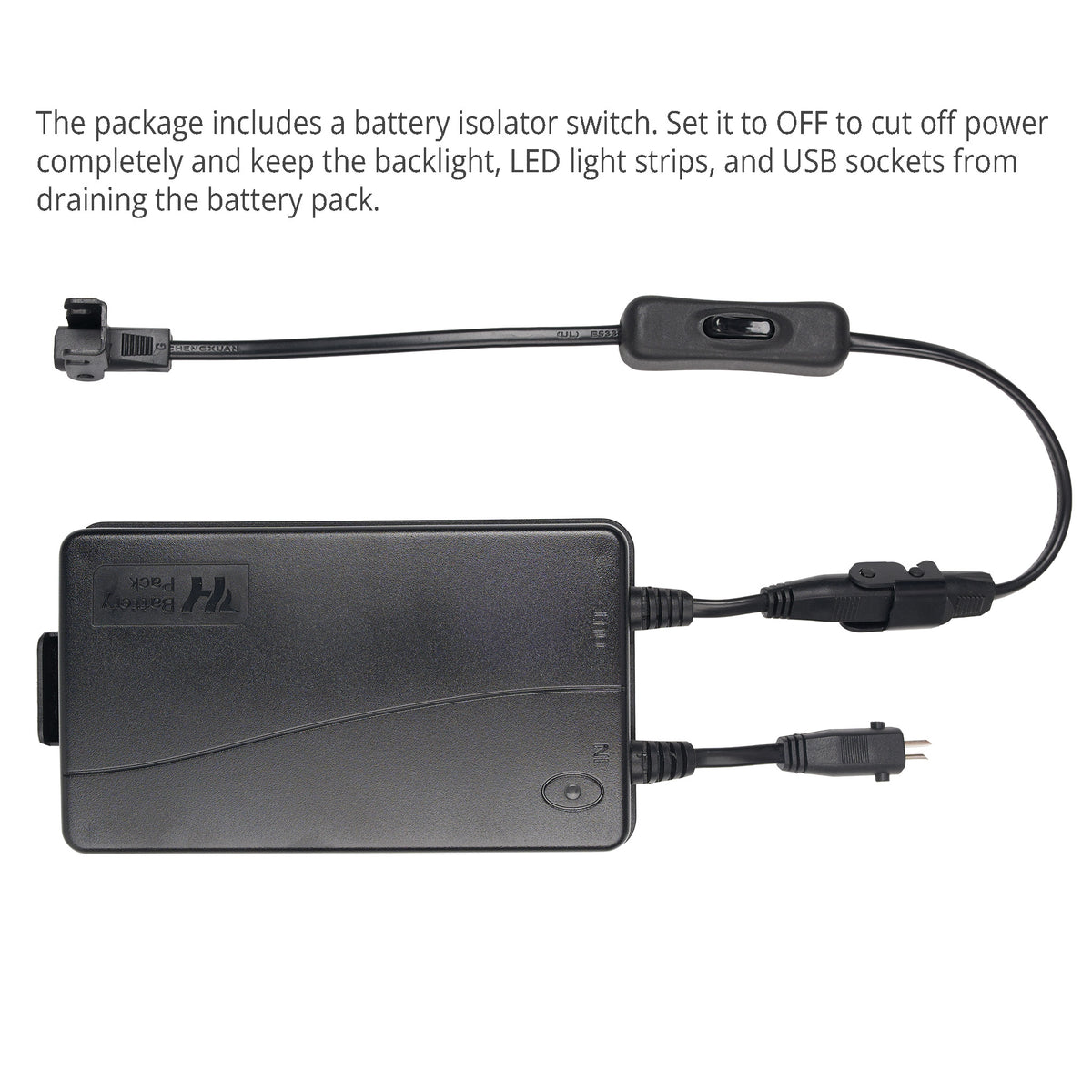

The switch fixes the flat-battery problem

• Backlights, LED light strips, USB sockets and touch buttons draw current even when the chair is not moving. The inline isolation switch cuts power completely — set it to OFF between uses and the pack keeps its charge.

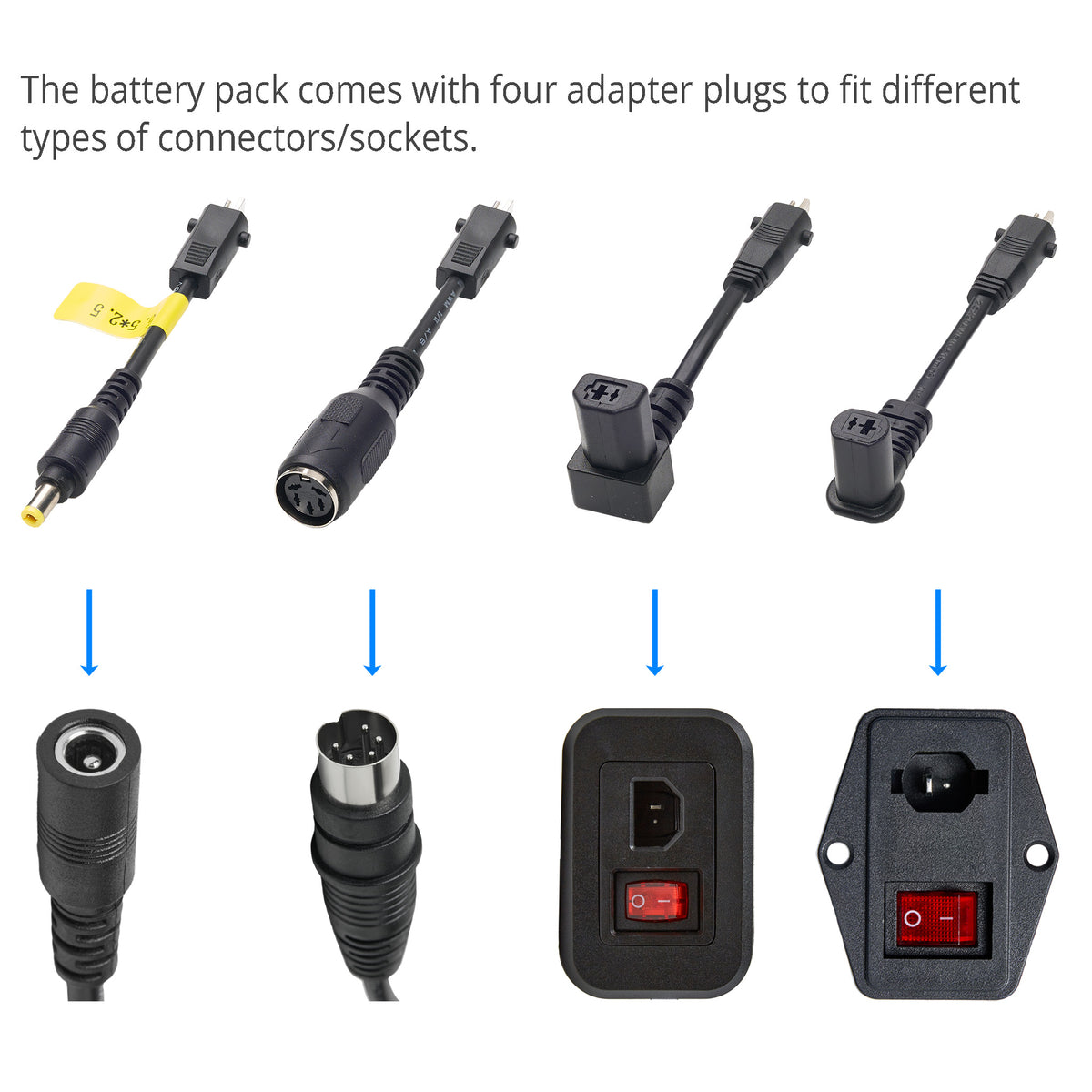

Fits more than the usual 2-pin

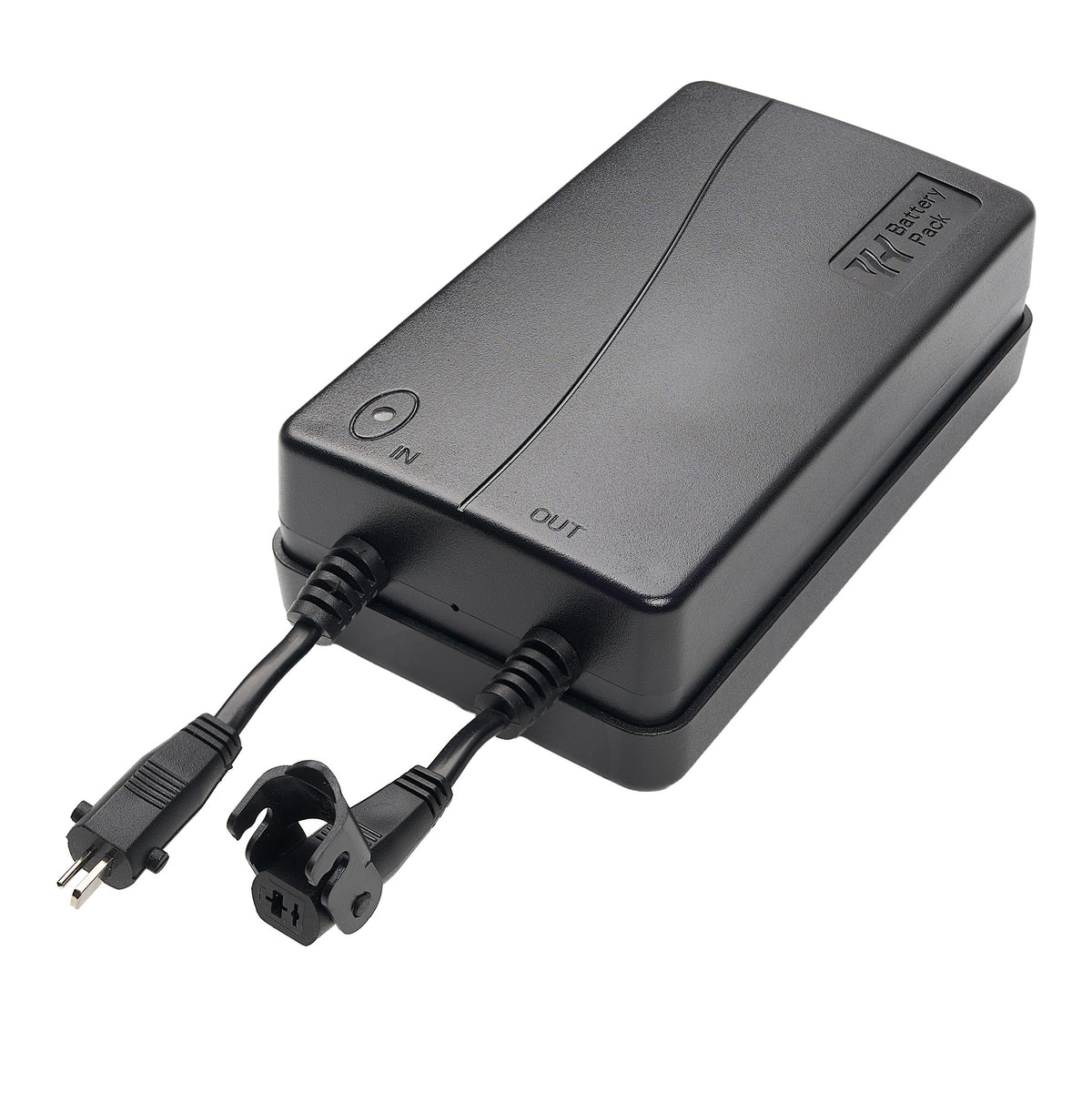

• The OUT cable ends in a standard 2-pin IO male connector, which most recliners and lift chairs take. Four adapters cover the rest:
  • A 5-pin DIN plug for La-Z-Boy furniture

  • A DC barrel plug for furniture with a female barrel connector (5.5 × 2.5 mm)

  • Two plug adapters for socket inlets.
• The 5-pin plug is for La-Z-Boy furniture only
  • That 5-pin plug follows the pin layout used on La-Z-Boy recliners, and it fits La-Z-Boy furniture only. Other recliner brands also use a 5-pin connector, but they arrange the five pins differently, so this plug will not seat on them even when it looks similar from the outside. If your furniture has a 5-pin connector and it is not La-Z-Boy, this is not the plug you need. This kit is not a La-Z-Boy product and is not affiliated with La-Z-Boy Incorporated.

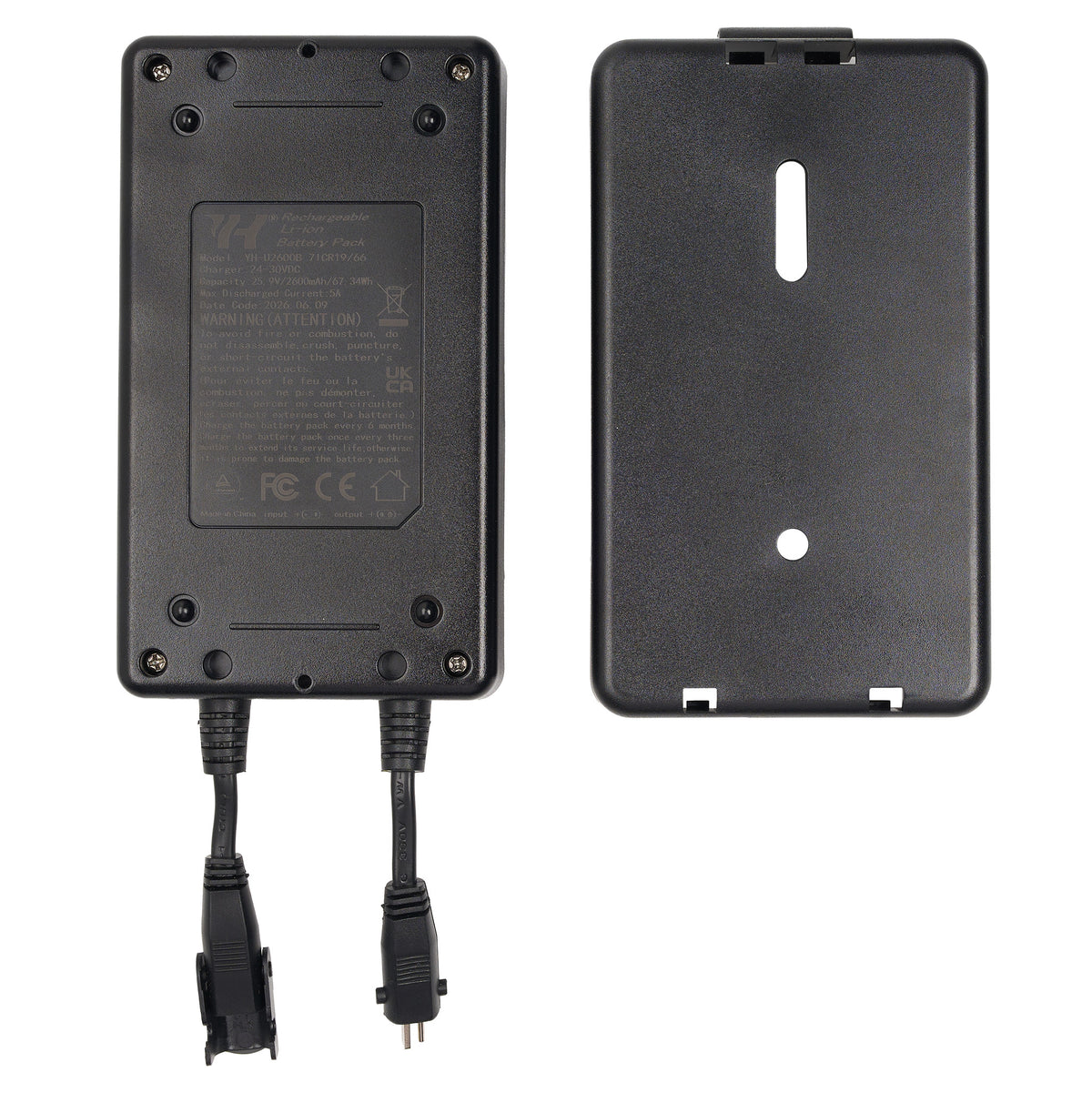

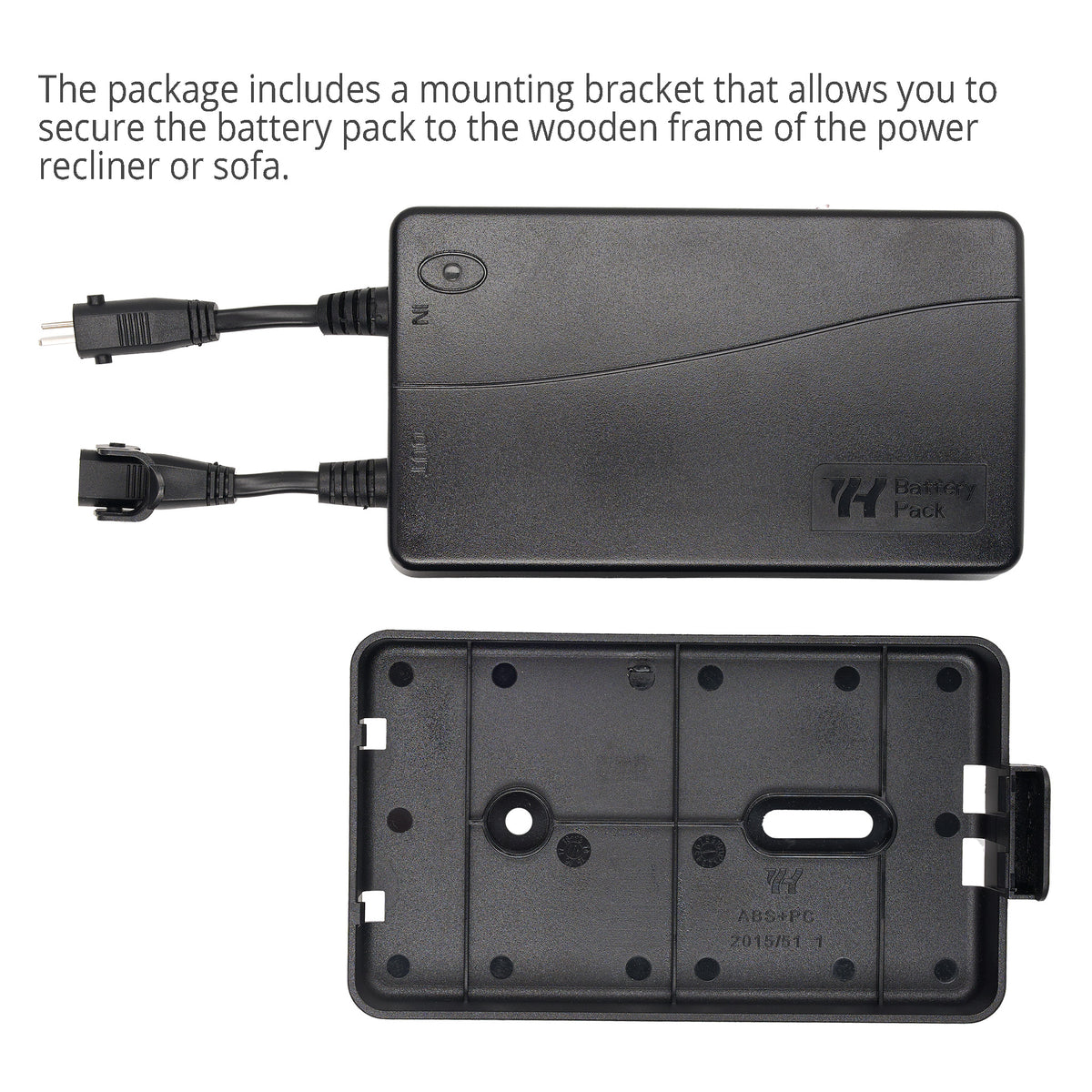

Mounting bracket included

• The bracket screws to the wooden frame, so the pack attaches to the chair instead of on the floor: out of the way of the mechanism, and protected from knocks, vacuum bumps and being rolled over.

Before you order

• Look at the plug on your chair's cable. If it is a 5-pin plug, confirm the furniture is La-Z-Boy — this is the one adapter in the kit that does not cross over.
• This battery pack is not compatible with heating and vibration massage systems, which usually run on 12V. The pack outputs 25.9V, so connecting it to that system will burn it out.

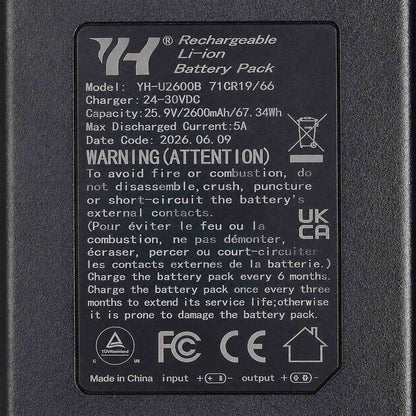

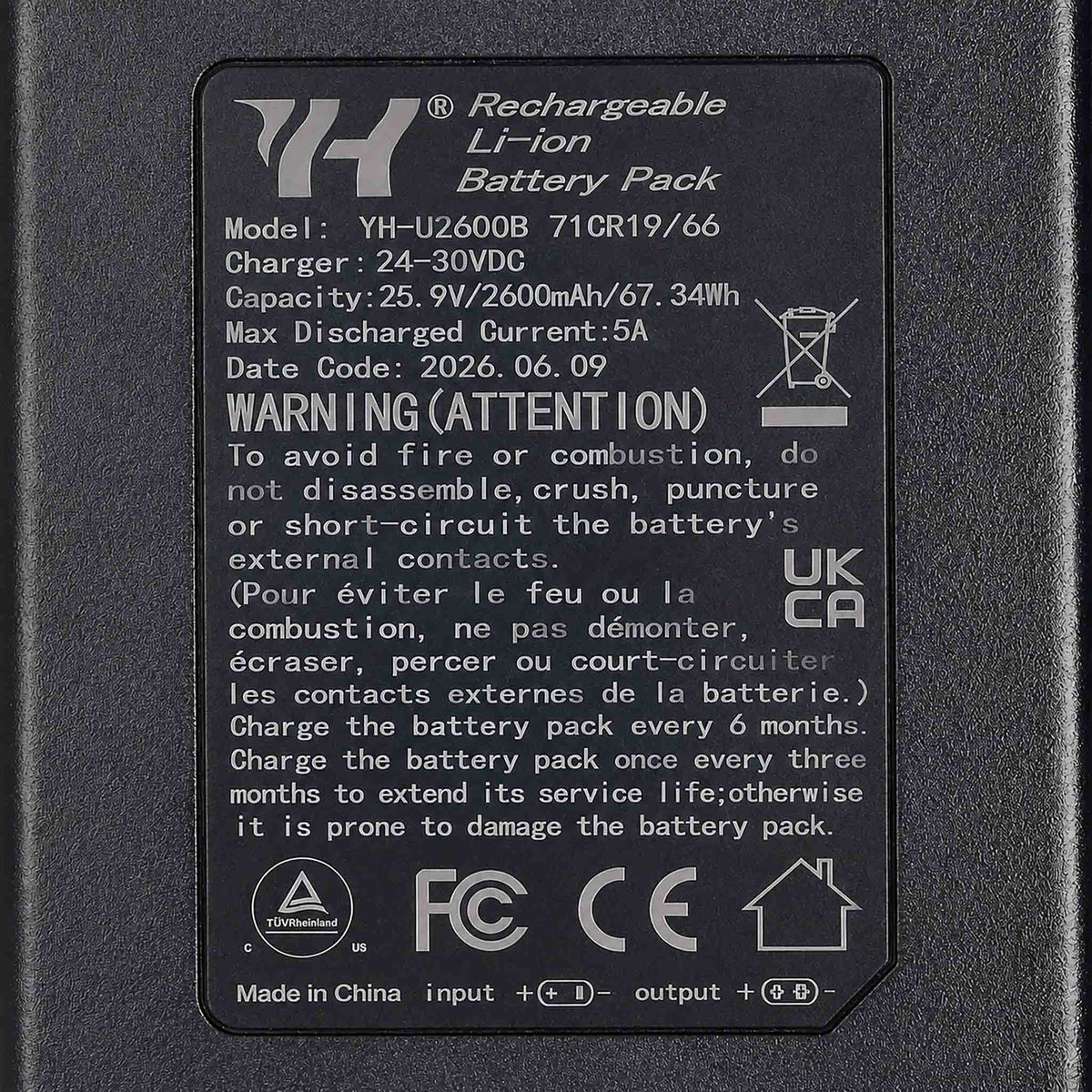

Specifications

• Model: YH-U2600B

• Capacity: 25.9V / 2600mAh / 67.34Wh

• Reclines per charge: about 150 (10–15 s at 75 W)

• Input: 24–30VDC

• Output: 2-pin IO male, plus 4 adapter plugs

• Max discharge current: 5A

• Certification: CE, FCC, UKCA, TÜV Rheinland

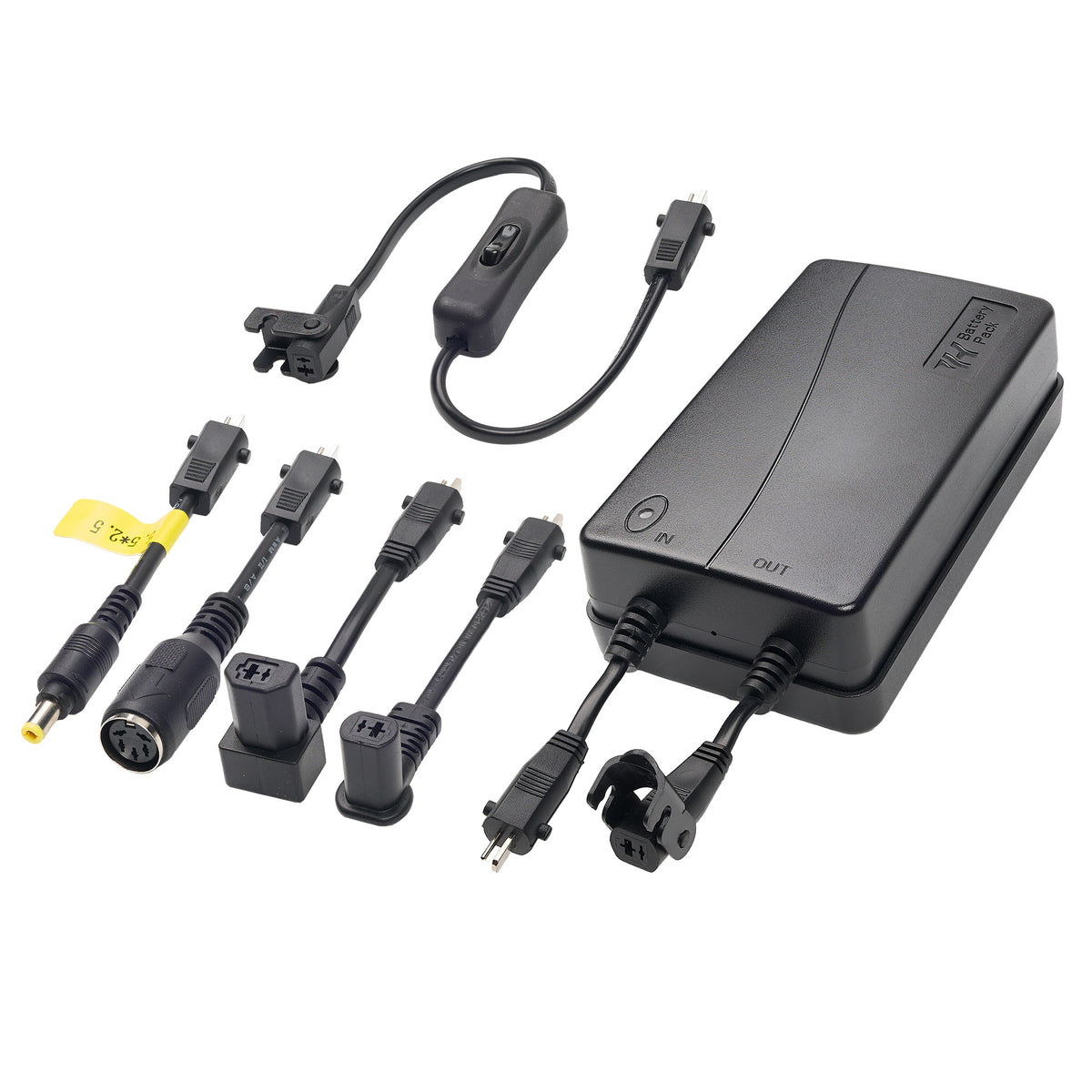

Package includes:

• 1 × YH-U2600B battery pack
• 1 × isolation switch cable
• 4 × adapter plugs
• 1 × mounting bracket

FAQ

• Will the 5-pin plug fit my recliner?
  • Only if the recliner is La-Z-Boy. Other brands use a different pin layout.
• Does the chair still work while charging?
  • Yes — the pack passes power through from the 24–30VDC supply.

Trade Mark Note:

• La-Z-Boy is a registered trademark of La-Z-Boy Incorporated. This battery pack is compatible with La-Z-Boy furniture but are not manufactured by, endorsed by or affiliated with La-Z-Boy Incorporated.
