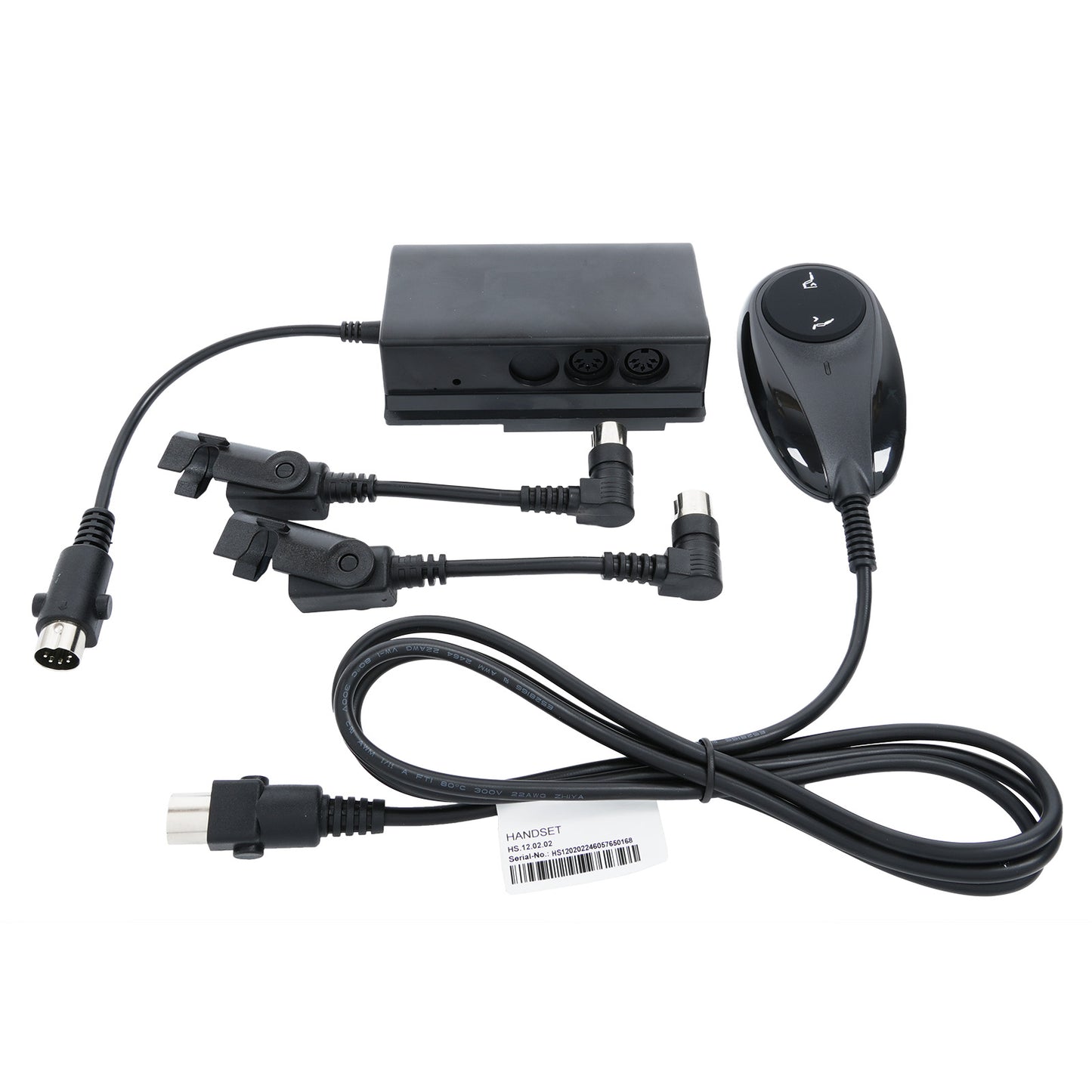

Two Control One Junction Box for Motion Furniture

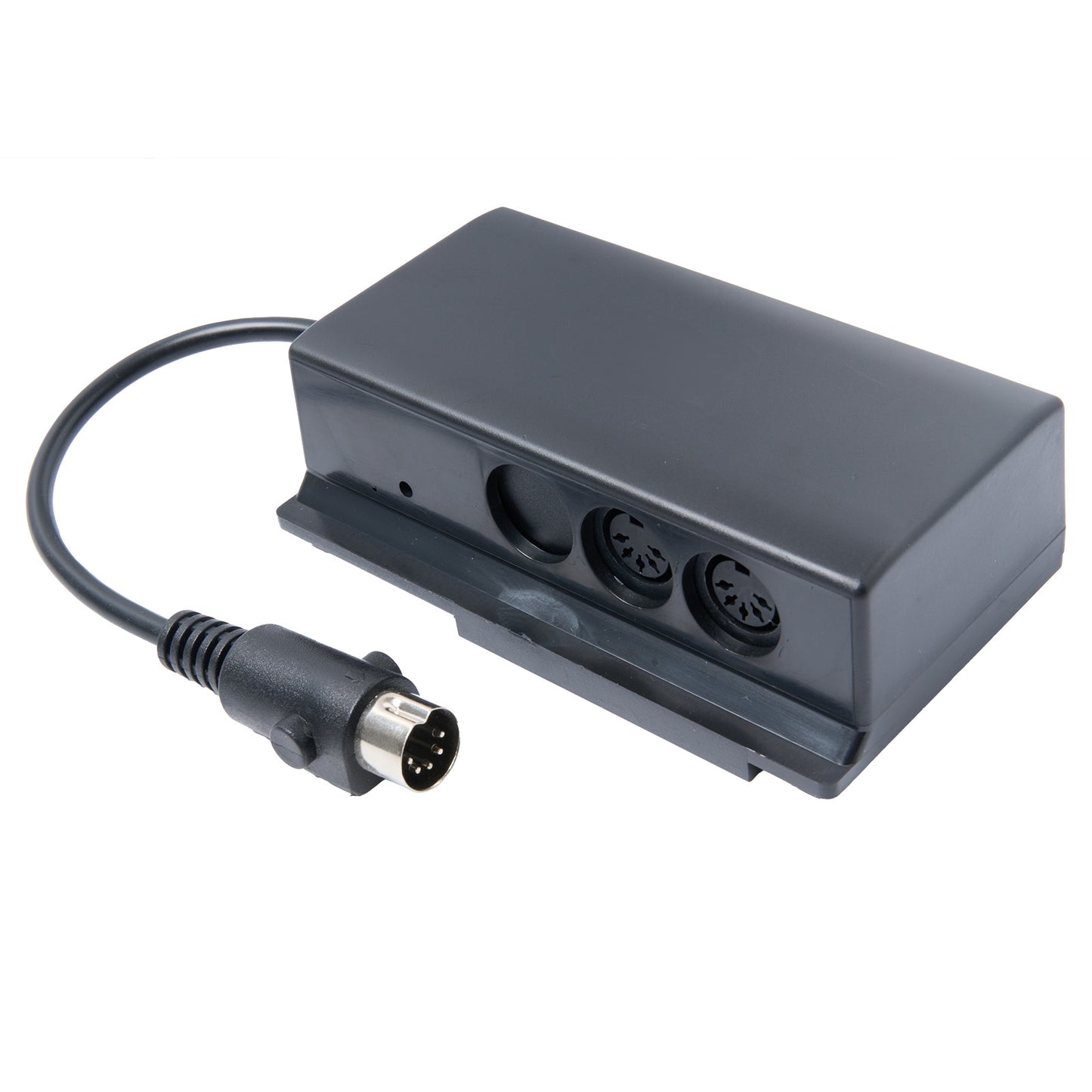

This junction box enables you to control a single linear actuator using two controllers. It's ideal for single-motor motion furniture such as power recliners or lift chairs. This solution is perfect for customers who want the convenience of an extra hand controller in addition to the fixed side switch.

Compatibility:

• Single Motor Only: This junction box is designed for chairs with a single motor. It is not compatible with chairs equipped with two or more motors.

• Linear Actuator Compatibility:

  • This junction box works specifically with linear actuator motors that have two leads:

    • A 2-pin plug for the power adapter.

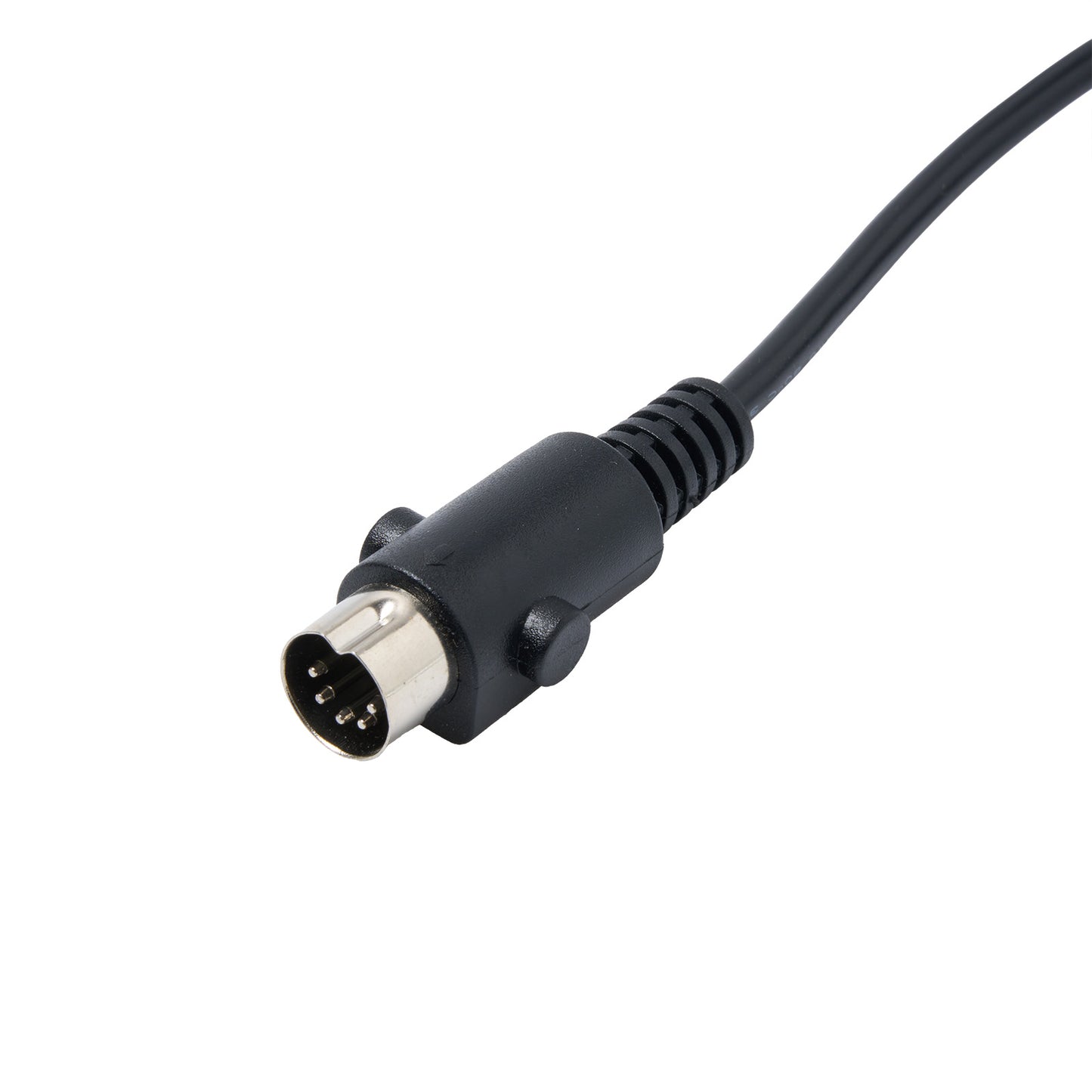

    • A round 5-pin plug for the switch/control.

  • If your actuator has only one lead & plug this junction box will not be compatible with your chair.

  • If the plug for the switch/control of your actuator is not 5 pin, or the 5 pin plug is not the standard version (for example LA Z BOY chairs), this junction box will not be compatible with your chair.

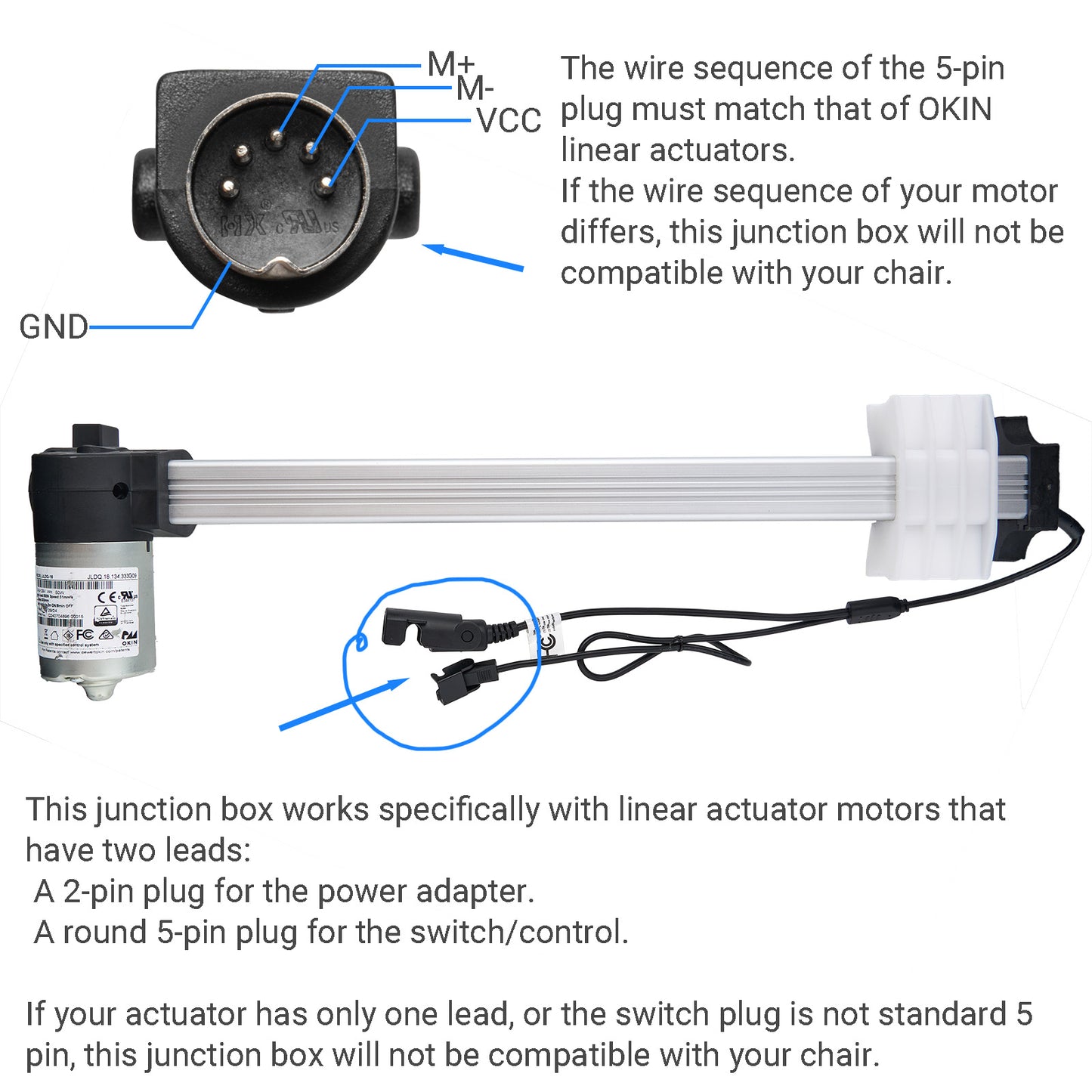

• Wire Sequence:

  • The wire sequence of the 5-pin plug must match that of OKIN linear actuators.

  • If the wire sequence of your motor differs, this junction box will not be compatible with your chair.

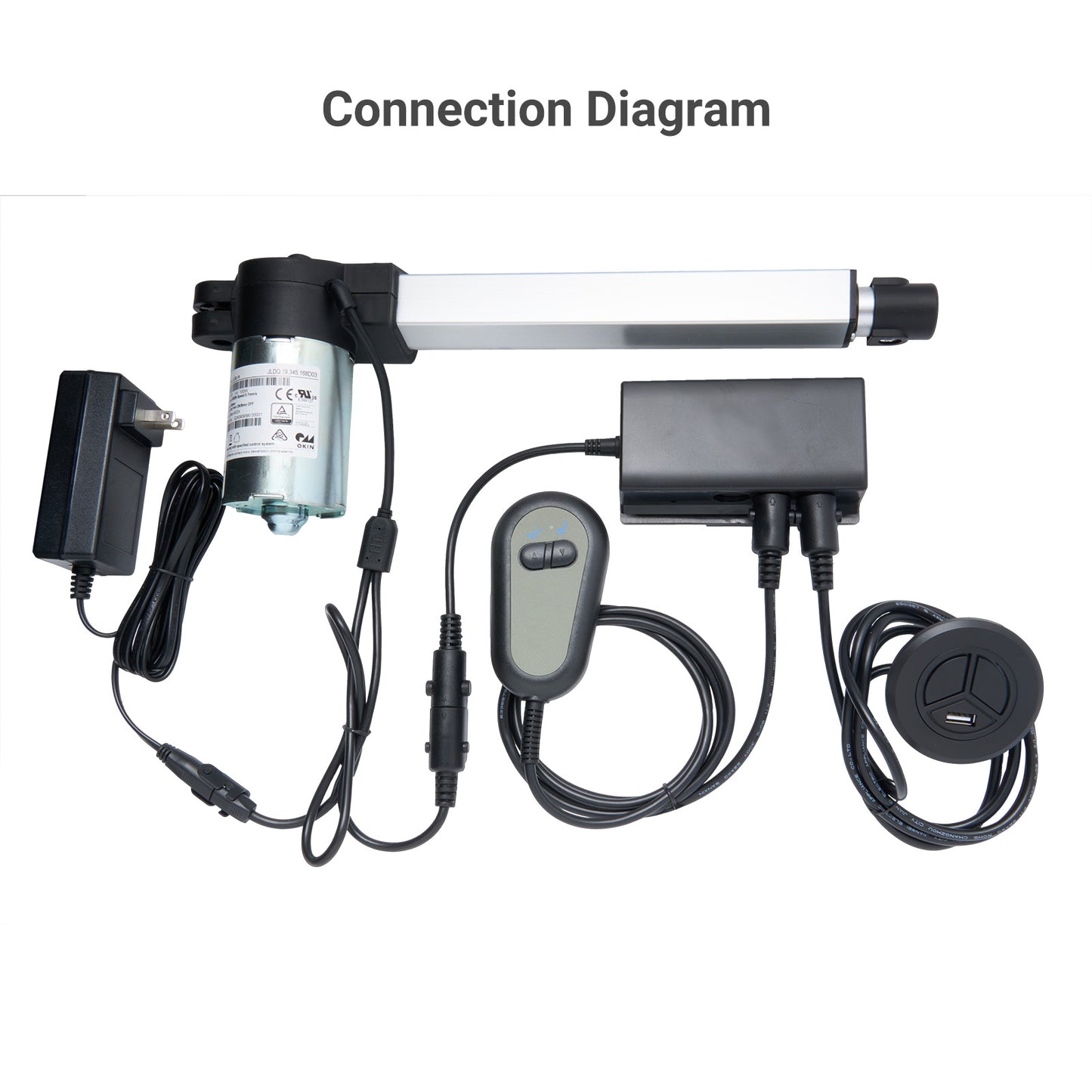

Connection Diagram

• Disconnect the existing switch from the linear actuator.

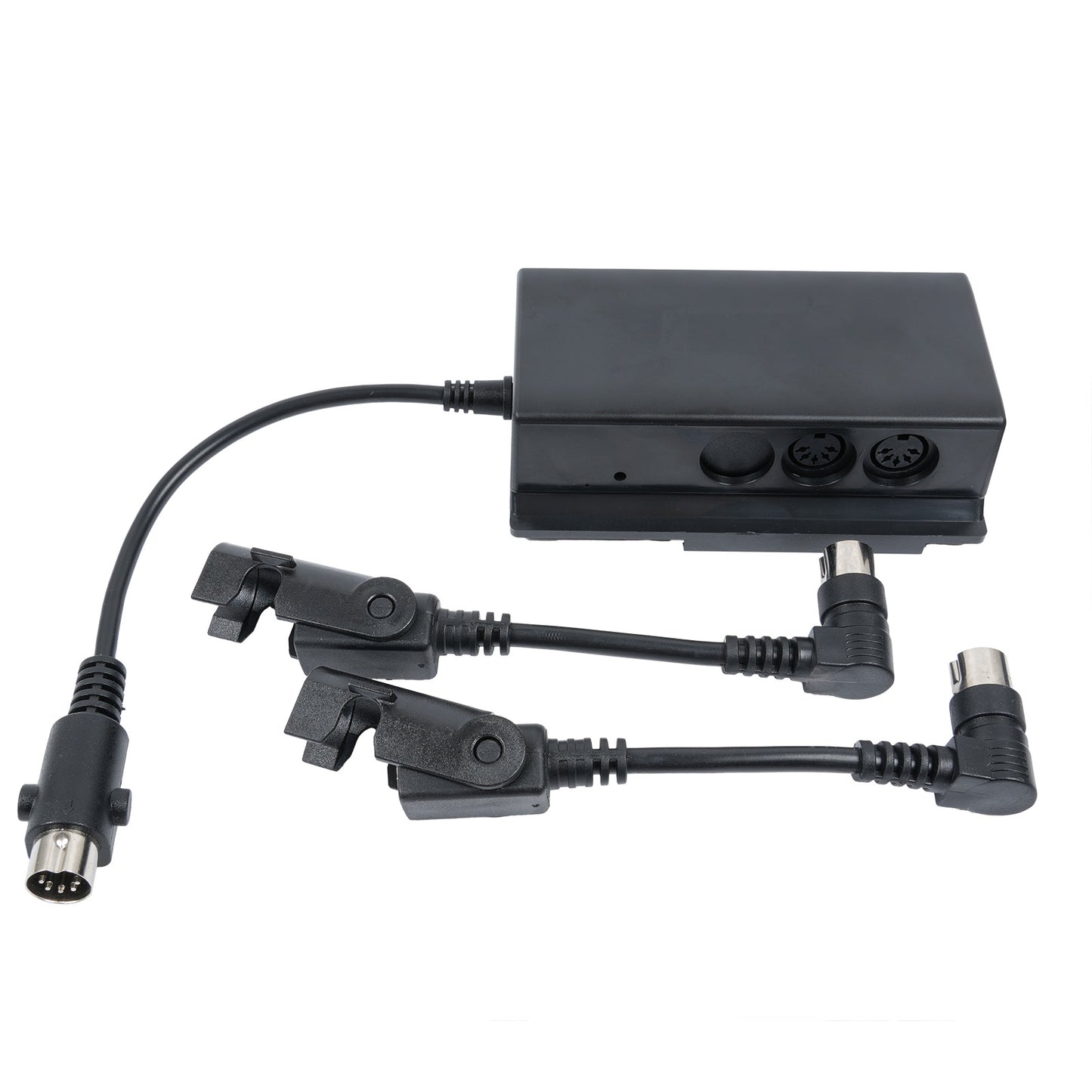

• Connect the male 5-pin plug of the junction box to the linear actuator.

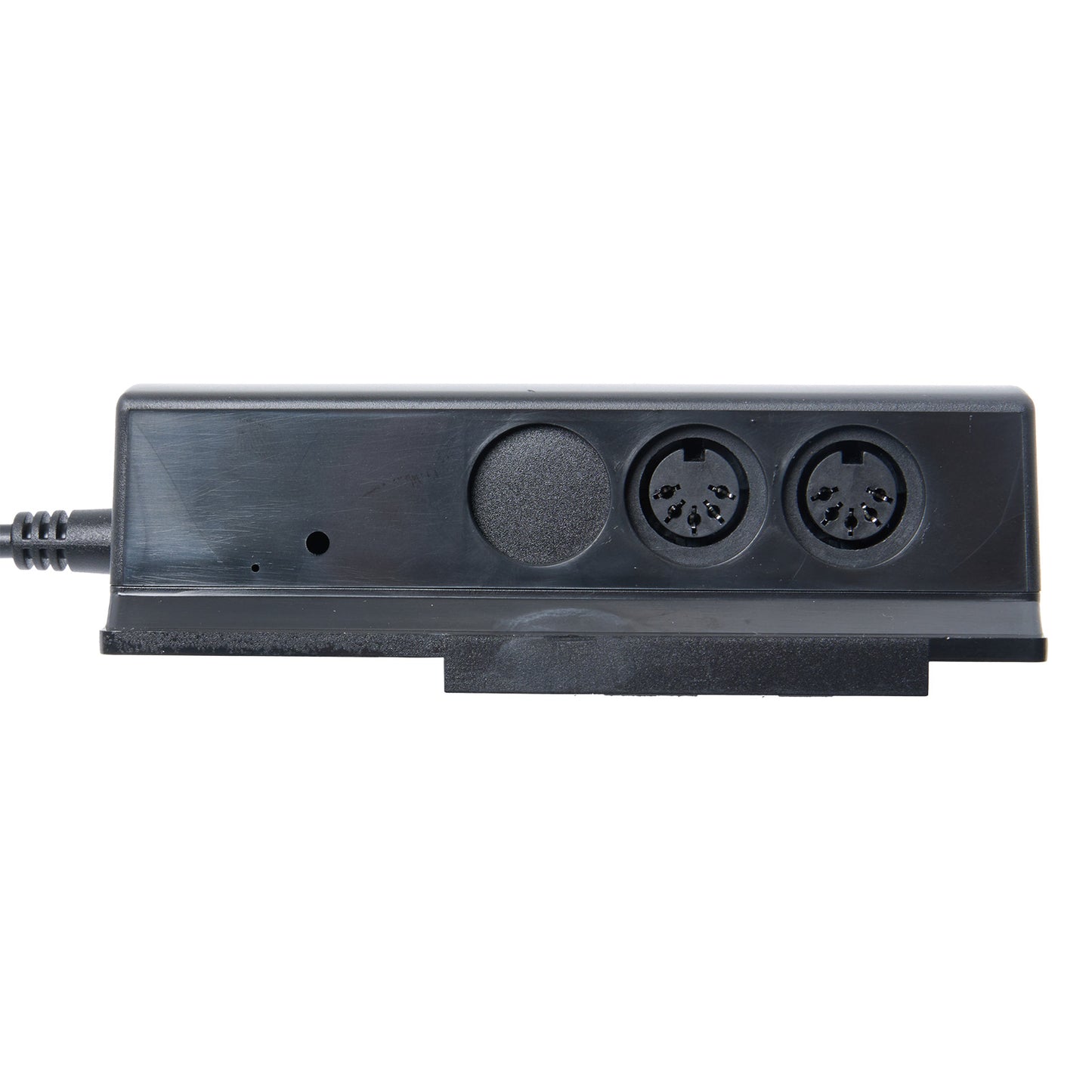

• Plug the remote controller and the original switch into the 5-pin sockets on the junction box.


Note:

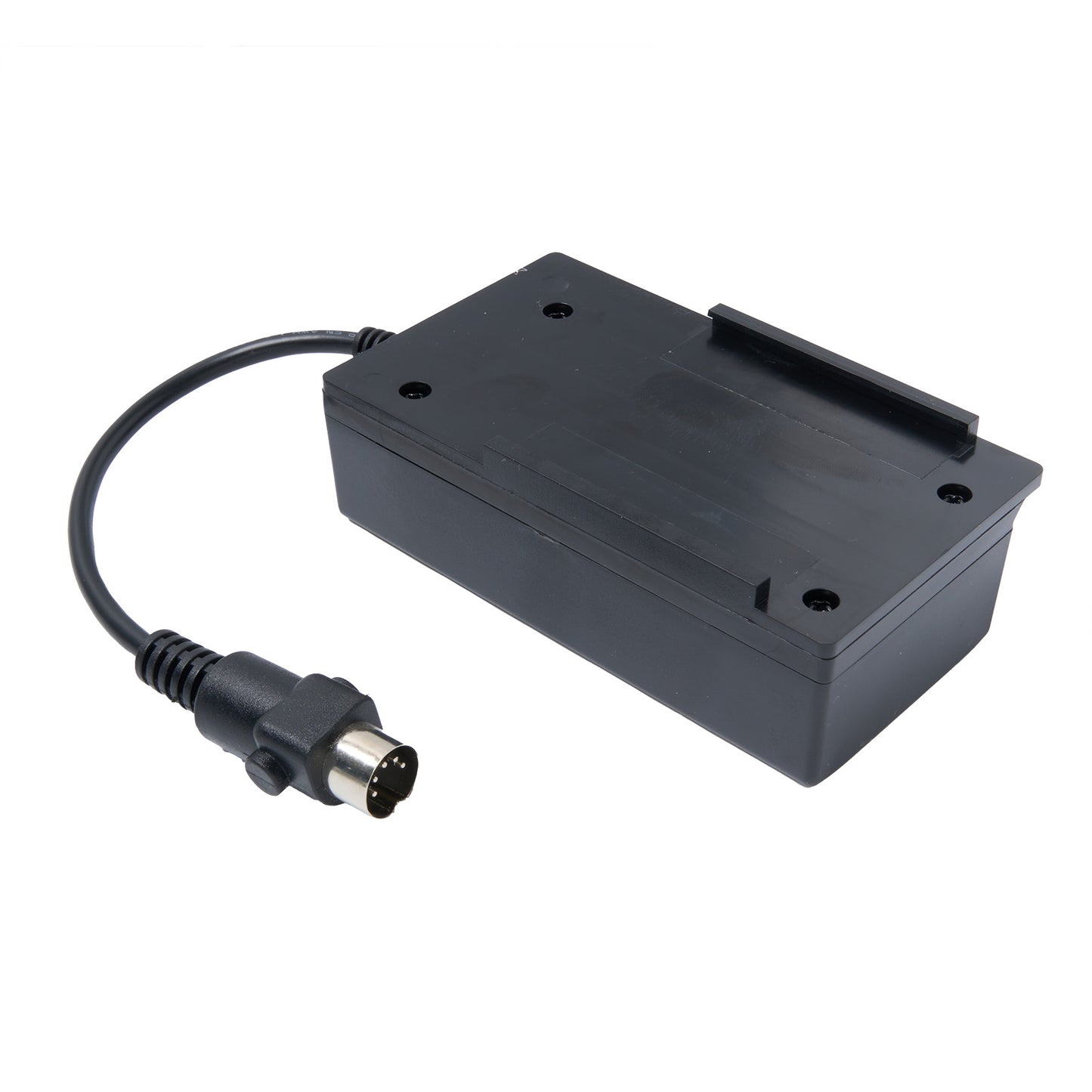

• Please mount the junction box to the chair properly to prevent damage from moving parts.
