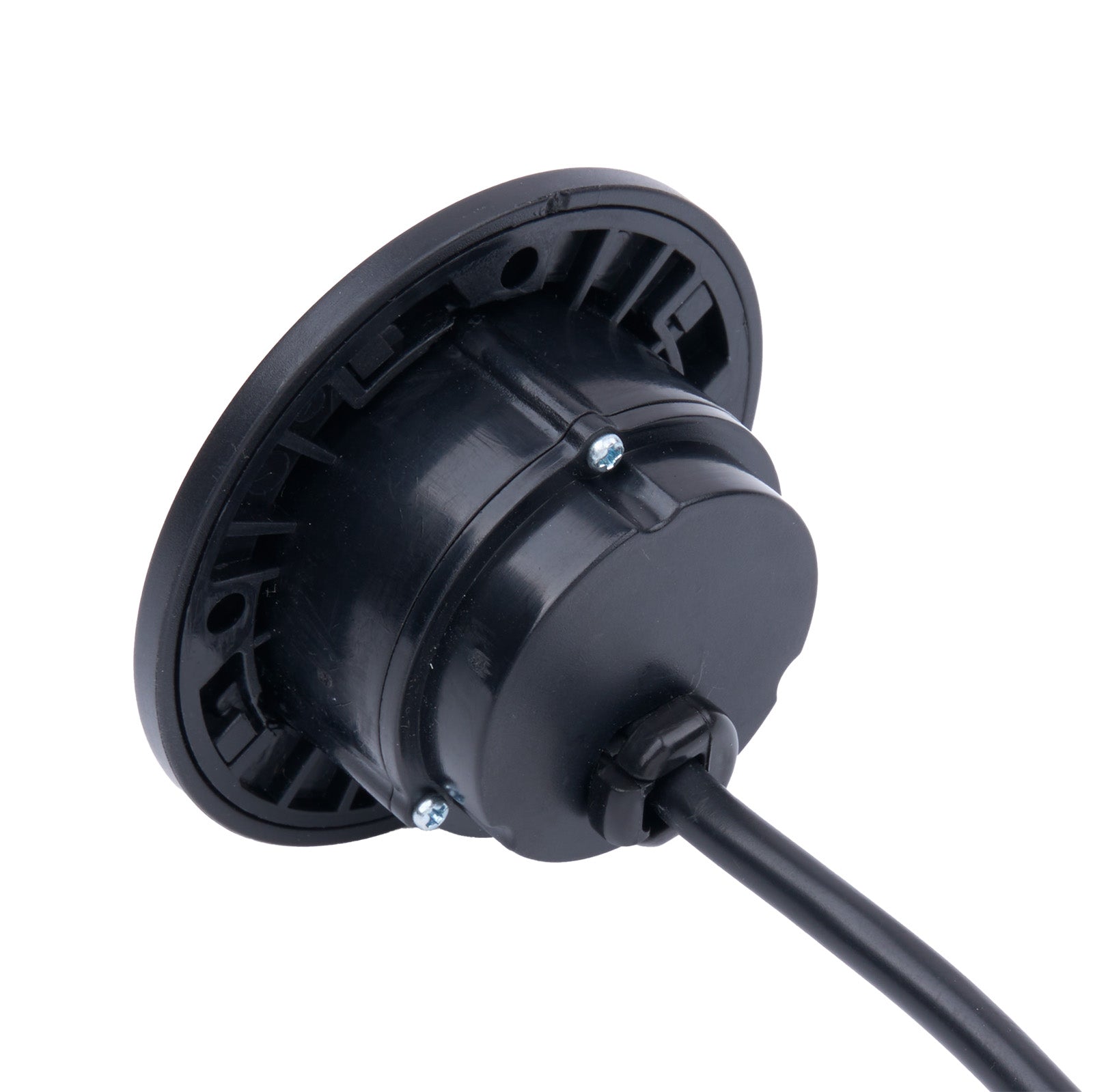

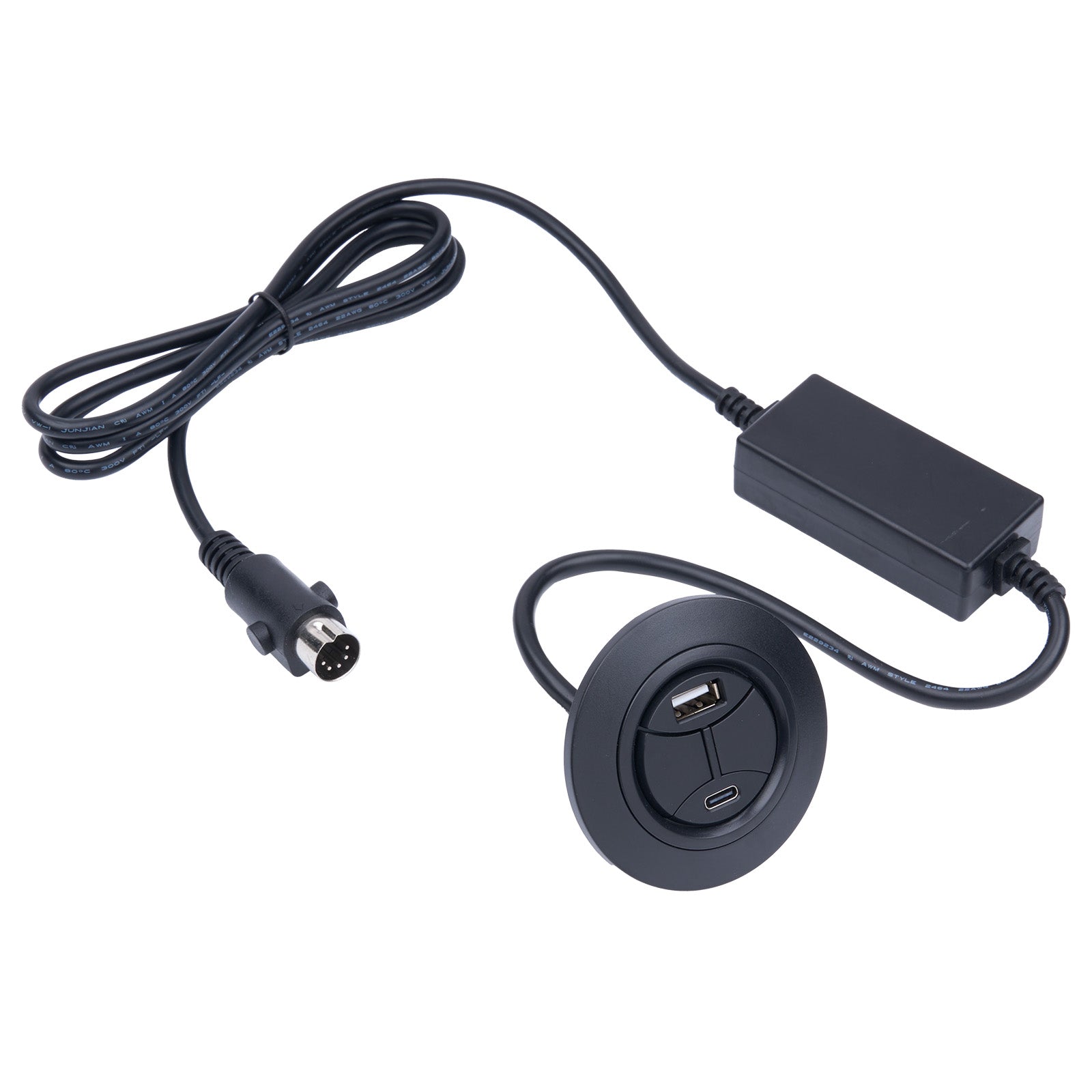

Round 2-Button 5 Pin Switch for Recliner RB00100225 RK23300225X000(L) W/ Type A & Type C Charging Port

This is a genuine RB00100225 switch, with manufacturer part number RK23300225X000(L). This two-button, 5-pin switch is designed for use with power recliners and lift chairs that operate with a single motor.

Compatibility:

• This switch is a direct replacement for the RK23300225X000(L), RK23300225X000, 23300225X000(L), and 23300225X000 switches.

• It also replaces the RK23300226x000, RK23300216X000, and RK23300217X000 switches; however, due to potential differences in wire sequence, the button functions may be reversed.

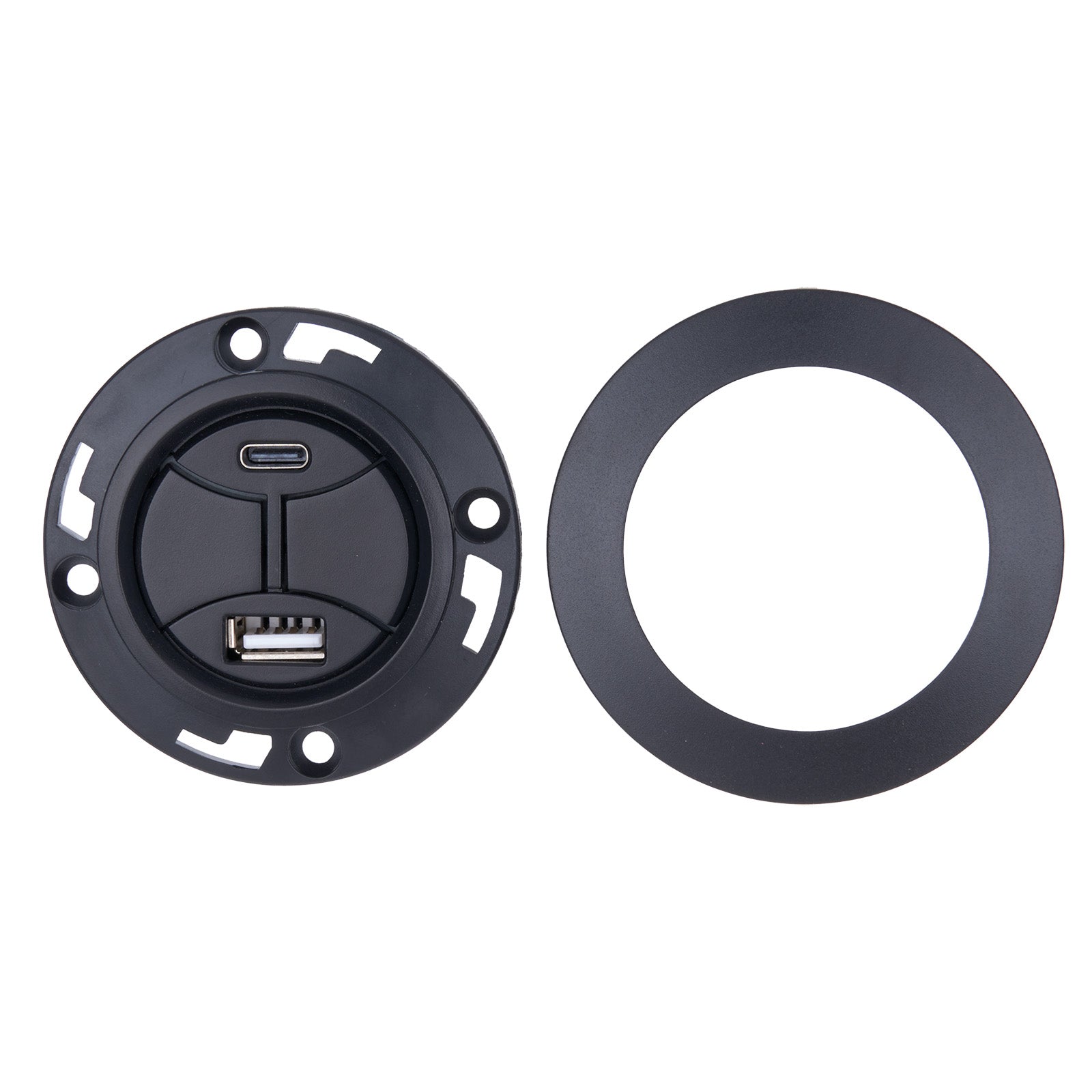

• This model can serve as a universal replacement for other round, two-button switches that share the same dimensions (Control Panel: 6.8cm/2.7inch; Mounting Hole: 4.6cm/1.8inch) and use a straight, male 5-pin plug.

Features:

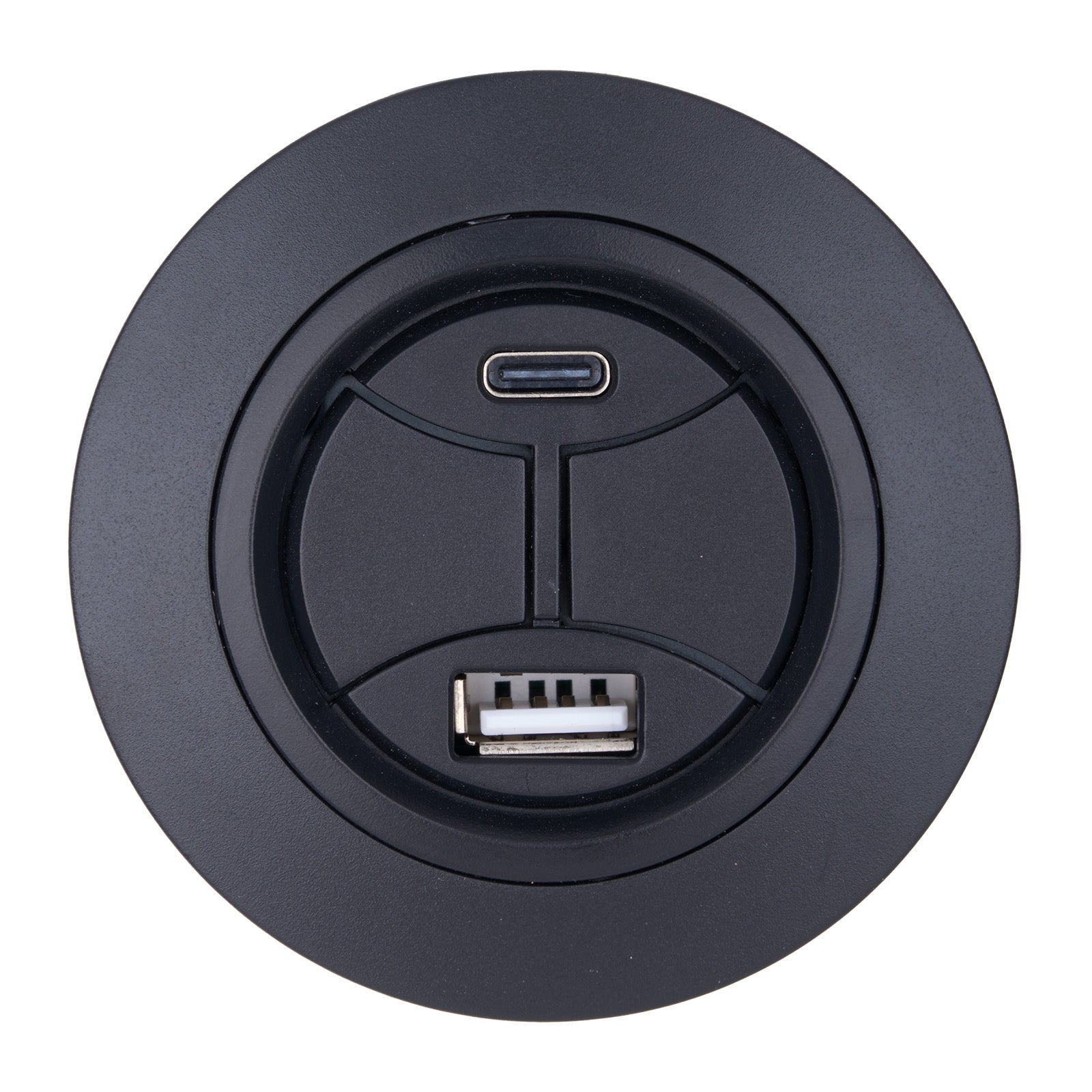

• Two-Button Control: Manages the open/close (or up/down) functions of the recliner or lift chair.

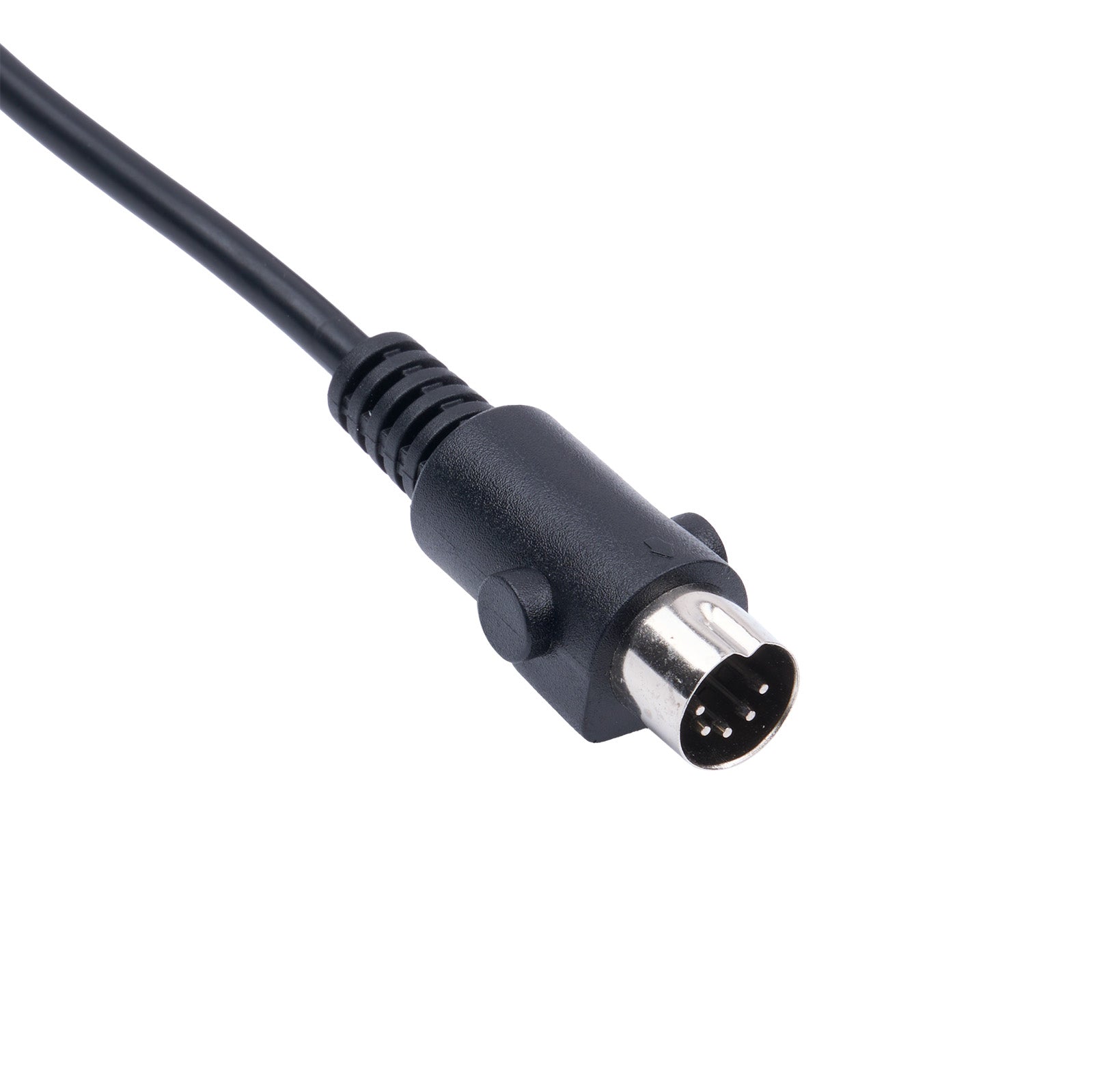

• 5-Pin Male Plug: Connects directly to the chair's lift motor.
• Dual USB Charging Ports: Features both Type-A and Type-C USB ports with a 5V/1.5A output, providing convenient charging for a wide range of modern and legacy devices.

Specifications:

• Model Number: RB00100225 (the model number might be different sometimes)

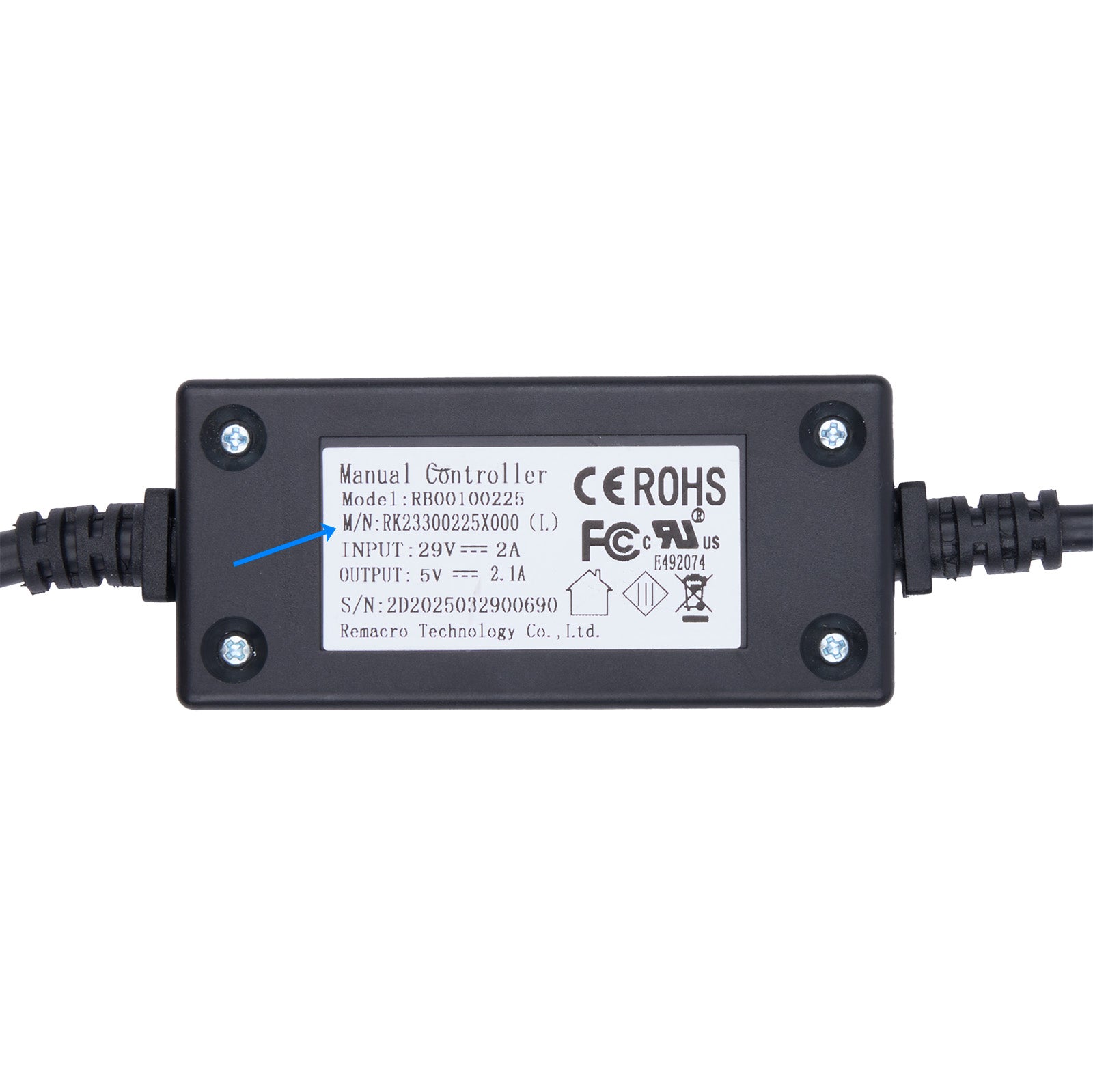

• Manufacturer Part Number: RK23300225X000(L) (this is the unique identifier of the switch)
• Input: 29V 2A
• Output: 5V 1.5A
• Cable Length: 1.6m / 5.3ft
• Control Panel Dimensions: 6.8cm / 2.7inch
• Mounting Hole Size: 4.6cm / 1.8inch
• Thickness: 2.5cm / 1inch
