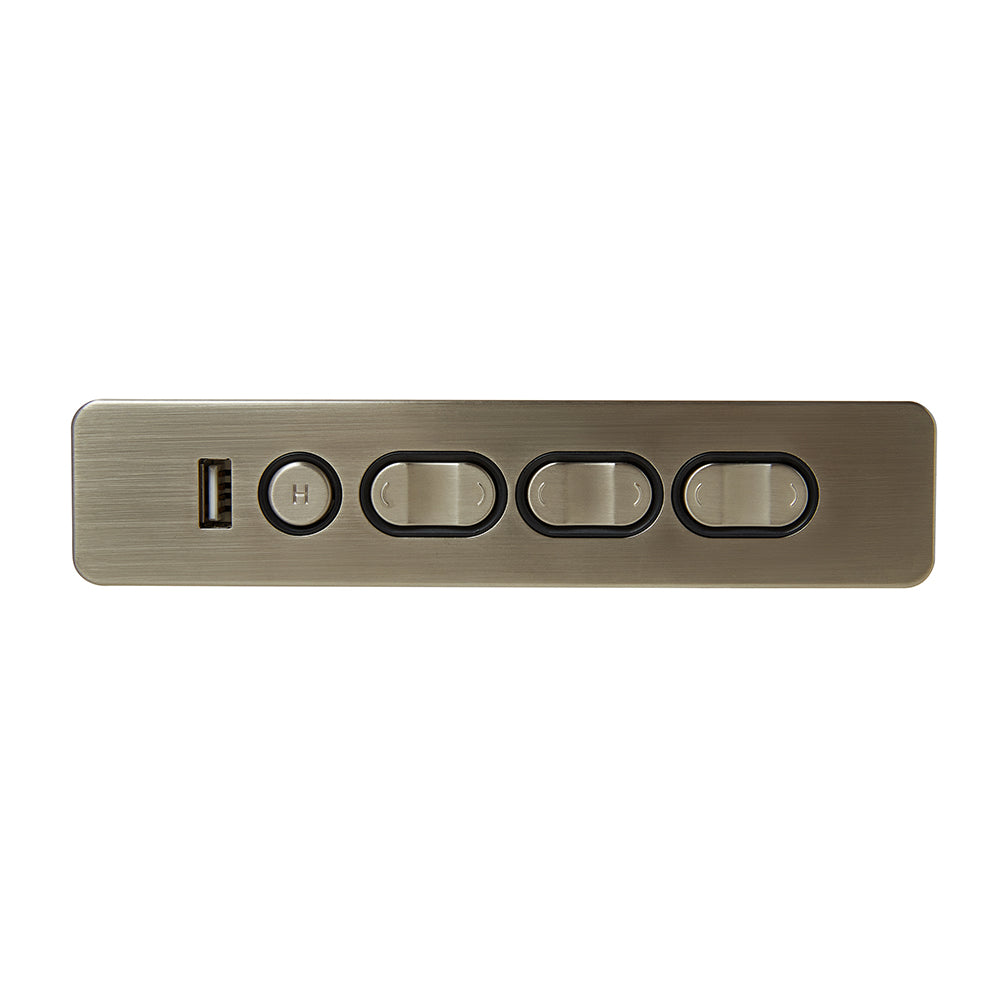

RMT R22231010186 Recliner Side Switch 7 Button with USB

RMT R22231010186 Recliner Side Switch 7 Button with USB

Regular price $50.00 USD
Regular price Sale price $50.00 USD
Sale Sold out
Shipping calculated at checkout.
  • This is the genuine R22231010186 Recliner Switch, if your switch has the same model number, you can use this switch to replace yours.
  • According to the customer's feedback, this switch can replace the DL-SK-083-D2-02 and DL-SK-083-D2-03 switch which is used on some chairs made by Manhwa.

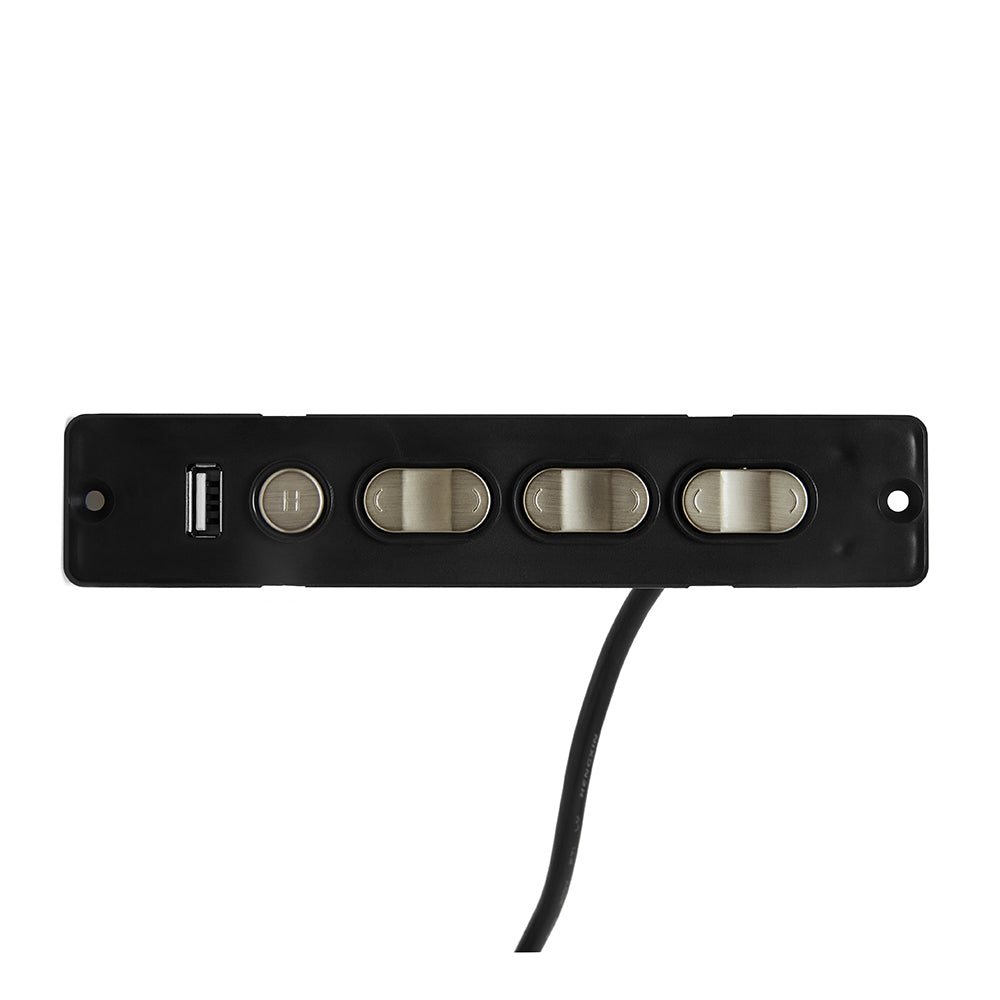

  • The switch has 7 buttons, it is suitable for recliners with 3 linear actuator motors
  • With a USB charging port, you can use it to charge your mobile device

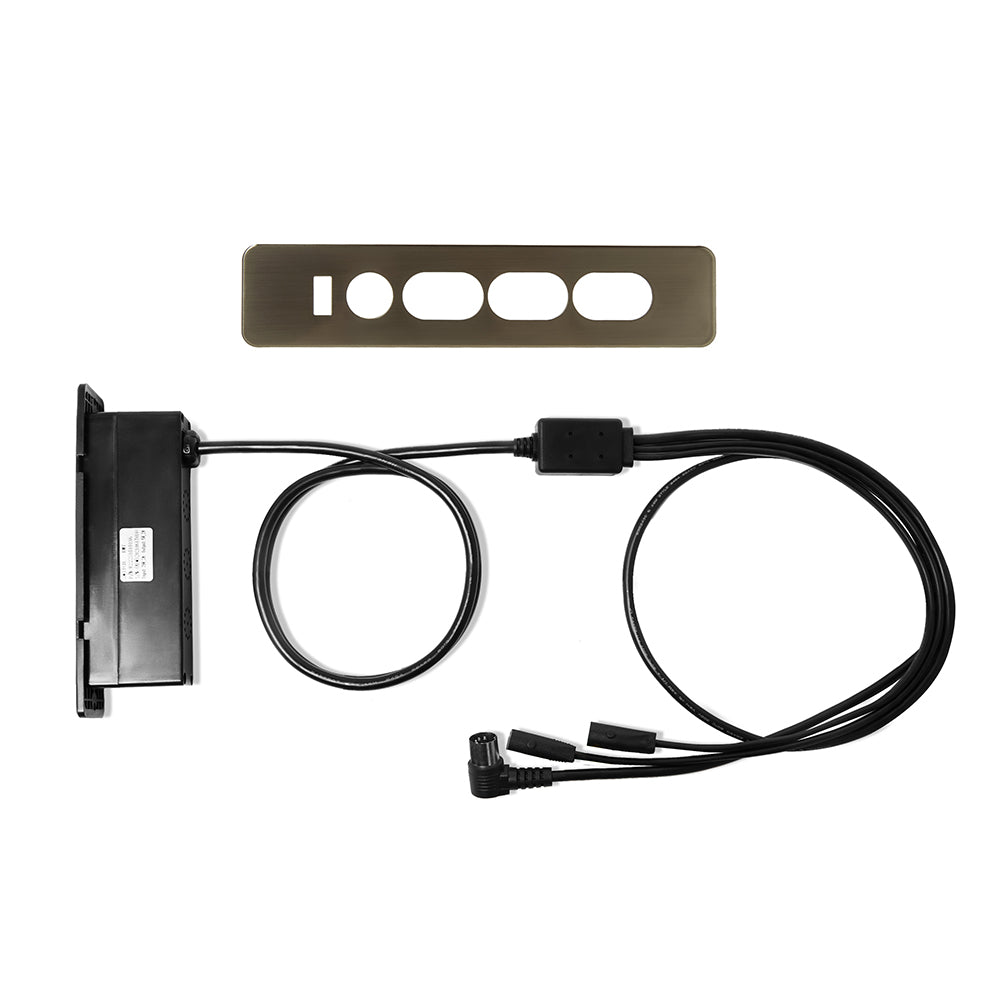

  • This switch has 3 plugs: 1*right angled 5 pin male plug, and 2* 2 pin female plug.

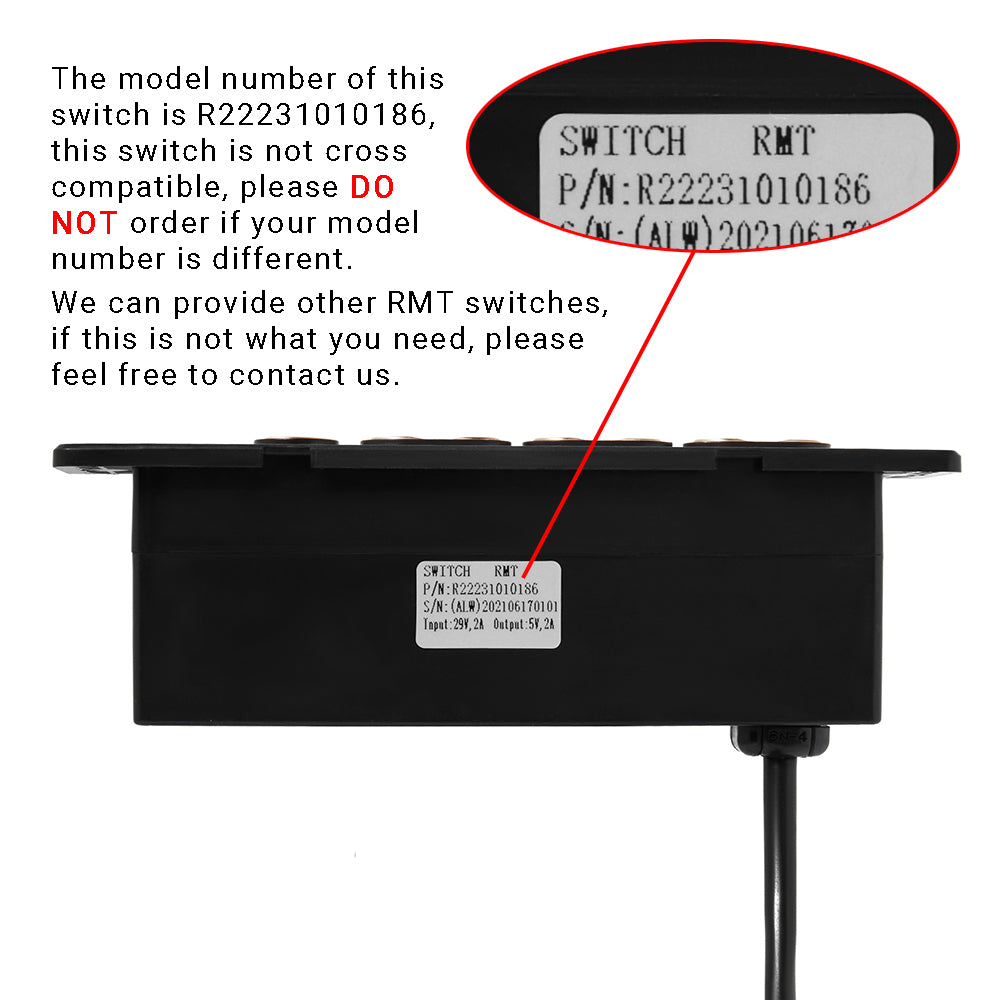

  • Model Number: R22231010186
  • Brand: RMT
  • Rated Voltage: 29V 2A
  • USB port output: 5V 1A



  • The R22231010186is not a universal switch, please only order when your switch has the same model number.
  • The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
  • When you are installing the switch, do not install the plastic cover until everything is done.
  • After installing this switch to your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
  • Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, and quick operation is more likely to cause damage to the switch.
