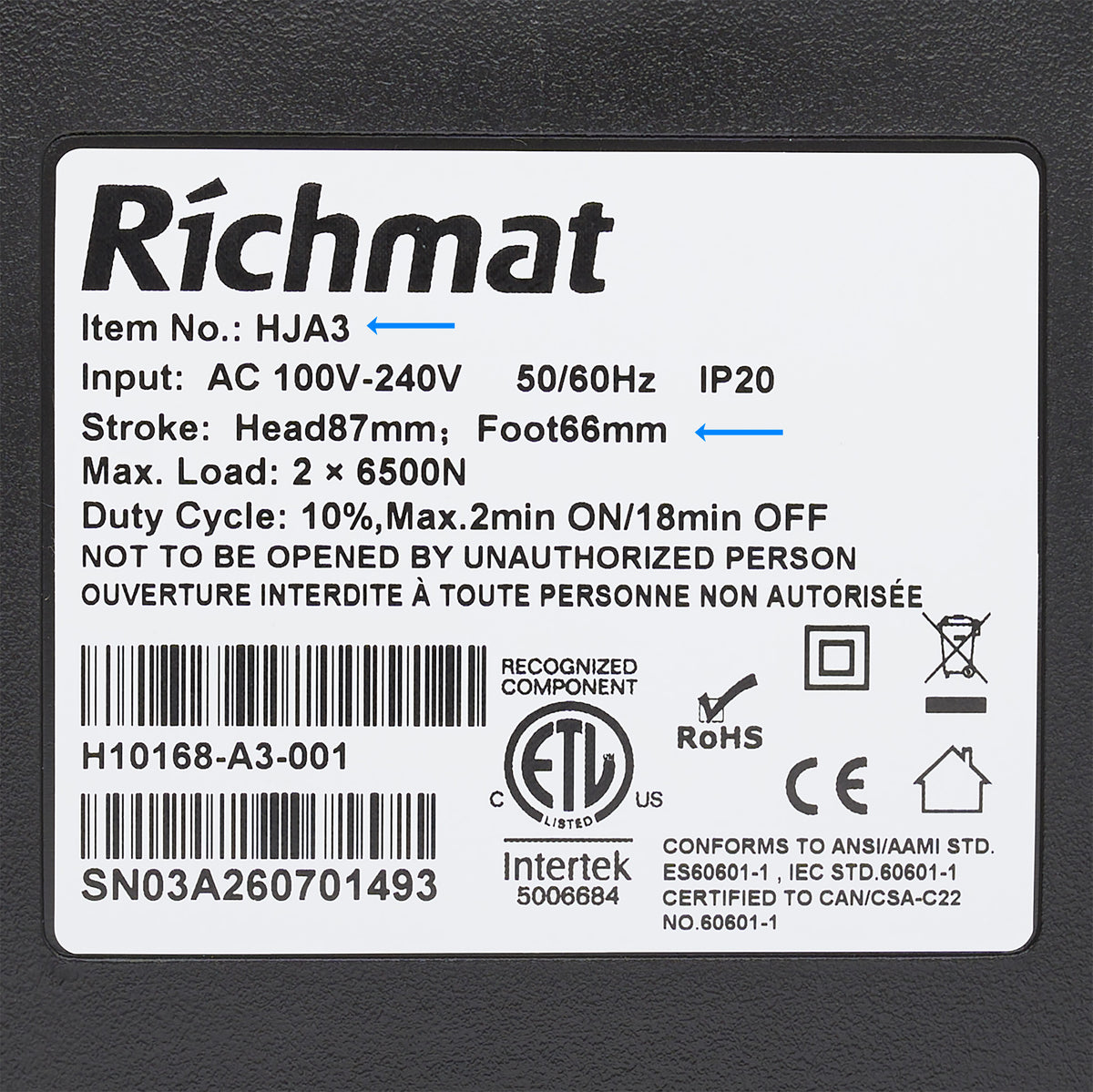

  • Tag of the Richmat HJA3 Dual Motor Linear Actuator
  • Connection Diagram of the Richmat HJA3 Dual Motor Linear Actuator
  • Top view of the Richmat HJA3 Dual Motor Linear Actuator with Lid Opened

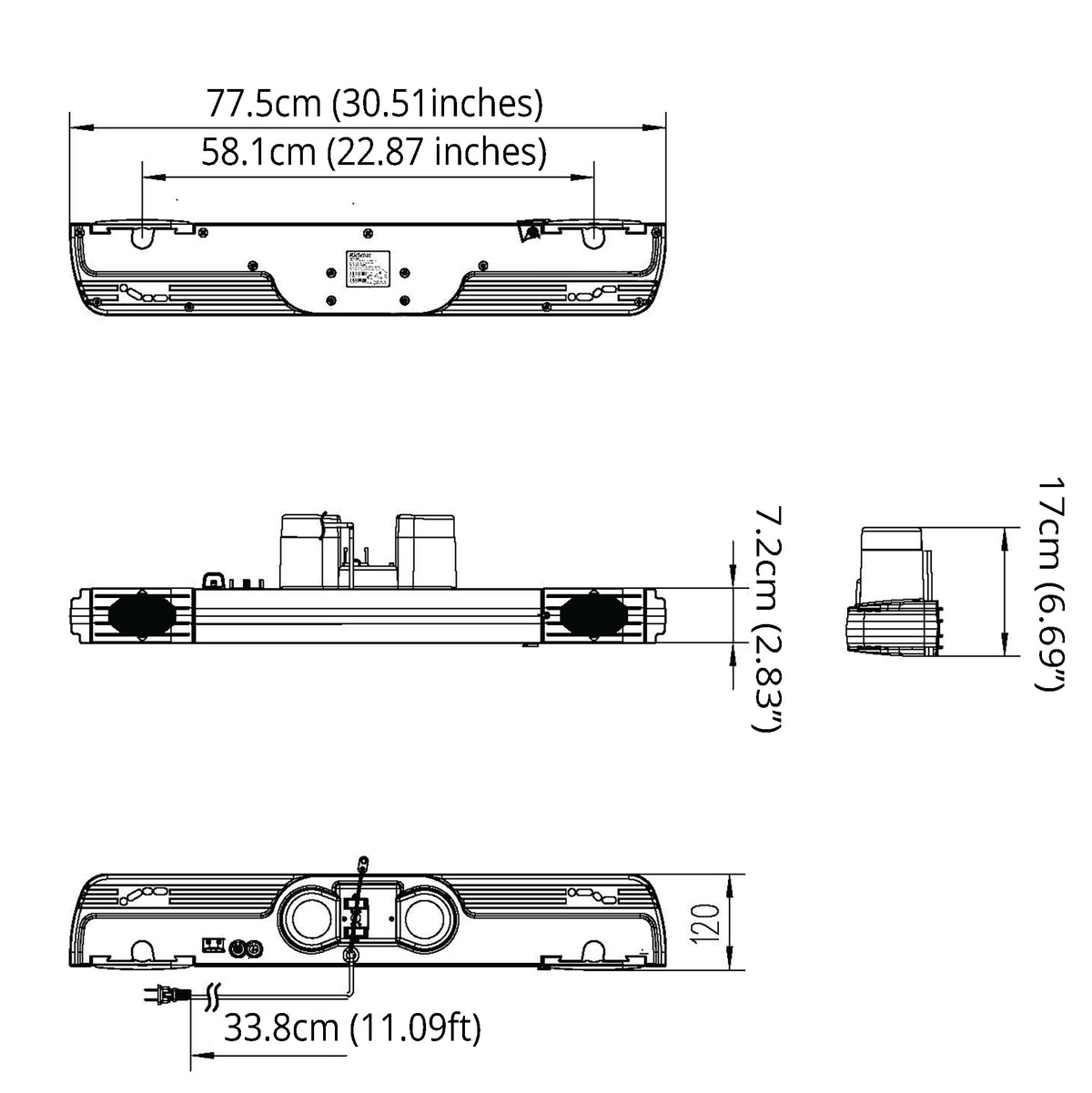

  • Dimension of the Richmat HJA3 Dual Motor Linear Actuator

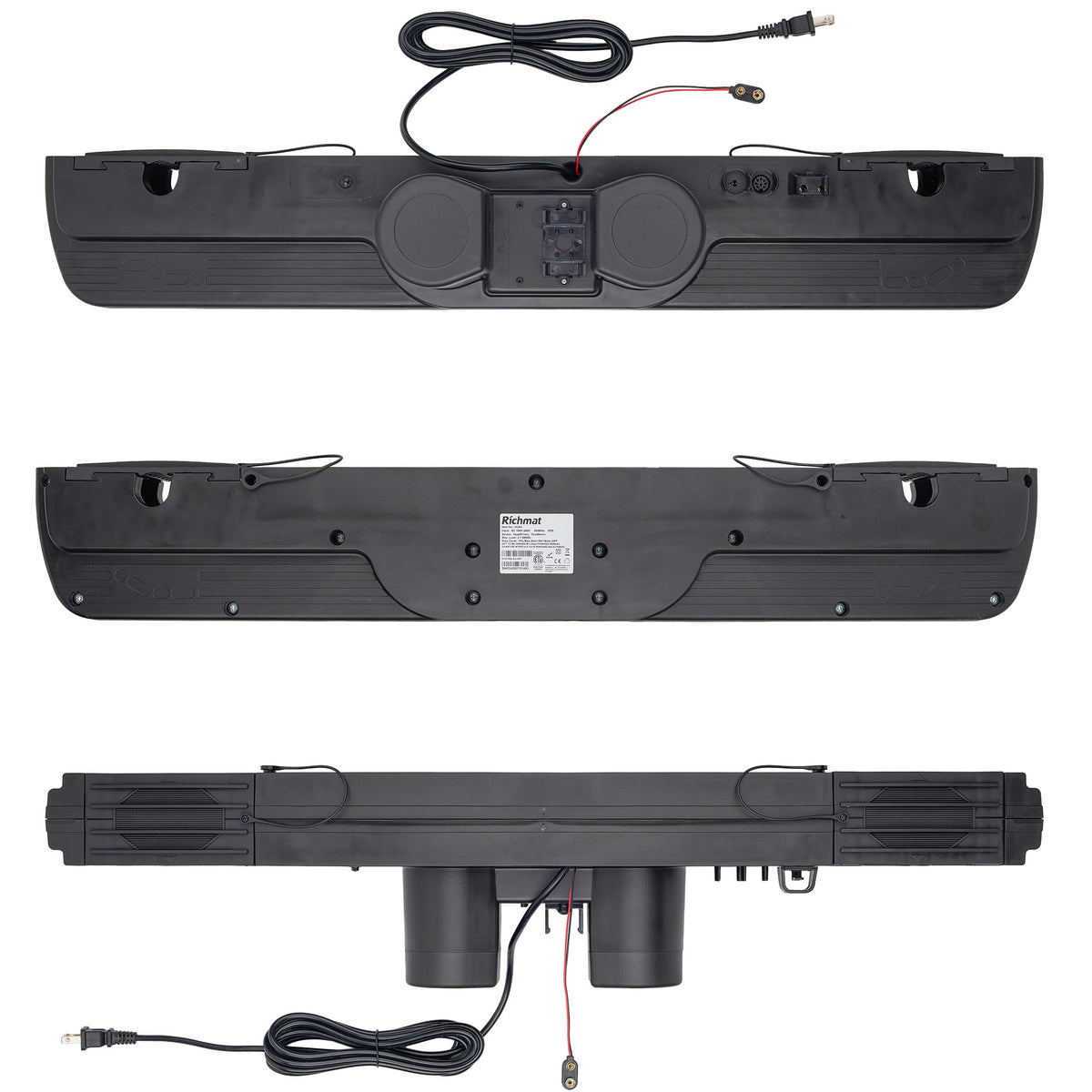

  • Three-view drawing of the Richmat HJA3 Dual Motor Linear Actuator

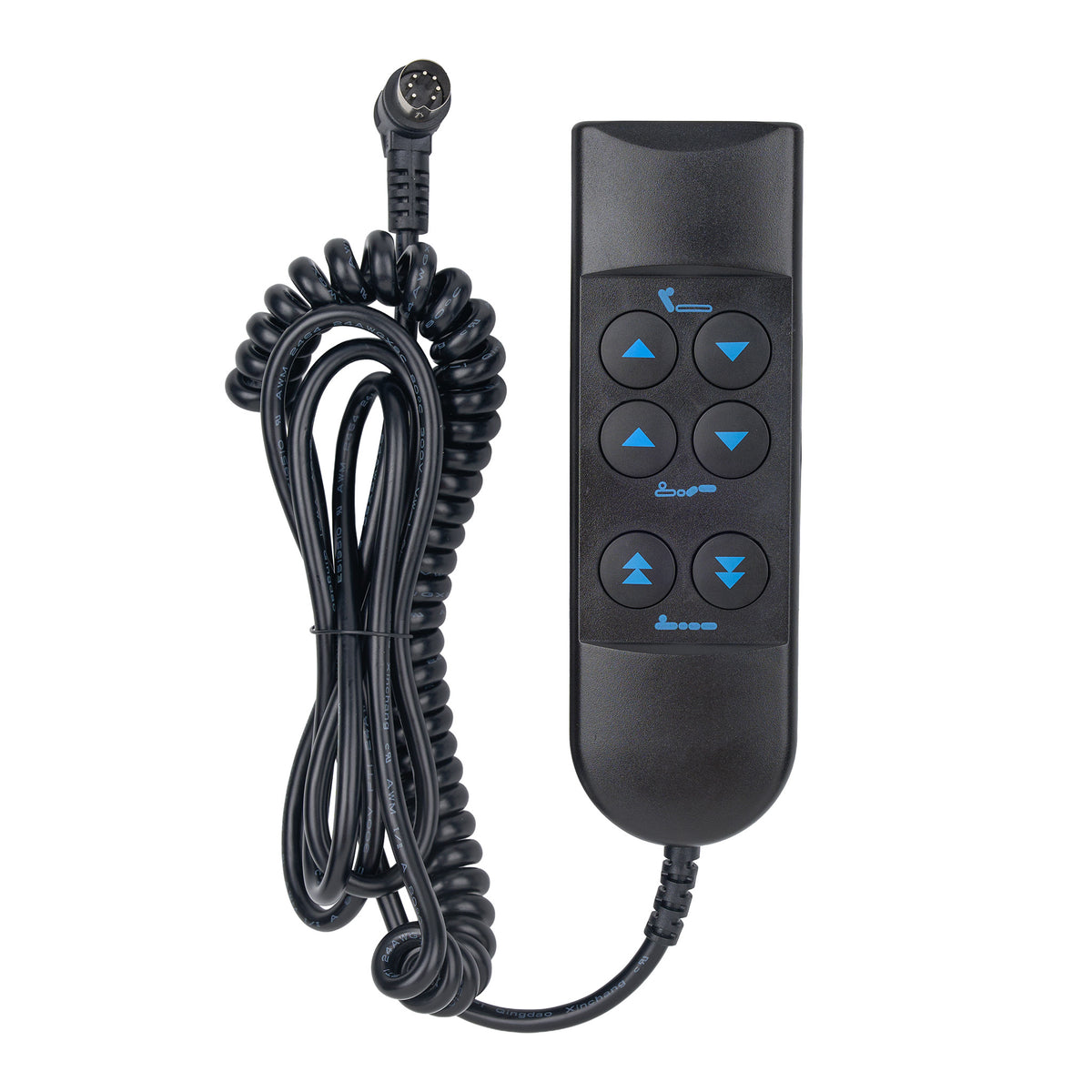

  • Remote Controller of the Richmat HJA3 Dual Motor Linear Actuator

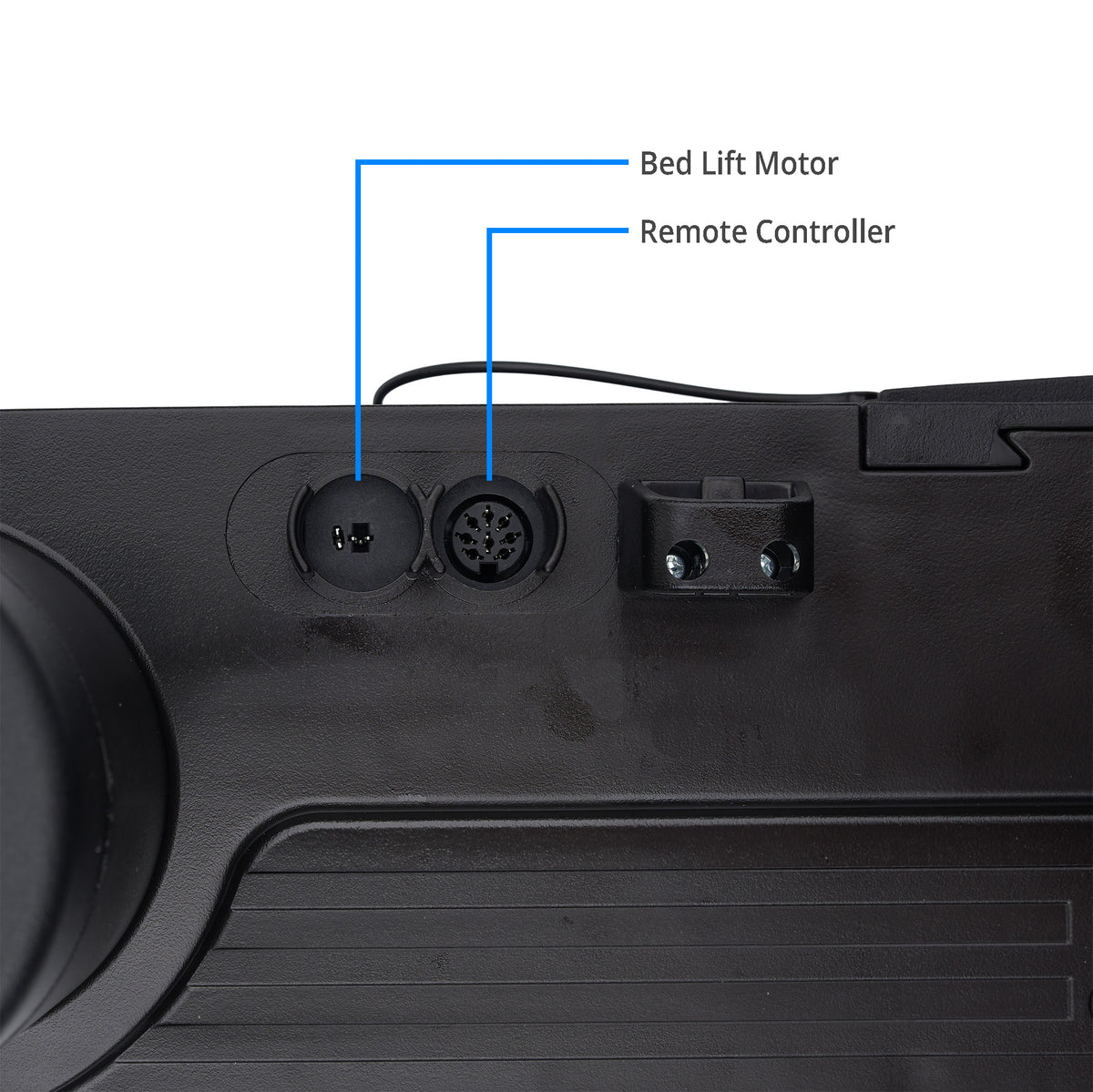

  • Sockets of the Richmat HJA3 Dual Motor Linear Actuator
  • Battery stripe and Holder of the Richmat HJA3 Dual Motor Linear Actuator
1 9

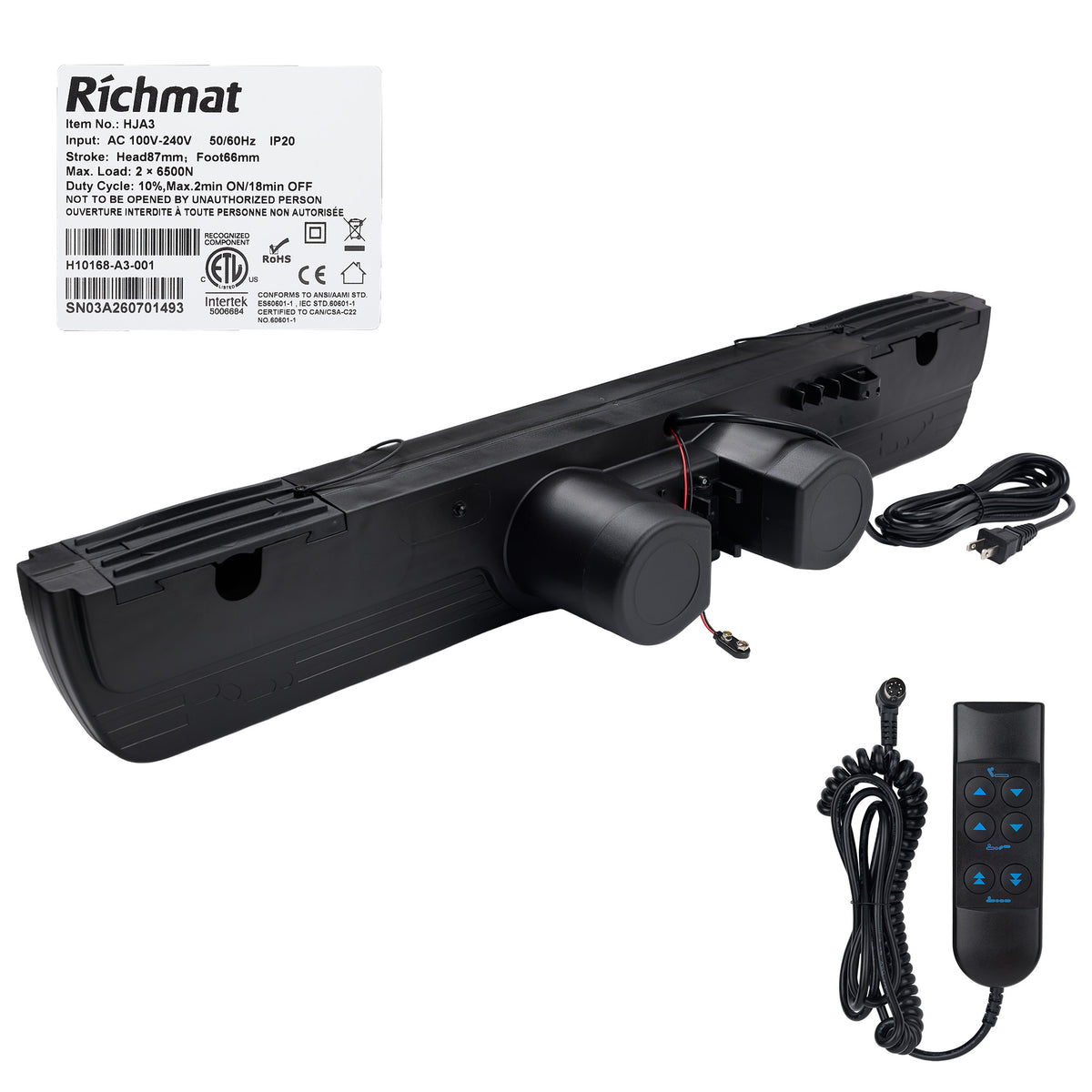

Richmat HJA3 Dual Motor Linear Actuator for Adjustable Beds & Hospital Beds with Wired Controller

Richmat HJA3 Dual Motor Linear Actuator for Adjustable Beds & Hospital Beds with Wired Controller

US orders ship from the US; international orders ship from China.

$174.99 USD
$174.99 USD
Sale Sold out
Shipping calculated at checkout.

⚠ No Return Disclaimer

  • This actuator is non-returnable and non-refundable.
  • Before purchasing, we strongly recommend troubleshooting your switch and power supply.
  • Please avoid purchasing this actuator solely for testing purposes.

Shipping Information

Lead Time:

  • 1-15 business days (varies based on stock availability)

Shipping Methods and Estimated Delivery Times:

  • United States:
    The default shipping method is registered mail (7-15 days).
  • Other Countries: DHL or registered mail parcel service (7-15 days)

Address Considerations:

  • P.O. Boxes: Express shipping is not available to P.O. Box addresses. Registered mail parcel service will be used instead.
  • Full Name: Please provide your full name, as express carriers do not accept initials.

Import Duties and VAT:

  • For European customers: VAT will be charged at checkout.
  • For UK and Canadian customers: You may need to pay import duties or VAT for your package. We are unable to withhold and pay it for you, you need to pay it to the courier before they deliver your package. Usually, the courier will send you an email to inform you of the tax.
  • This kit includes the HJA3 dual motor actuator and a 6-button wired remote controller.
  • The HJA3 actuator is designed for adjustable bed bases and hospital beds. It drives the head & foot up/down, in addition, it has a 2-pin socket on the motor body which connects to an independent motor which drives the entire bed up/down.
  • The remote controller features 6 buttons, controls headrest up/down, footrest up/down, and entire bed up/down.

Compatibility:

  • This kit can replace HJA3, HJA1, and HJA1S dual motor linear actuators (with or without a bed-lift socket) that meet the specifications below.
    • Mounting hole distance: 581mm (±1mm)
    • Head stroke: 87mm (±1mm)
    • Foot stroke: 66mm (±1mm)
  • It cannot replace motors equipped with a vibration massage socket.
  • This kit only has a wired remote controller, no wireless remote controller.

Package Includes

  • HJA3 dual actuator motor x1
  • 6-button wired remote x1
  • Battery Notice: 9V battery (for emergency power) not included.

Specification:

  • Item No.: HJA3
  • Input: AC 100V-240V 50/60Hz IP20
  • Stroke: Head 87mm; Foot 66mm
  • Max. Load: 2 x 6500N (6500N per motor)
  • Duty Cycle: Max. 2 min ON, 18 min OFF (10% duty cycle).

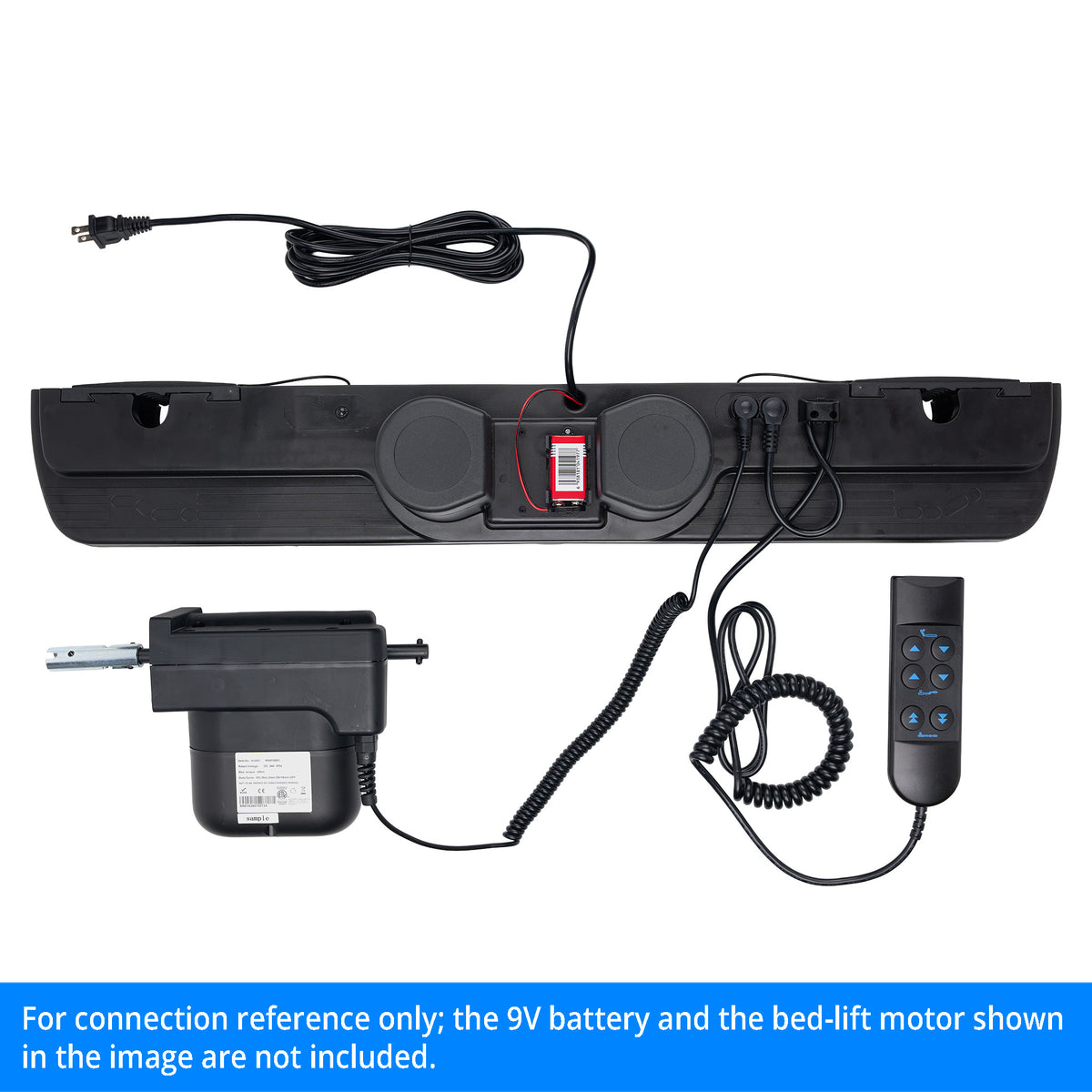

Connection Diagram of the Richmat HJA3 Dual Motor Linear Actuator

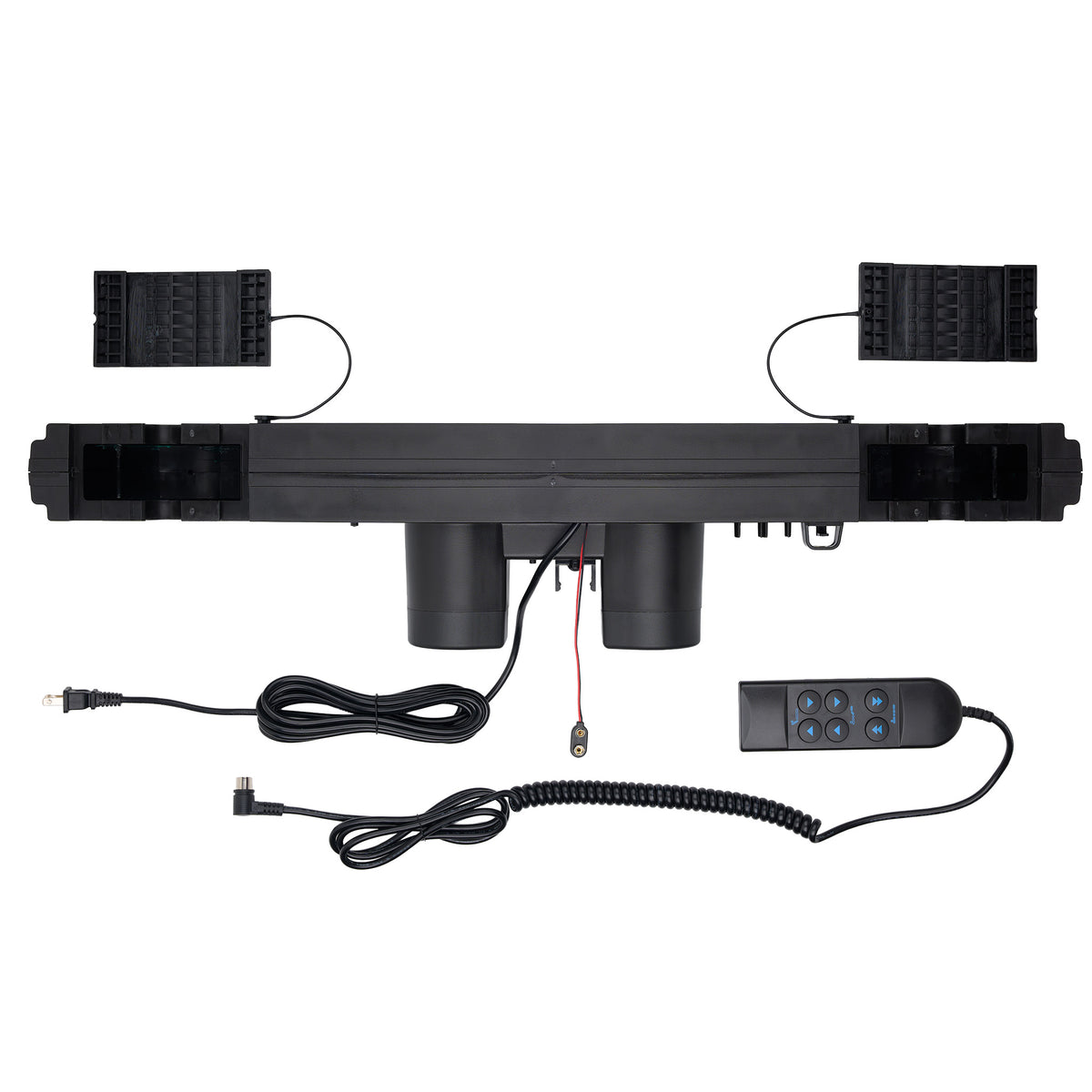

Top view of the Richmat HJA3 Dual Motor Linear Actuator with lid opended
Front view of the Richmat HJA3 Dual Motor Linear Actuator
Back view of the Richmat HJA3 Dual Motor Linear Actuator
Front 45 degree view of the Richmat HJA3 Dual Motor Linear Actuator
Back 45 degree view of the Richmat HJA3 Dual Motor Linear Actuator
Close-up of the plug of the Richmat HJA3 Dual Motor Linear Actuator
Close-up of the socket of the Richmat HJA3 Dual Motor Linear Actuator

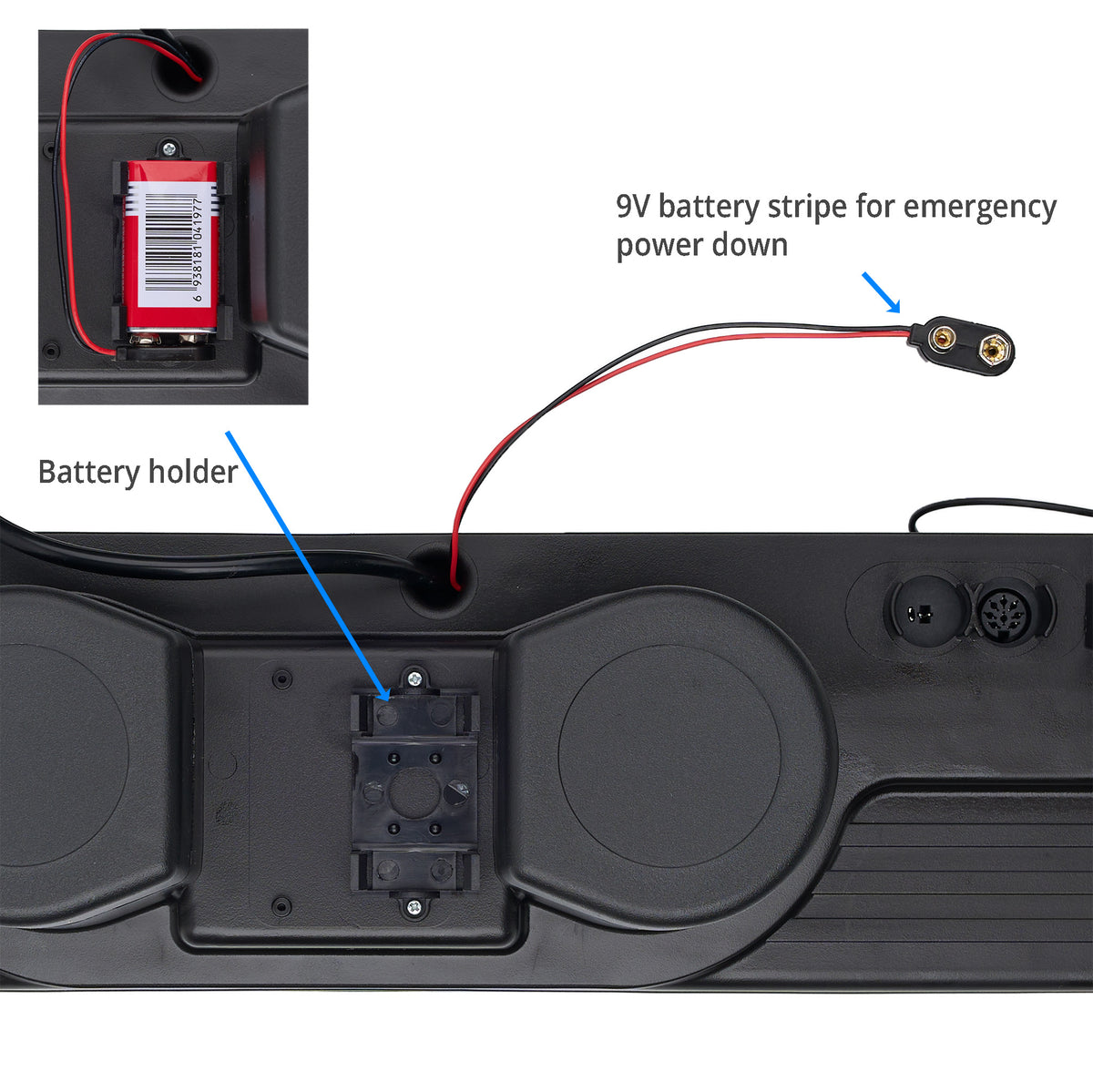

Close-up of the battery holder of the Richmat HJA3 Dual Motor Linear Actuator
Close-up of the rod container of the Richmat HJA3 Dual Motor Linear Actuator
