Replaces DK.08.07.110 Four Button Switch for Power Recliner or Lift Chair

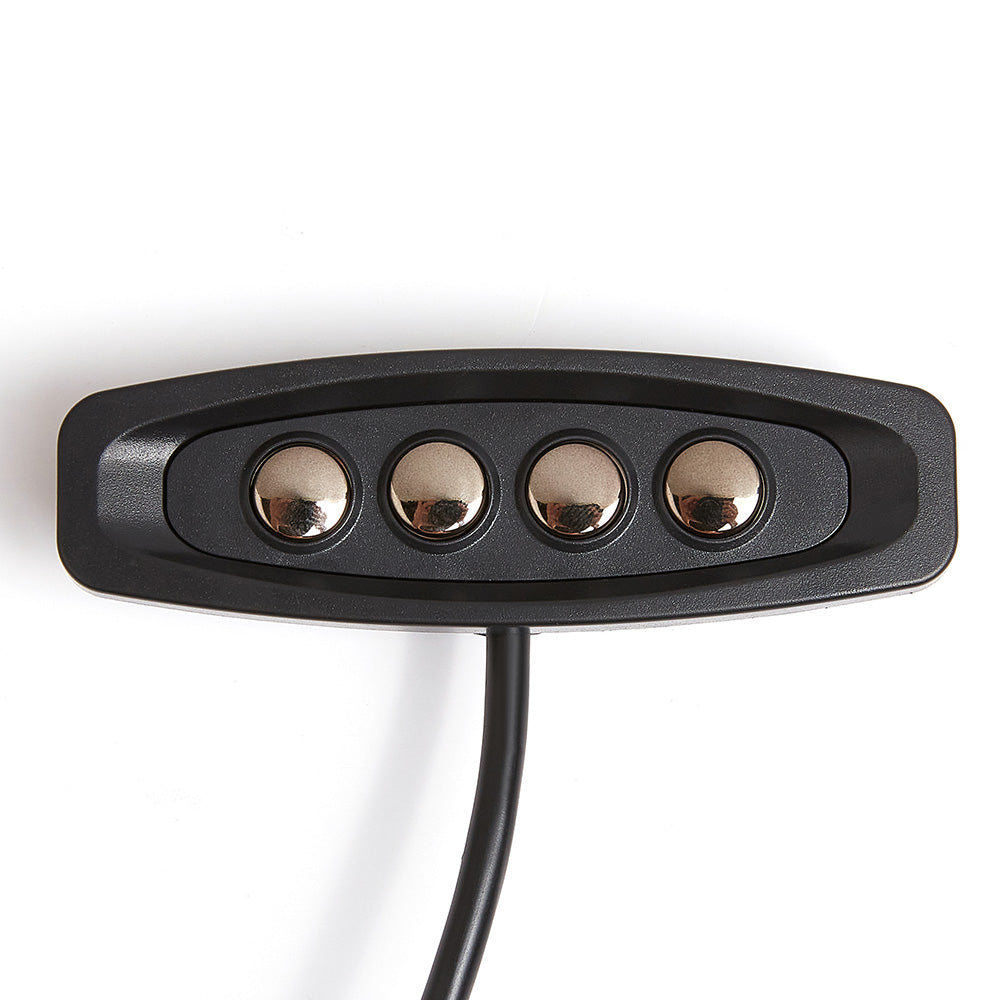

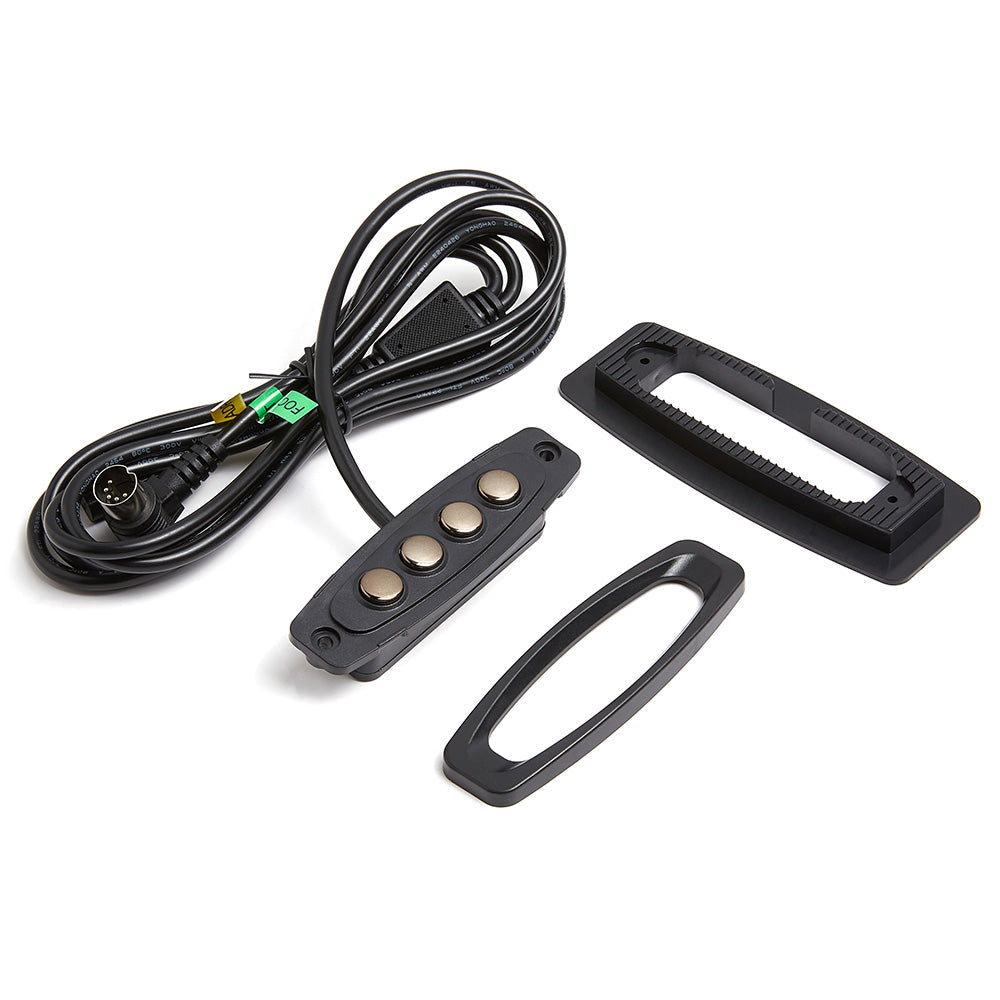

This switch features 4 buttons and a right angled five pin plug, a 2 pin female plug. It replaces the DK.08.07.110 switch seamlessly.

• This switch is suitable for power recliners or lift chairs that have 2 motors.

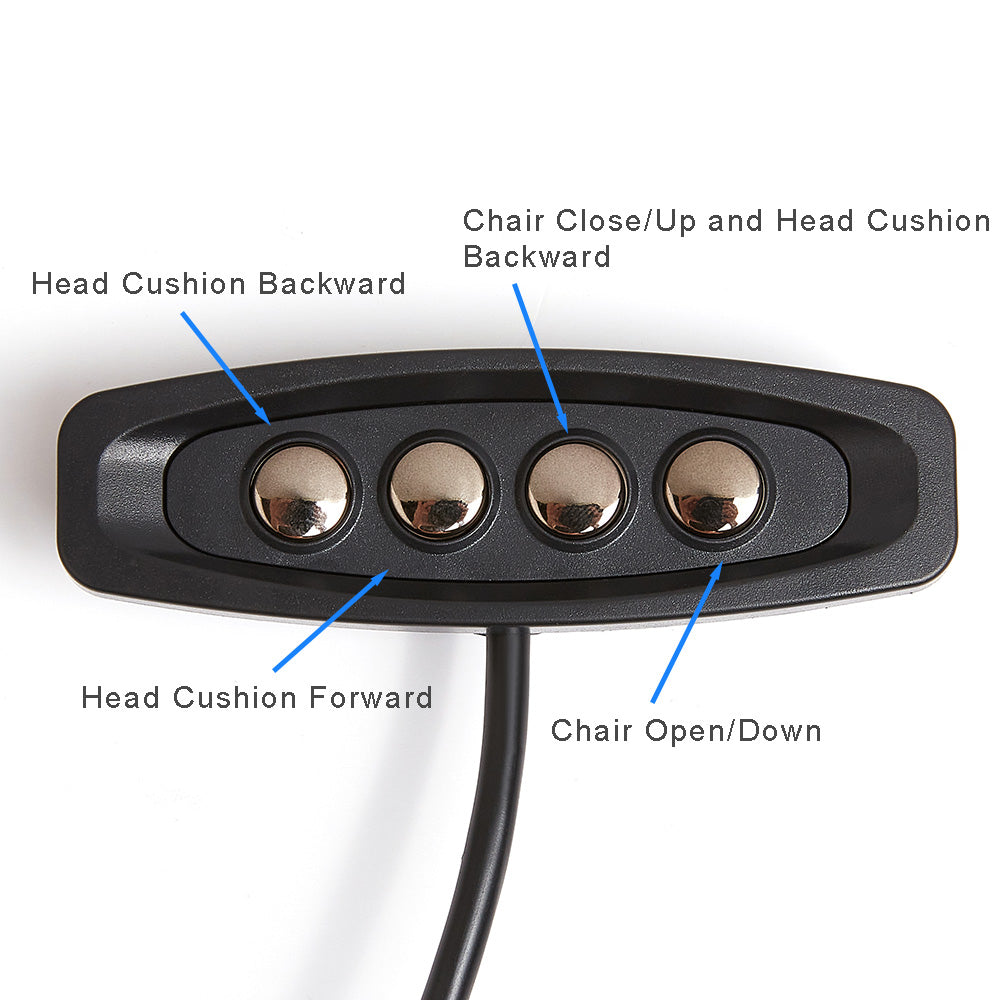

• The switch has four buttons, it operates the head cushion backward and forward; chair open/close (up/down).

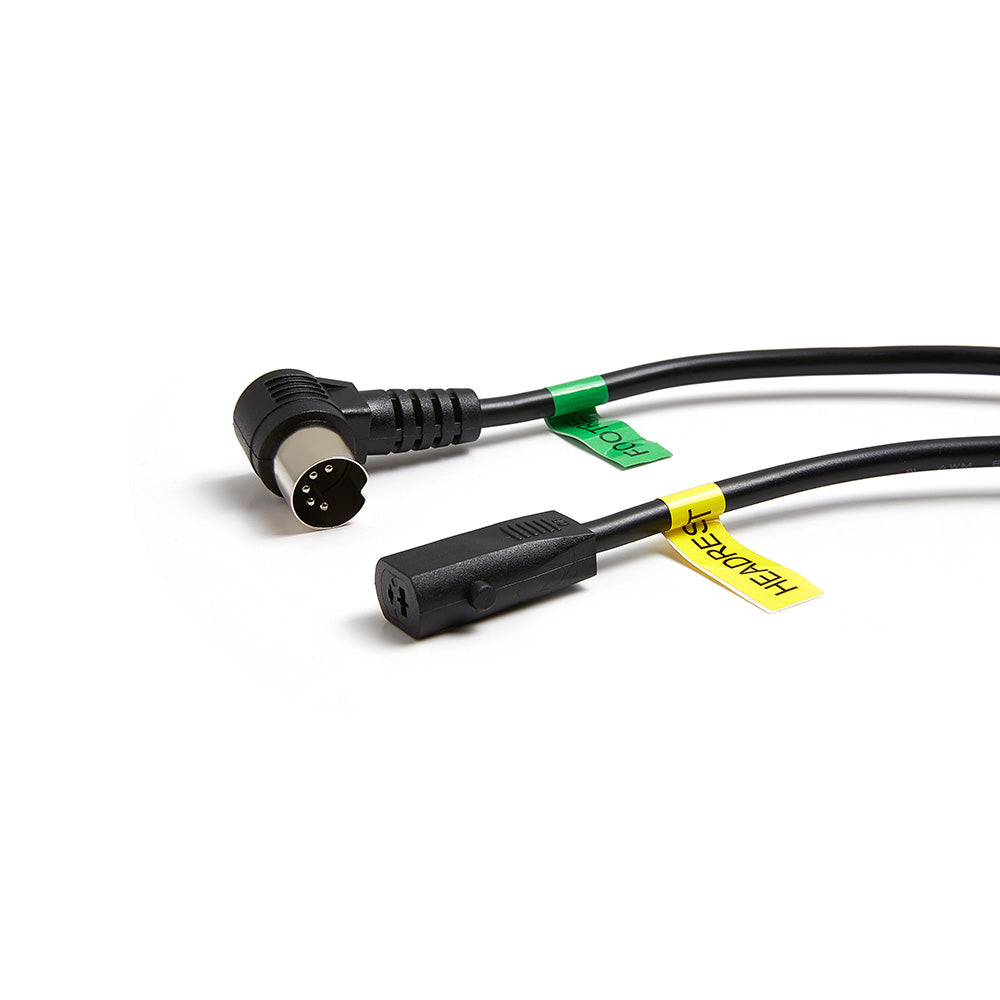

• The switch has two wires & plugs, the 5-pin round plug connects to the up/down motor, the 2-pin plug connects to the head cushion motor.

Please note:

• This is not the genuine DK.08.07.110 switch, but an alternative model with same sepecification.

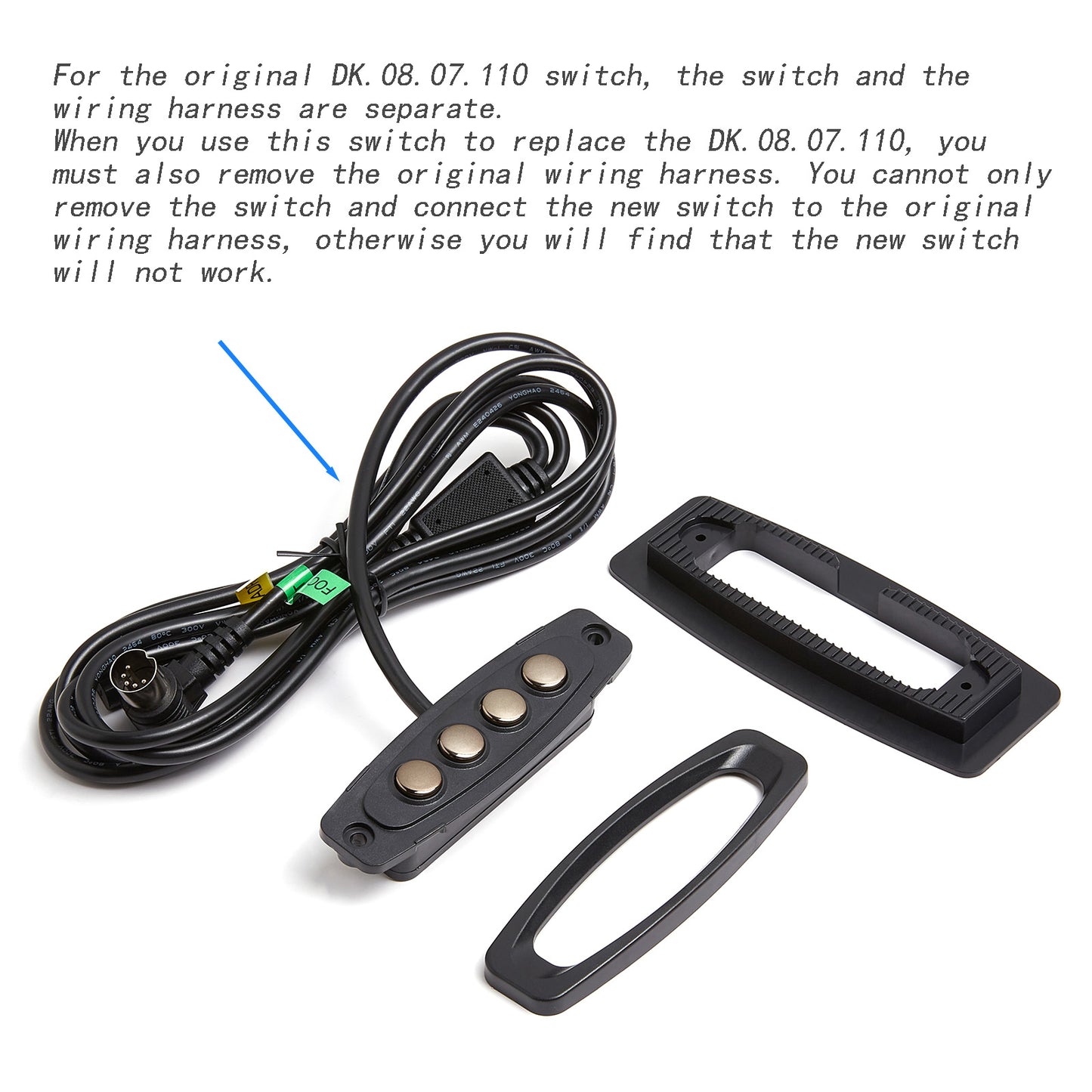

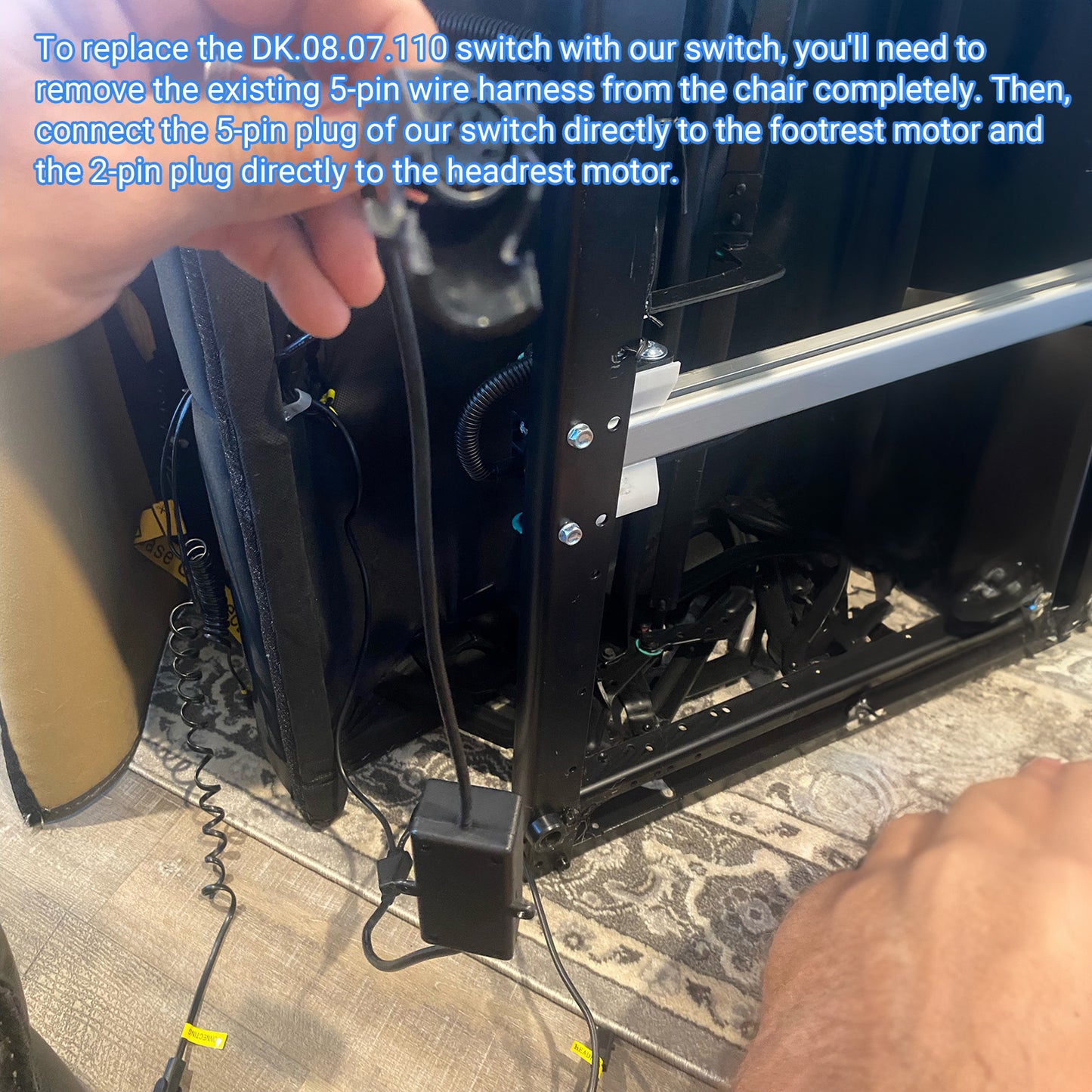

• When you use this switch to replace the DK.08.07.110, you must also remove the original wiring harness. You cannot only remove the switch and connect the new switch to the original wiring harness, otherwise you will find that the new switch will not work.
