Mulin AC108-2MA-2UQ03 5-Button Switch for Power Recliner with 5-Pin Plug and USB & Type-C Ports

Genuine AC108-2MA-2UQ03 Switch features 5 button and uses a round 5 pin male plug, suitable for power recliner or lift chair with 2 motors.

This switch replaces the AC108-2MB-2UQ03 switch with tiny function differences.

Compatibility:

• This switch is a direct replacement for the AC108-2MA-2UQ03 switch.
• This switch replaces the AC108-2MB-2UQ03. The function is slightly different with the home button (requires consistent hold to reset the chair) and chair open button (will not open the headrest syncly), but won't affect compatibility

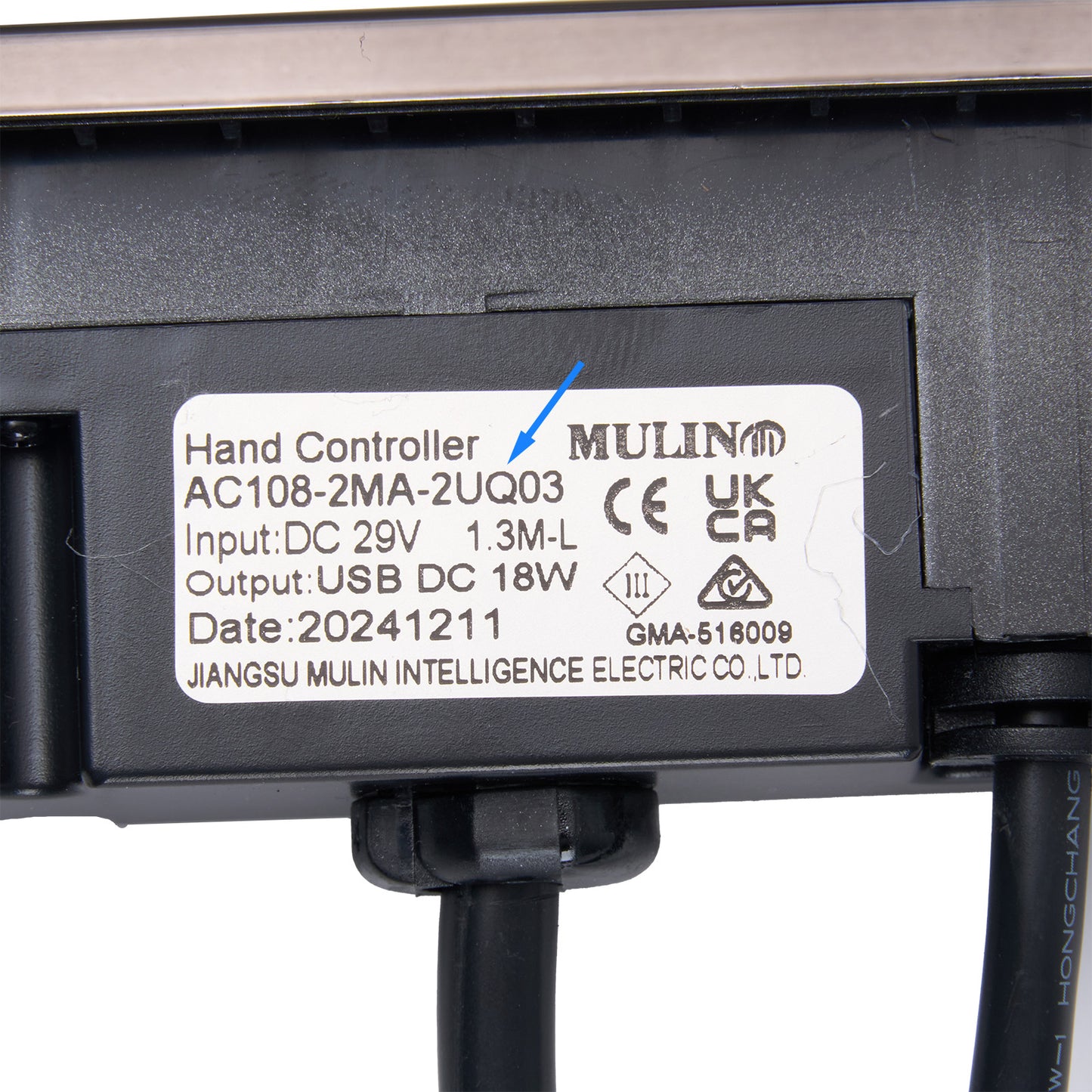

• Please do not order based on the appearance of the switch. Be sure to remove your switch from the armrest and check the model number to determine if this switch will replace yours. As there are some looking switches but not cross compatible because of different plug configuration or wire sequence.


Features:

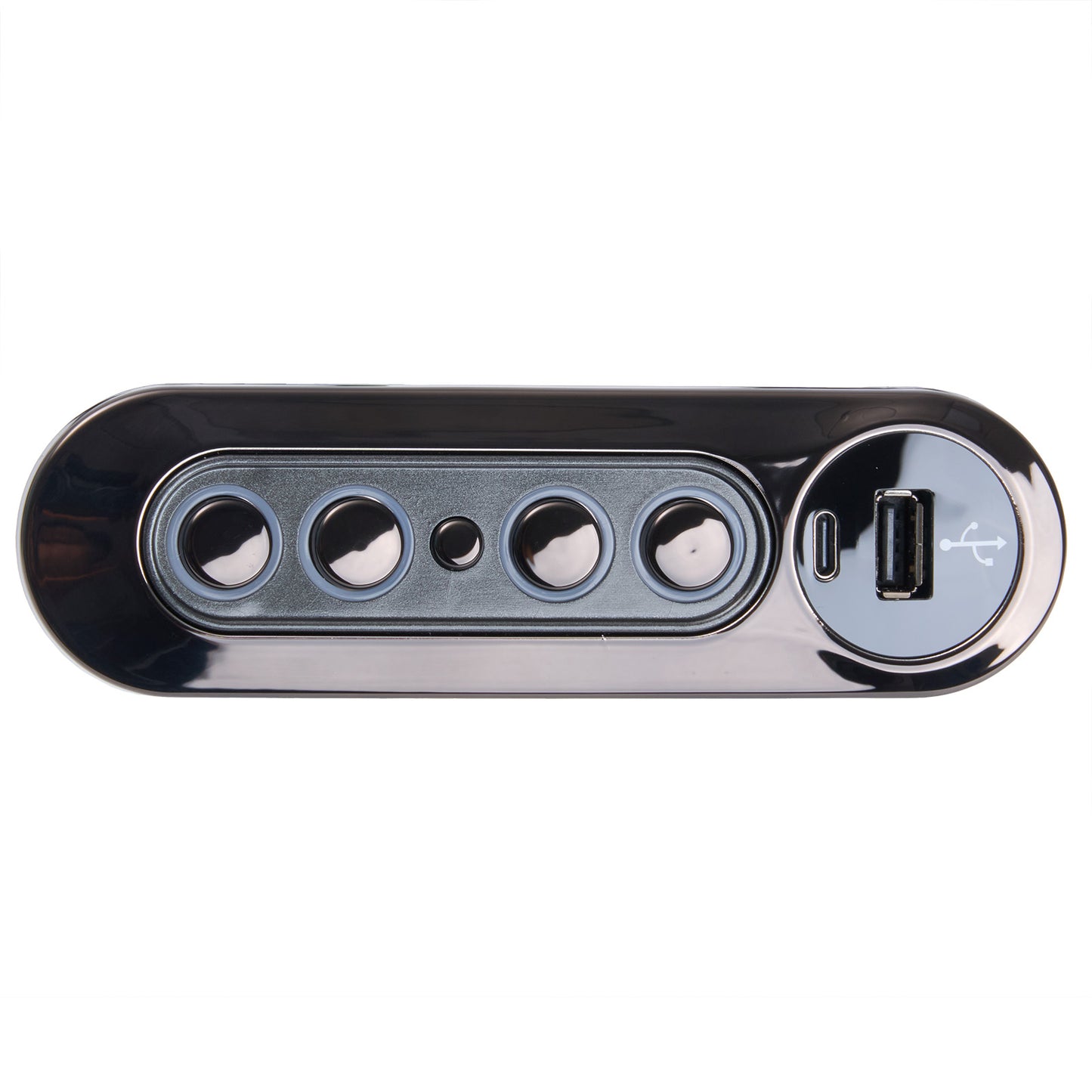

• 5 buttons:
  • Four big round buttons operate the Open/Close of the chair, Tilt of the headrest.
  • A small round button in center resets the chair to upright position.

• USB and Type C charging port: for charging mobile devices

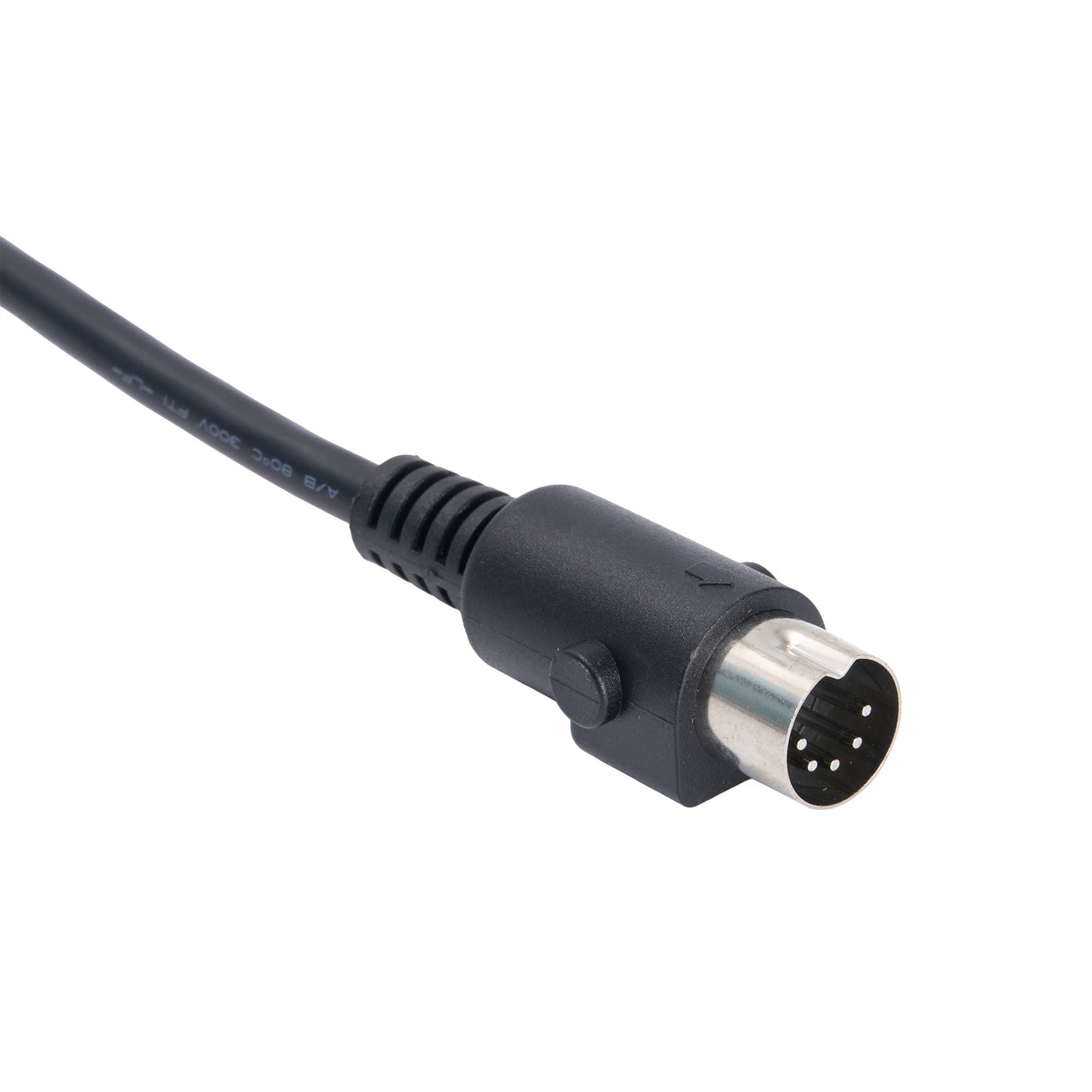

• Round 5 pin male plug: connects to the footrest motor.

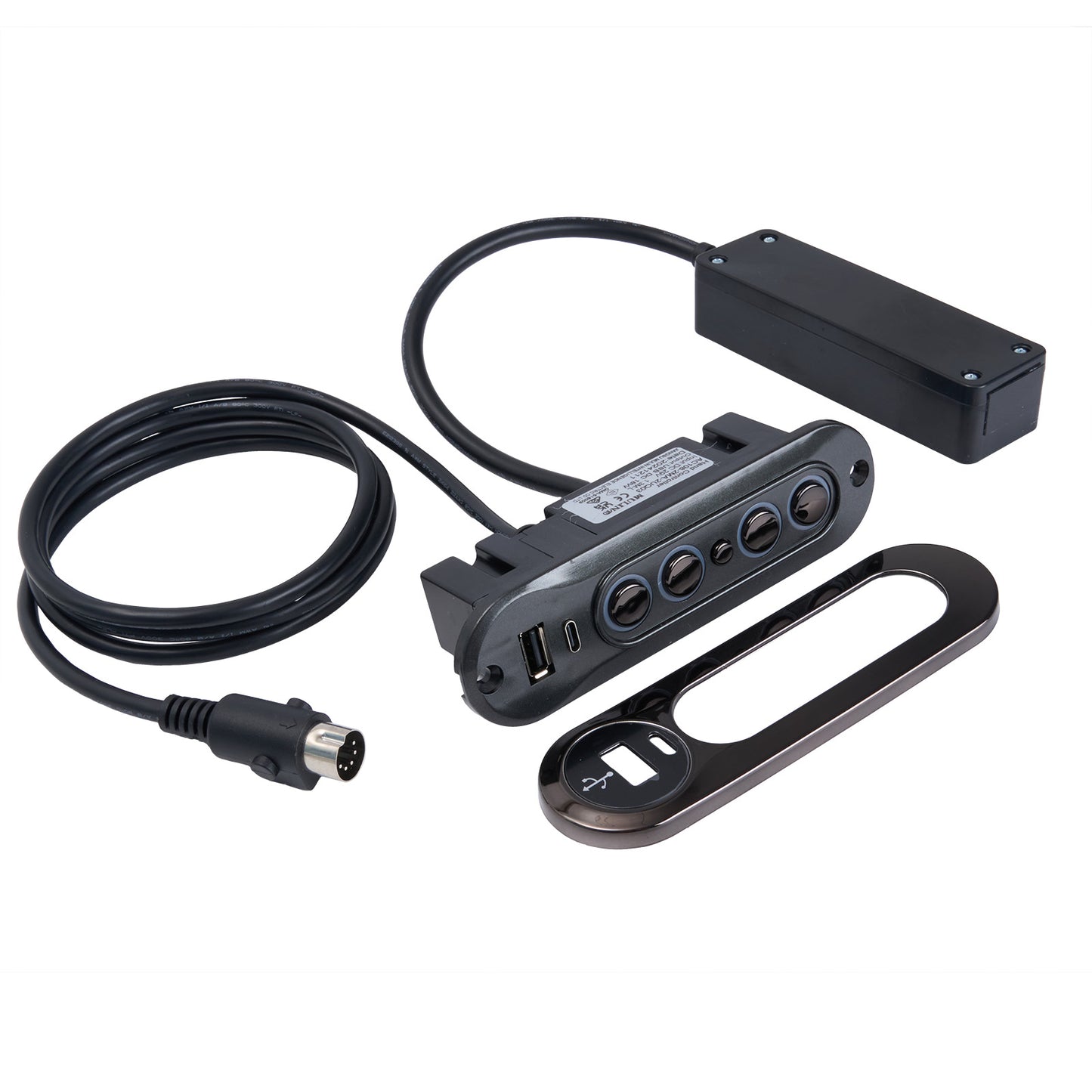

Package includes:

• 1* AC108-2MA-2UQ03 switch
• 1* Face plate cover

Notes:

• The face plate is difficult to take off once locked, do not install it until everything is done.
