KDDY094 Control Box for Lifting Desk

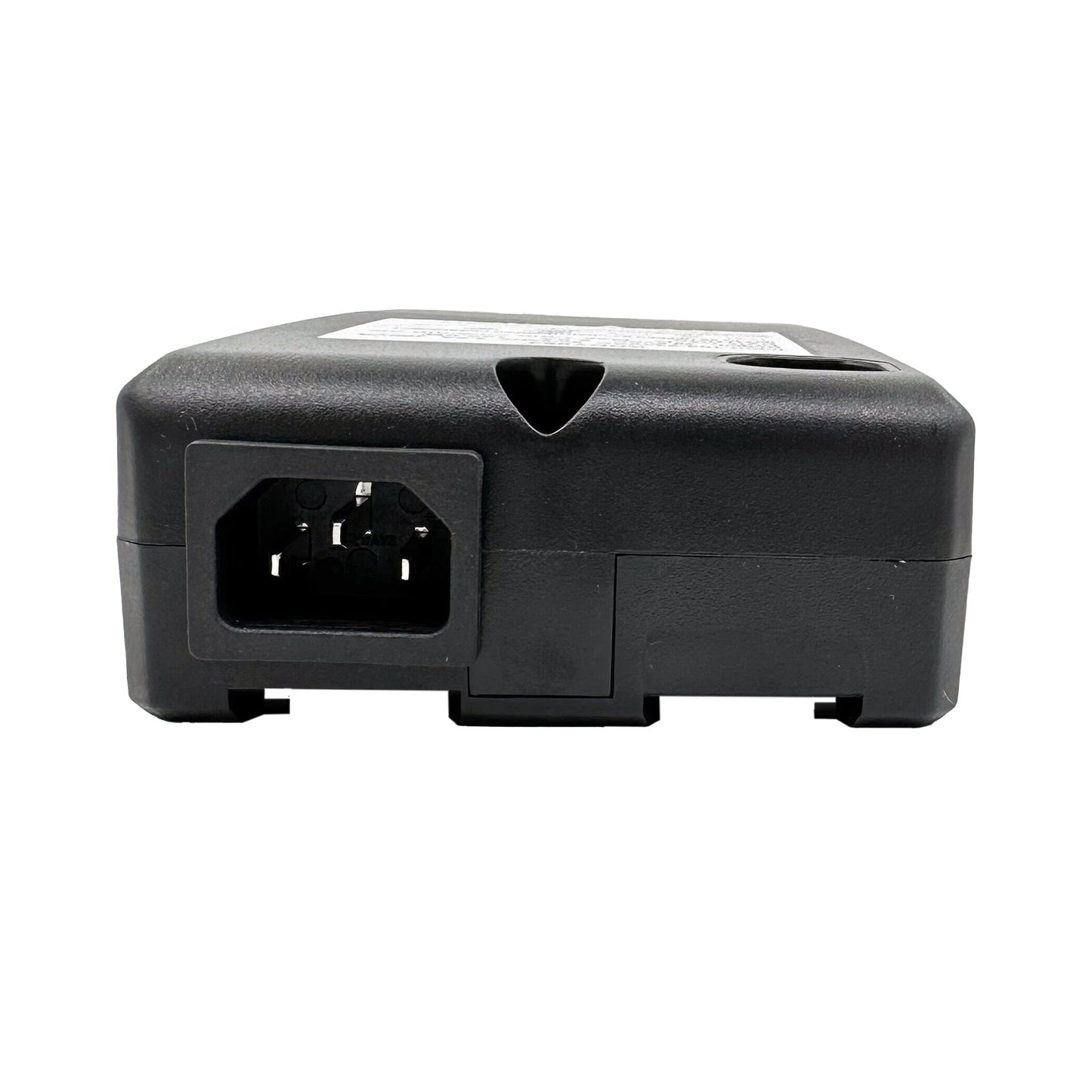

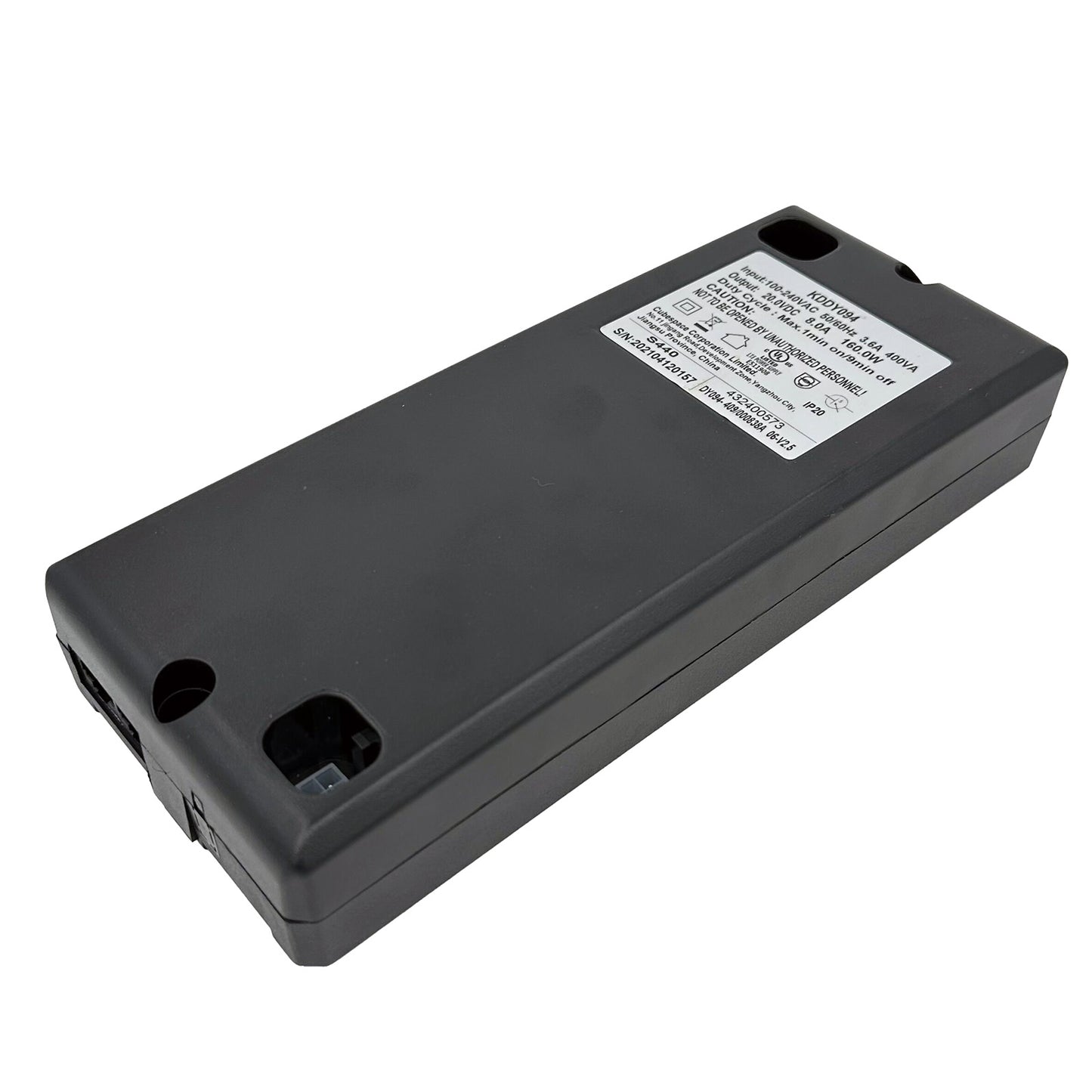

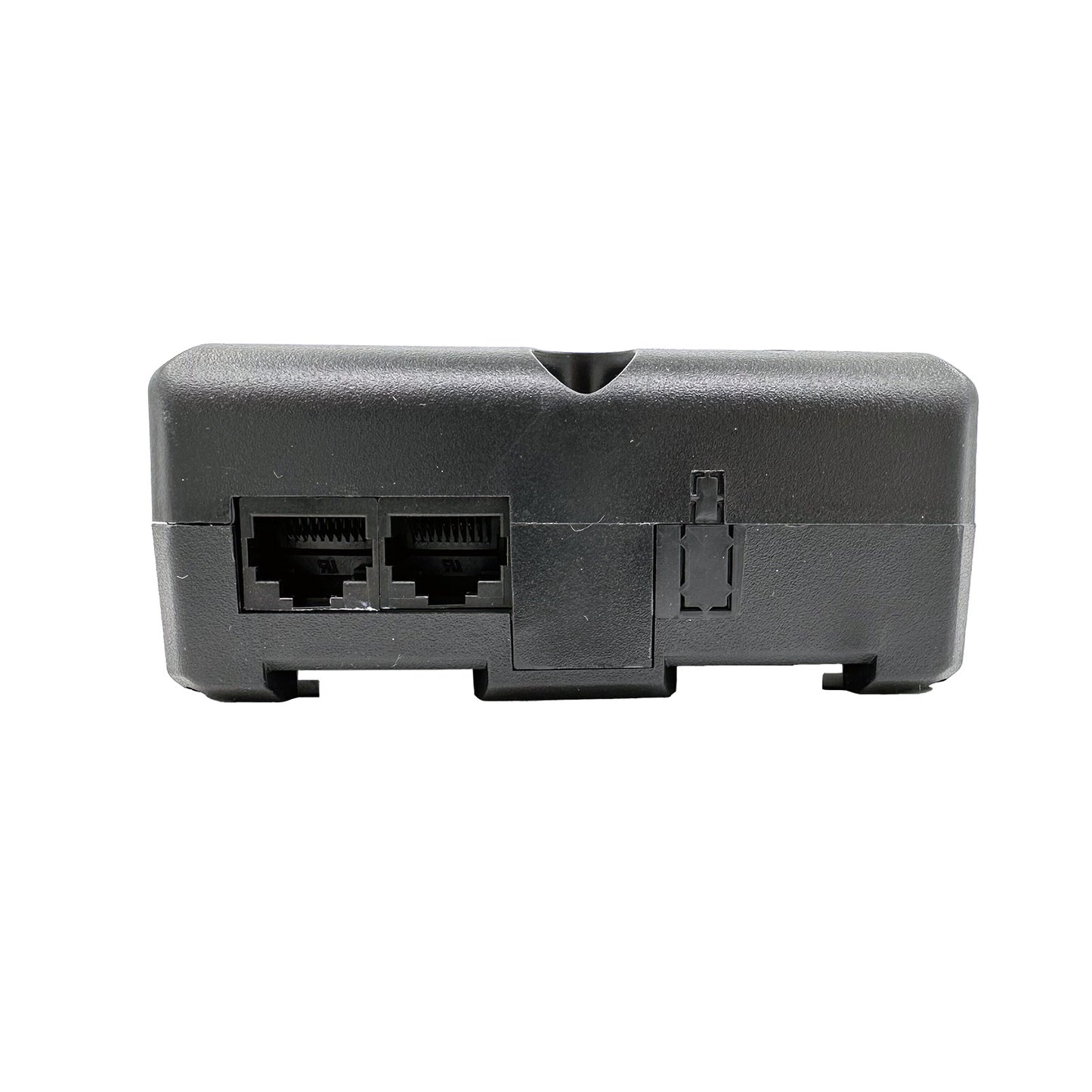

This is the genuine KDDY094 control box (also referred to as a junction box or transformer). It’s a two-channel unit designed specifically for lifting desks, serving as the central hub that connects to both lifting legs, the control switch, and your wall outlet.

Compatibility

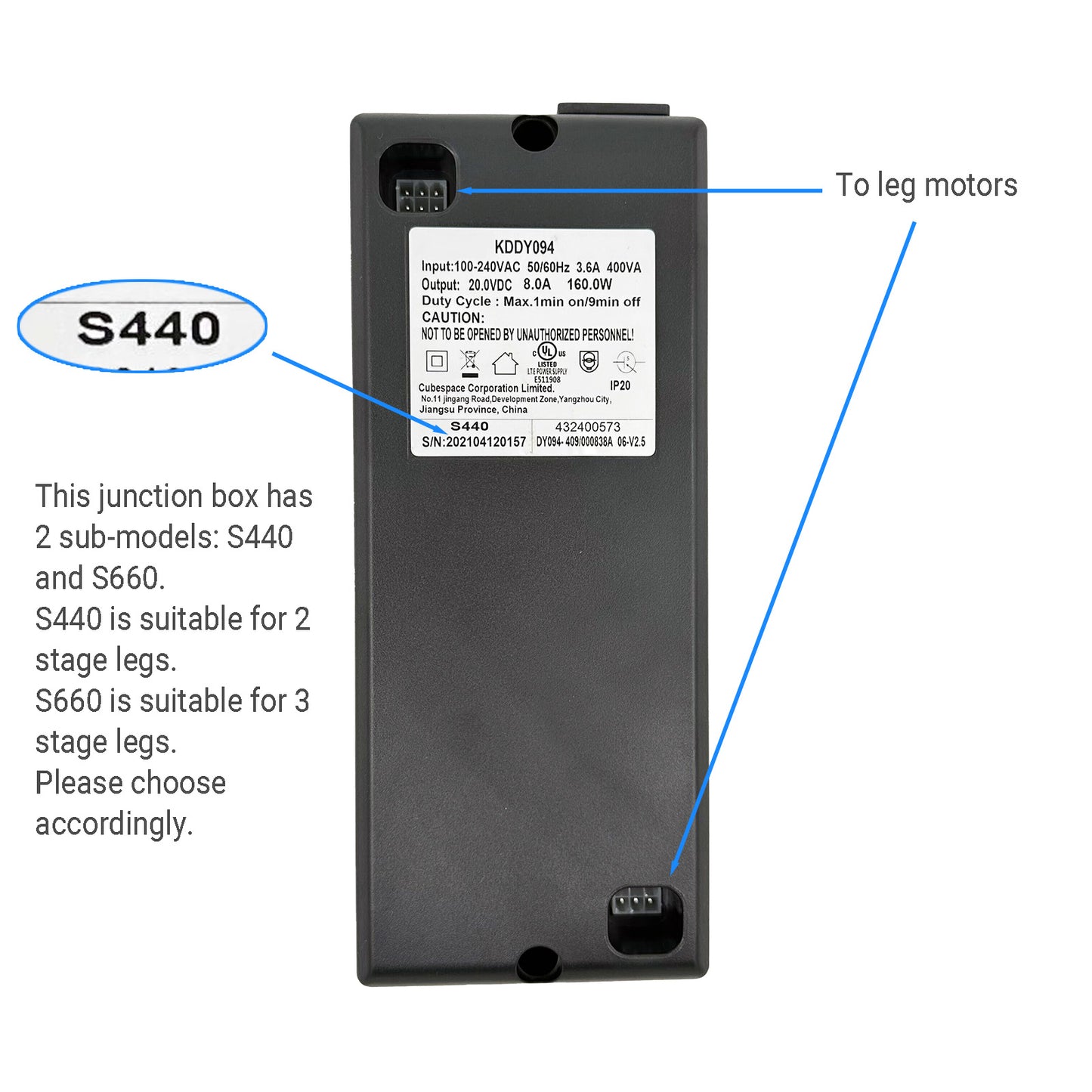

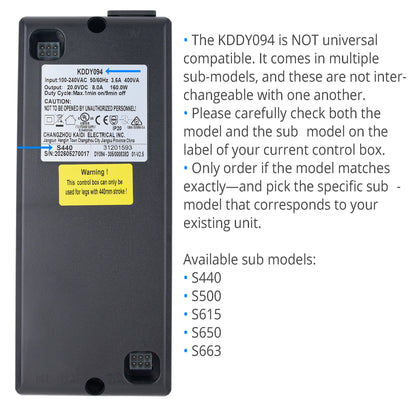

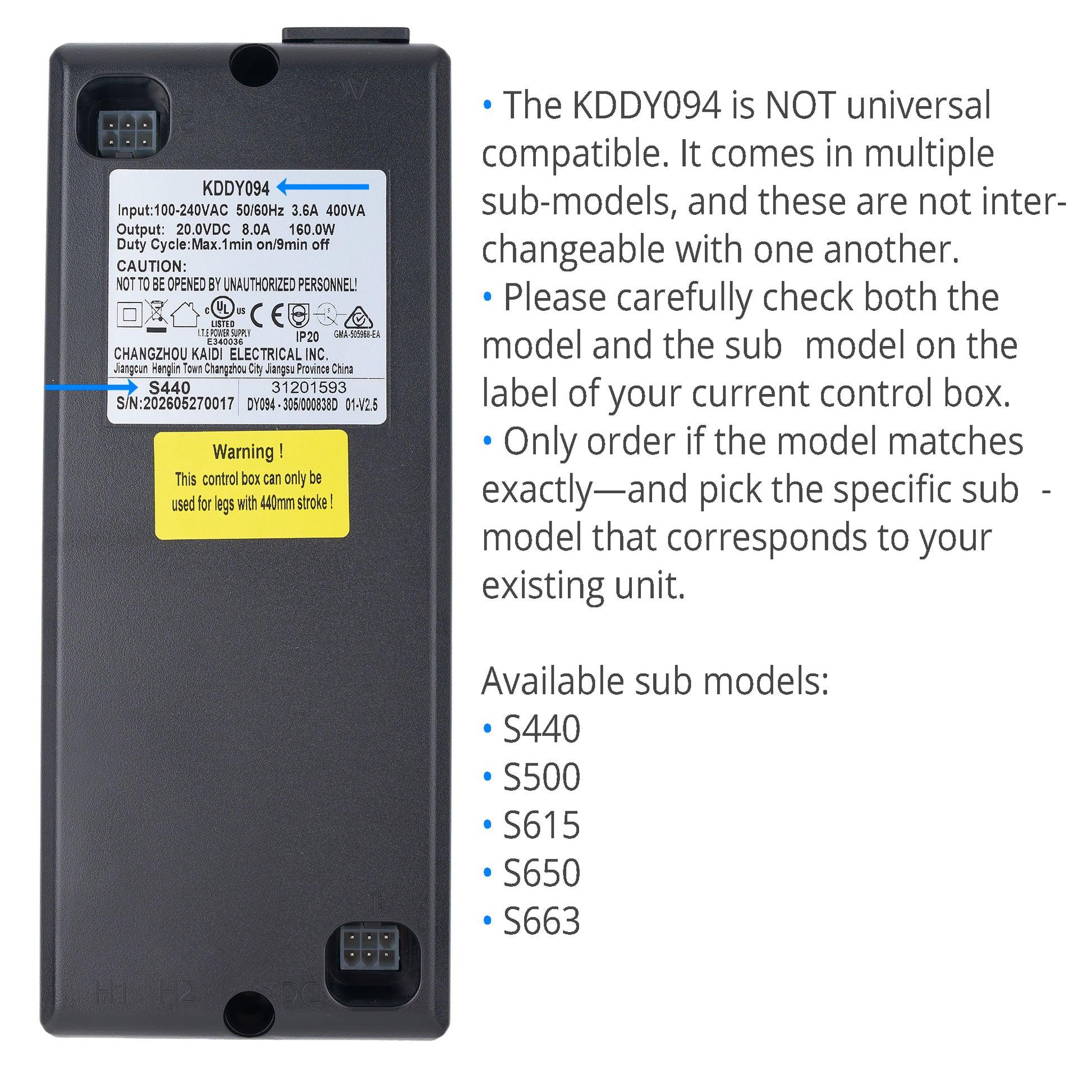

• Please note that this control box is not a universal part, and its different sub-models are not compatible with one another. Before purchasing, directly check the model and sub-model printed on the label of your current control box—only proceed with the replacement if they match exactly.
• We currently offer the following five sub-models; select the one that corresponds to your unit:

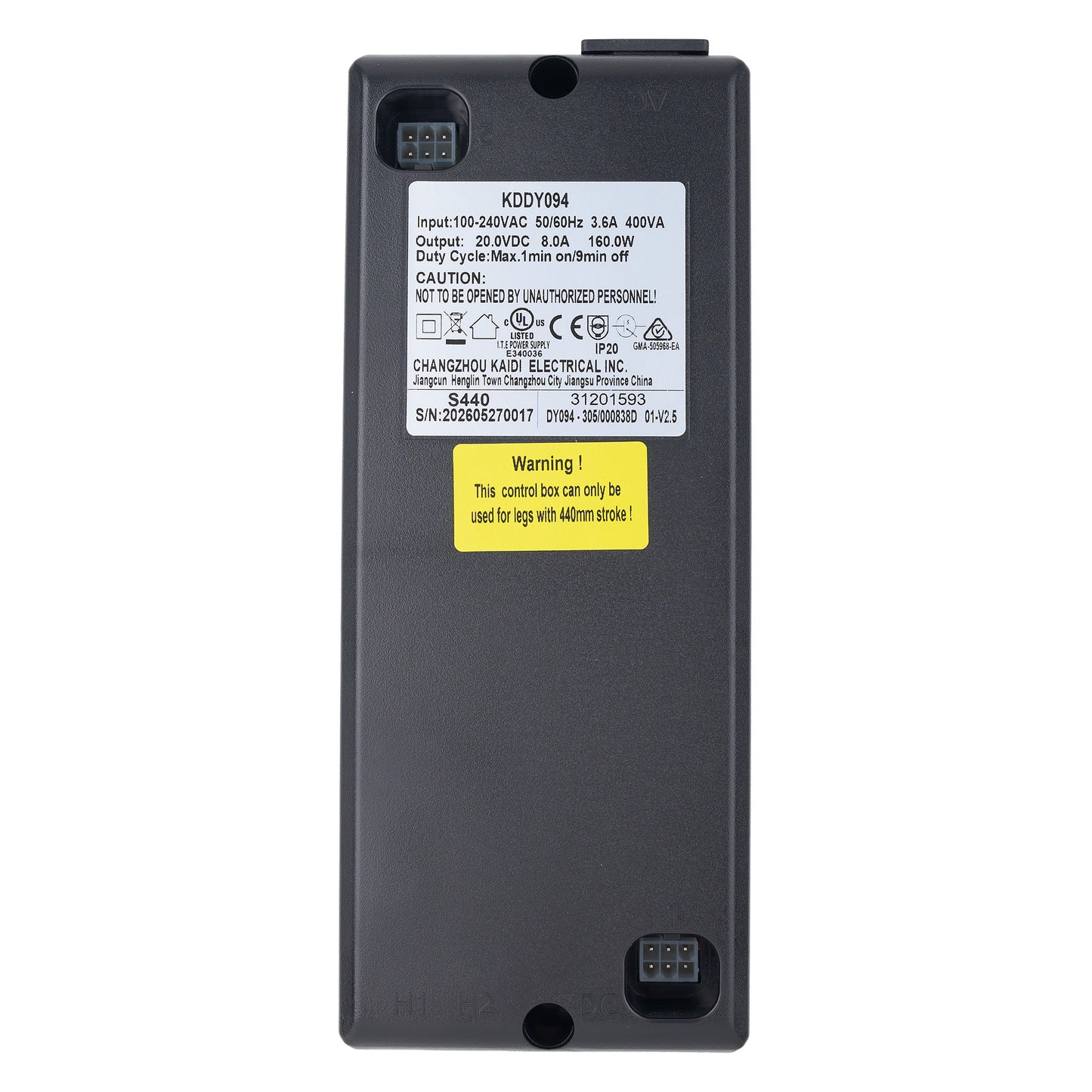

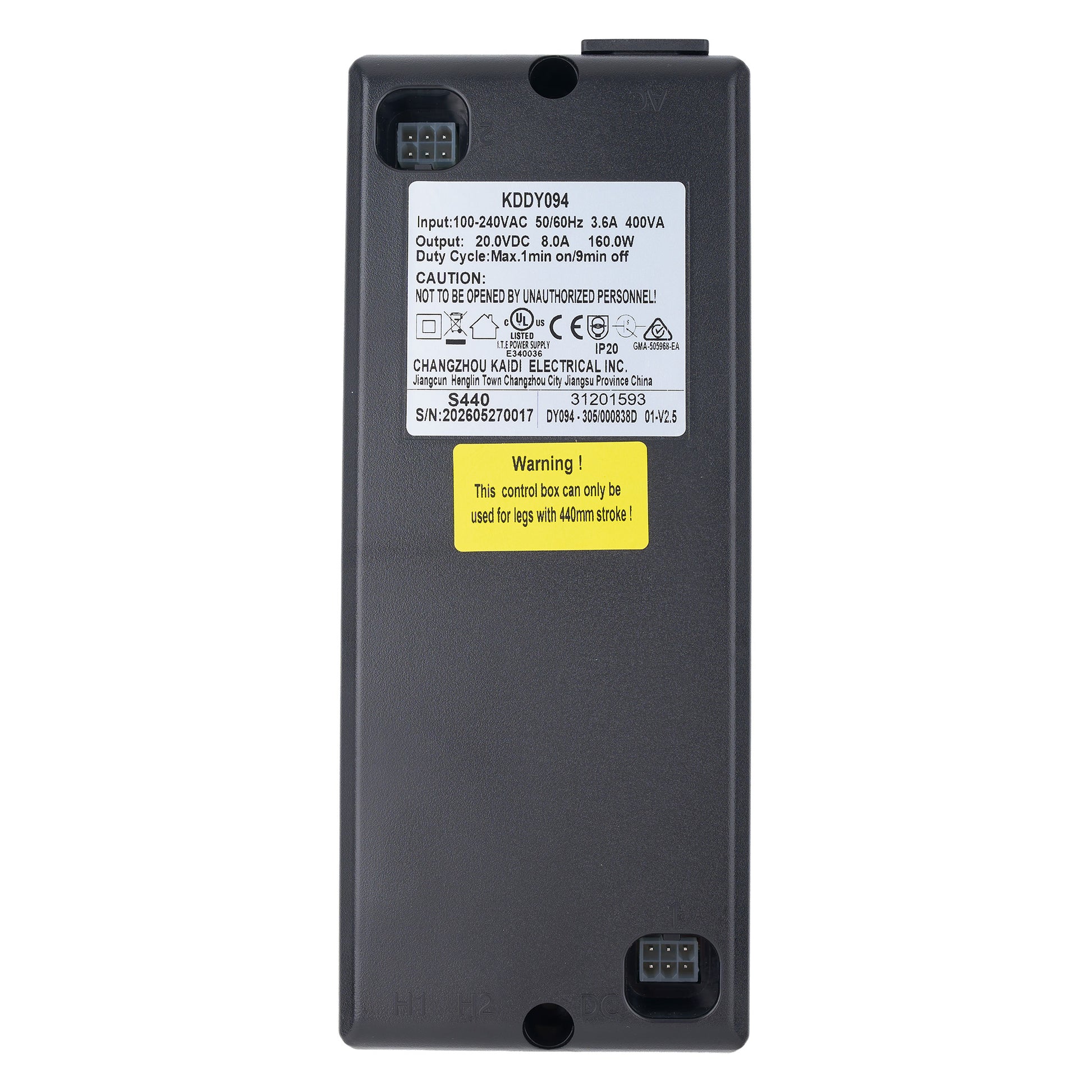

  • S440

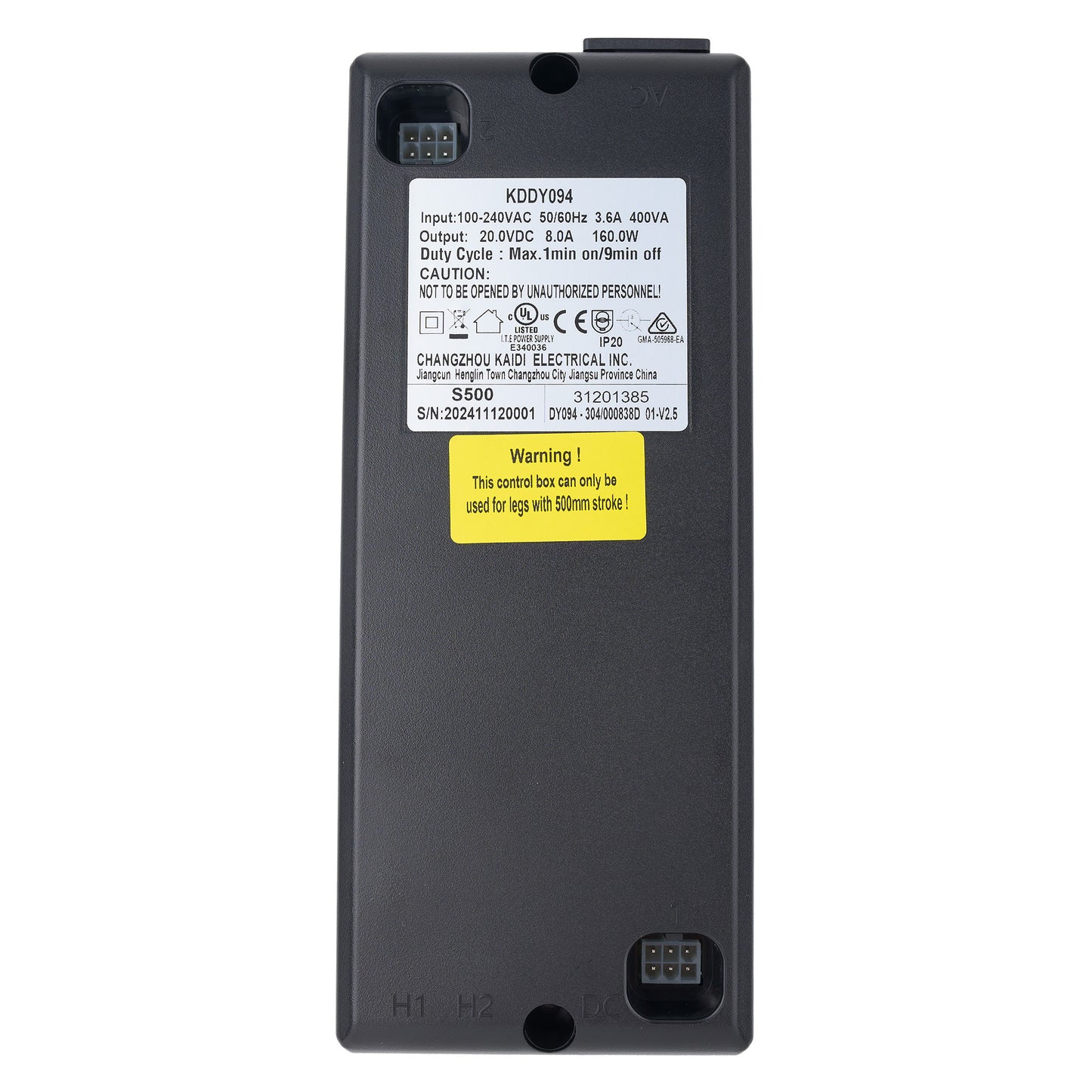

  • S500

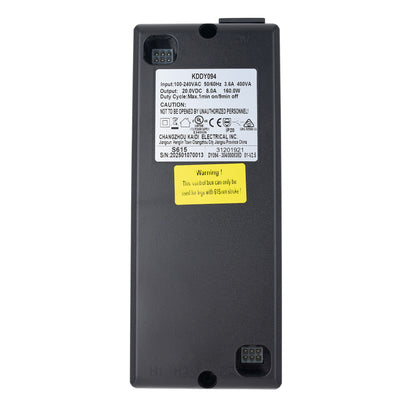

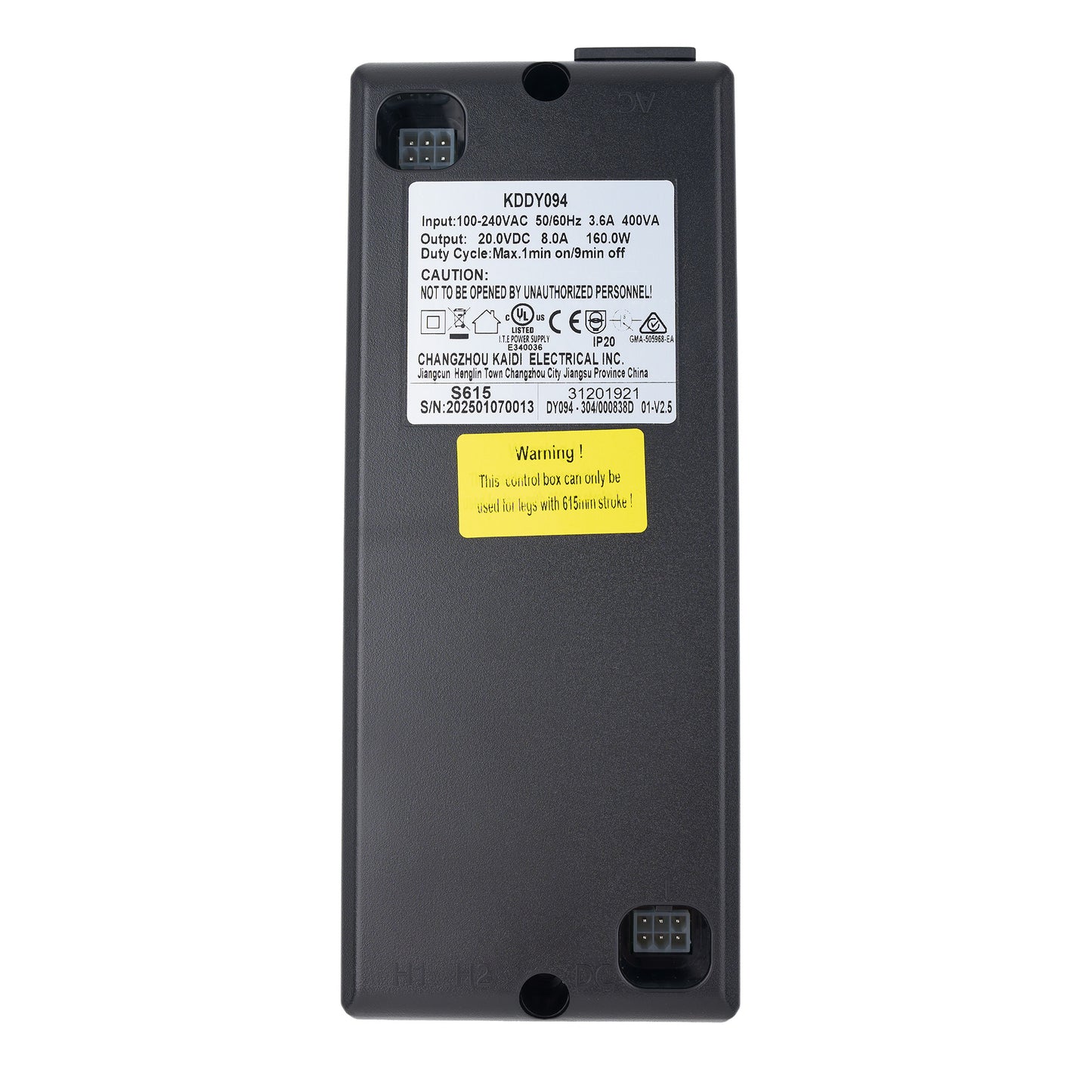

  • S615

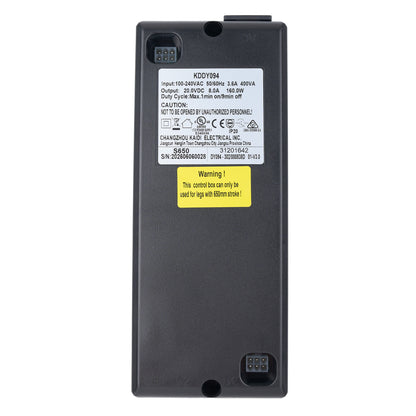

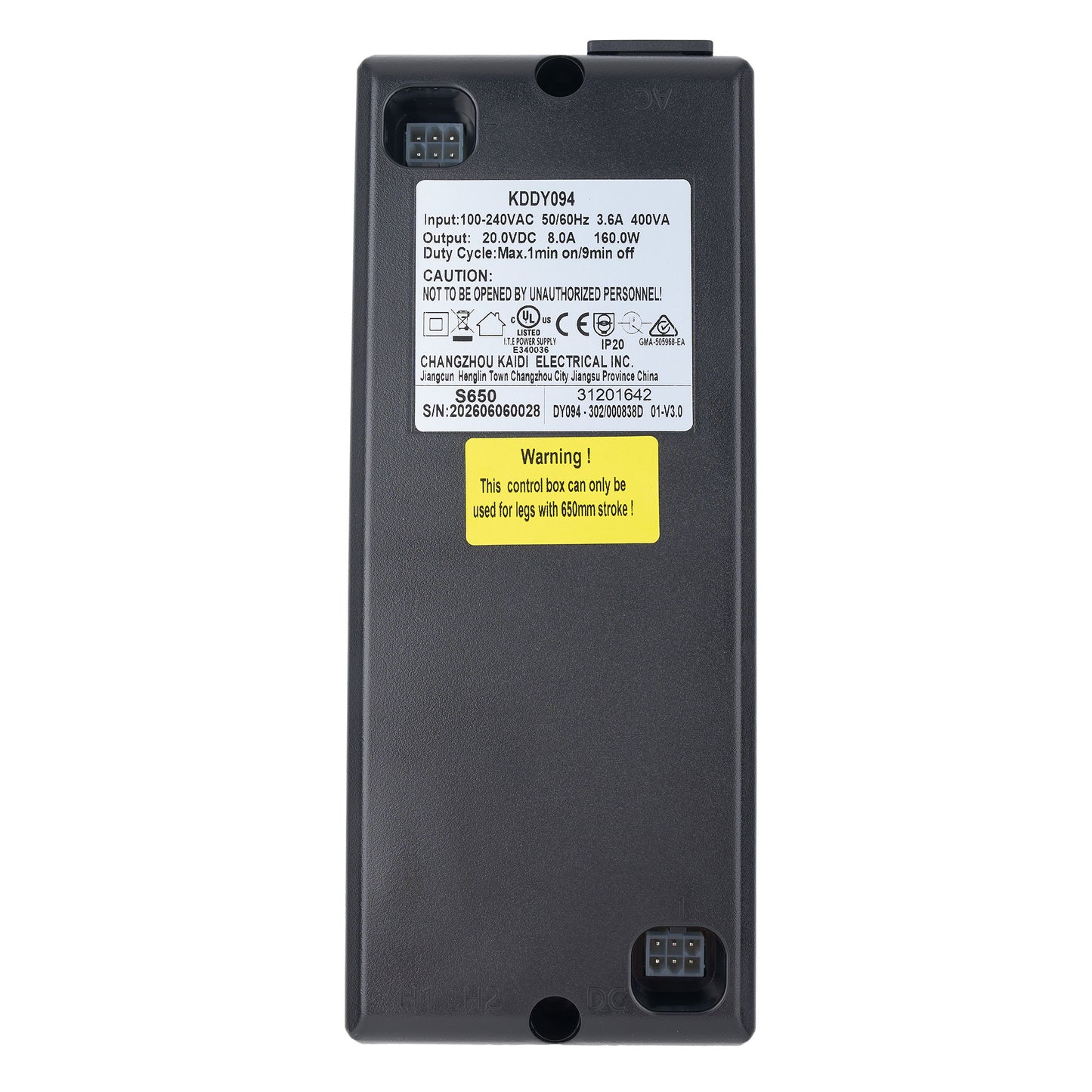

  • S650

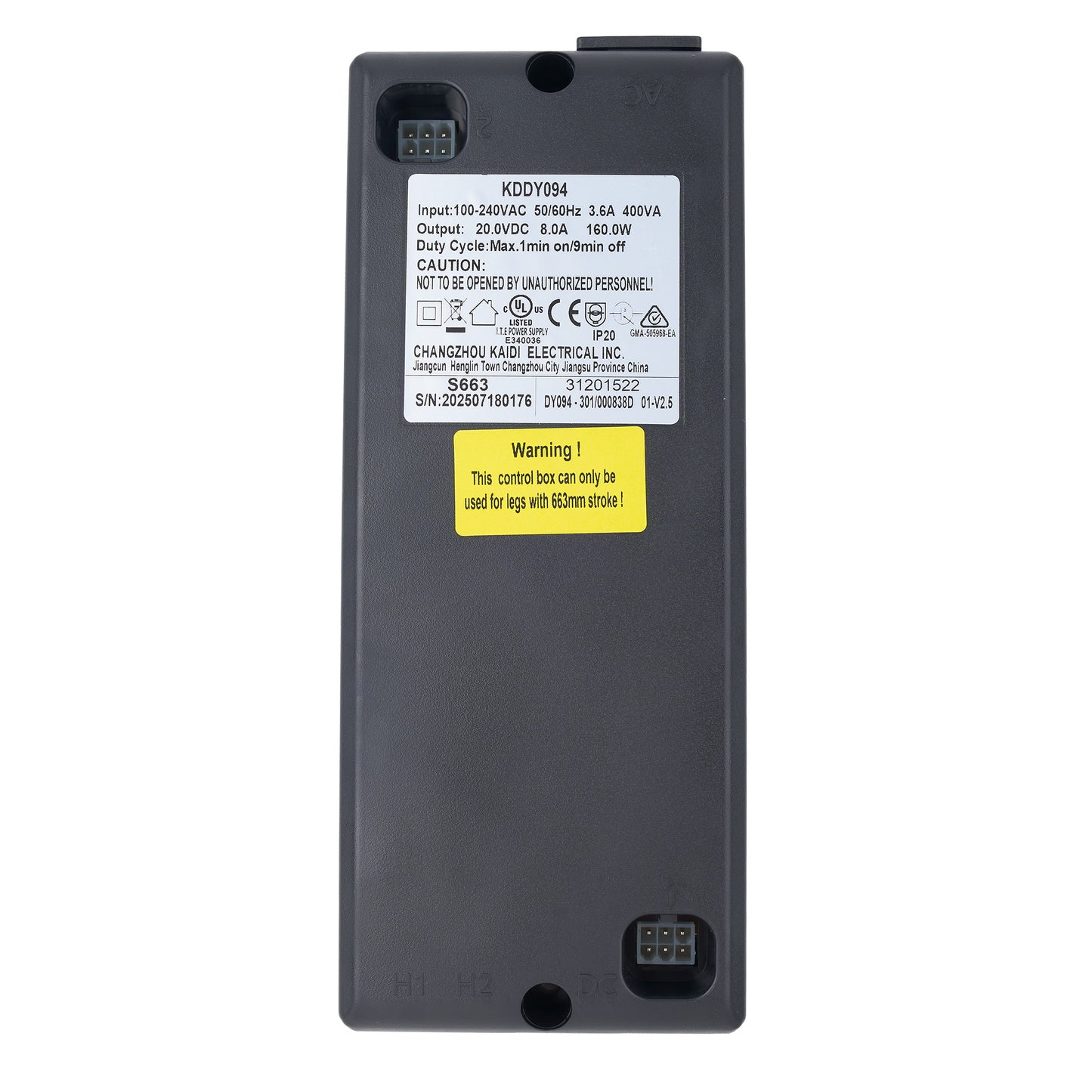

  • S663
• If your sub-model is not listed here, do not place an order—just contact us directly instead.
• Also, according to the supplier, this model can replace the KDDY096. However, you still must verify the sub-model on your label to make sure you choose the right version.

Specifications

• Input: 100‑240V AC, 50/60Hz, 3.6A, 400VA
• Output: 20.0V DC, 8.0A, 160.0W
• Duty Cycle: Max. 1 minute ON, 9 minutes OFF

Important notes when replacing the control box

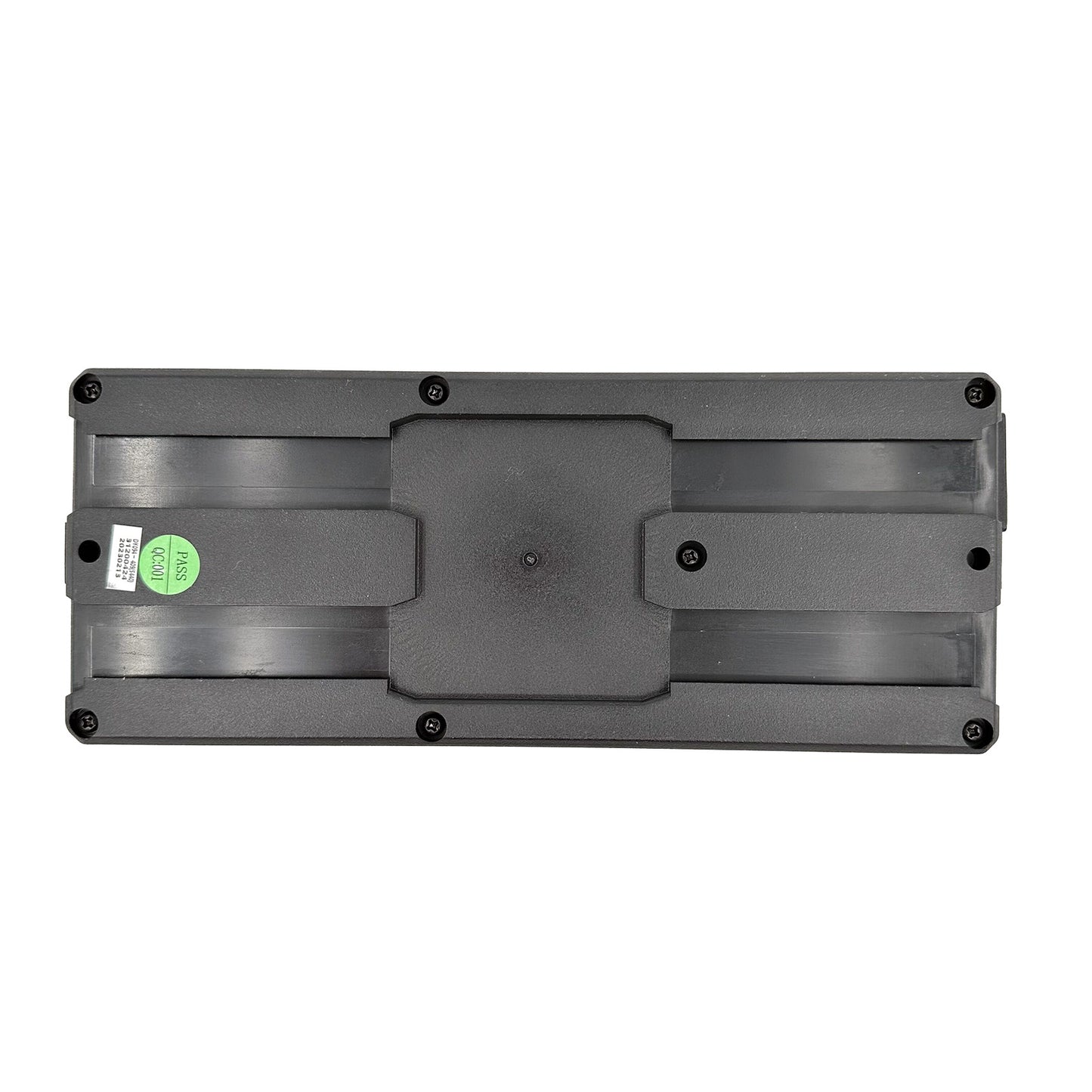

• Make sure the control box is firmly secured to the underside of the desk. It contains an internal gyroscope, and if it isn’t properly fixed in place, the system will trigger an error during operation—so we recommend double‑checking the mounting.
• After installation, you must perform an initialization using the control switch before the desk will work correctly. For detailed steps on that process, please refer to your standing desk’s user manual.
