HDM-H26 1.226.01.002 6 Button 7 Pin Hand Control & Wire Harness with USB Type C Backlit

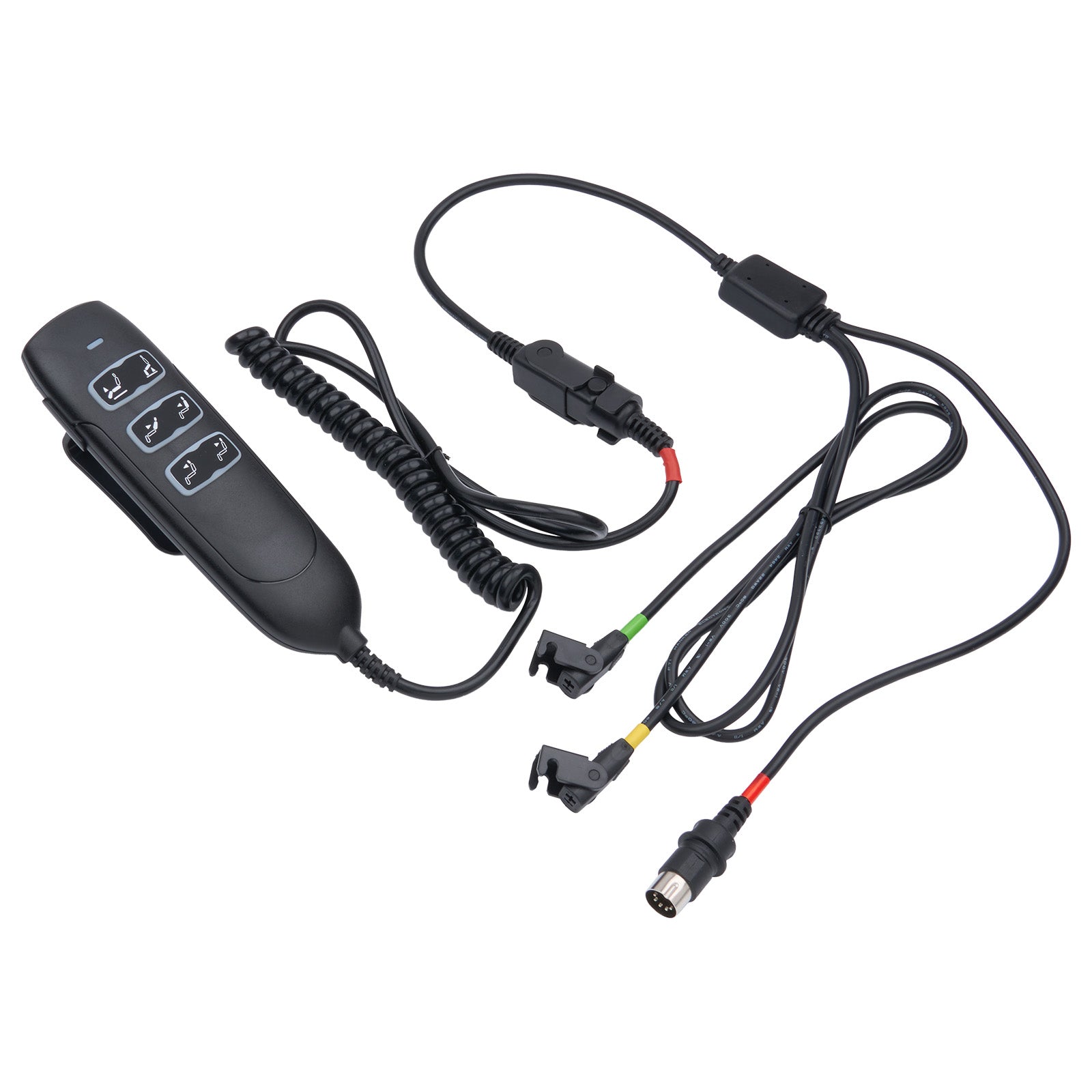

Genuine HDM-H26 remote controller kit, manufacturer part number 1.226.01.002. Includes one 6-button remote controller and one wire harness. Designed for power recliners and lift chairs with three motors.

Compatibility:

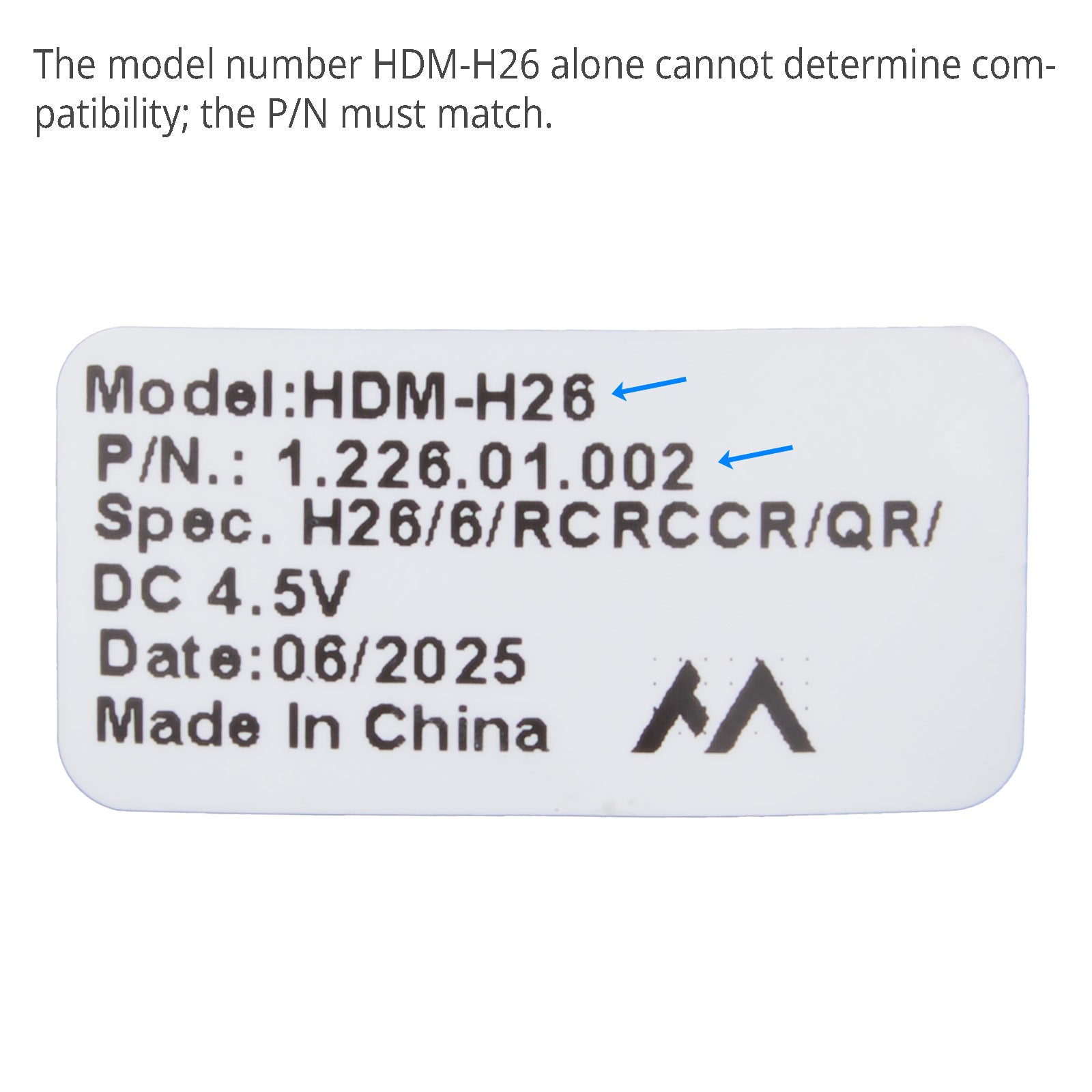

• This remote controller is not cross-compatible. Verify your existing remote has the exact model number and P/N: HDM-H26 and 1.226.01.002 (the P/N is the unique identifier).
• This unit can physically replace other HDM-H26 remote controllers which have the same button and plug configuration. Note that the button functions may not match your original remote due to potential programming differences.

Important Note:

For a reliable repair, replace the complete kit (remote controller and wire harness). Issues are often related to the harness; replacing the remote controller alone may not resolve the problem.

Features:

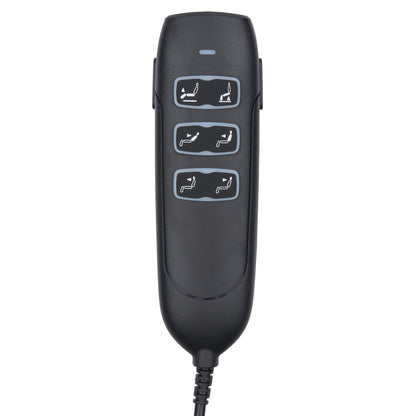

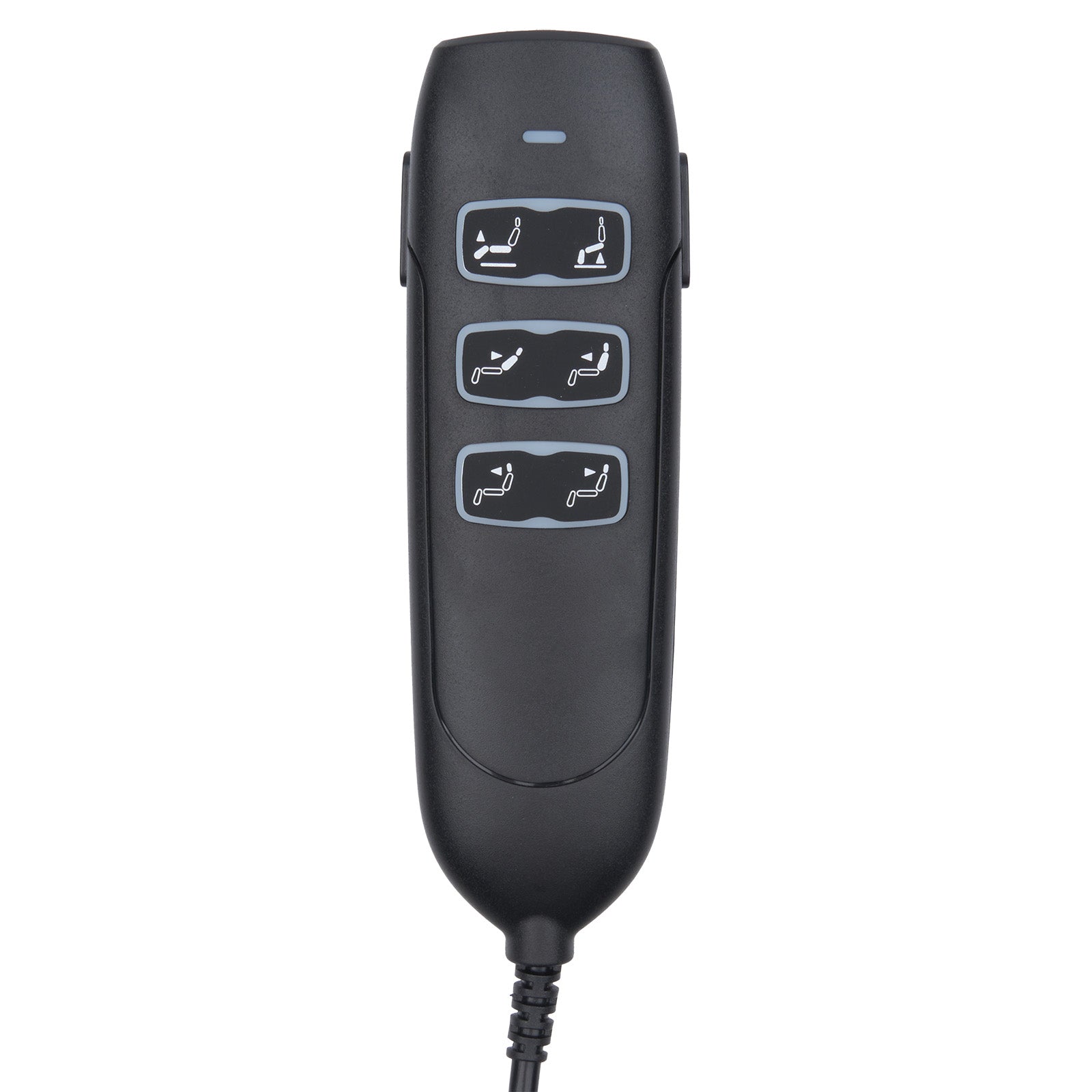

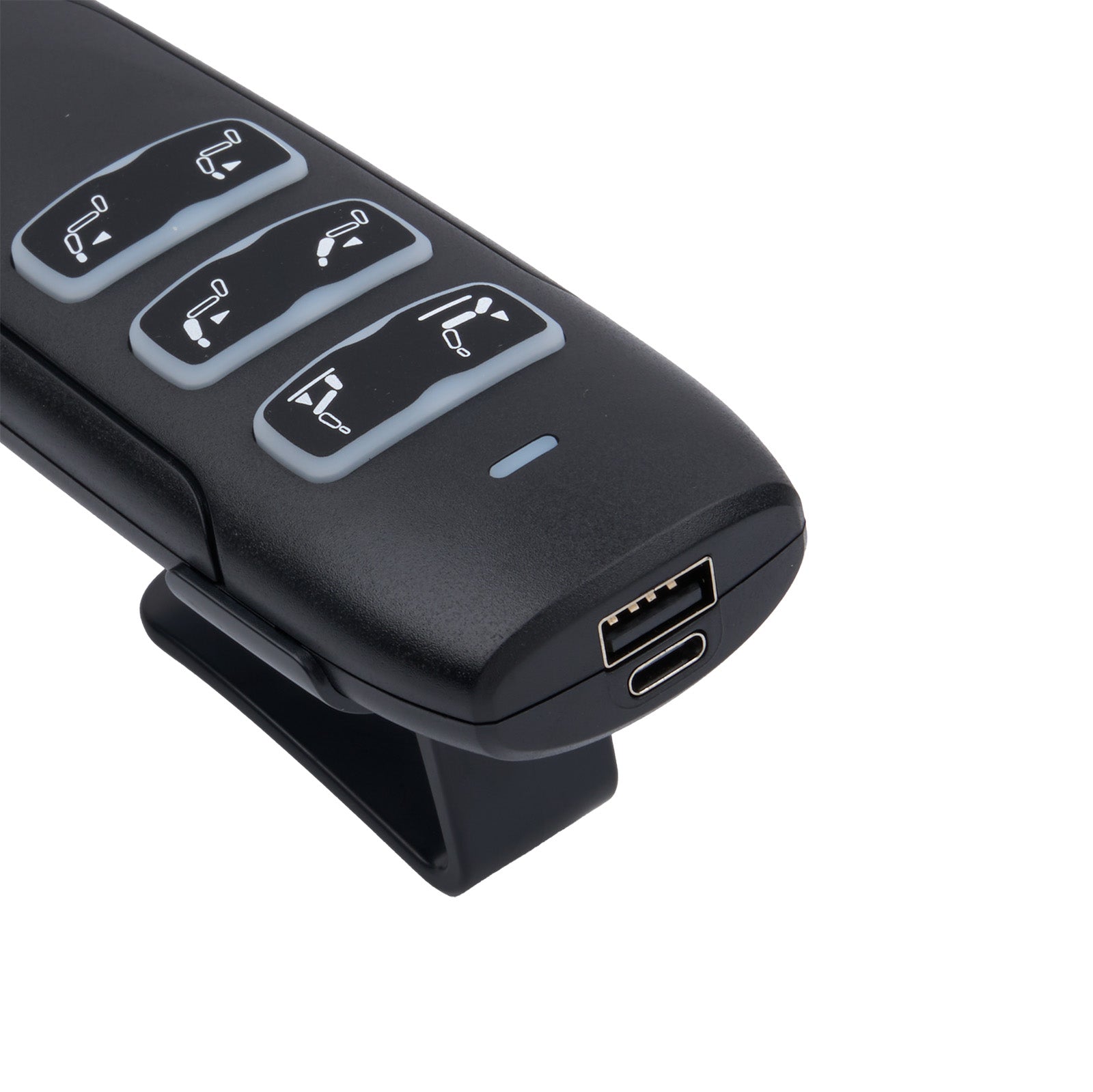

• Six-button control for chair open/up and close/down, plus independent headrest and lumbar tilt functions.
• USB and Type-C port for charging mobile devices.
• Backlit buttons for easy visibility in low light conditions.

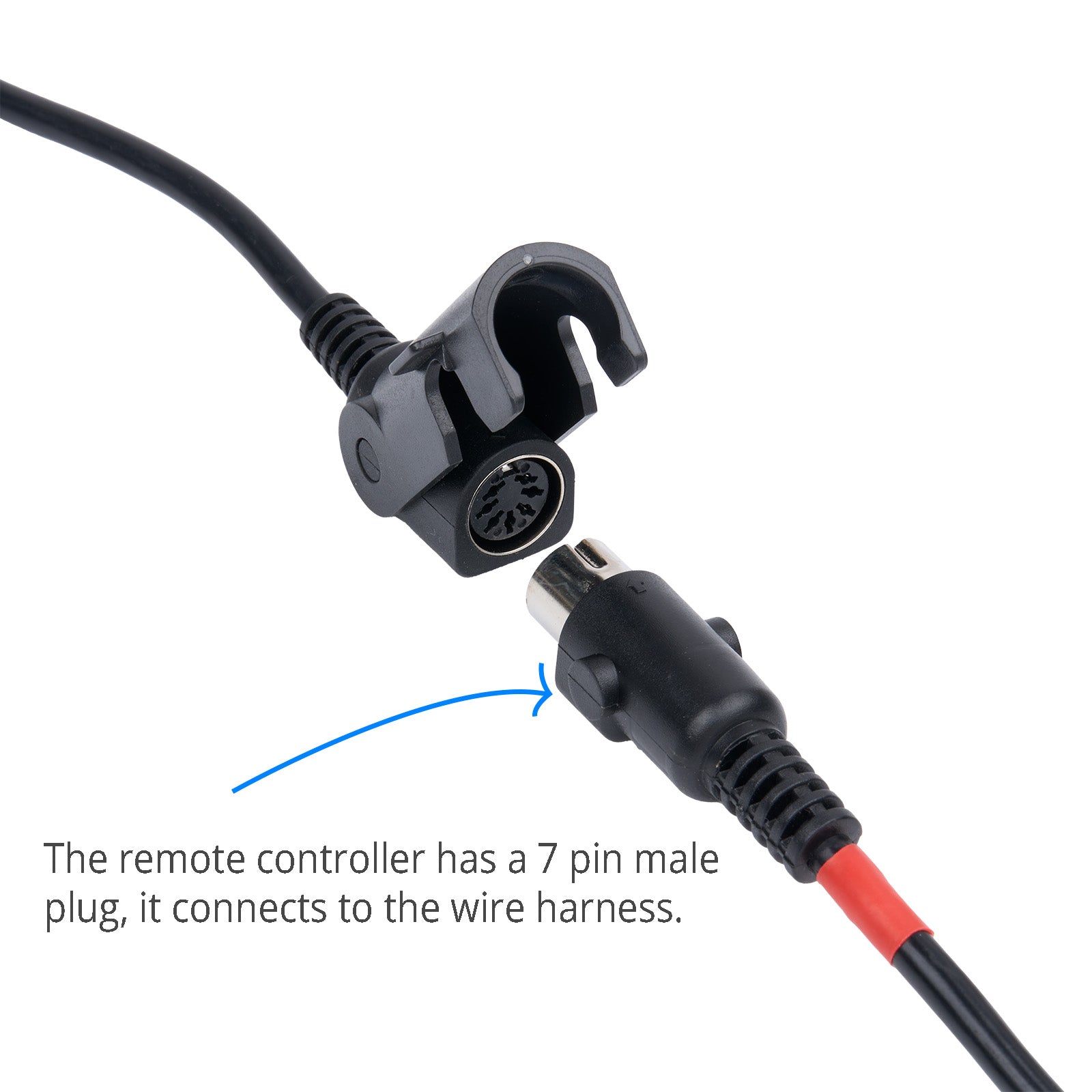

• 7-pin male plug on the remote controller interfaces directly with the harness.

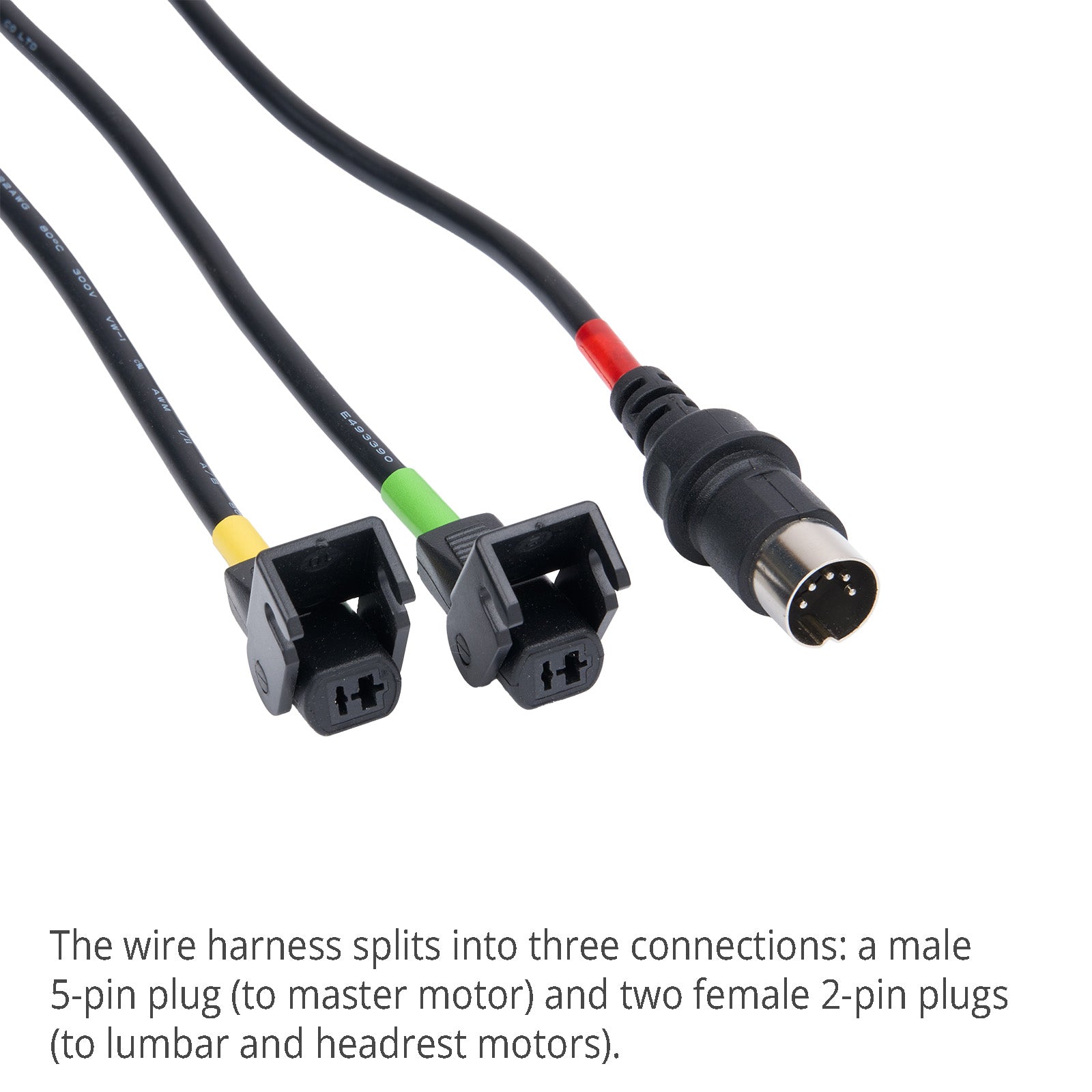

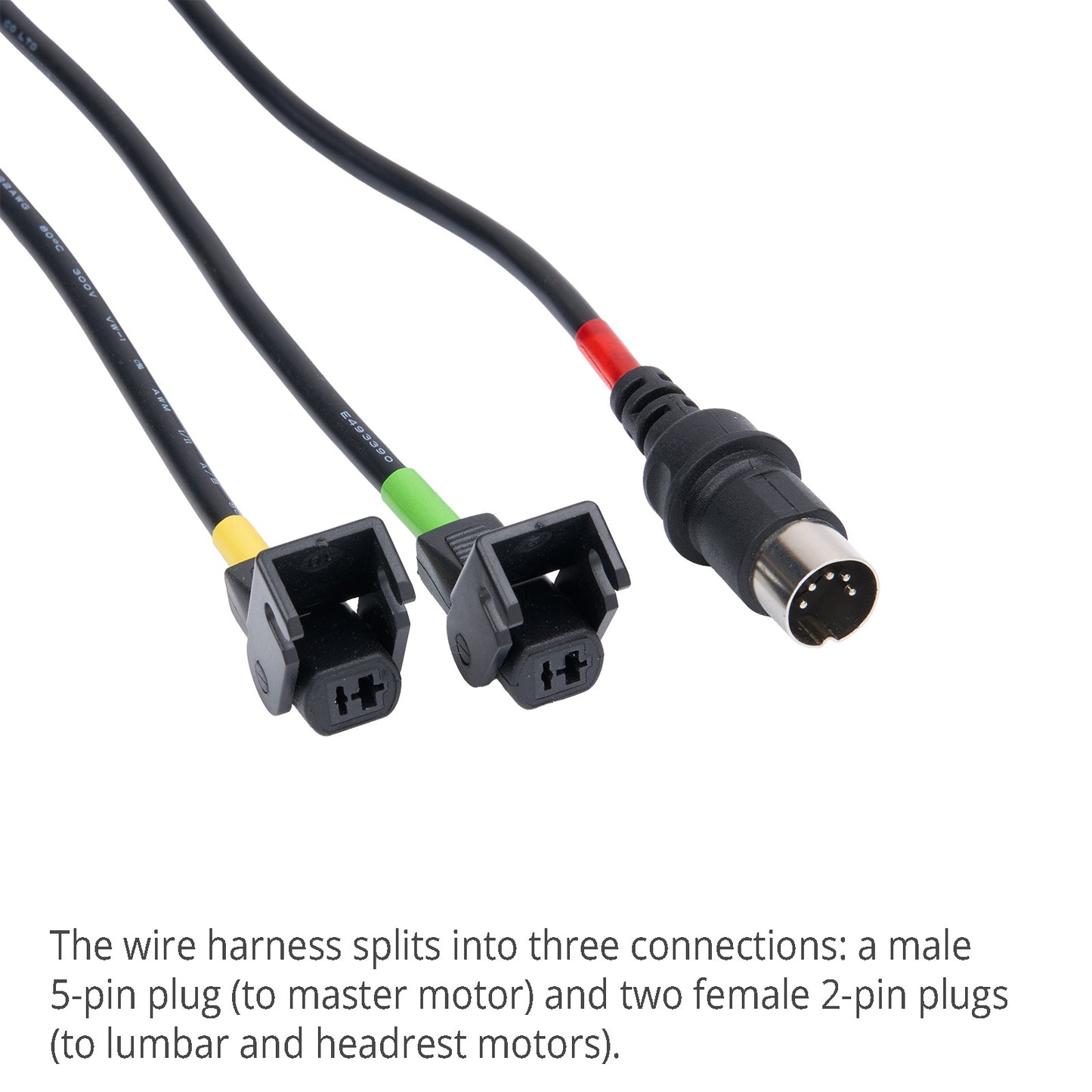

• Harness includes a 7-pin female connector for the remote controller and splits into three leads:
  • 5-pin male plug for the master/footrest motor.
  • Two 2-pin female plugs for the headrest and lumbar motors.

Specifications:

• Model Number: HDM-H26
• Manufacturer Part Number (Unique Identifier): 1.226.01.002
