ARU108-D-HCL-NS-10SL-4-02 Six Button 5 Pin Switch with USB

This is the genuine ARU108-D-HCL-NS-10SL-4-02 switch. This switch features Six buttons, and uses a standard 5 pin round plug, suitable for power recliners or lift chairs which have 2 motors. This switch will replace the ARU108-D-HCL-WS-10SL1-3-01 functionally.

Compatibility:

• This switch is not cross-compatible, if the model number of your original switch is different, please refrain from ordering.
• This switch will functionally replace the ARU108-D-HCL-WS-10SL1-3-01; however, the color and finish of the panel and buttons are different.

Feature:

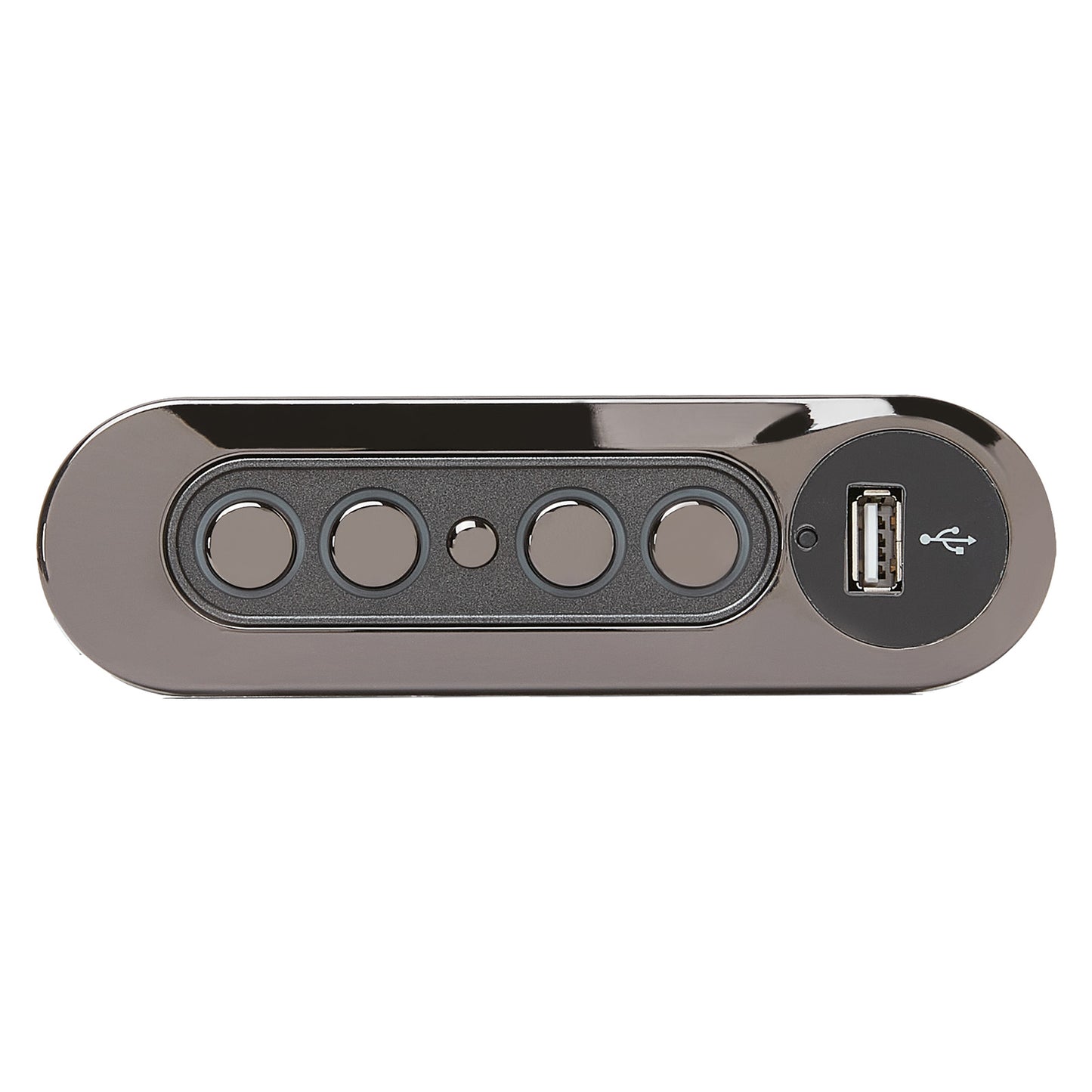

• The switch has six buttons, which is suitable for power recliner or lift chair with two linear actuator motors.

• Four big round buttons operate the footrest and headrest.

• The small button in center function as a reset/home button

• The Tiny button besides the USB port with a lock icon is a child safety lock button.

• The switch has a USB port, with a 5V 2A output, ideal for mobile device charging for added convenience.

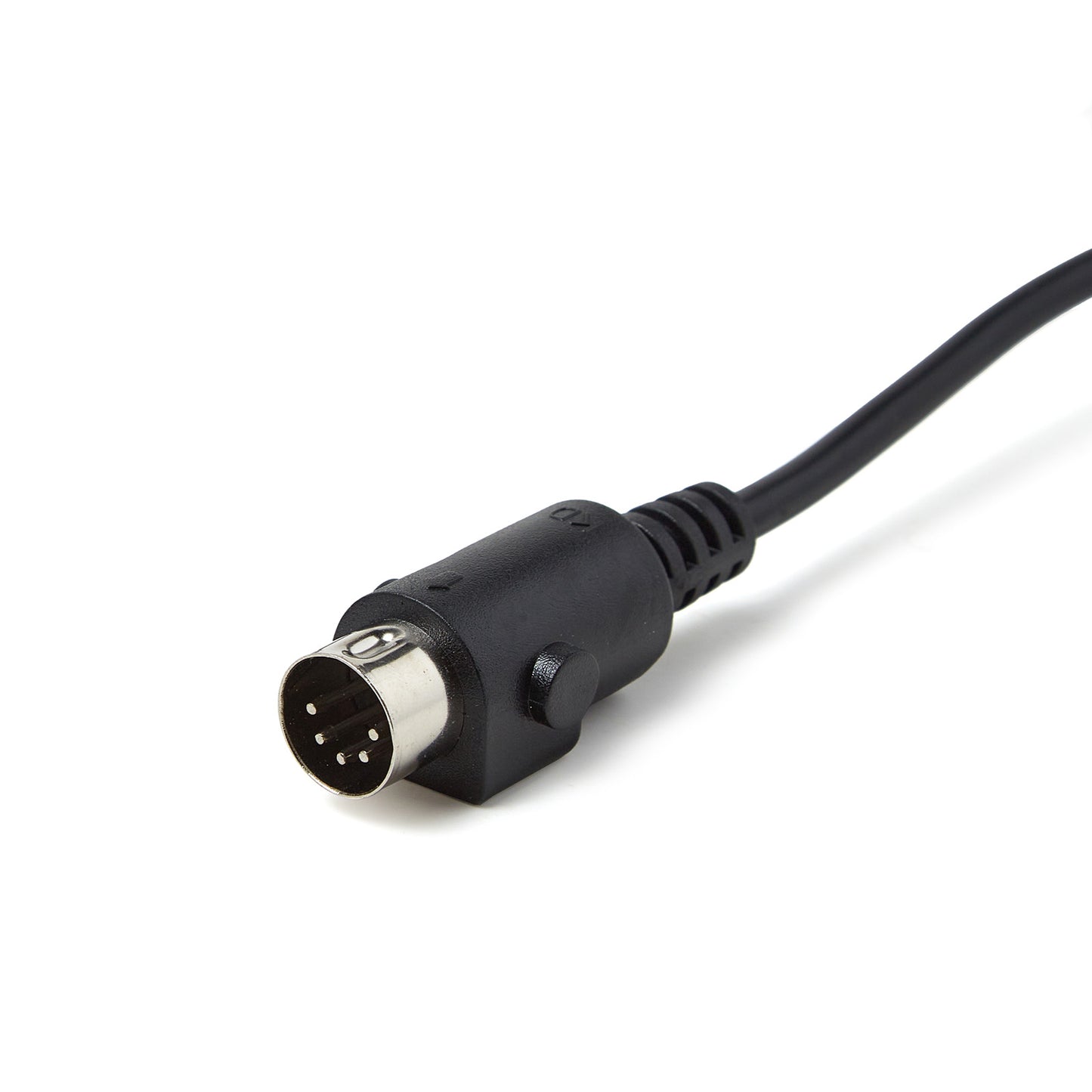

• This switch has a male 5 pin plug, it connects to the footrest motor.

Specification:

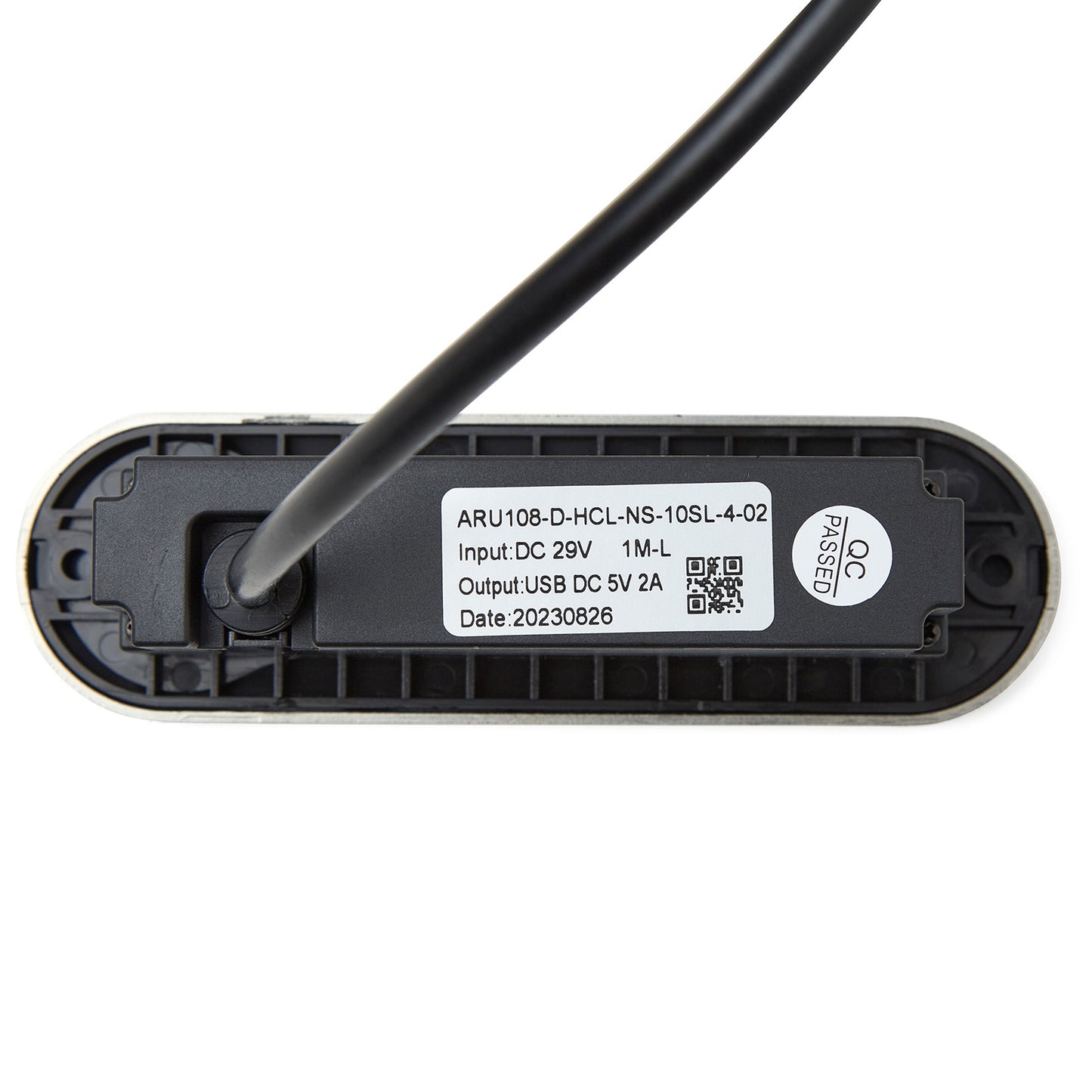

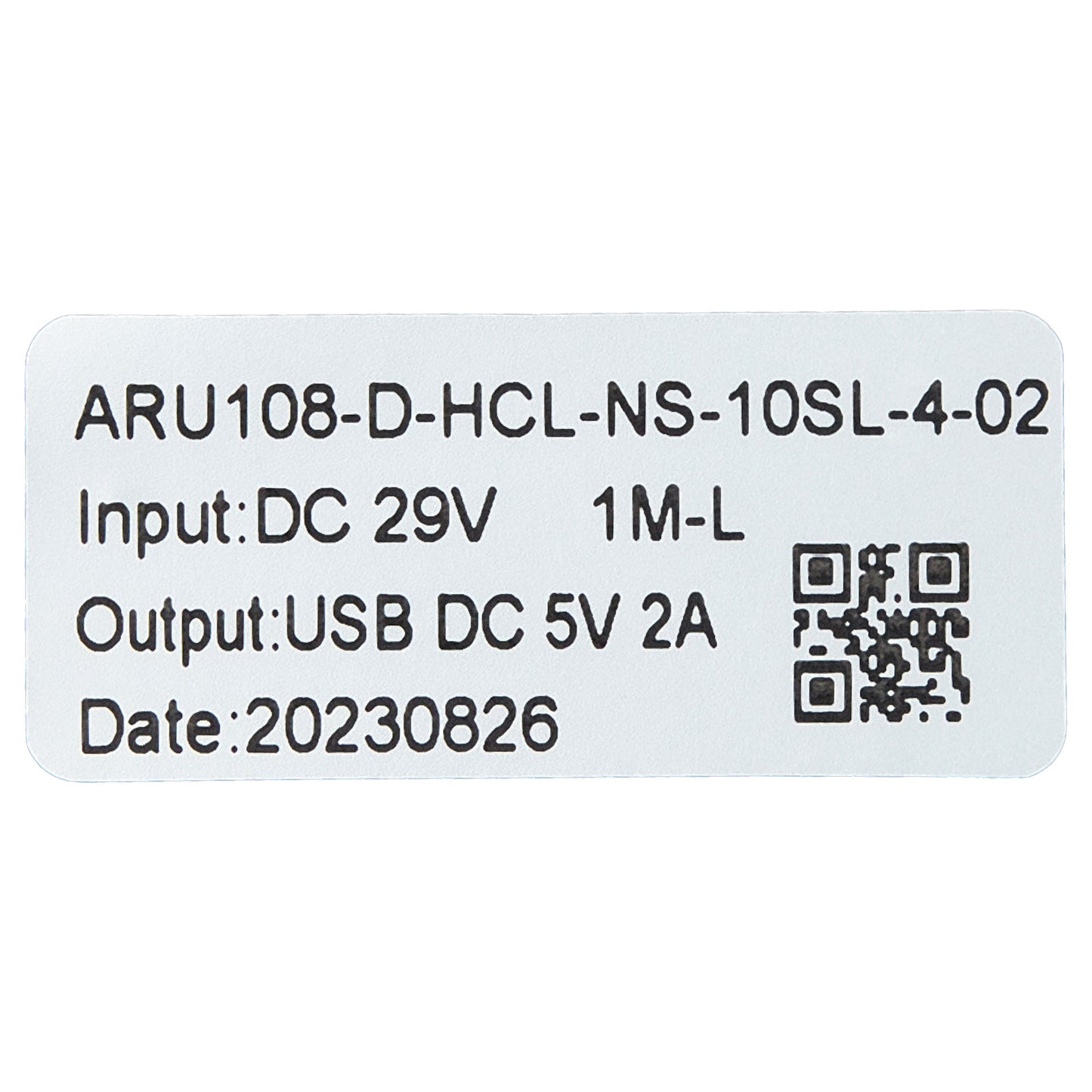

• Model: ARU108-D-HCL-NS-10SL-4-02

• Input: DC 29V

• Cable length: 1m

• USB Output: 5V 2A

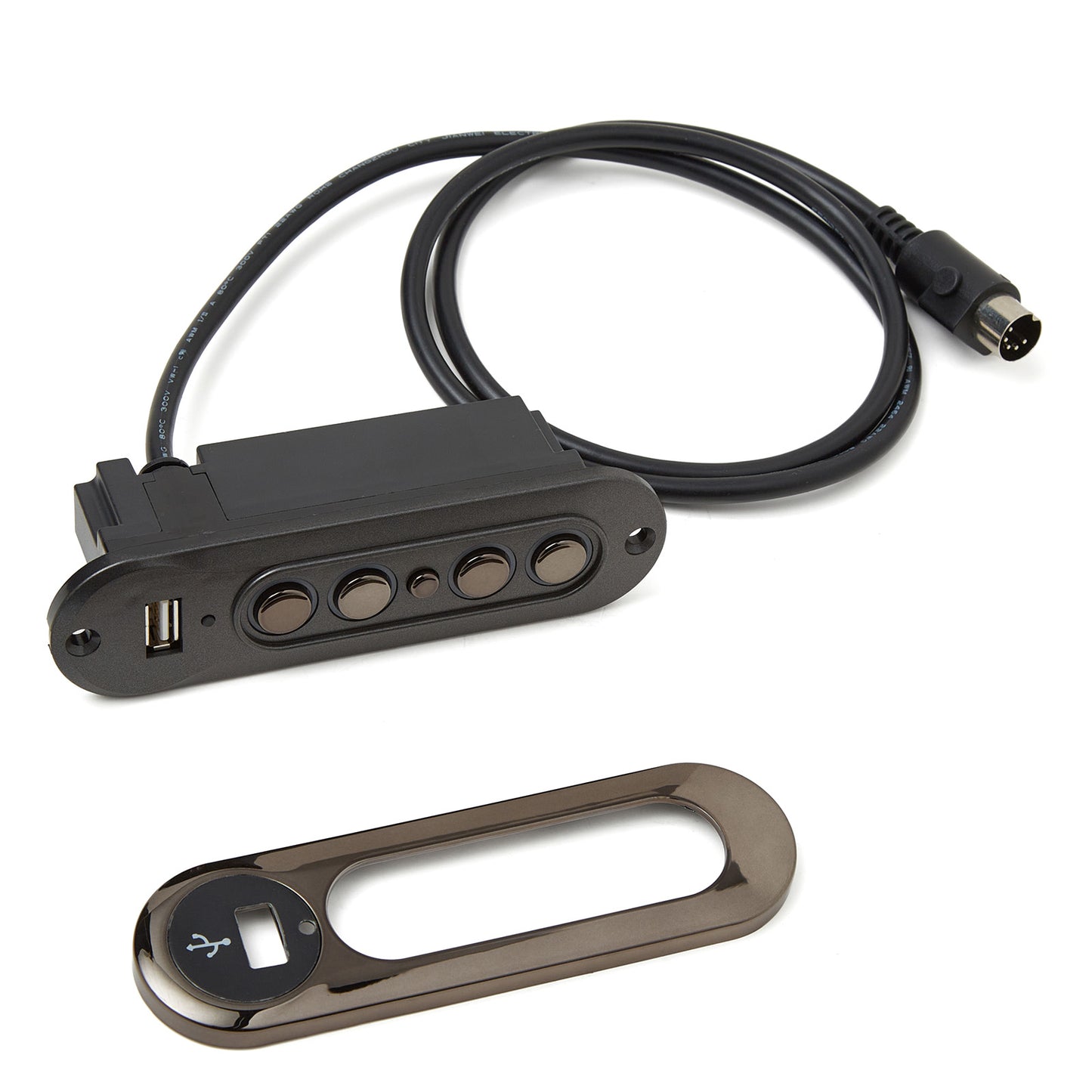

Package includes:

• 1 x Switch Body (ARU108-D-HCL-NS-10SL-4-02)

• 1 x face plate

• Wire harness connected to the switch which shows in the product picture is included.
