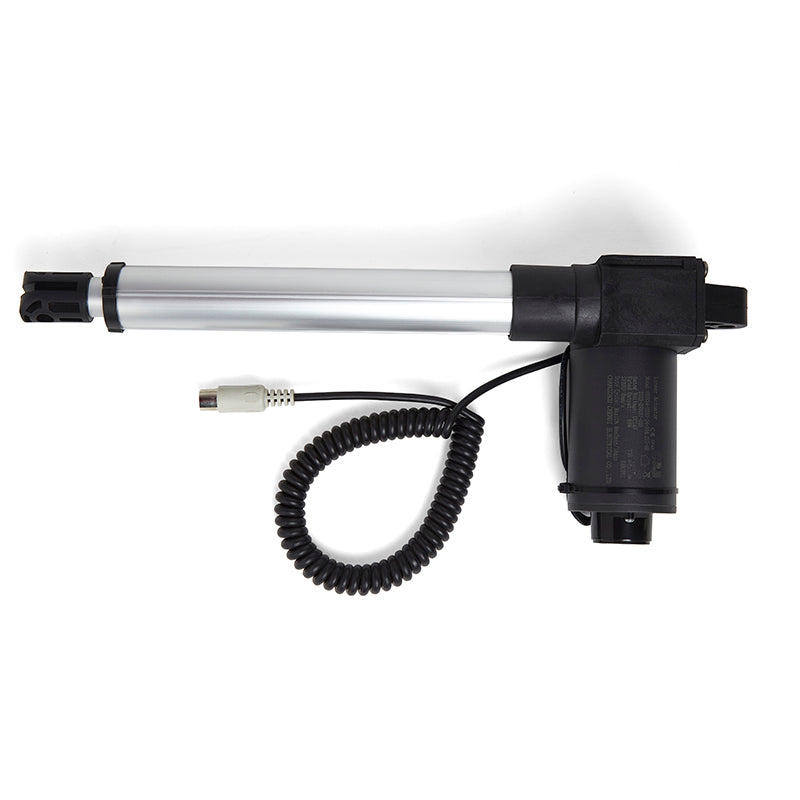

• A black and silver linear actuator with a coiled wire and a clear tube body, designed for use with power lift recliner chairs.
1 3

Chendi ST03-24-394.212-8H Linear Actuator ST03-GN0137-003 Replaces Golden GM1300-LM

Chendi ST03-24-394.212-8H Linear Actuator ST03-GN0137-003 Replaces Golden GM1300-LM

US orders ship from the US; international orders ship from China.

$212.27 NZD
$212.27 NZD
Sale Sold out
Shipping calculated at checkout.

⚠ No Return Disclaimer

  • This actuator is non-returnable and non-refundable.
  • Before purchasing, we strongly recommend troubleshooting your switch and power supply.
  • Please avoid purchasing this actuator solely for testing purposes.

Shipping Information

Lead Time:

  • 1-15 business days (varies based on stock availability)

Shipping Methods and Estimated Delivery Times:

  • United States:
    The default shipping method is registered mail (7-15 days).
  • Other Countries: DHL or registered mail parcel service (7-15 days)

Address Considerations:

  • P.O. Boxes: Express shipping is not available to P.O. Box addresses. Registered mail parcel service will be used instead.
  • Full Name: Please provide your full name, as express carriers do not accept initials.

Import Duties and VAT:

  • For European customers: VAT will be charged at checkout.
  • For UK and Canadian customers: You may need to pay import duties or VAT for your package. We are unable to withhold and pay it for you, you need to pay it to the courier before they deliver your package. Usually, the courier will send you an email to inform you of the tax.
  • This is the genuine 63ZY24-ST03-24-393.212-8H linear actuator by Chendi, part number is ST03-GN0137-003.
  • This linear actuator is used on several Golden power recliner and lift chairs, the Golden part number is GM3100-LM.

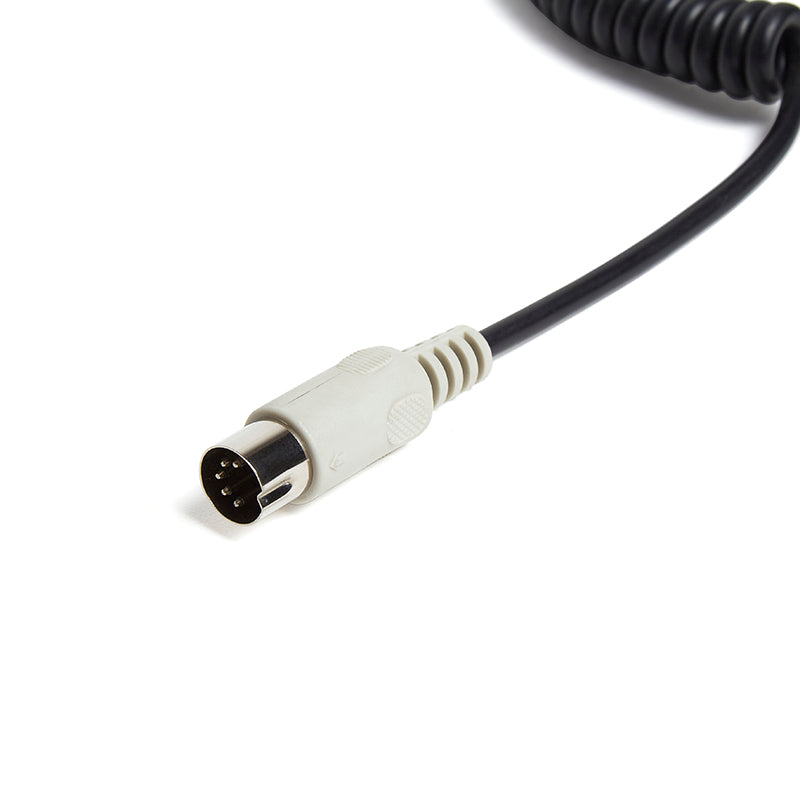

  • This linear actuator features a hall sensor at the end of the motor, and uses a male 5 pin plug, which connects to the control box.

Compatibility:

This linear actuator is direct replacement for the following models:

  • 63ZY24-ST03-24-393.212-8H
  • ST03-24-393.212-8H
  • ST03-29-393.212-8H
  • GM3100-LM

NOT COMPATIBLE

This linear actuator features a hall sensor on the end of the motor, it is NOT compatible with the following models which without the hall sensor:

  • 63ZY24-ST03-24-393.212-8
  • ST03-24-393.212-8
  • ST03-29-393.212-8

Specification:

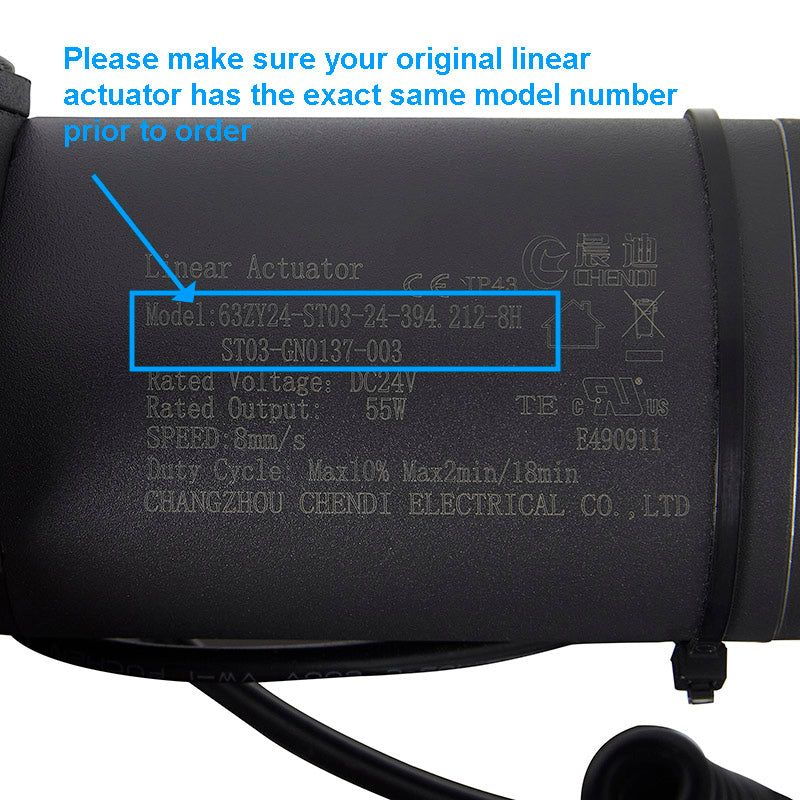

  • Model: 63ZY24-ST03-24-394.212-8H
  • Part number: ST03-GN0137-003
  • Manufacturer part number: GM3100-LM
  • Minimim installation distance: 394mm/15.51inches
  • Stroke: 212mm/8.35inch
  • Rated Voltage: DC24-29V
  • Rated output: 55W
  • Speed: 8mm/s
  • Duty Cycle: Max 10% Max 2min/18min
