Replacement Wire Harness for LMD12517-33A-4-20000 Linear Actuator

This linear actuator wire harness cable is compatible with the LMD12517-33A-4-20000 linear actuator seamlessly.

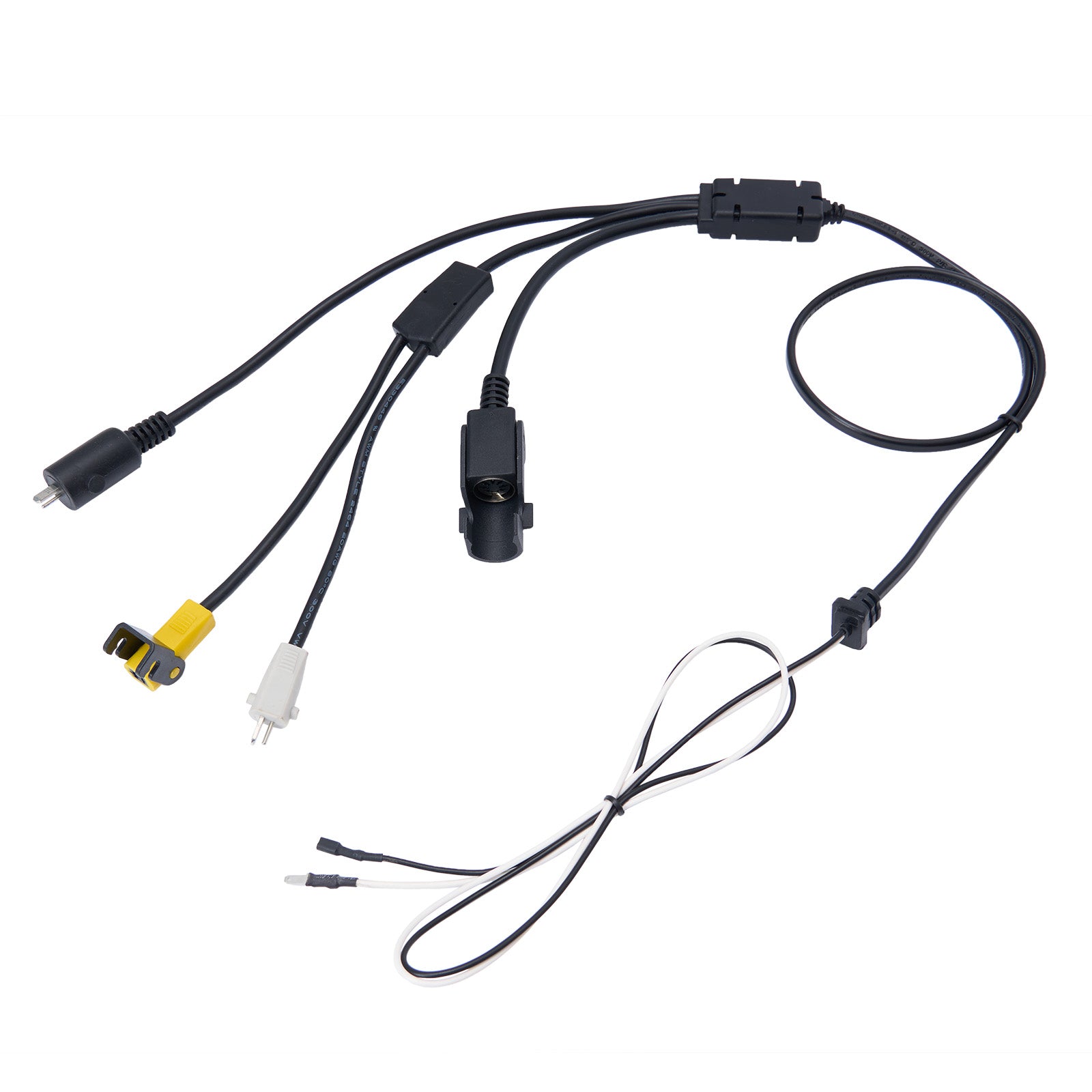

Configuration:

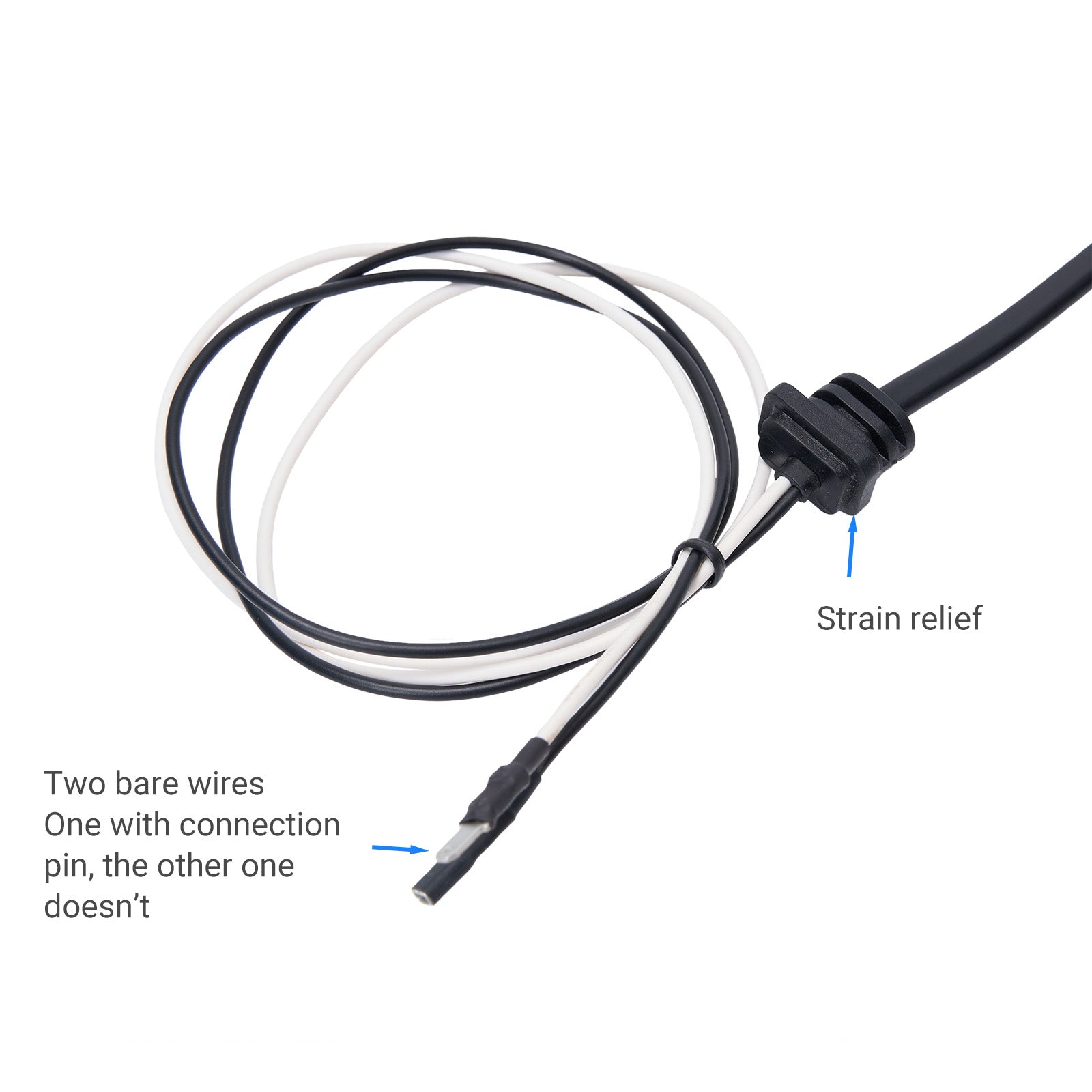

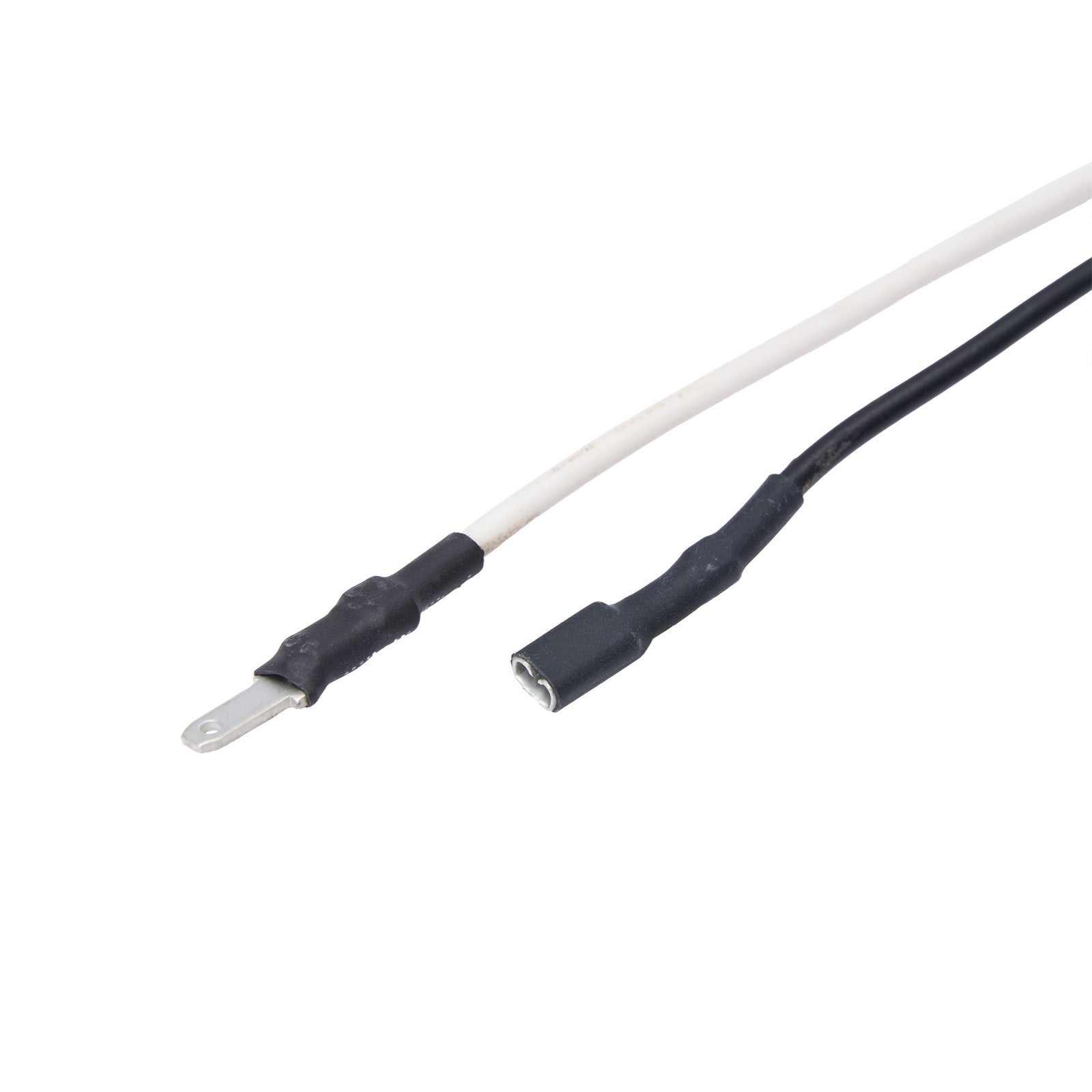

• This replacement linear actuator cable has two bare wires on one side. One of the bare wires terminates with a pin, the other does not.

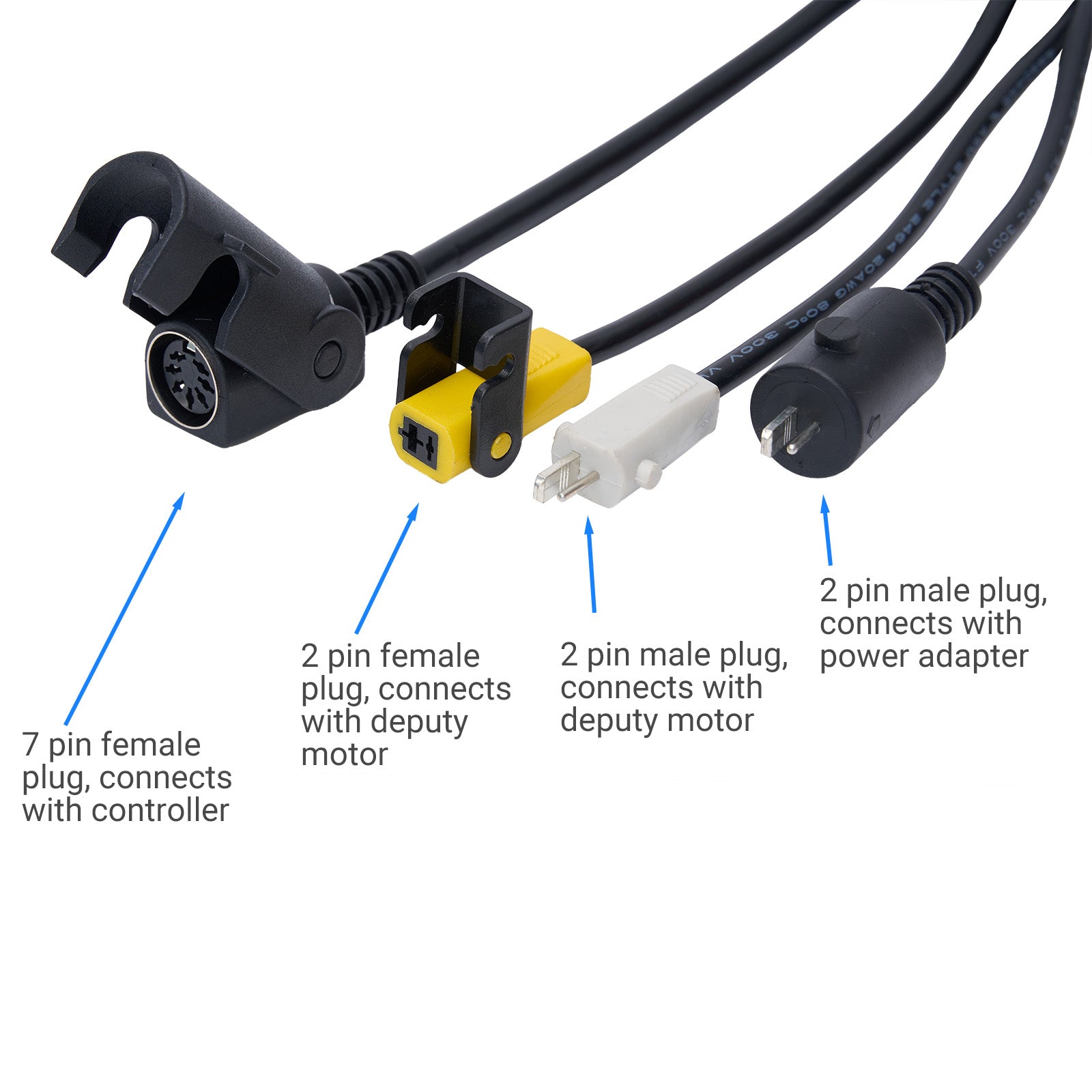

• At the other end of the cable are four splitters/plugs:
  • A round 7-pin female plug connects to your remote controller or switch.

  • A round 2-pin male plug connects to the power supply.

  • A 2-pin female plug connects to a secondary motor.

  • A 2-pin male plug connects to a secondary motor.


Compatibility:

• This wire harness is a direct replacement for the wire harness of the LMD12517-33A-4-20000 Linear Actuator.

• This wire harness may be compatible with other LMD12517 linear actuators which meet the following requirements:
  • The wire harness has the same configurations (4 leads with the same plugs)

  • The wire harness is exiting from the far side of the linear actuator.

• Not Compatible:
  • This wire harness is only compatible with the LMD12517 series. If the model number of your actuator is different, please do not order.

  • If the wire harness of your actuator is exiting from the near side (the motor side), this cable may not be compatible with your actuator.

Important Notes:

• Compatibility: This cable is not a universal fit. Please only order it if your original linear actuator cable has the same configuration.

• Installation: Installing this cable may require dismounting the linear actuator motor. Please ensure you have the necessary knowledge or assistance before placing your order.

• Strain Relief: The replacement cable's strain relief might differ from the original, resulting in a slightly looser fit. To ensure a secure connection and prevent cable damage, we recommend using a zip tie to reinforce the strain relief.
