Raffel CTR UR2 25 Four Button Switch for Recliner with 2 Plugs & USB

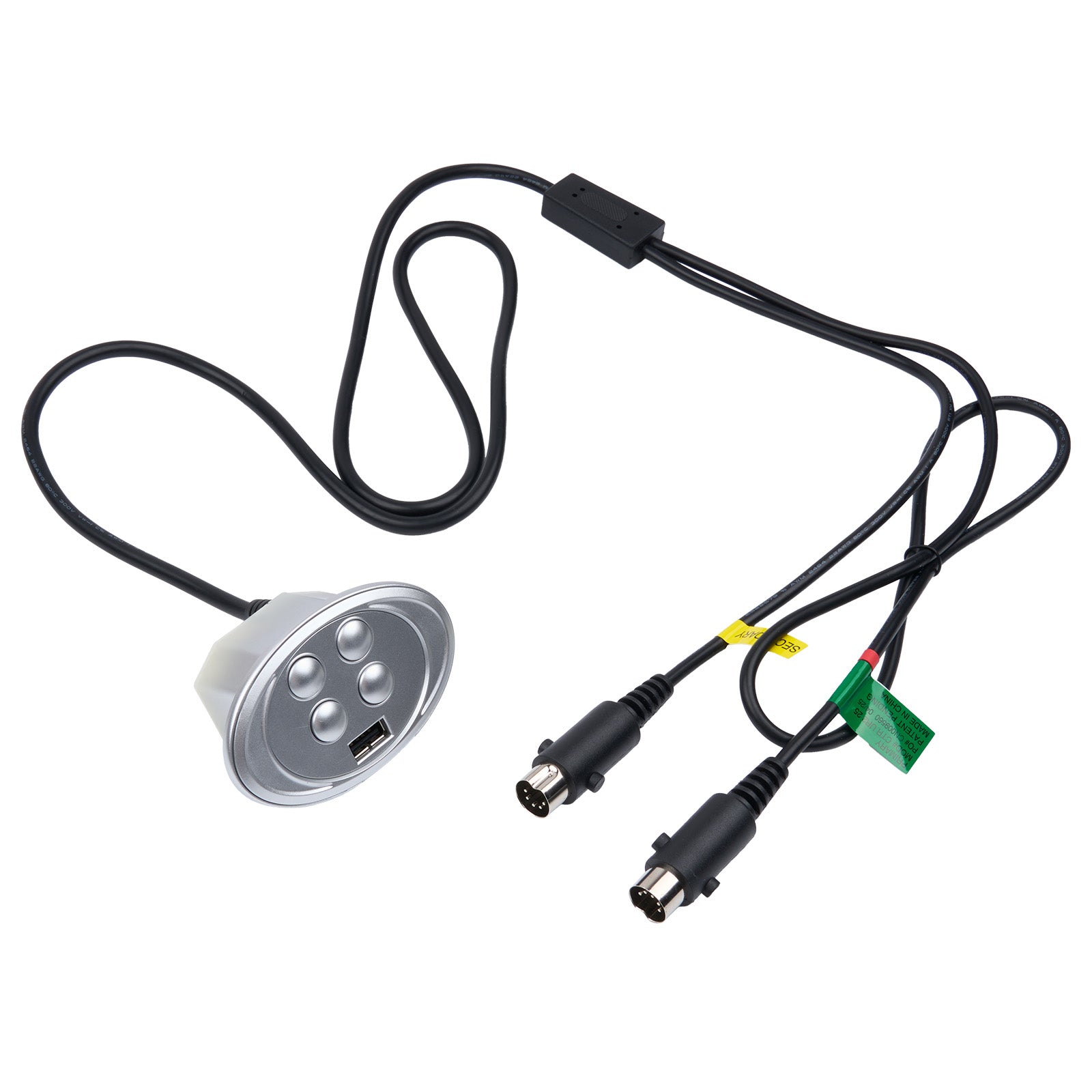

This genuine Raffel CTR UR2 25 switch features four buttons and two 5-pin male plugs. It is designed for power recliners and lift chairs equipped with two motors.

Compatibility:

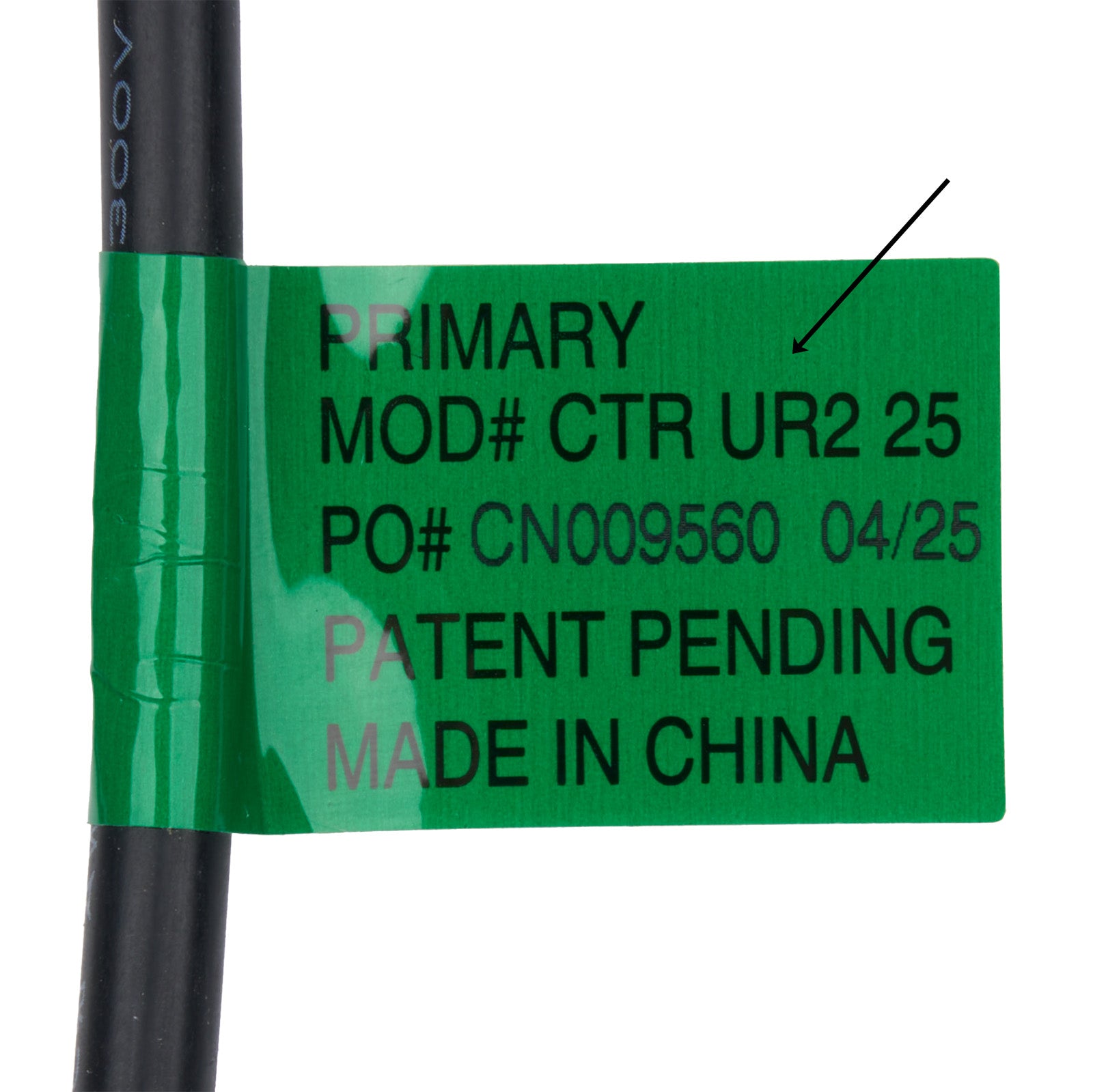

This switch is not cross-compatible. Please confirm that your existing switch carries the exact model number (CTR UR2 25) before ordering. You can locate this model number on the tag attached to the switch cable which connects to the footrest motor.

Feature:

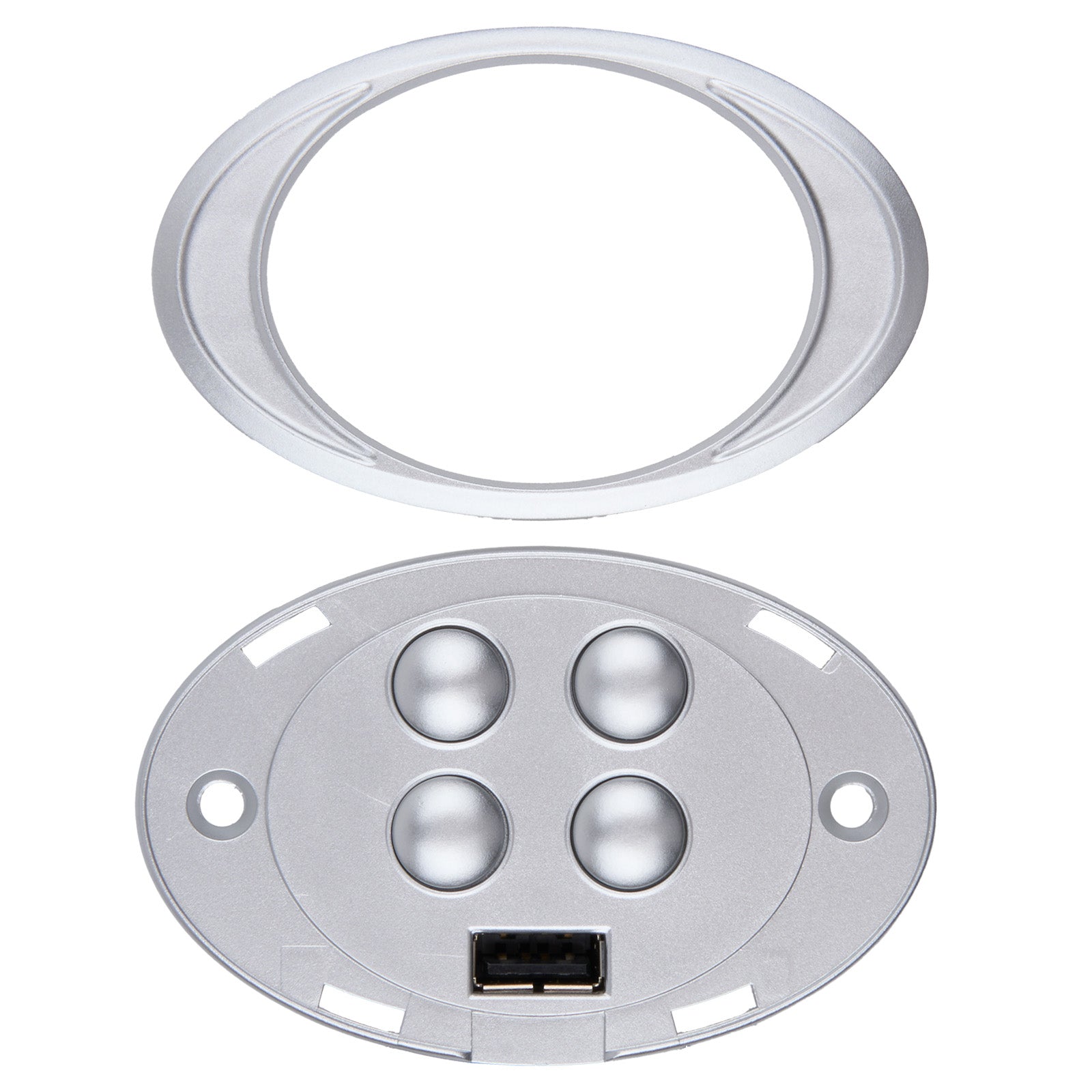

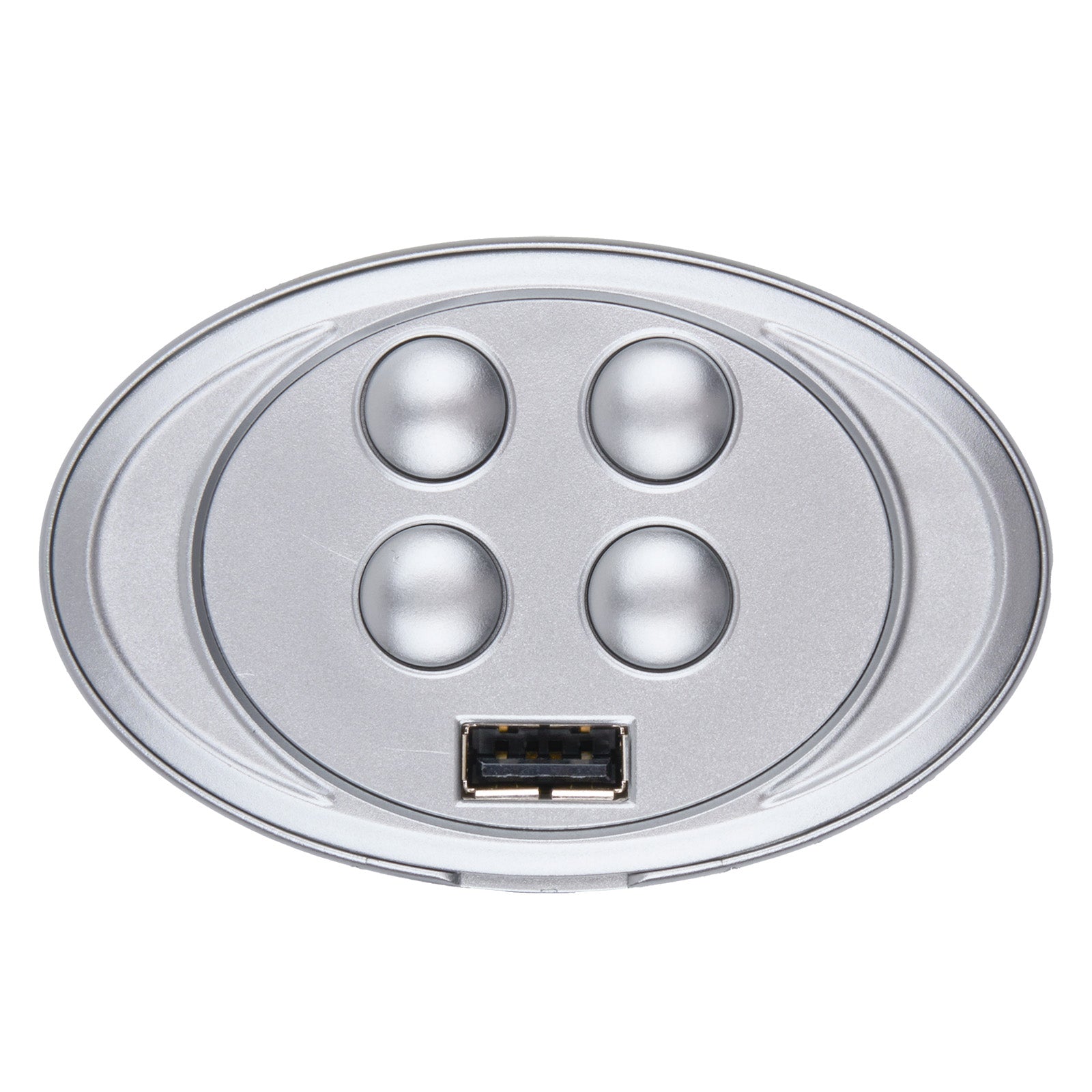

• Four Buttons: The switch provides four-button control for operating two independent motors.

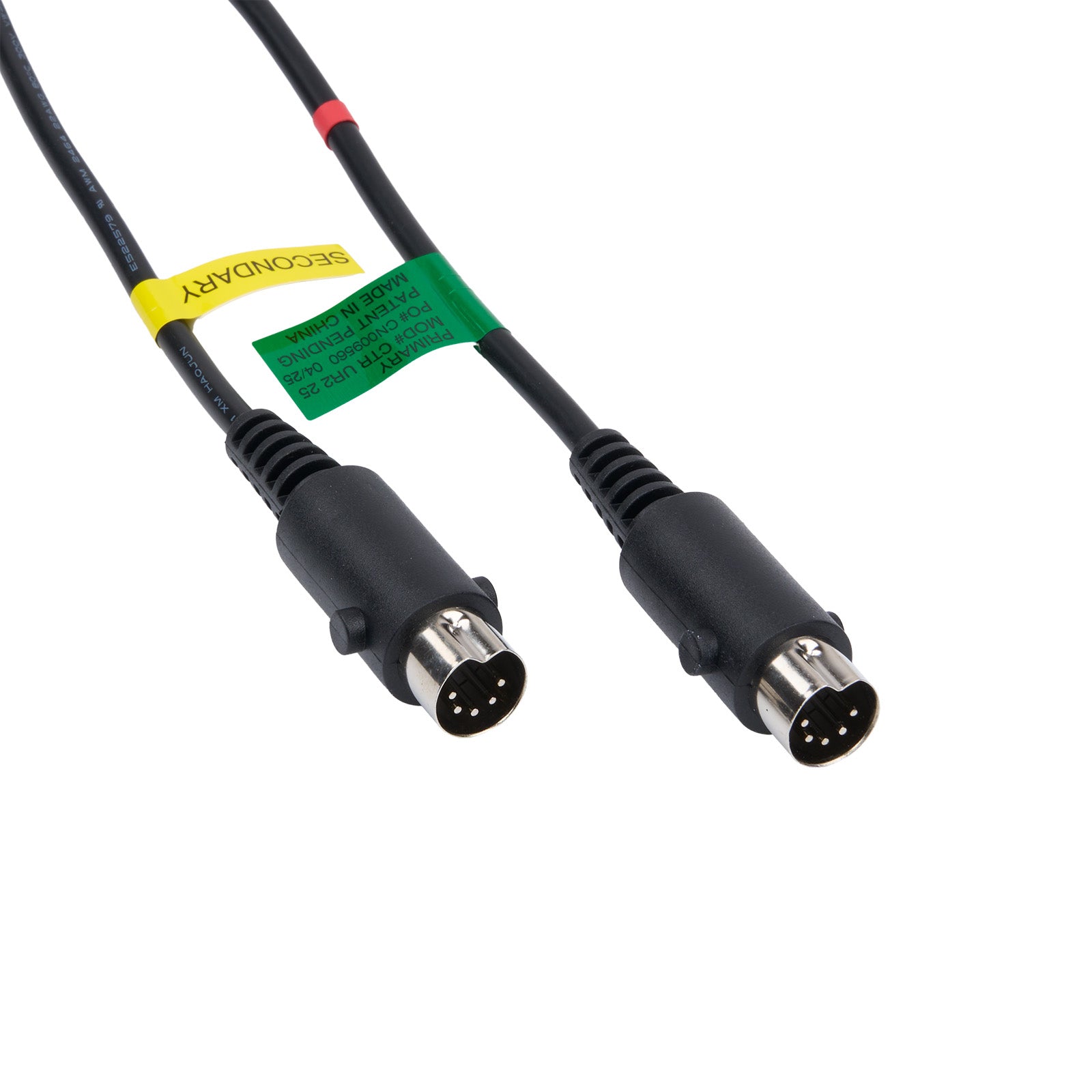

• Two Plugs: It includes two 5-pin male plugs. The plug with a green tag and red ring connects to the primary (footrest) motor, while the plug with a yellow tag connects to the secondary motor.

• USB Port: A built-in USB port offers a 5V/2A output, ideal for charging mobile devices.


Specifications

• Model Number: CTR UR2 25

• Rated Voltage: 29V 2A

• USB Output: 5V 2A

• Mounting Hole Spacing: 2.48”

• Cable Length: 5.9 ft per splitter
