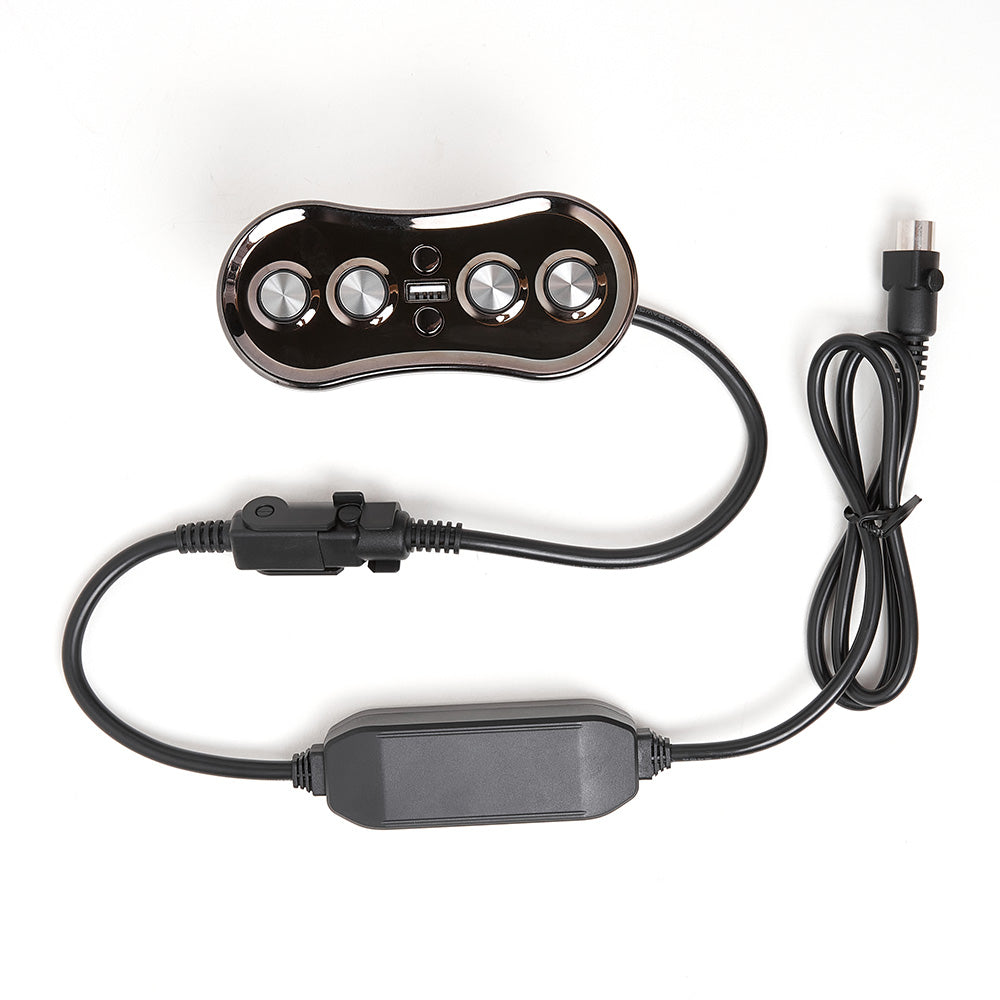

OKIN JLDK.60.06.02 Switch for Recliner Lift Chair 6 Button with USB

OKIN JLDK.60.06.02 Switch for Recliner Lift Chair 6 Button with USB

Regular price $85.00 USD
Regular price Sale price $85.00 USD
Sale Sold out
Shipping calculated at checkout.
  • PayPal
  • This is the genuine JLDK.60.06.02 Recliner Switch, if your switch has the same model number, you can use this switch to replace yours.

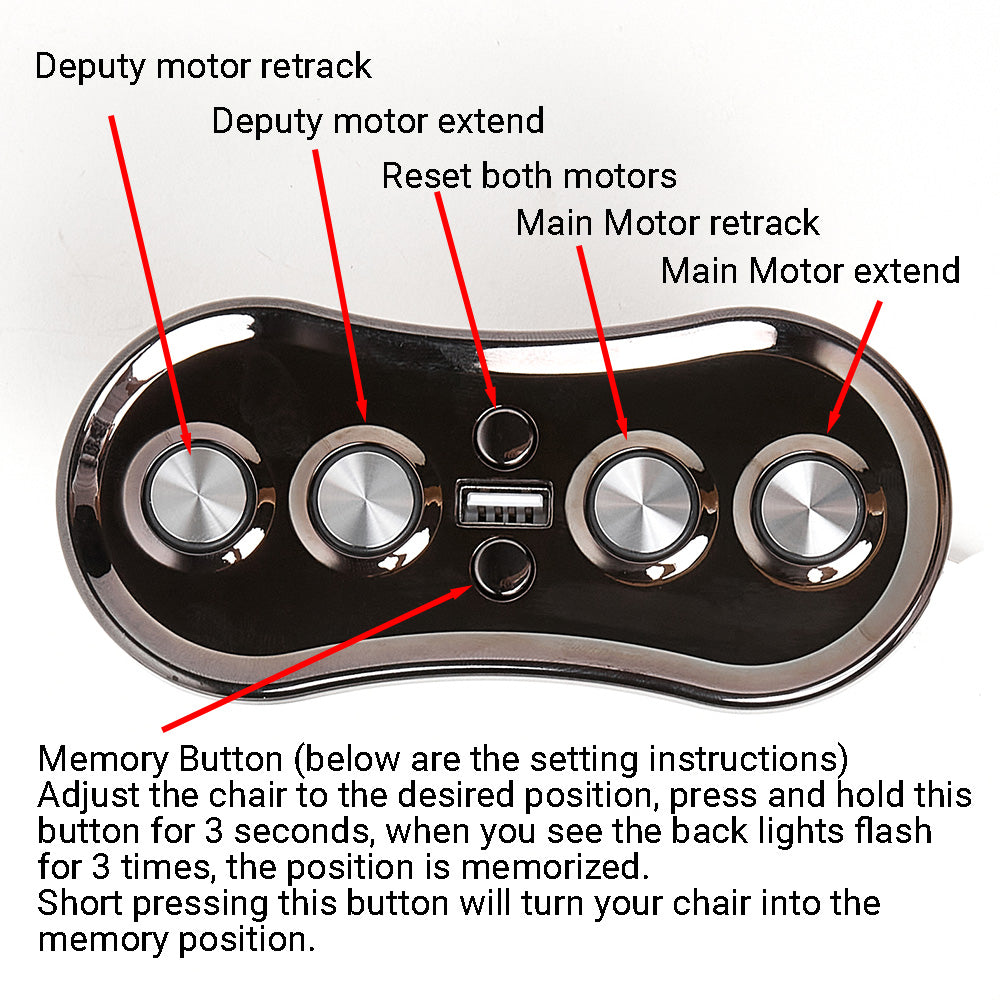

  • The switch has 6 buttons, suitable for recliners with 2 linear actuator motors
  • With a USB charging port, you can use it to charge your mobile device

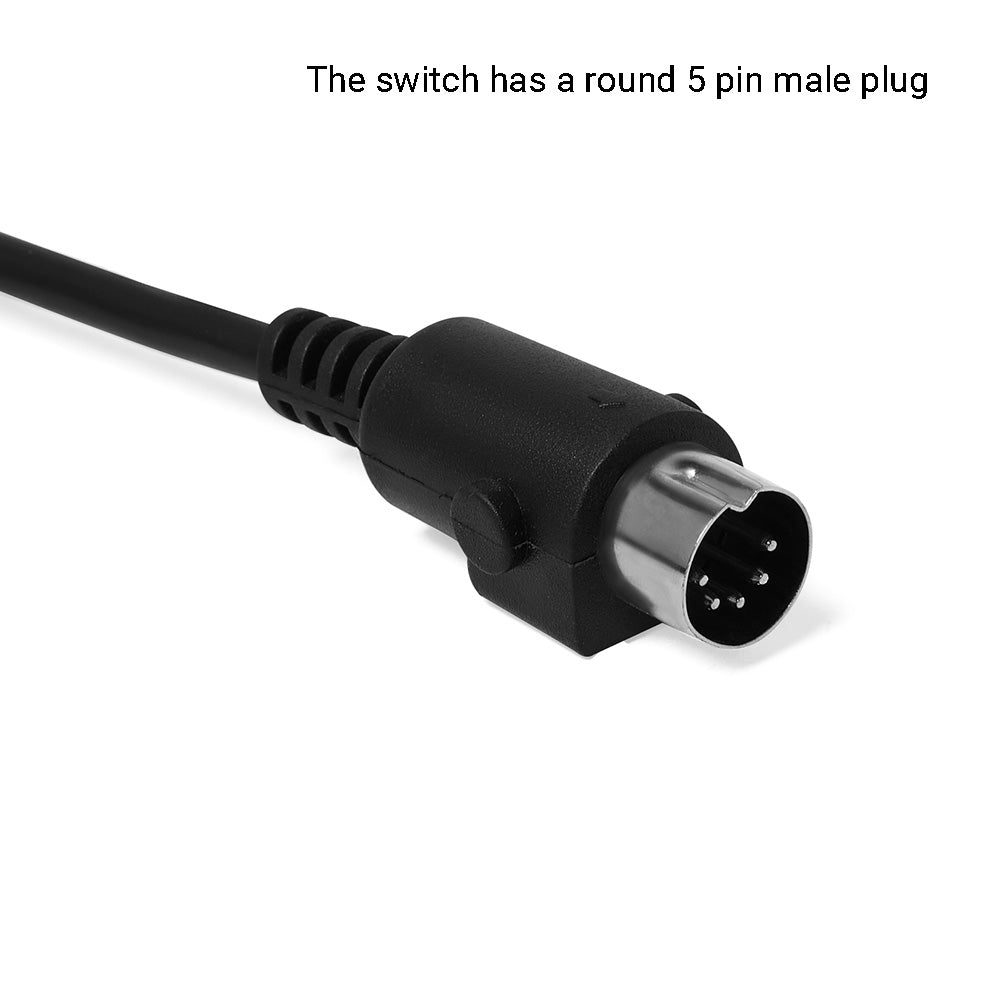

  • The plug of the switch is a round 5-pin male plug
JLDK.60.06.02



Specifications

  • Part Number: JLDK-60
  • Model number: JLDK.60.06.02
  • Okin Refined Electric Technology Co., Ltd.
  • Rated Voltage: 29V 2A
  • USB port output: 5V 2A

 JLDK.60.06.02

Note:

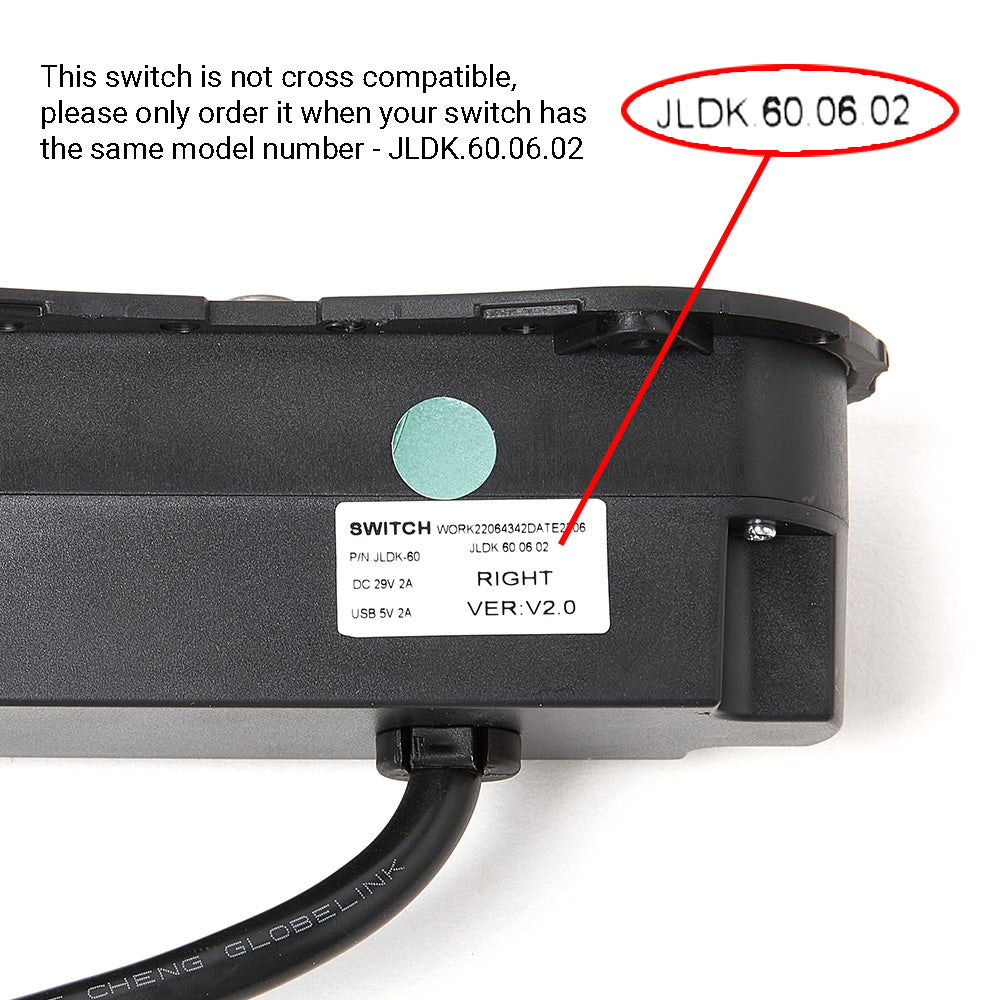

  • The JLDK.60.06.02 is not a universal switch, please only order when your switch has the same model number.

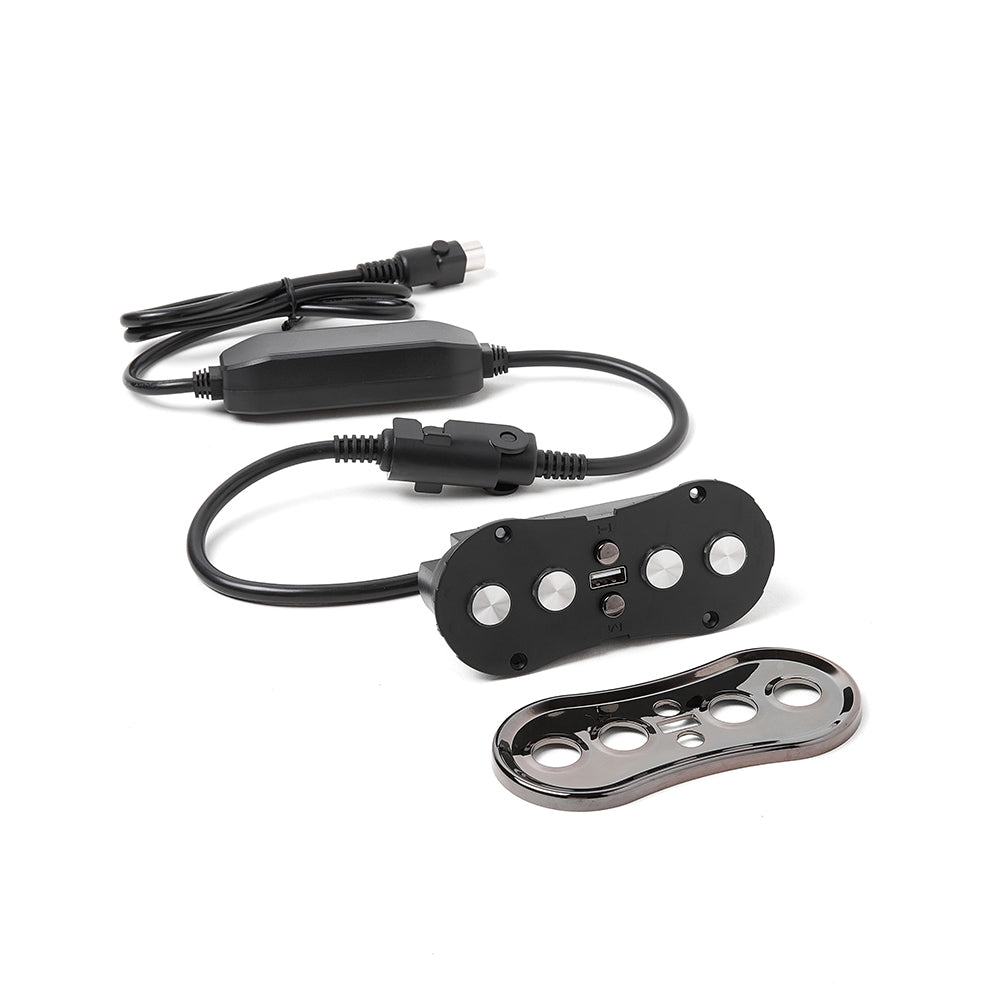

  • The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
  • When you are installing the switch, do not install the plastic cover until everything is done.
  • After installing this switch to your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
  • Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, and quick operation is more likely to cause damage to the switch.
