OKIN JLDK.15.08.27 5 Button Switch for Recliner

• This is the genuine JLDK.15.08.27 switch; it features 5 buttons and two 5-pin male plugs, suitable for power recliners or lift chairs with two motors.

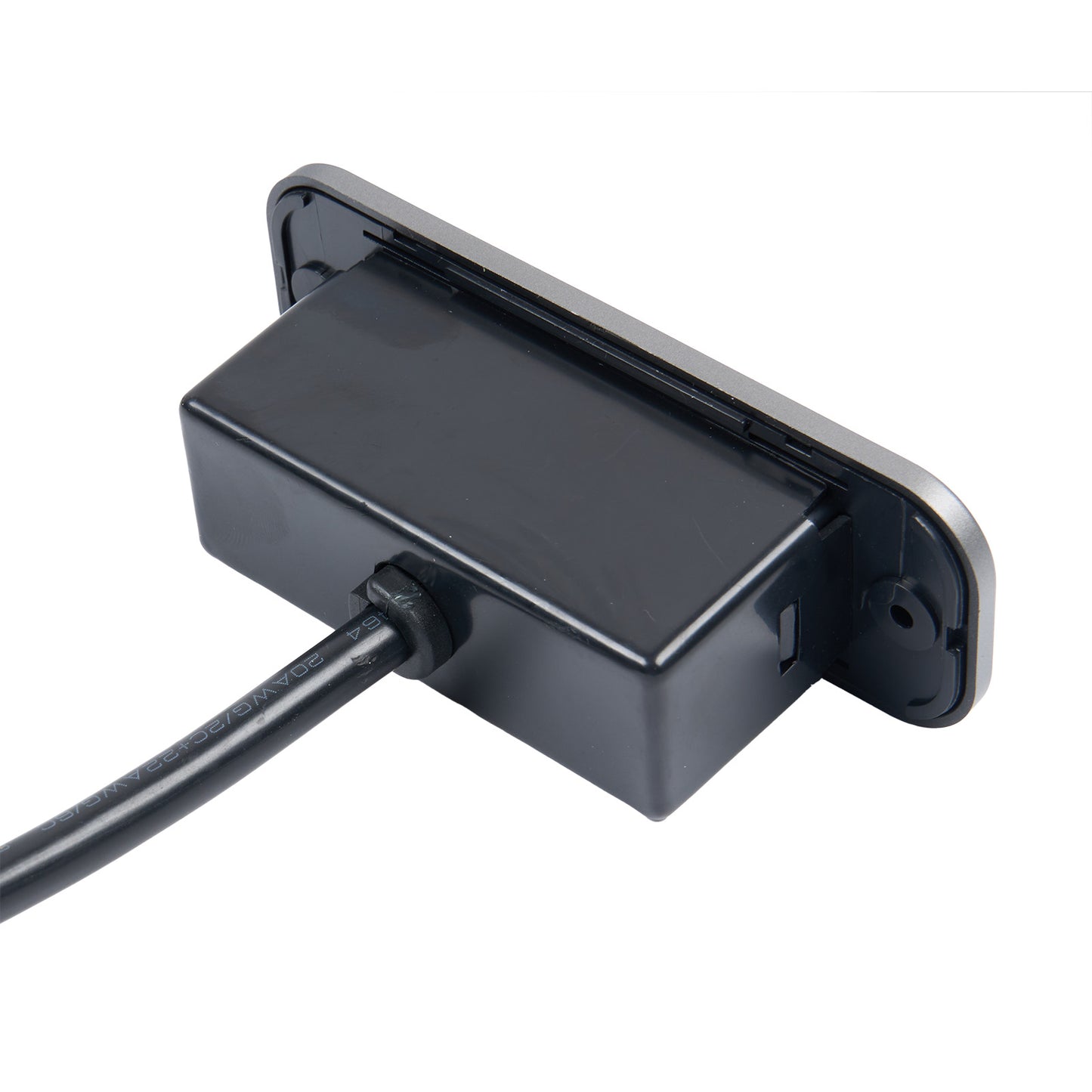

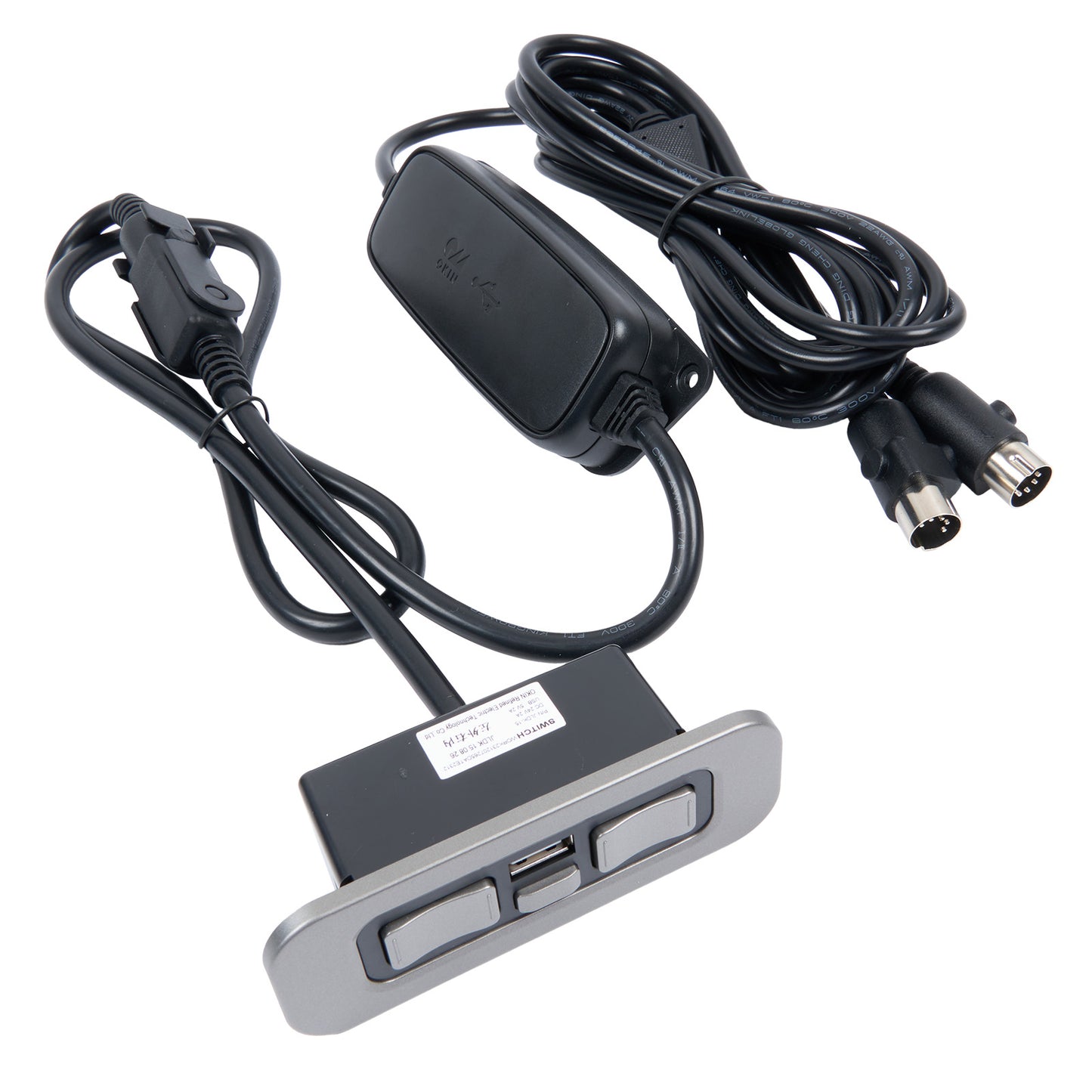

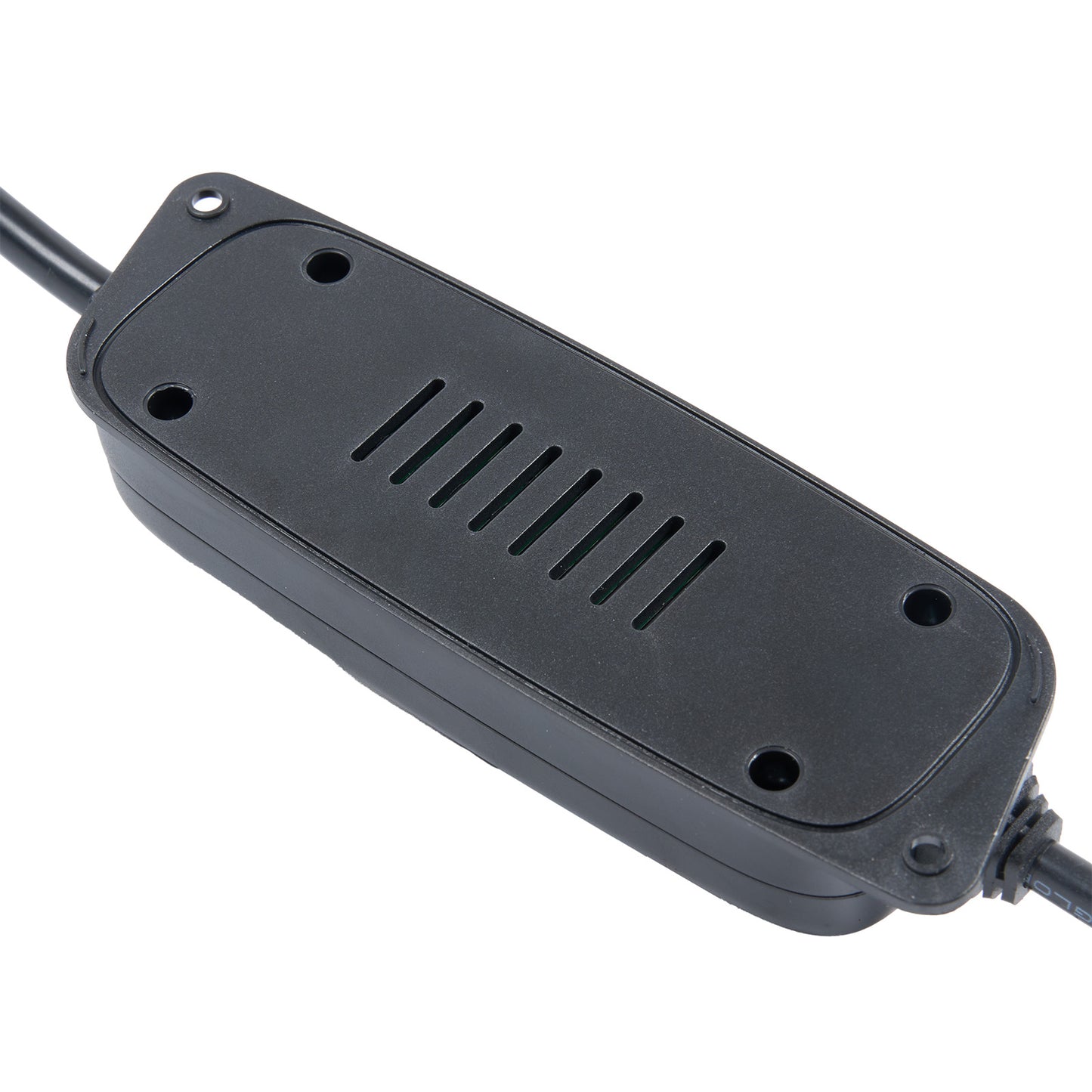

• This link is for the entire switch assembly. It includes the switch body and the wire harness (with a junction box) connected to it.

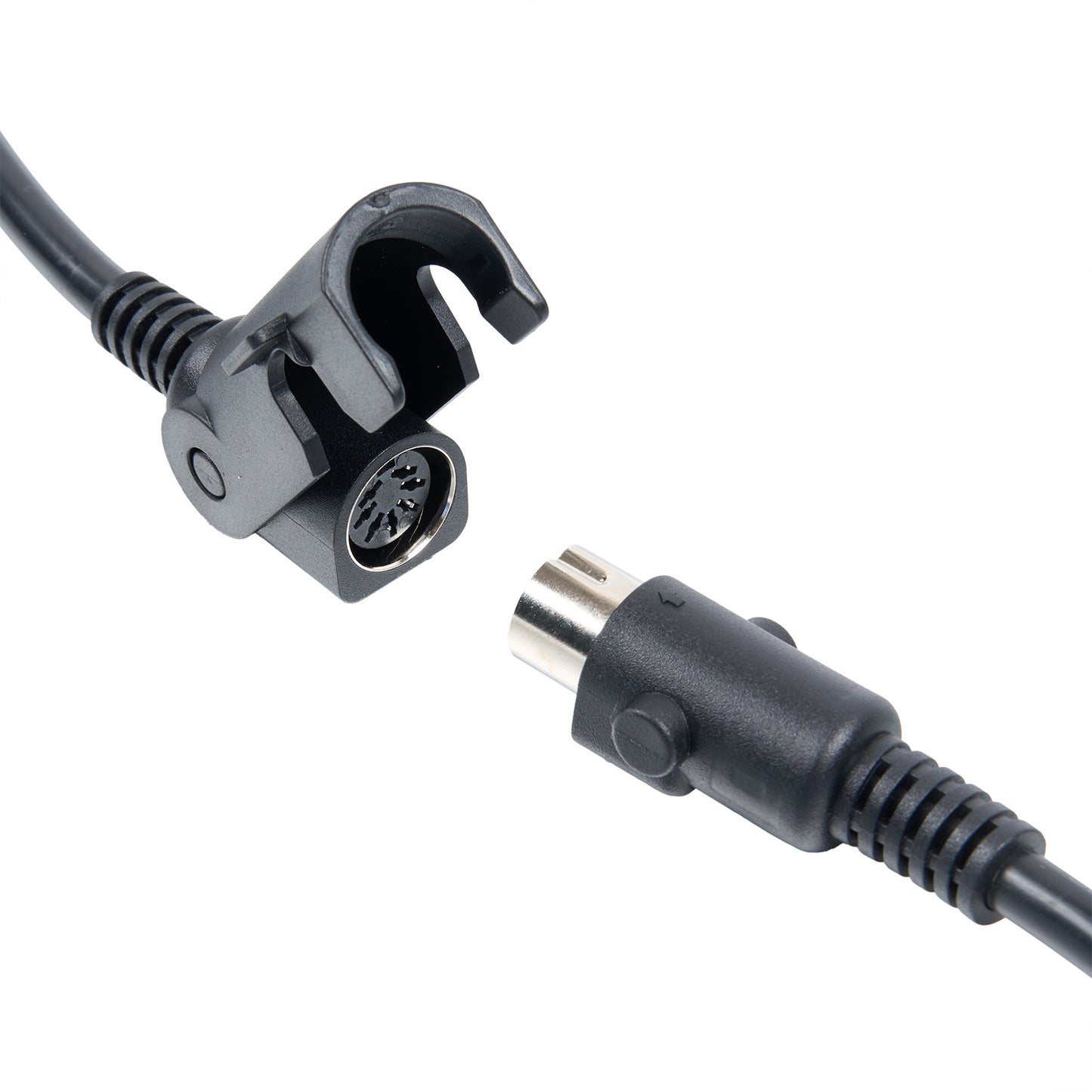

• The switch body has a 7-pin plug that connects to the wire harness; the wire harness has two 5-pin male plugs on the other end that connect to the motors.

Compatibility:

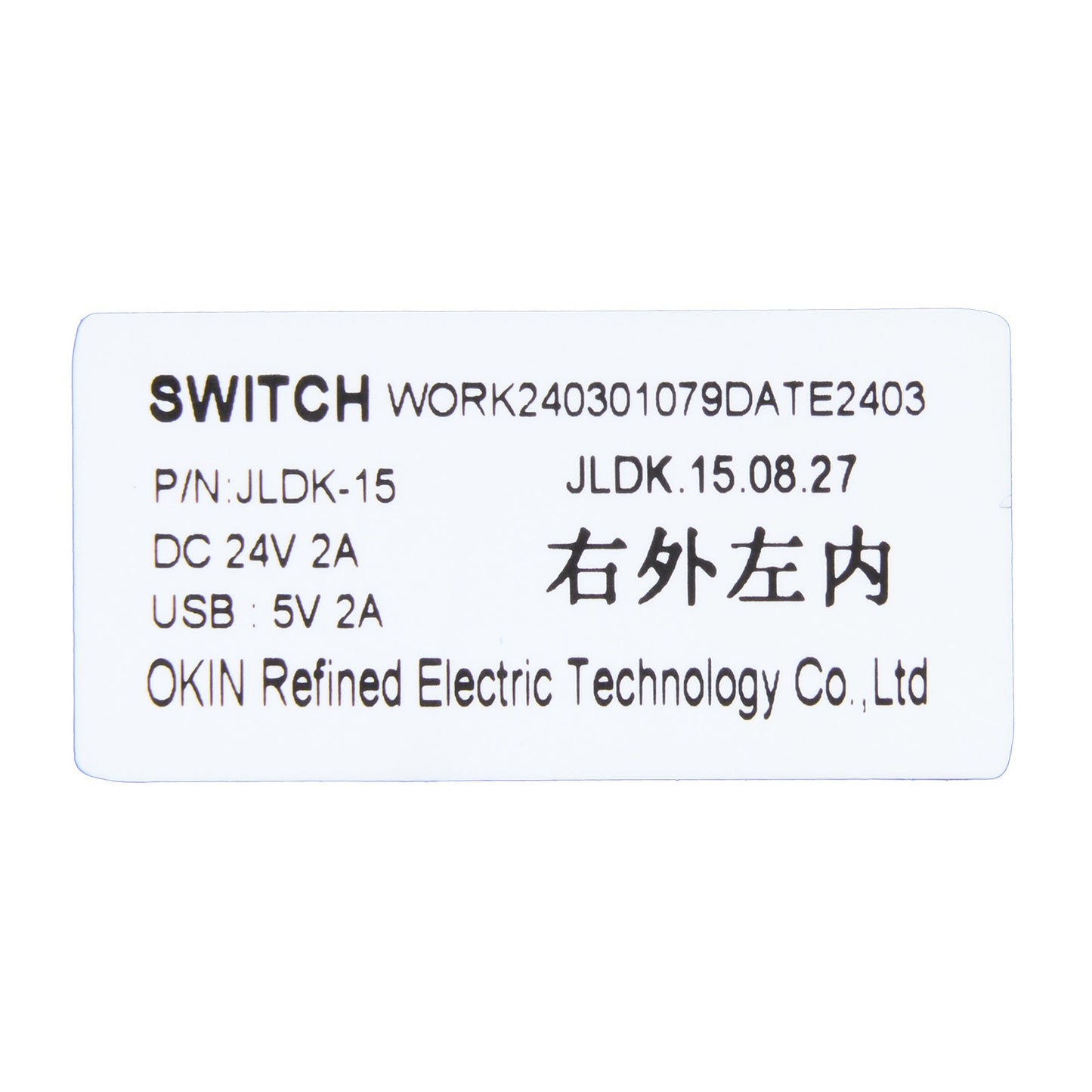

• This switch has multiple sub-models with identical appearances. Please do not order based solely on appearance. We recommend removing the switch from the armrest to check the model number before purchasing.

• This switch is a direct replacement for the JLDK.15.08.27 switch. It can also replace the JLDK.15.08.04 switch.

Note:

When facing the chair, the switch is located:

• On the right side of the chair if installed on the outer side of the armrest.
• On the left side of the chair if installed on the inner side of the armrest.

If your switch’s position does not match the above descriptions, this switch may not be compatible with your chair.

Key Features:

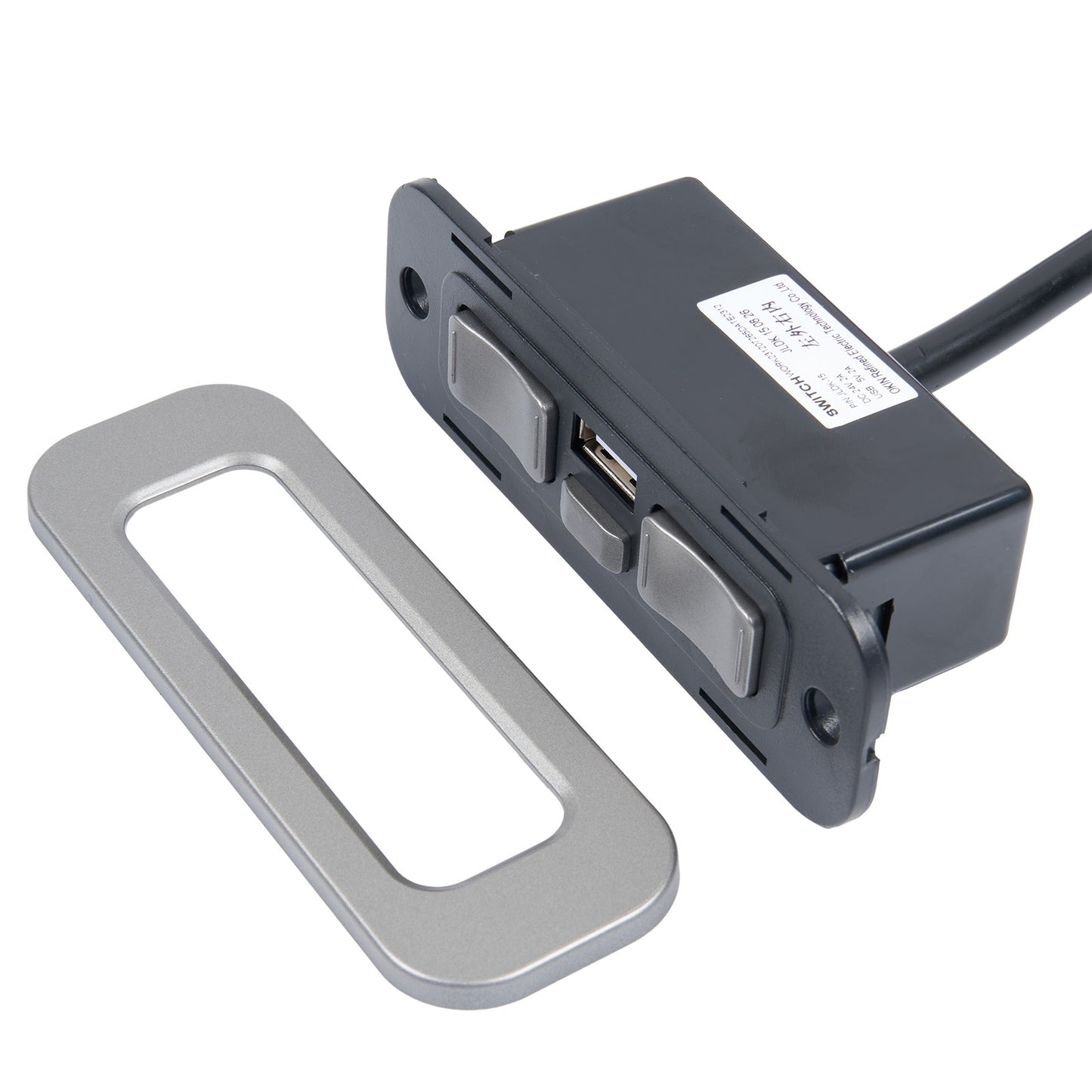

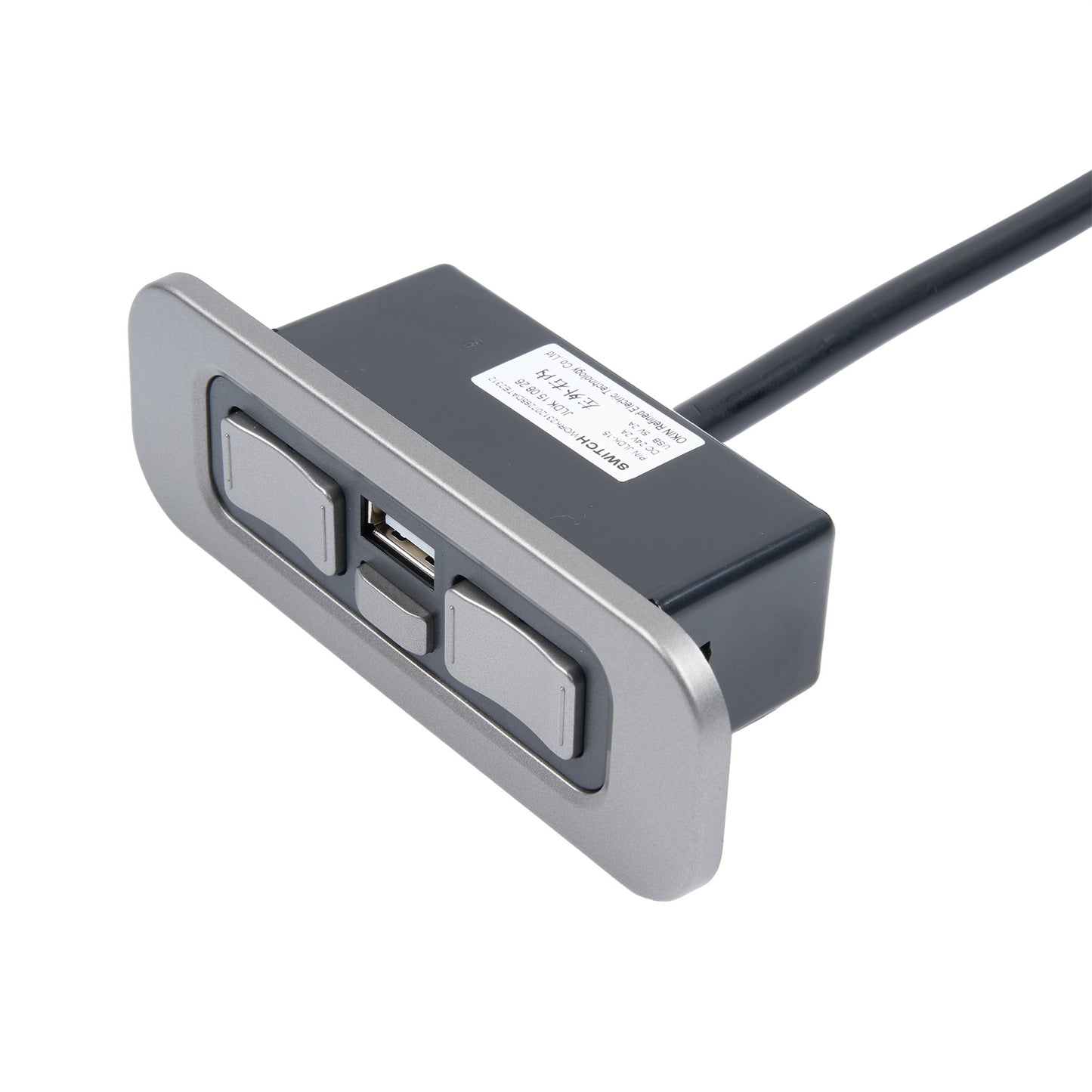

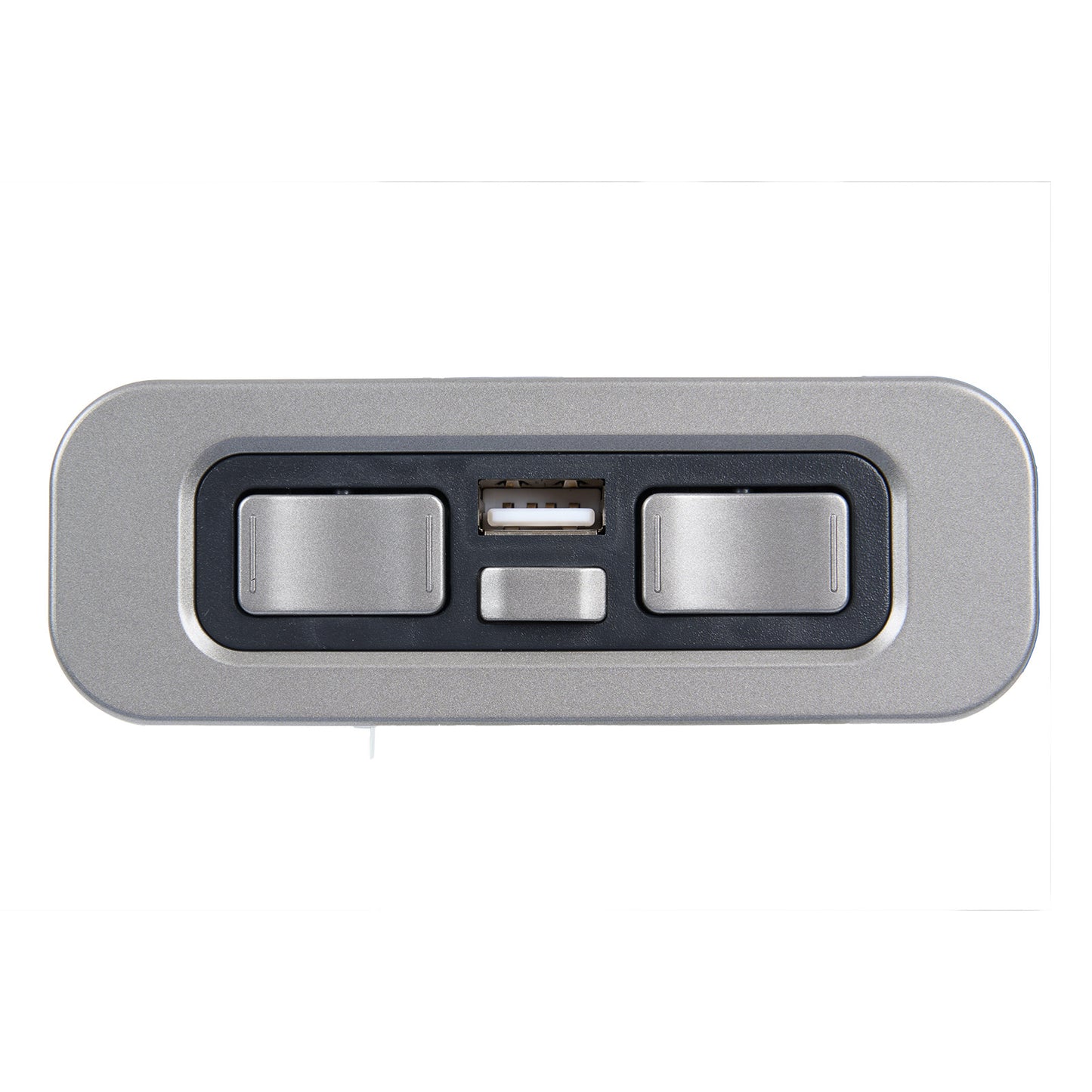

• 5 Buttons: Operate the chair's open/close function and headrest tilt. The small center button serves as a home button.
• USB charging port: Provides 5V/2A output for mobile device charging.

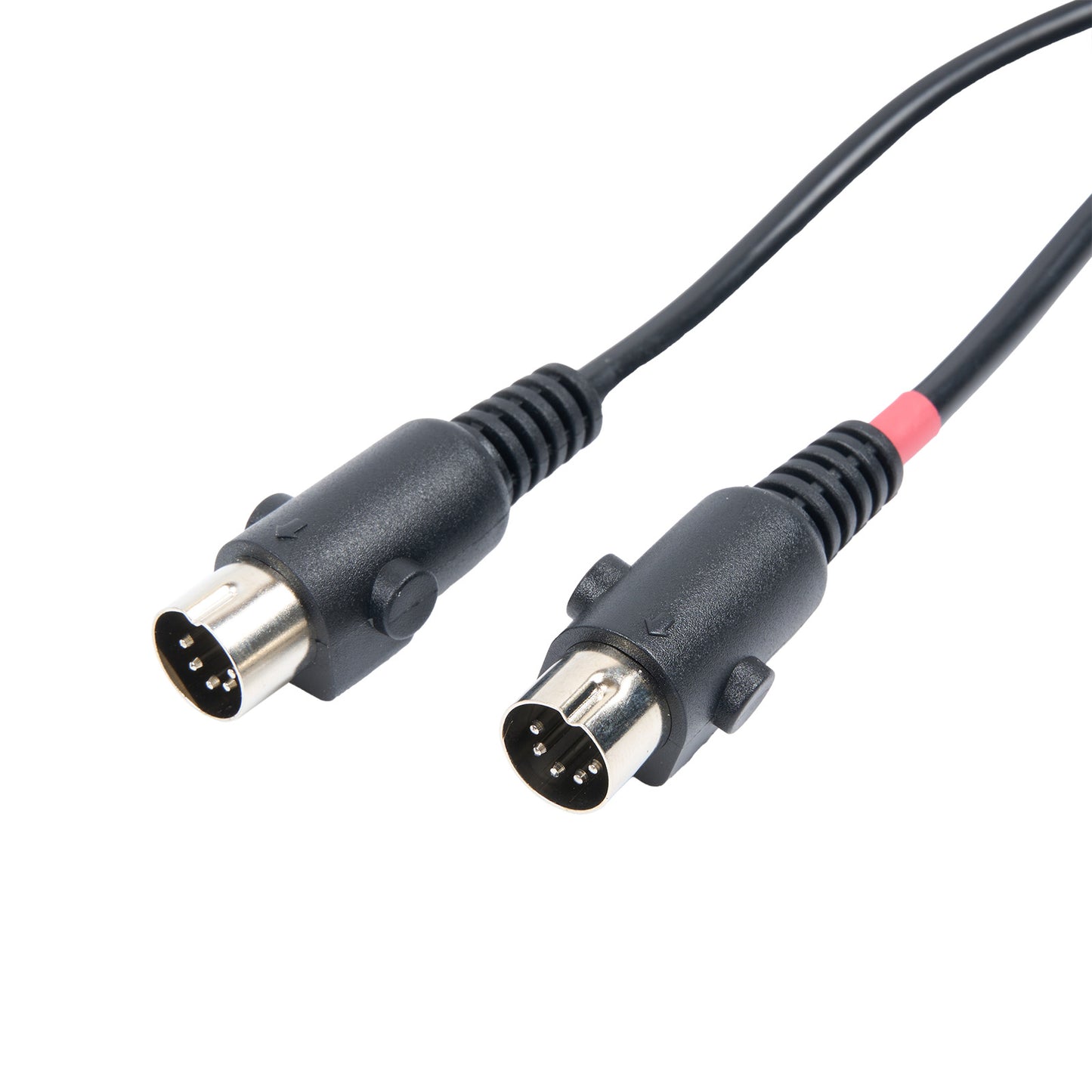

• Dual 5-pin male plugs
