OKIN JLDK.15.07.10 Switch for Recliner Lift Chair 7 Buttons 7 Pin With USB
OKIN JLDK.15.07.10 Switch for Recliner Lift Chair 7 Buttons 7 Pin With USB
Regular price
$105.00 NZD
Regular price
Sale price
$105.00 NZD
Unit price
/
per

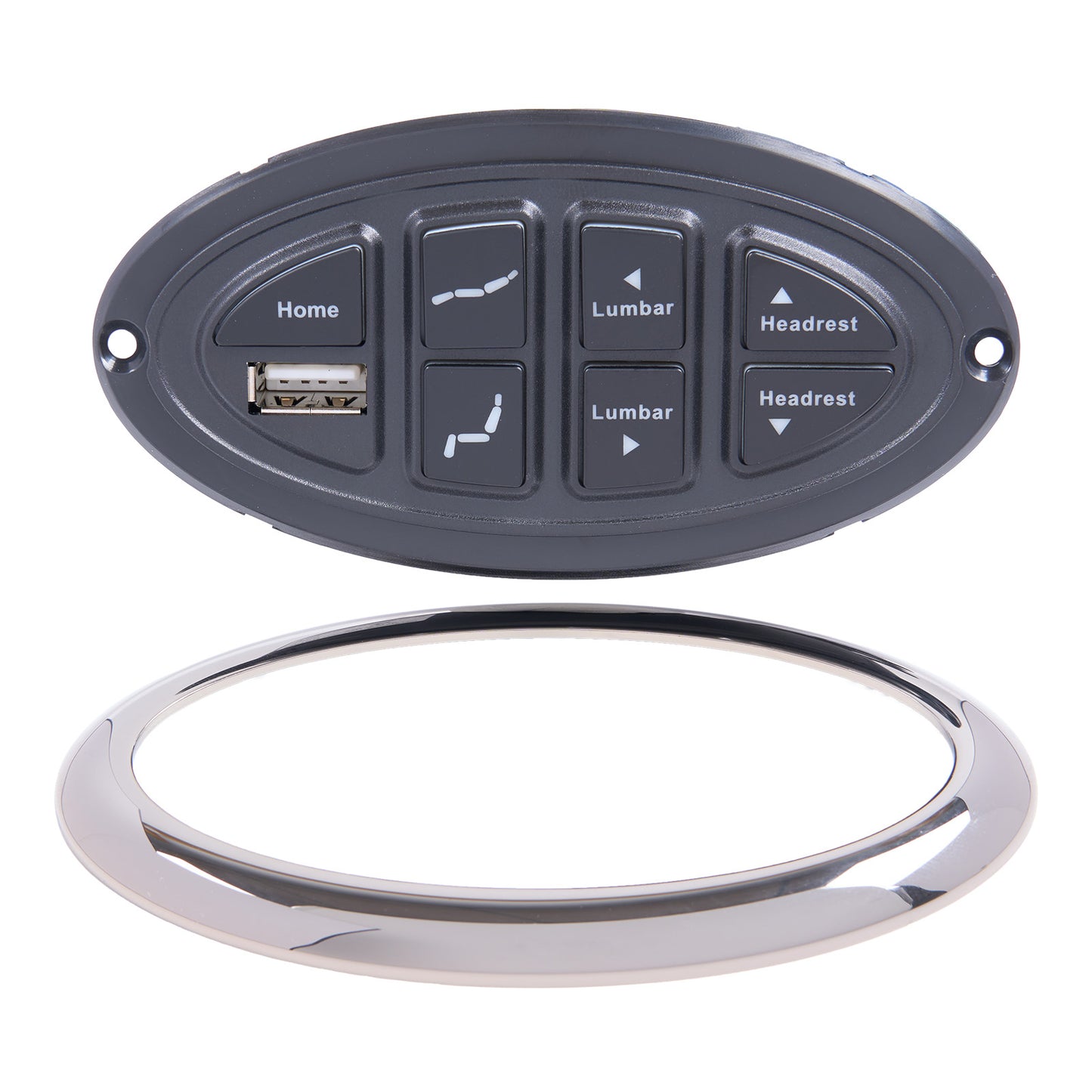

This is the genuine JLDK.15.07.10 Recliner Switch, if your switch has the same model number, you can use this switch to replace yours.

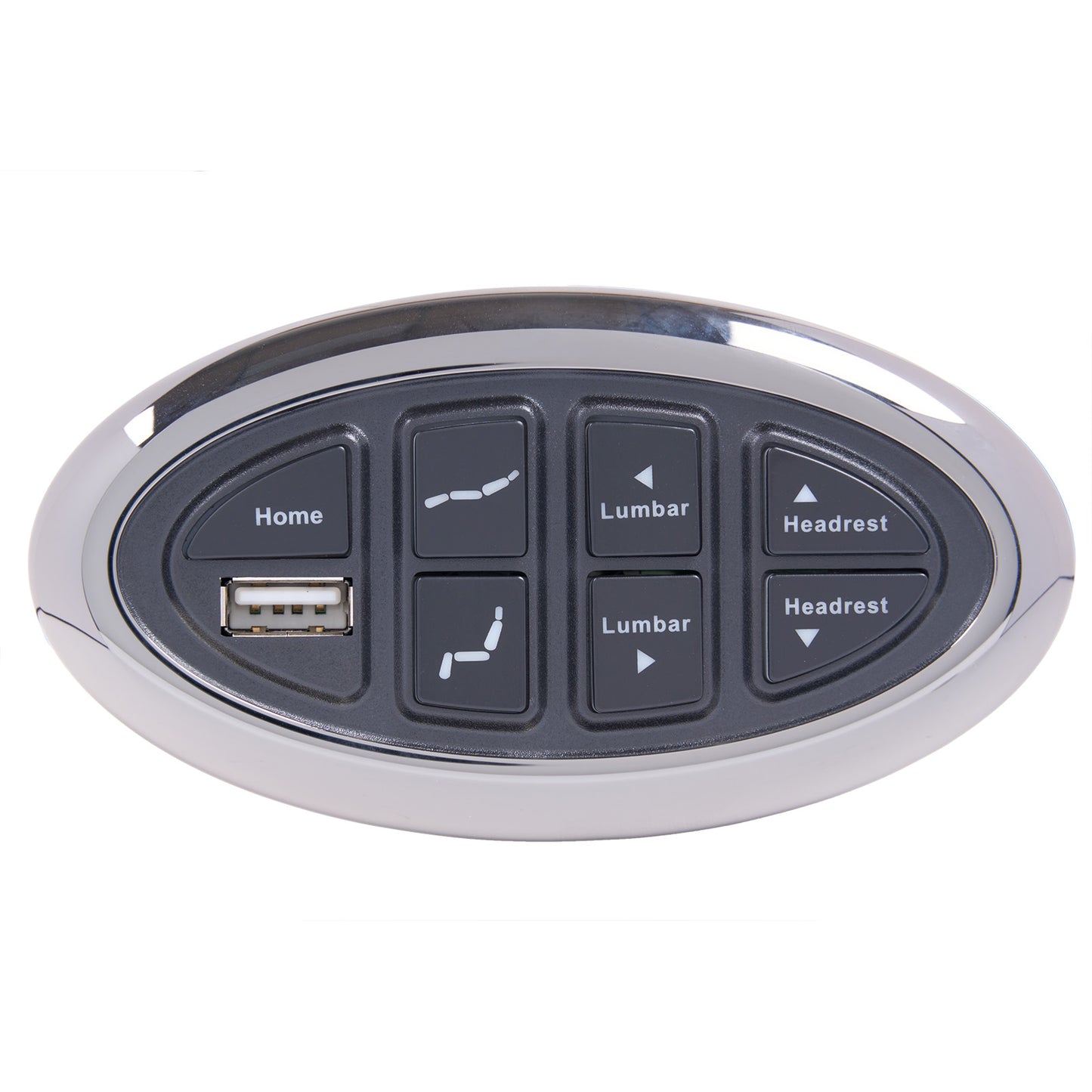

- The switch has 7 buttons, it operates the headrest back/forth, lumbar back/forth, chair raise/recline.
- With a home button, reset the chair in a click
- The switch has a USB charging port, the output is 5V 1A, you can use it to charge your mobile device.

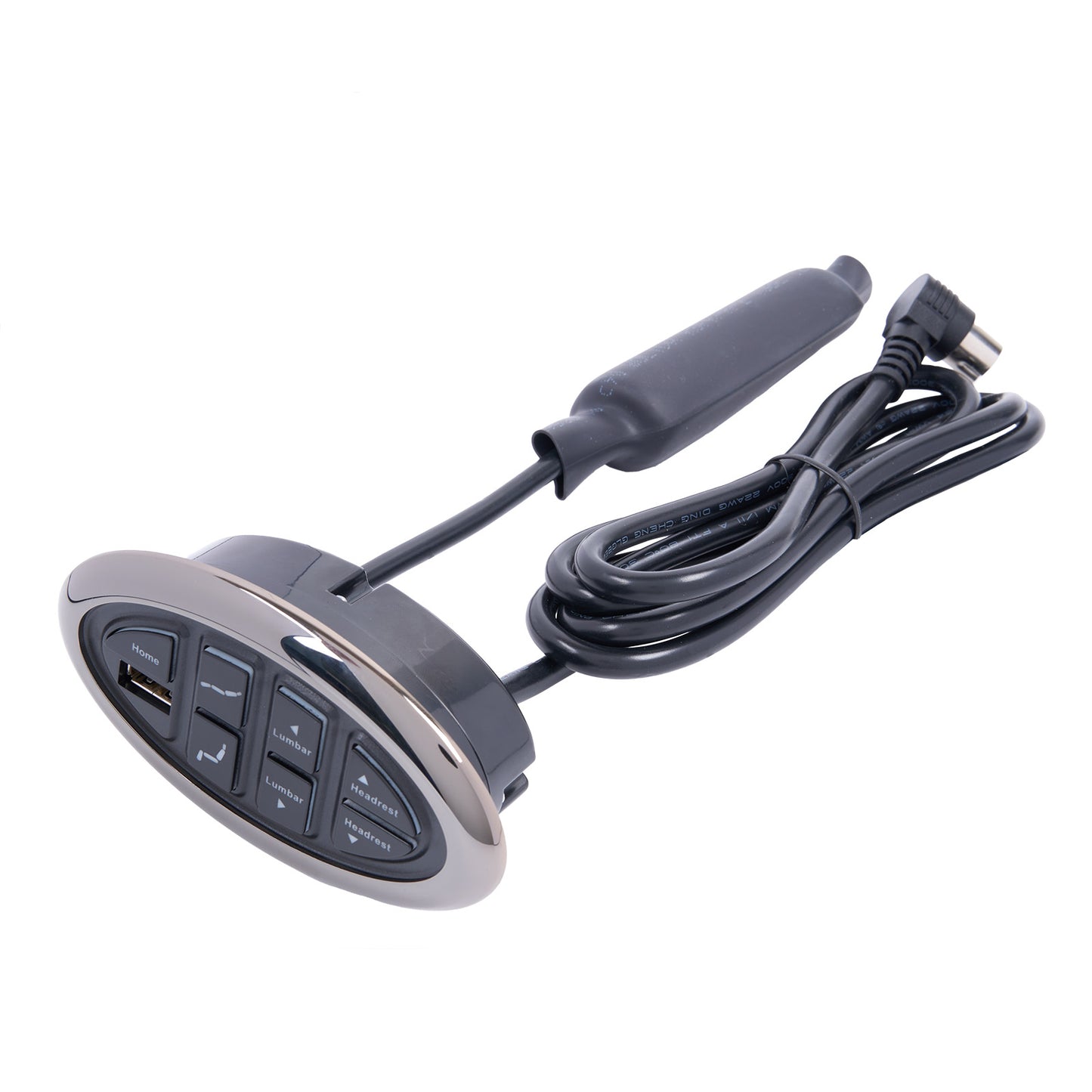

- The switch has a right angled 7 pin round plug.
Specifications
- Part Number: JLDK-15

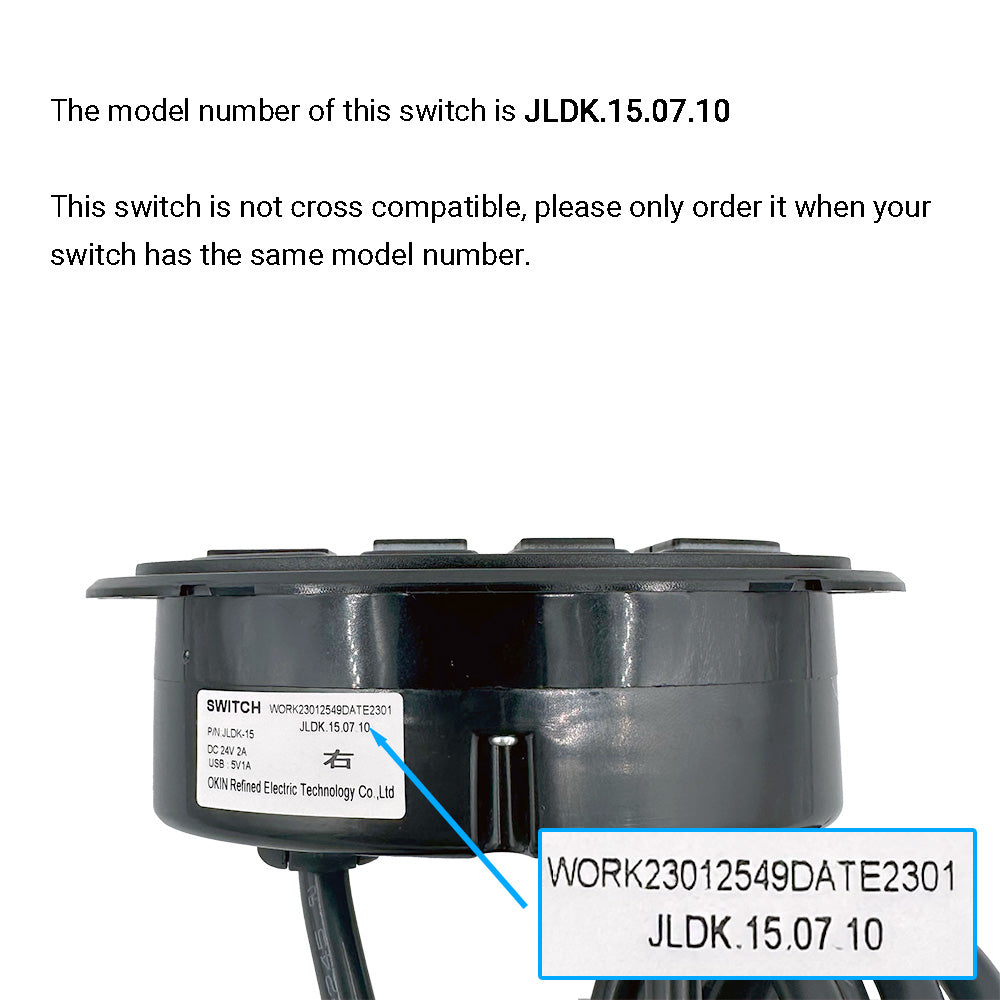

- Model number: JLDK.15.07.10
- Rated Voltage: 24V 2A
- USB: 5V 1A
- OKIN Refined Electric Technology Co., Ltd.
Note:
- The JLDK.15.07.10 is not a universal switch, please only order when your switch has the same model number.
- The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
- When you are installing the switch, do not install the plastic cover until everything is done.
- After installing this switch to your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
- Avoid quick operation of the buttons: When responding to the switching operation, the current is large, and quick operation is more likely to cause damage to the switch.
