KDH160F-008 7-Button Remote Controller for Recliner with 3 Splitter Wire Harness
KDH160F-008 7-Button Remote Controller for Recliner with 3 Splitter Wire Harness
Ship from China
Couldn't load pickup availability

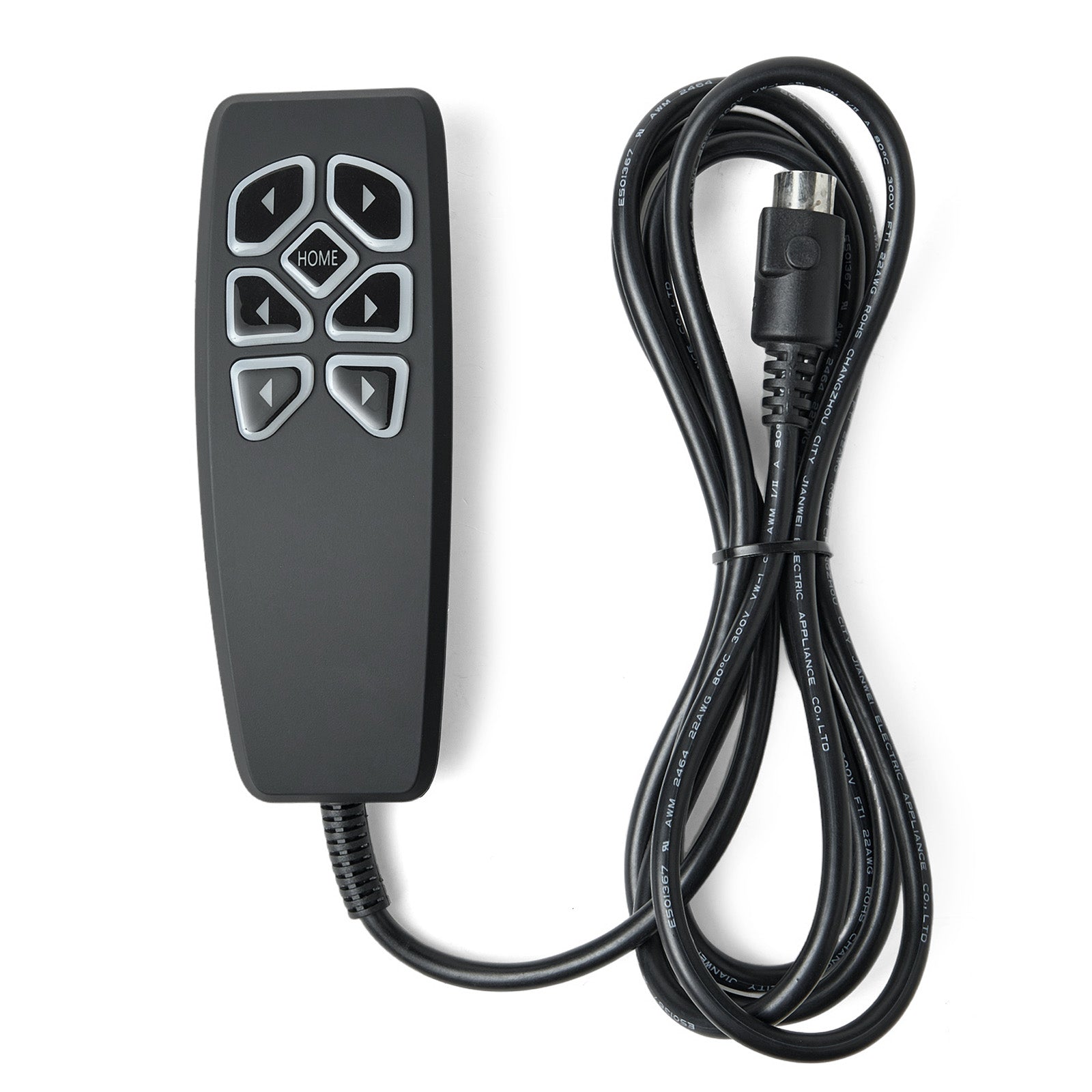

This genuine KDH160F-008 remote controller kit includes one 7-button, 8-pin remote controller and one wiring harness with three splitters. It is suitable for power recliners or lift chairs equipped with three motors.
Compatibility:
- This remote controller is a direct replacement for the KDH160F-008 model.
- It may also replace other KDH160 series remotes that feature 7 buttons and an 8-pin male plug. Please note: due to potential differences in wire sequence, button functions may vary, and the home button may not operate correctly in all cases.
Features:

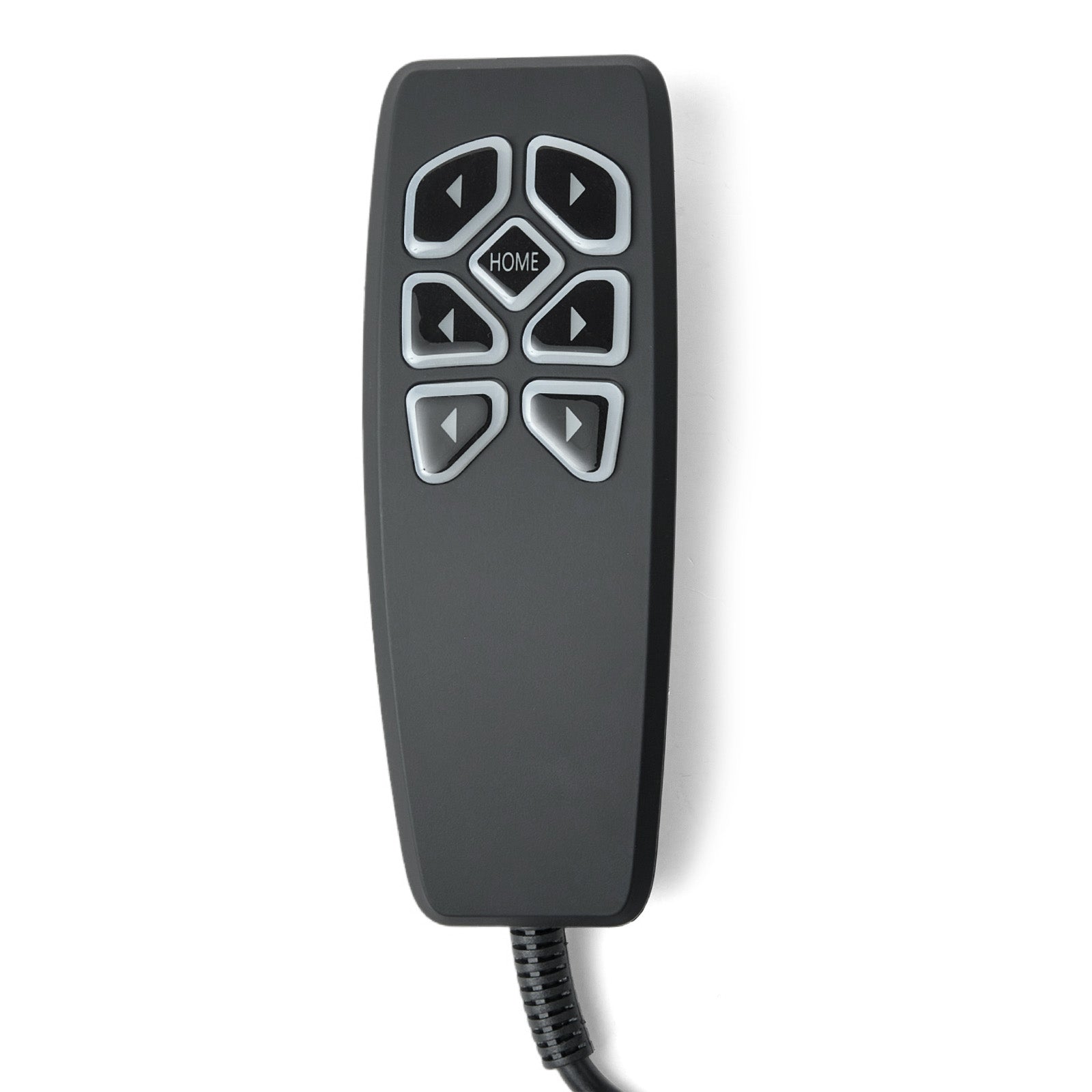

- 7-Button Control: Operates three independent motors. The center home button returns all motors to their default position.

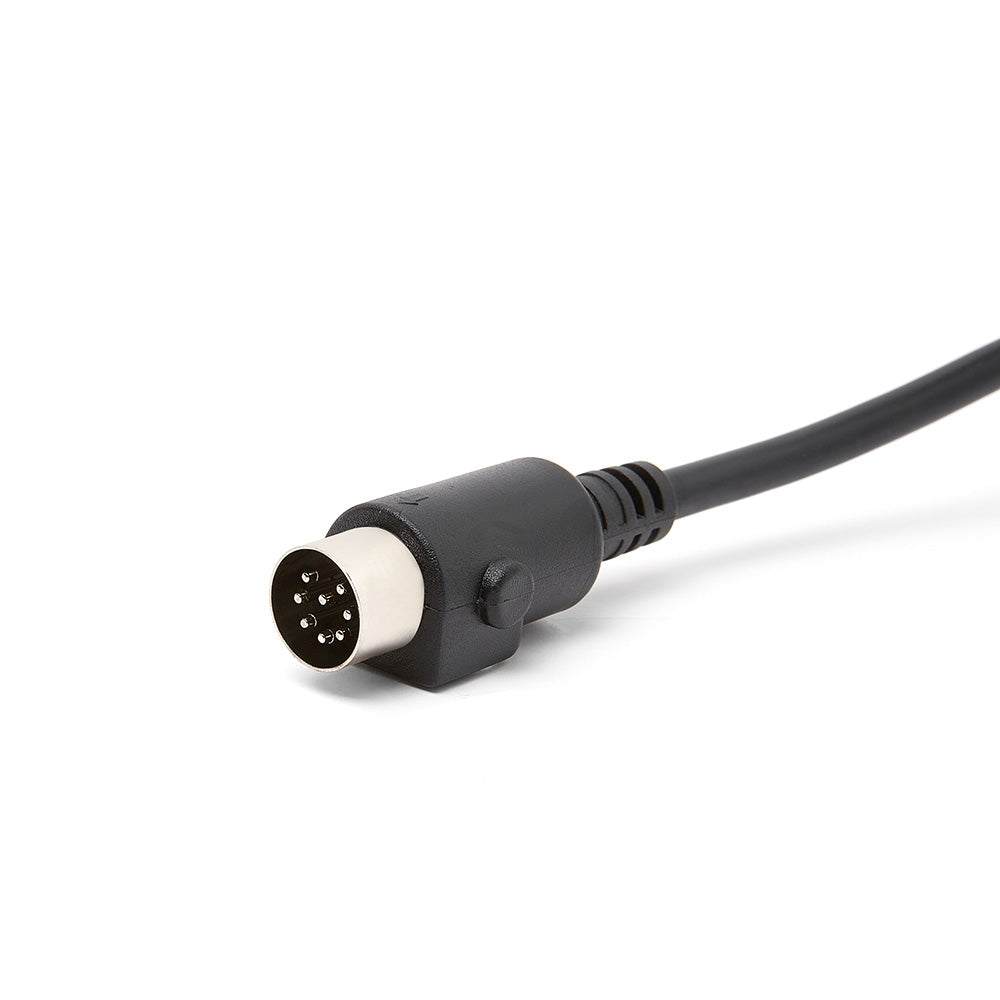

- 8-Pin Male Plug: Connects directly to the provided wiring harness.
- Included Wiring Harness: Splits into three 5-pin male plugs for connection to each motor.

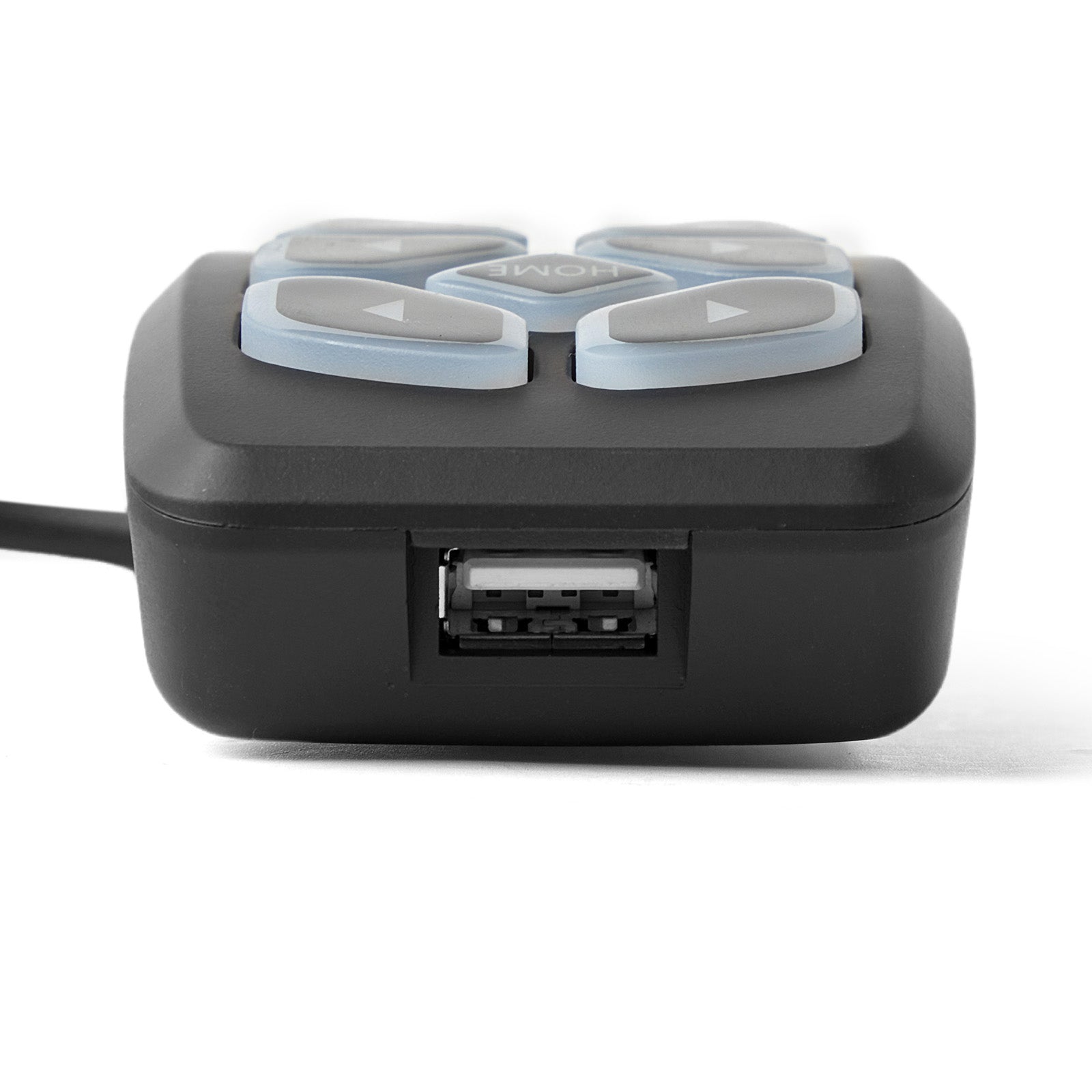

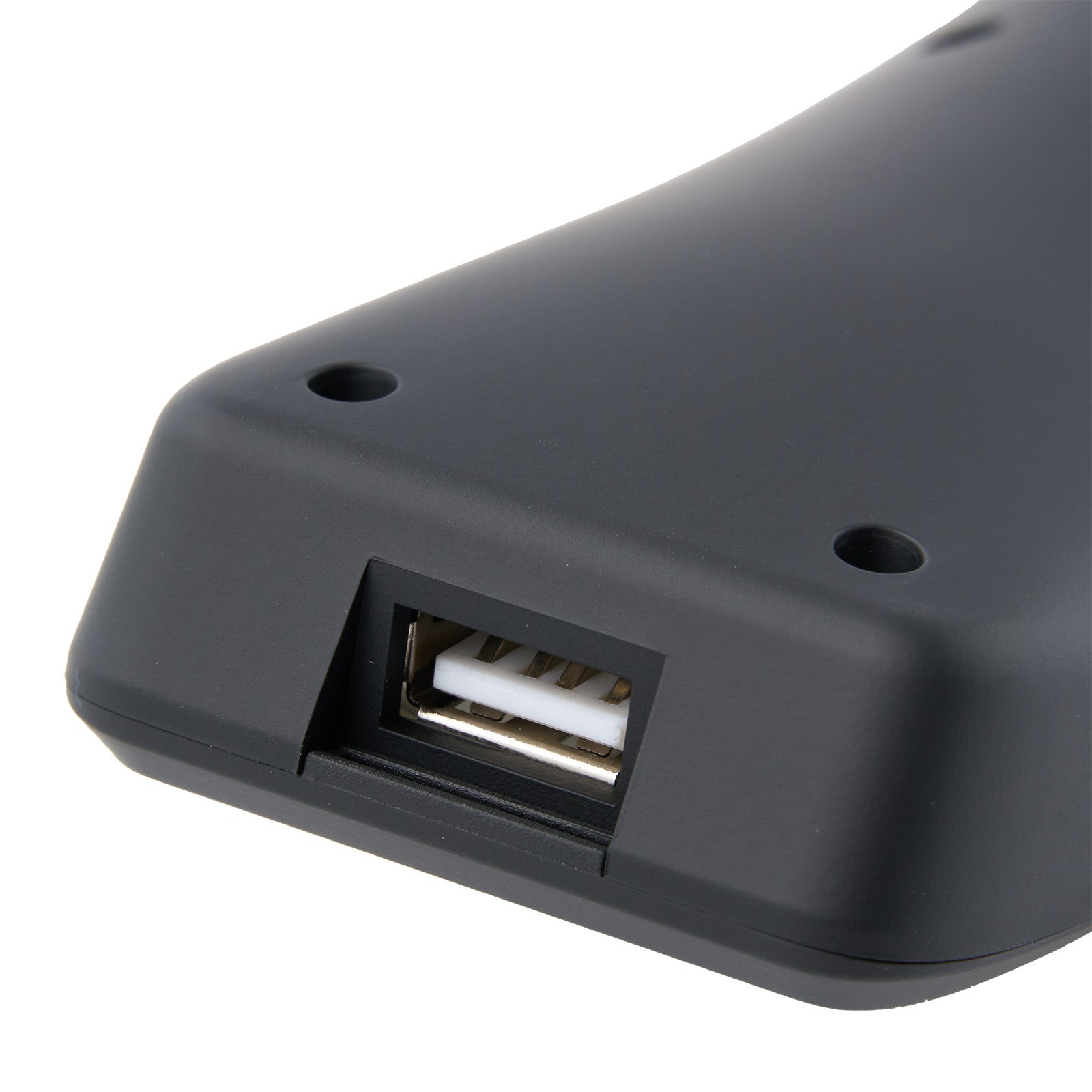

- USB Charging Port: Provides 5V/2A output for charging mobile devices.
- White Backlit Buttons: Illuminated for easy visibility in low-light conditions.
Specifications:

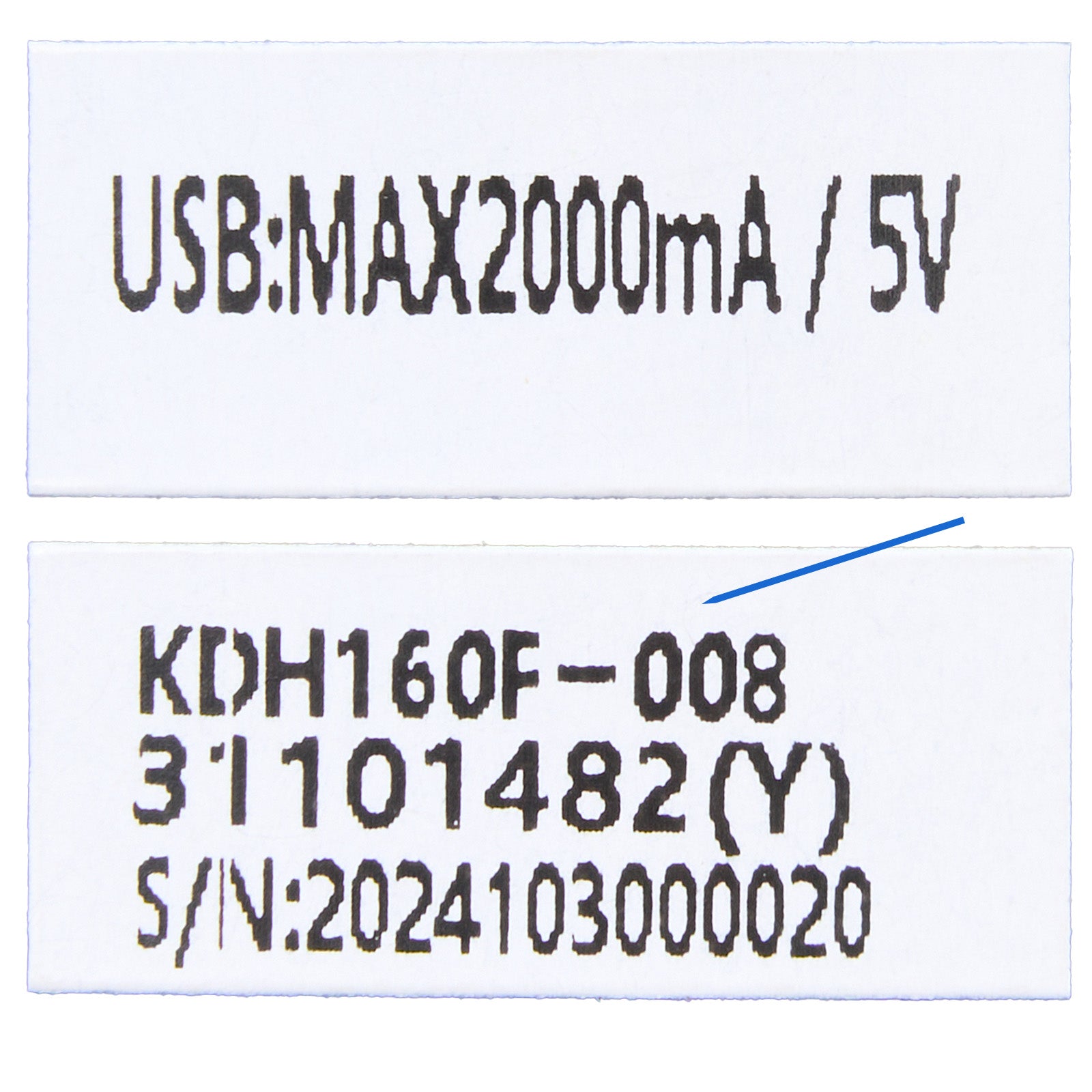

- Model: KDH160F-008
- Button Count: 7
- Plug Type: 8-Pin Male
- Remote Cable Length: 83 cm (2.7 ft)
- Harness Splitter Length: 60 cm (1.97 ft)
Not the part you are looking for?
If you cannot find the part you need on our website, please fill out the form below. We will get back to you with a quotation within 1-2 business days.
It was just what I needed and it worked.
Took a long time to find the correct remote. Finally found one that works.
Exactly what I needed. I took the 2 stickers off of the outside of the remote, with numbers on them, and pasted them to the inside along with your web address. I don't expect to spend days searching the internet when I need a new one. Delivery was faster than expected.
KDH160F-008 Seven Button 8 Pin Remote Controller for Recliner or Lift Chair with USB
After 3 days, the remote quit working all the time. Some buttons worked some times, but not always. I think this product is very unreliable.
Thank you for sharing your feedback.
Based on your description, the intermittent button functionality may be related to potential damage in the remote control's extension cord or motor wiring harness. We recommend inspecting the wiring by carefully tipping over the chair for visible issues.
This is a common issue where damaged wiring can lead to inconsistent contact, resulting in sporadic remote control behavior. Temporarily adjusting the wiring harness (e.g., gently repositioning connections) may restore functionality.
If confirmed to be a wiring fault, replacing the affected harness will typically resolve the problem permanently.
