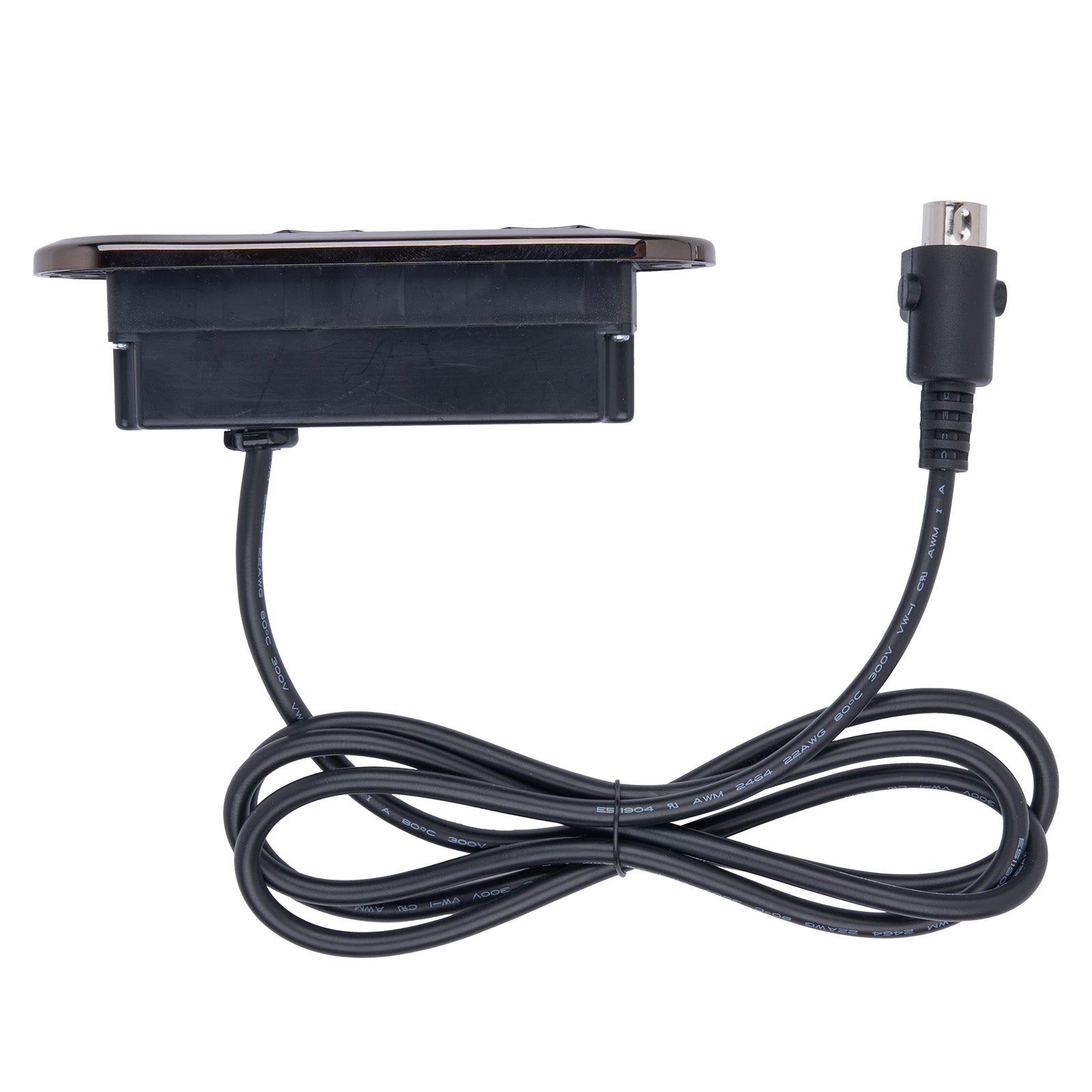

Kaidi KDH249D-012 5-Button 5-Pin Recliner Switch 31102058(C) / MPJLDQ0692B-R

• Genuine KDH249D-012 switch. Manufacturer part number: 31102058(C). Furniture manufacturer part number: MPJLDQ0692B-R.
• Features 5 buttons and a 5-pin male plug. Suitable for power recliner or lift chairs with 2 motors.

Compatibility

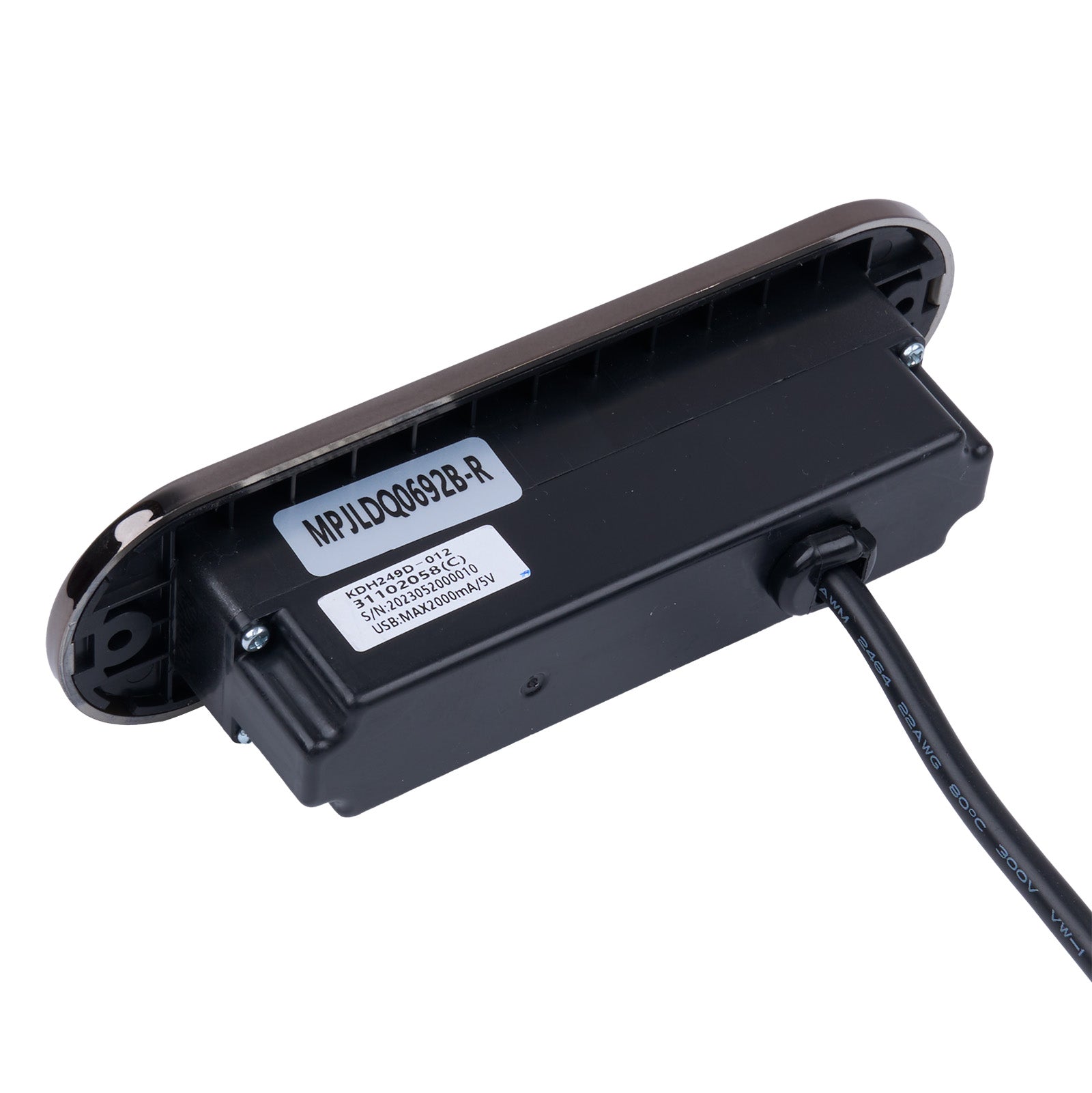

⚠️ This control switch is not universal. Please remove your existing switch from the chair and check the model label. This switch is a direct replacement only if your current switch model is KDH249D-012.

This switch is specifically designed for Kaidi motors with a special wiring sequence (blue power plug). If used on a motor with a standard wiring sequence:

• The USB ports will not receive power, and
• Button functions will be erratic.

Features

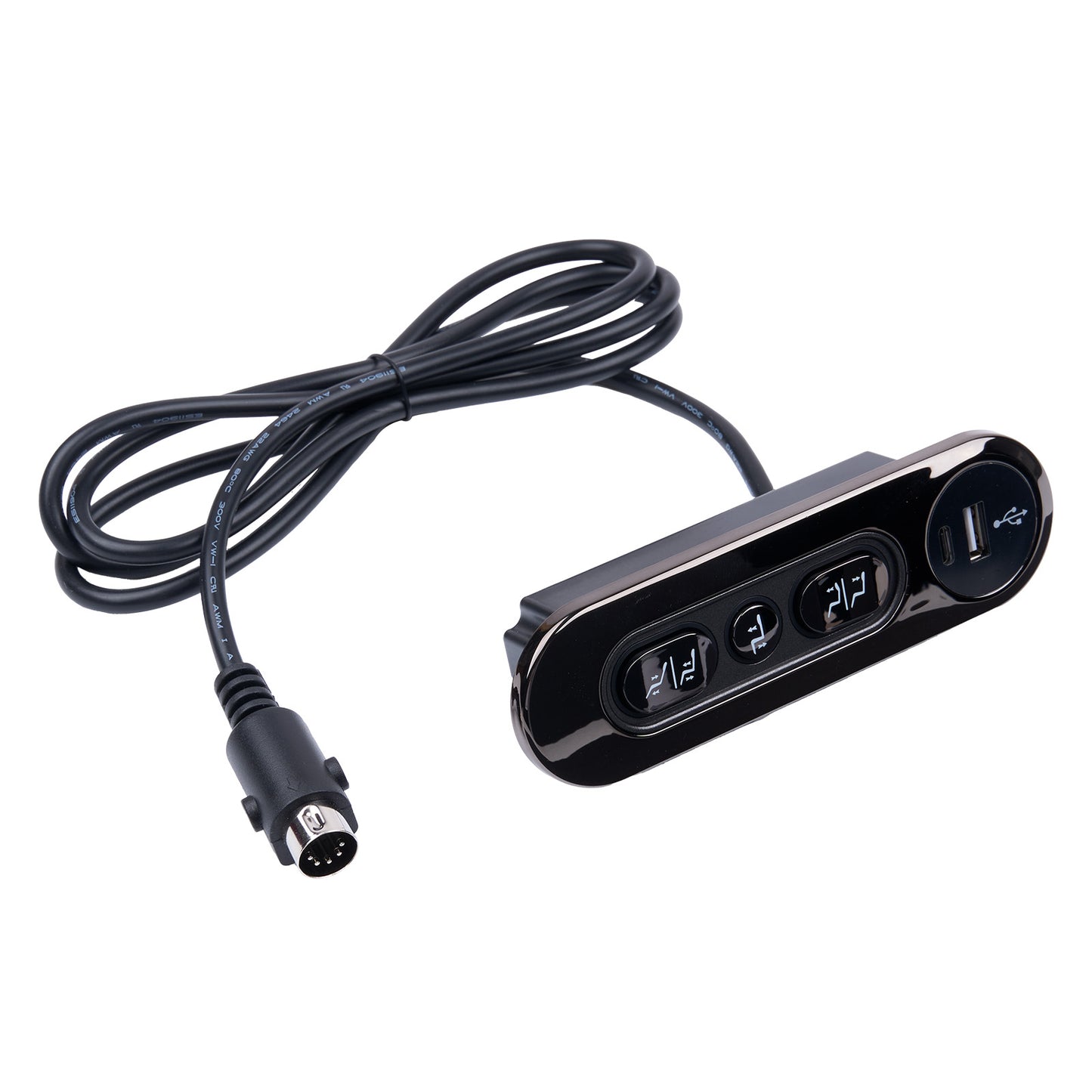

• 5 buttons – Controls backrest recline/lift and footrest extension/retraction

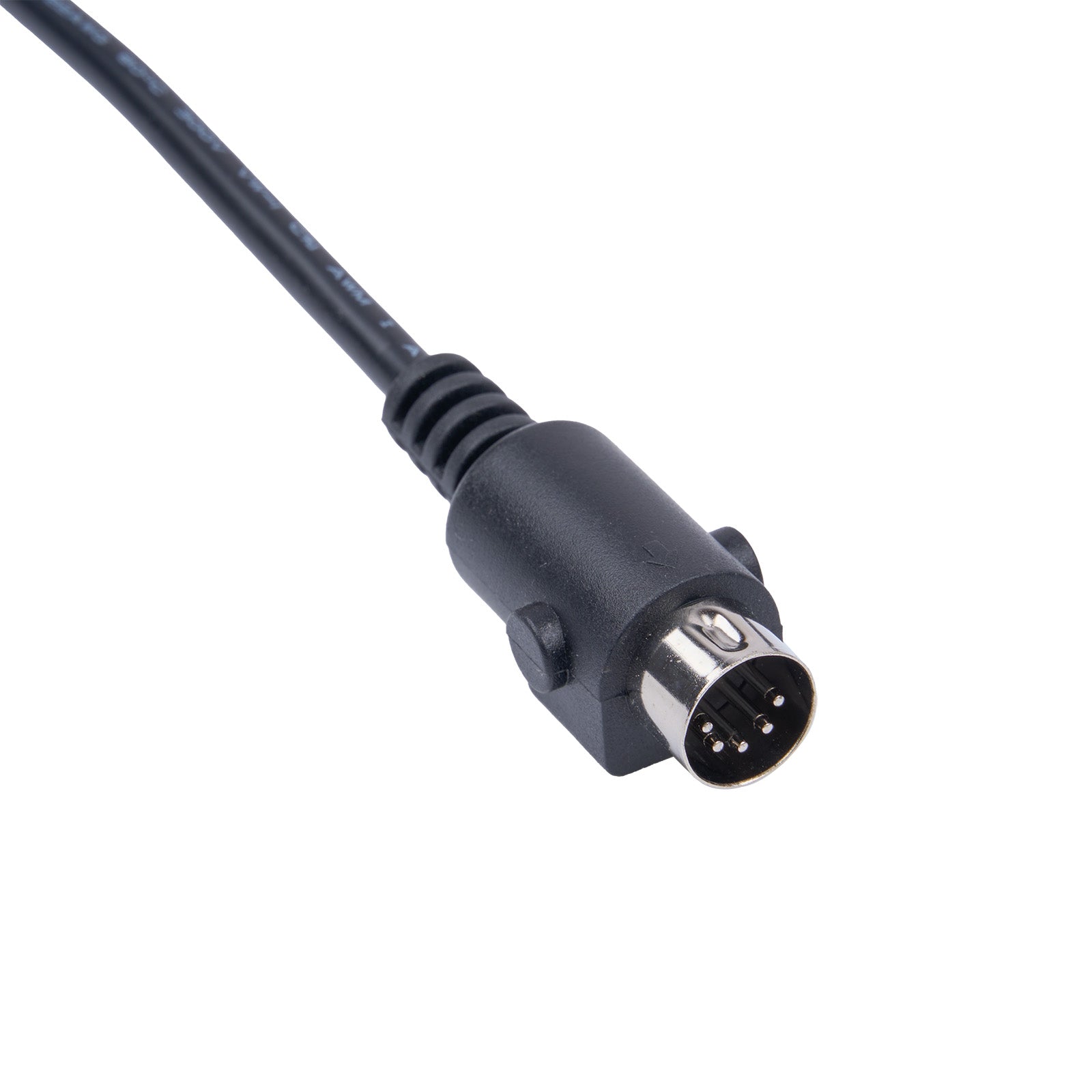

• 5-pin male plug – Connects to the chair’s motor system

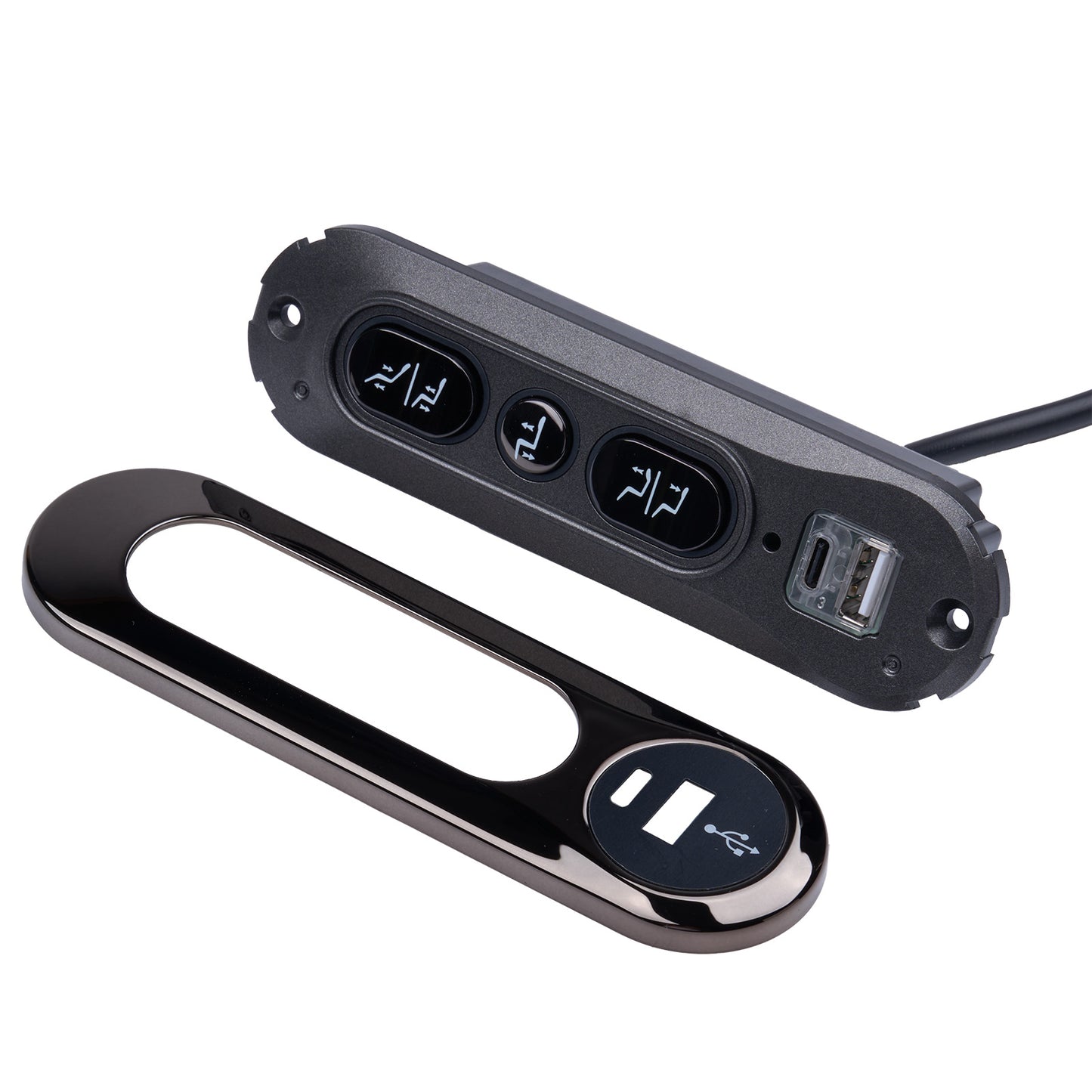

• Dual USB charging ports (USB-A + USB-C) – Total combined output: 5V, 2A Max (shared between both ports)

Package Includes

• 1 × KDH249D-012 switch (with 5-pin male plug)

Specifications

• Model: KDH249D-012
• Manufacturer Part Number: 31102058(C)
• Furniture Manufacturer Part Number: MPJLDQ0692B-R
• USB Output: 5V, 2A Max (combined)
