JCHT35M15A Control Switch for Adjustable Desk Standing Desk

Genuine JCHT35M15A control switch for lifting desk. Operates the up/down of the desk. The JCHT35M15A features a touch sensor panel and utilizes an 8-pin crystal plug.

Compatibility:

This switch is not cross-compatible. To ensure proper fit and function:

• Verify Model Number: Order this switch only if your original switch has the exact same model number: JCHT35M15A.

• Check Plug Type:

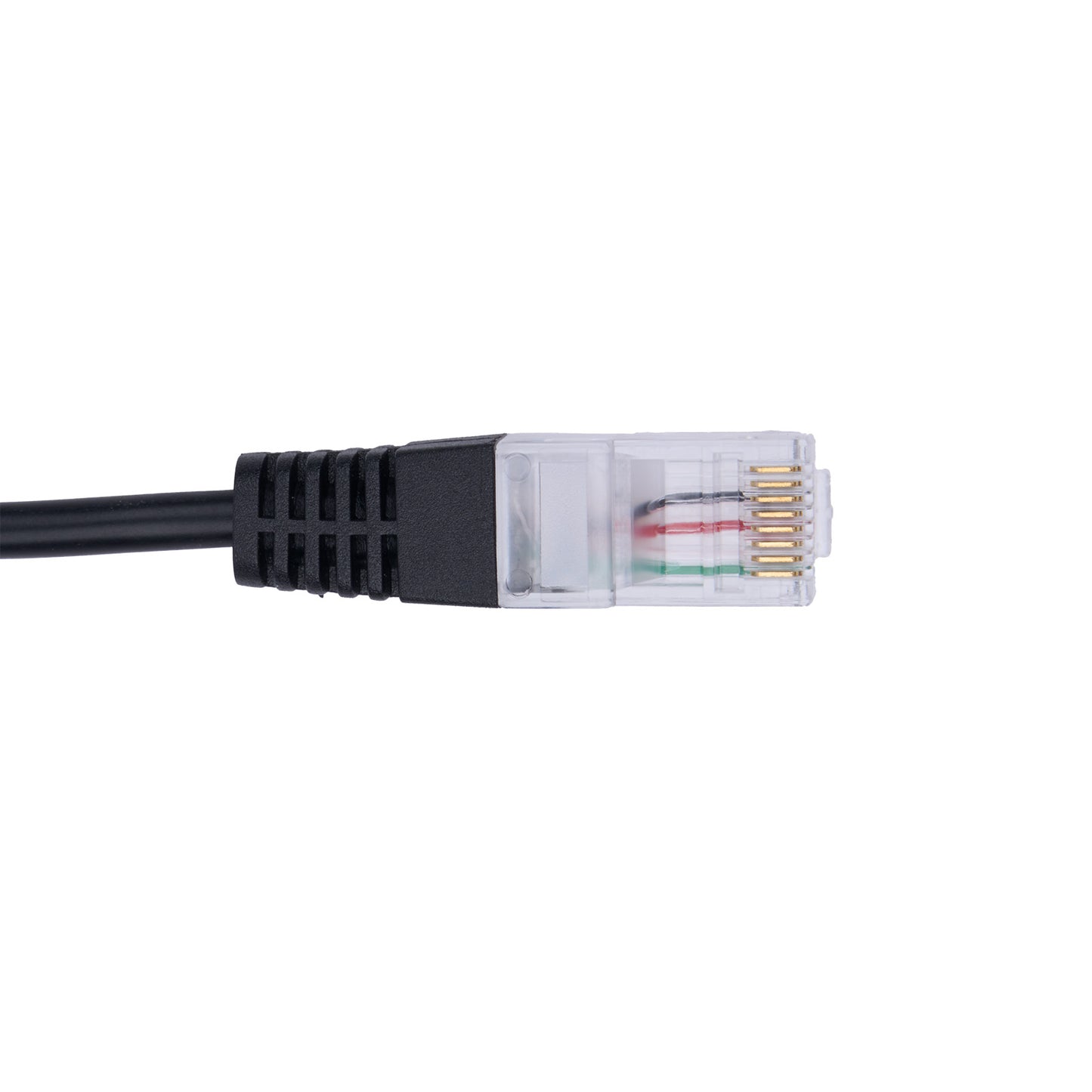

  • This switch utilizes an 8-pin crystal plug.

  • If your current switch uses a Conventional bend plug, or daughter plug, this replacement will not be compatible.


Initial calibration/Reset

The new switch must be reset after installation before you can use it.
Below is the reset instruction:

1. Touch the Icon located on the front face of the Up/Down handset until desk reaches its lowest position. Release.

2. Press and hold the Icon for about 10 seconds. Release.
3. Press and hold the Icon again, this time until the desk first lowers slightly, then rises slightly, and finally stops. Remove your finger from the handset.

4. The reset is complete.
