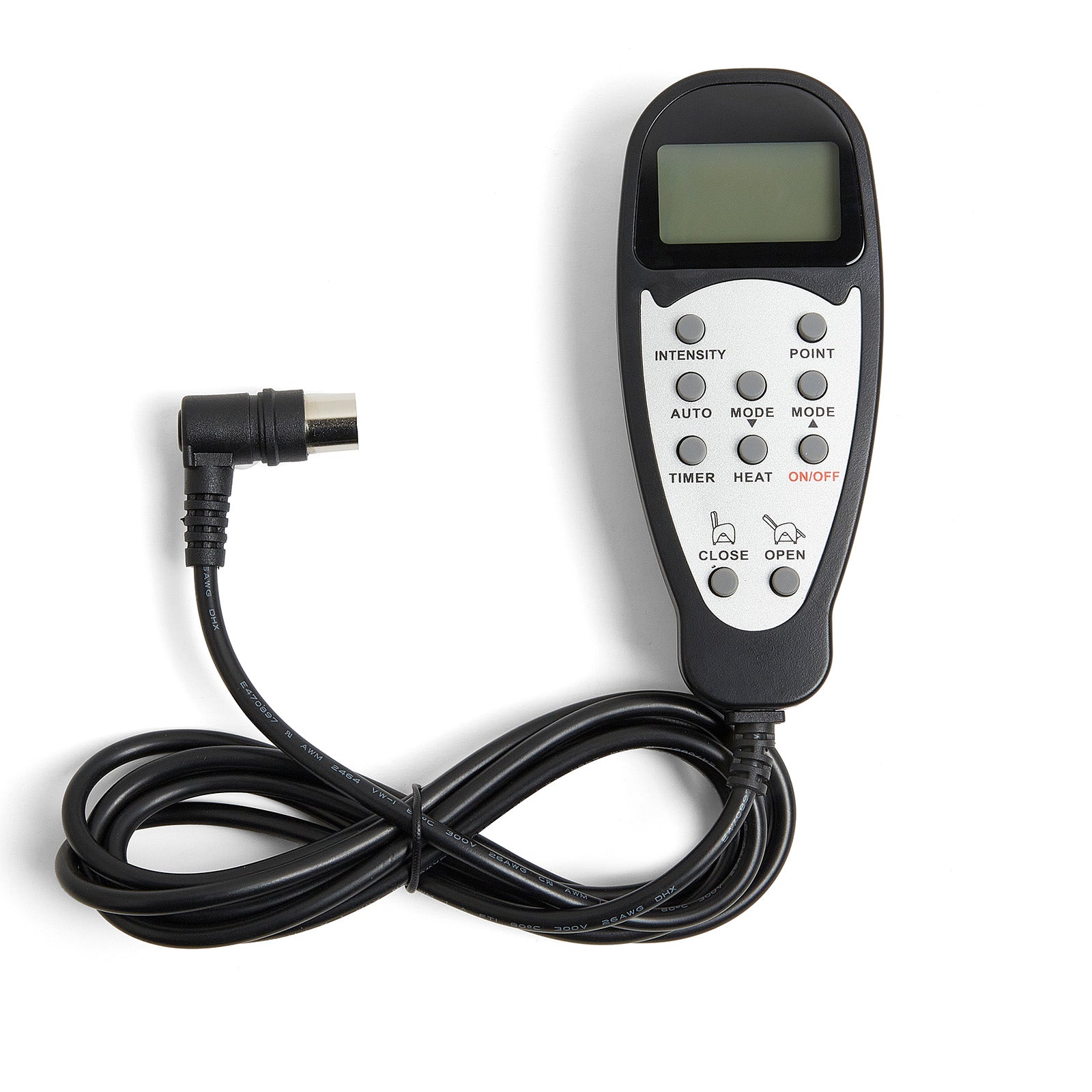

eMoMo NHX034A8HRMBT Remote Controller, 10 Button, 8 Pin with LCD Screen for Lazy Boy Recliner

This eMoMo remote controller, model NHX034A8HRMBT, features 10 buttons and uses a right-angled 8-pin male plug. It is suitable for several Lazy Boy power recliners.

Compatibility:

• This remote is a sub-model of the NHX03 series, with the full model number NHX034A8HRMBT. It is not cross-compatible with other NHX03 sub-models.

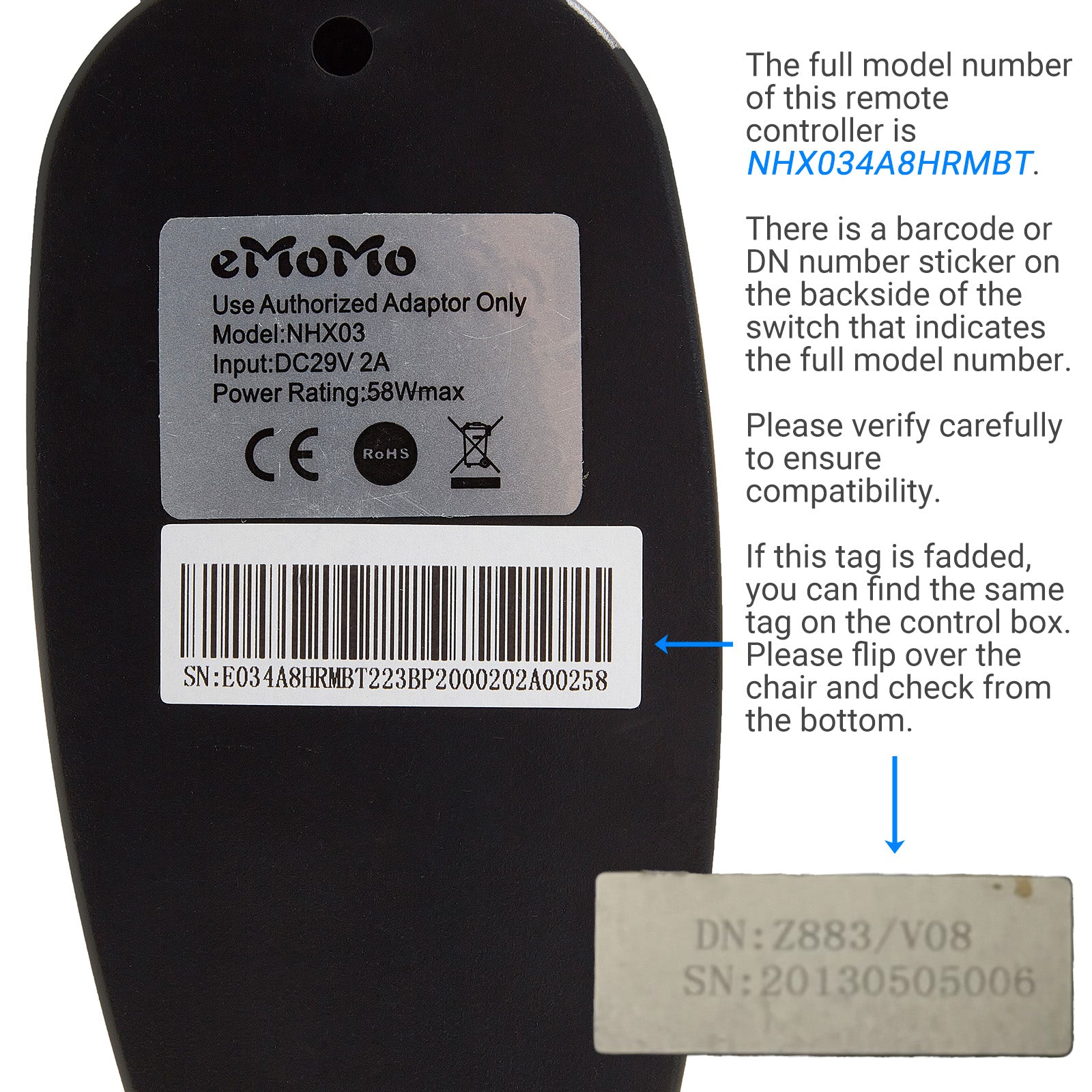

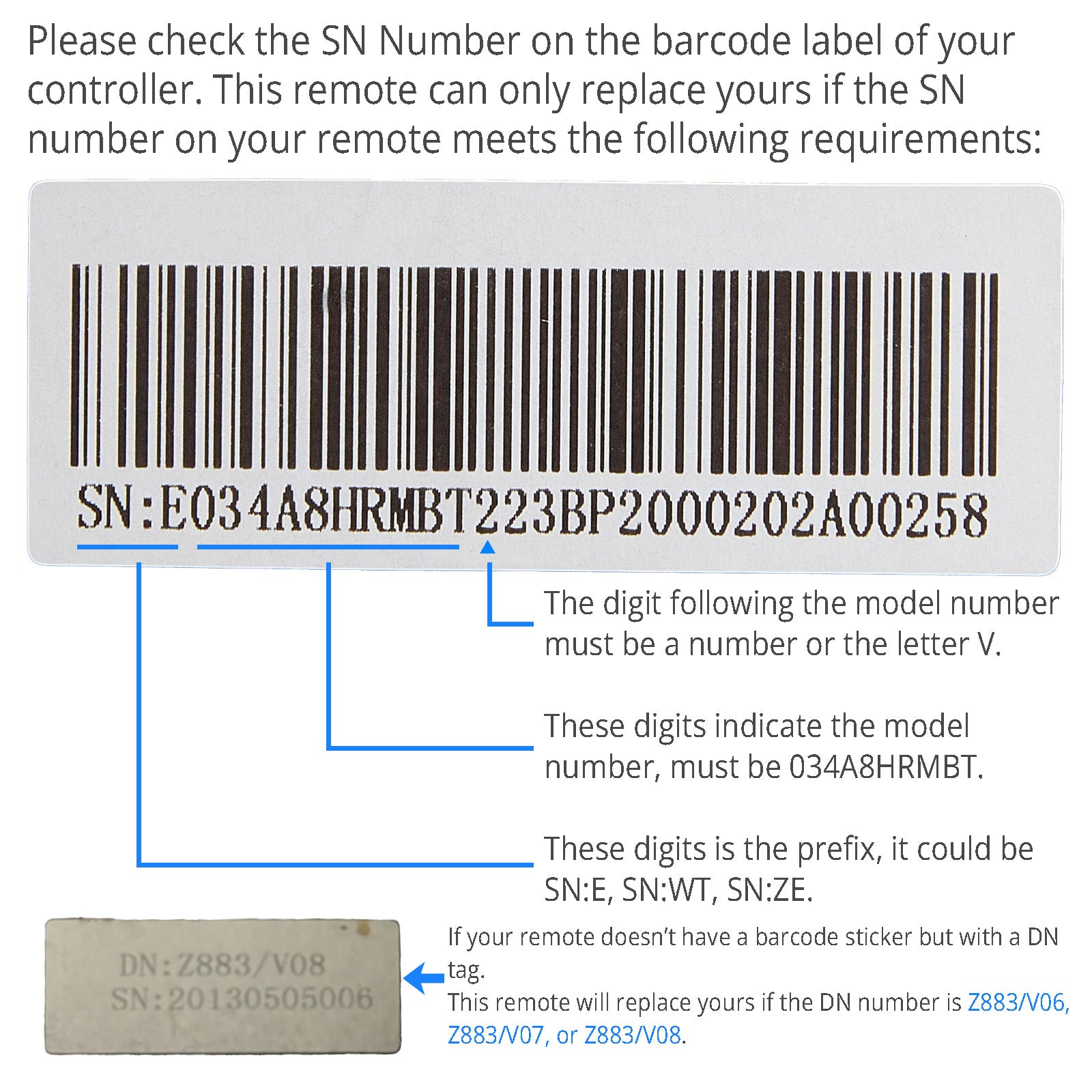

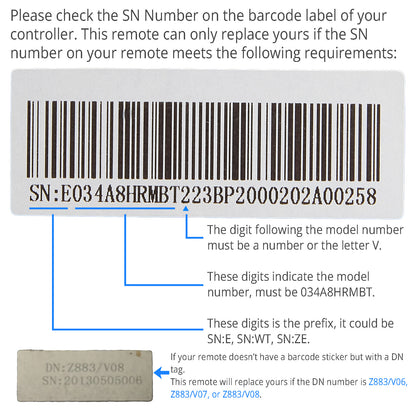

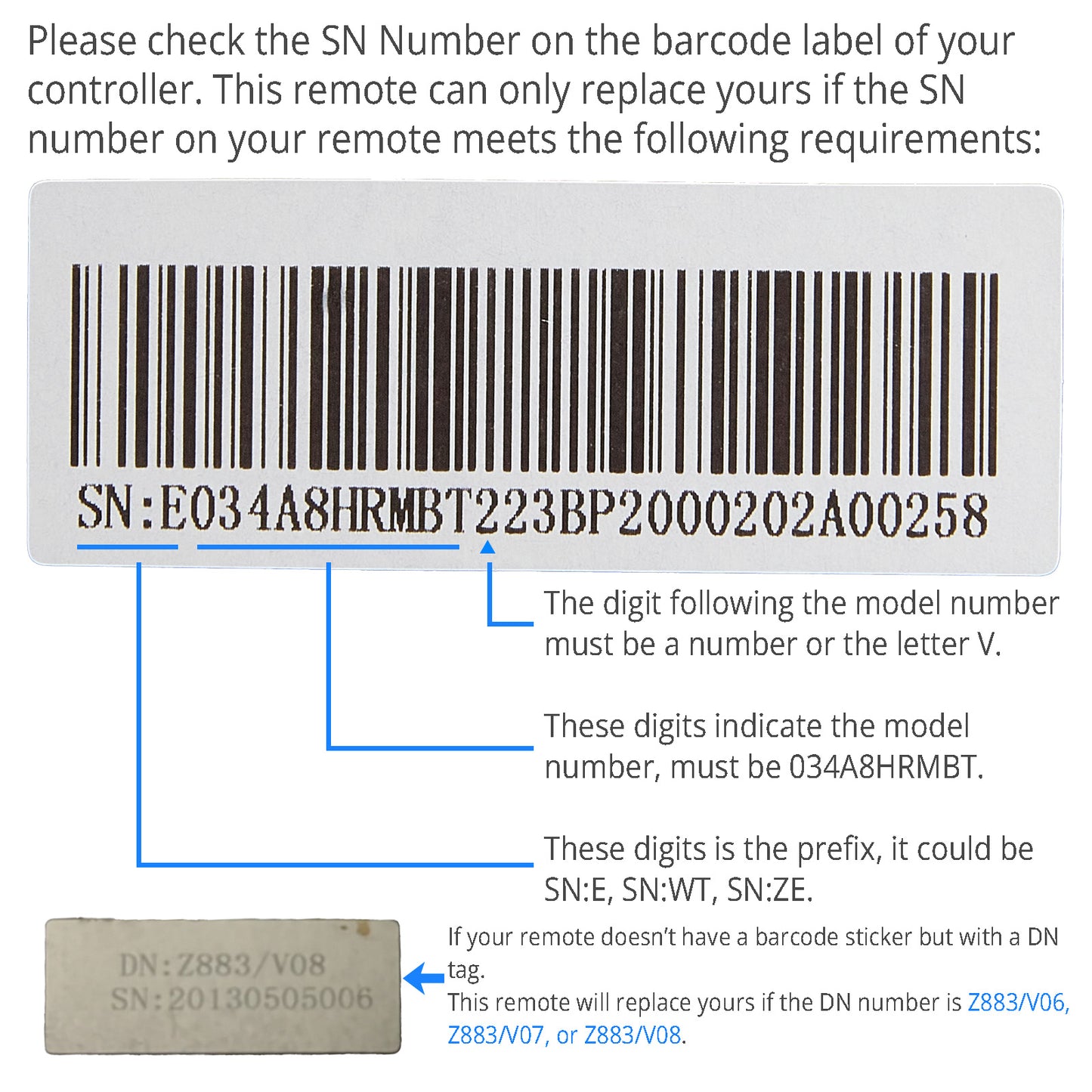

• To confirm compatibility, check the serial number on the barcode sticker. Order this remote only if your serial number meets all the following criteria:
  • Prefix: Must begin with SN:E, SN:WT, or SN:ZE.
  • Model Code: The digits immediately following the prefix must be 034A8HRMBT.
  • Check Digit: The character directly after "034A8HRMBT" must be a number or the letter V.
• If your remote controller does not have a barcode sticker but has a DN number tag, this remote will only be compatible if the DN number is Z883/V06, Z883/V07, or Z883/V08.
• If the tag on the remote is faded, you can also find the serial information on the control box. Please flip over your chair and check from the bottom.

Features:

• 10 Buttons: Control chair opening/closing, vibration massage, and heating functions.

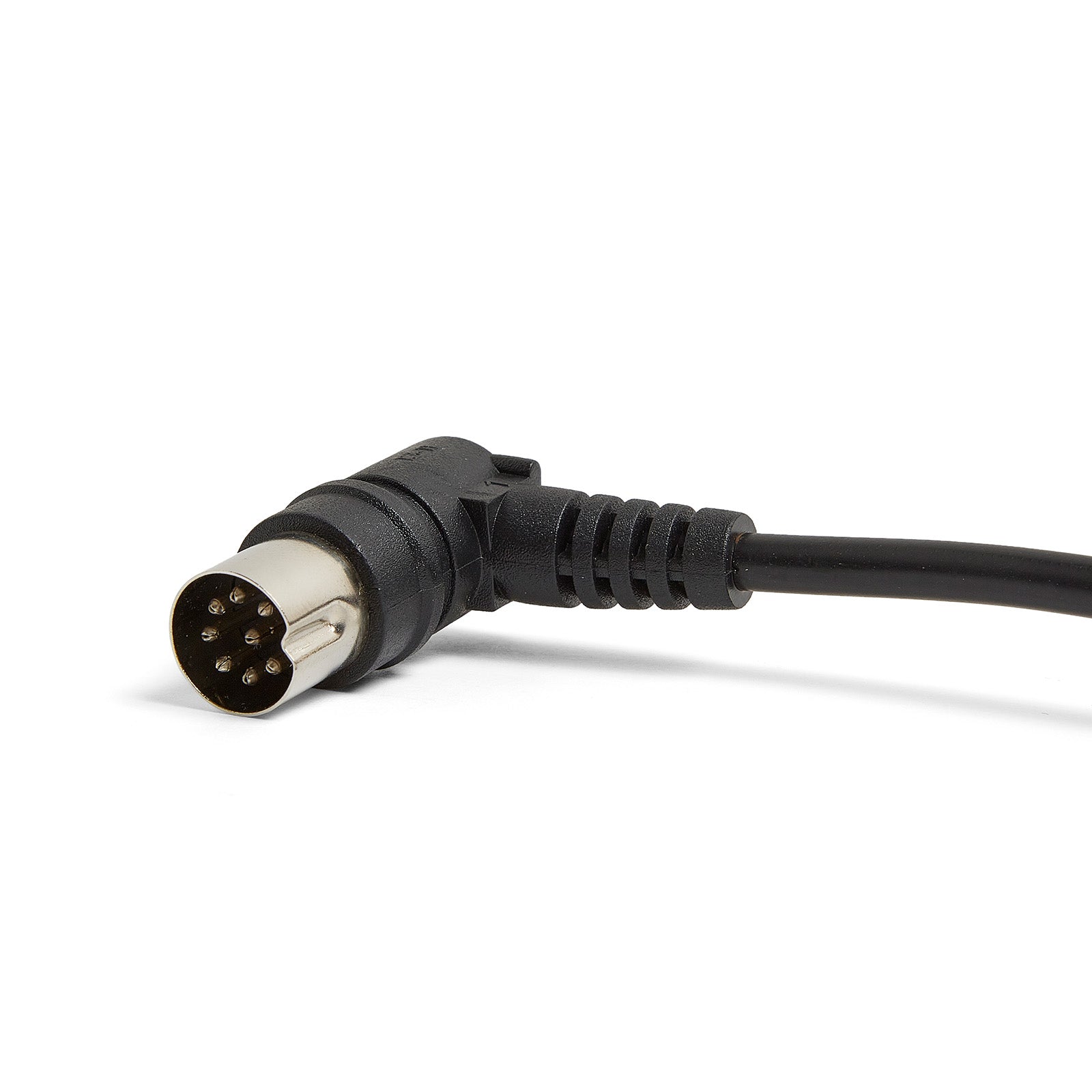

• Right-angled 8-pin Male Plug: Connects with the junction box.
• LCD Screen: Provides clear status display.

Important:

To ensure your chair functions correctly, we strongly recommend replacing both the remote control and the control box (the second option in this listing) if you cannot definitively identify the faulty component. This will prevent potential issues after replacing only one part.
