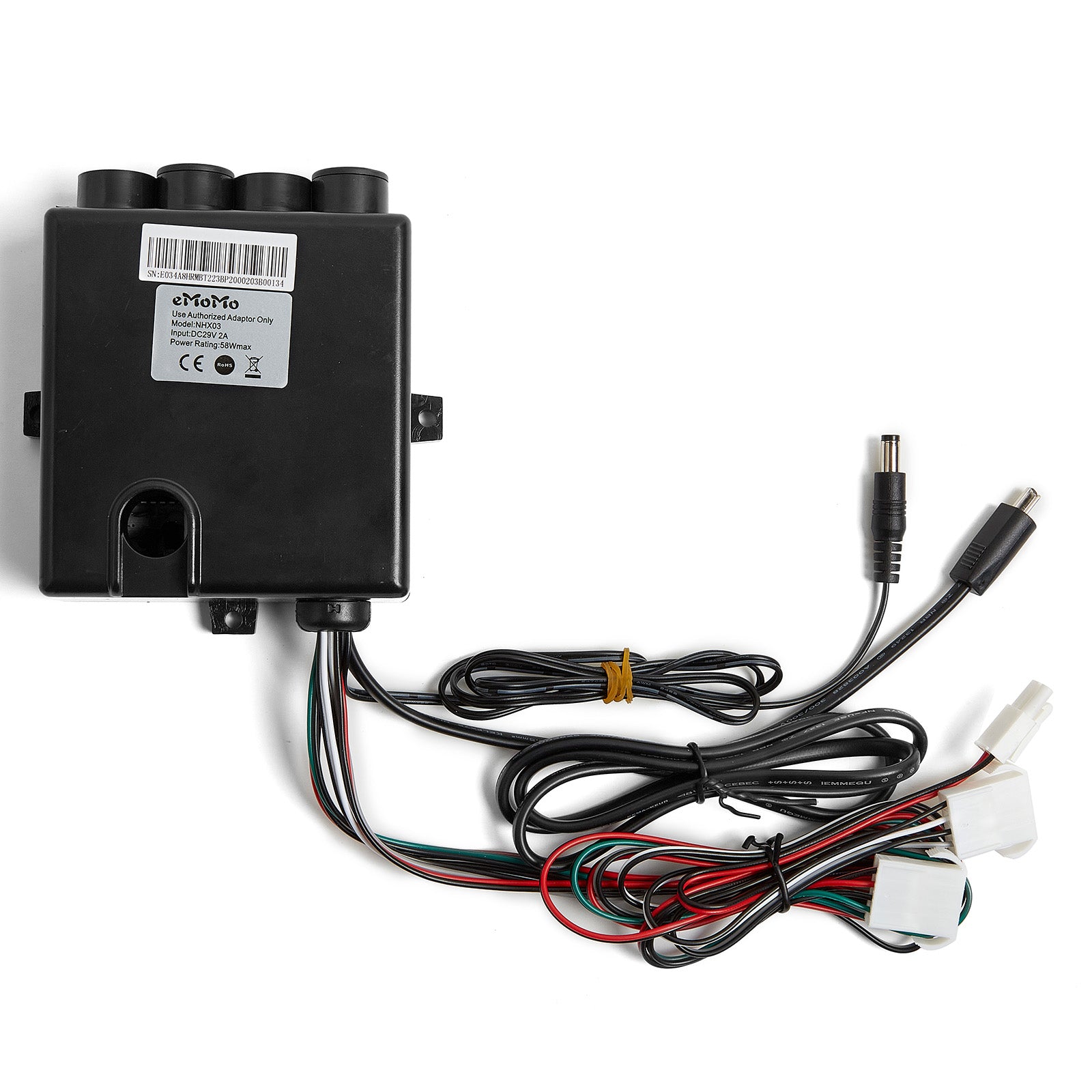

eMoMo NHX034A8HRMBT Control Box for La-Z-Boy Recliner

This eMoMo control box, model NHX034A8HRMBT, features five leads and two sockets. It is suitable for several La-Z-Boy power recliners.

Compatibility:

This control box carries the full model number NHX034A8HRMBT. It is not cross-compatible.

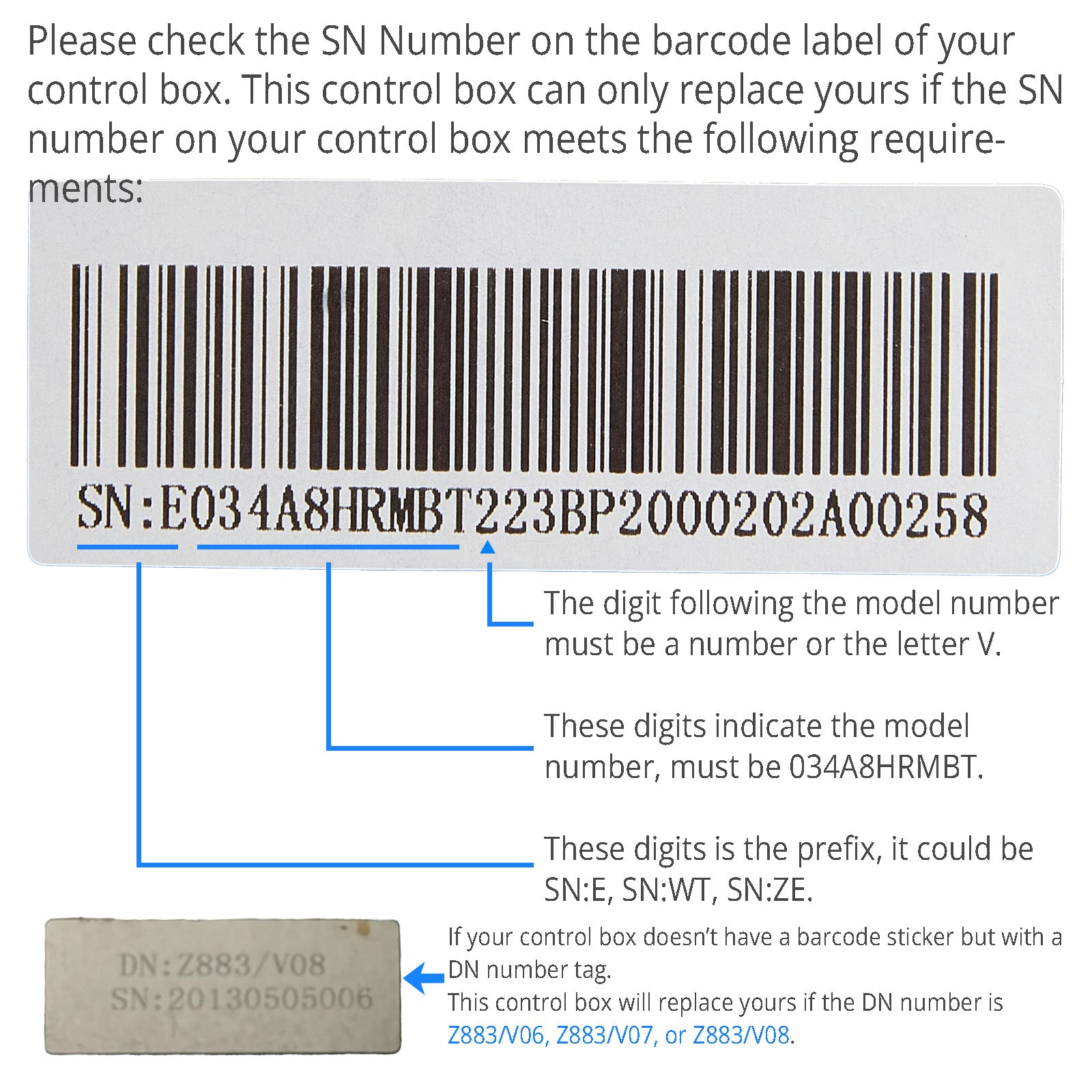

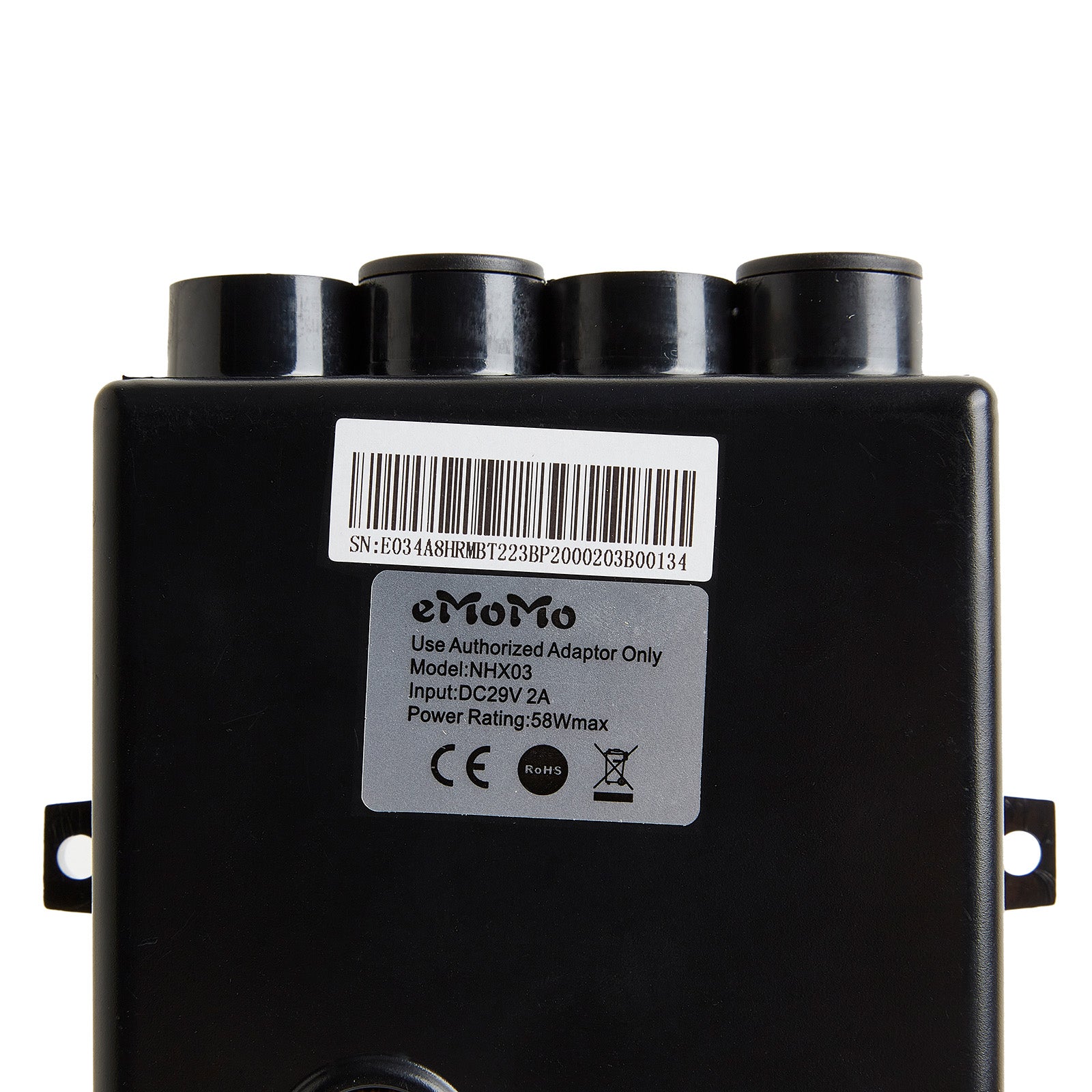

• To confirm compatibility, check the serial number on the barcode sticker. Only order this control box if your serial number meets all the following criteria:
  • Prefix: It must begin with SN:E, SN:WT, or SN:ZE.
  • Model Code: The digits immediately following the prefix must be 034A8HRMBT.
  • Check Digit: The character directly after "034A8HRMBT" must be a number or the letter V.
• If your control box lacks a barcode but has a DN number tag, this unit is only compatible if the DN number is Z883/V06, Z883/V07, or Z883/V08.

Features:

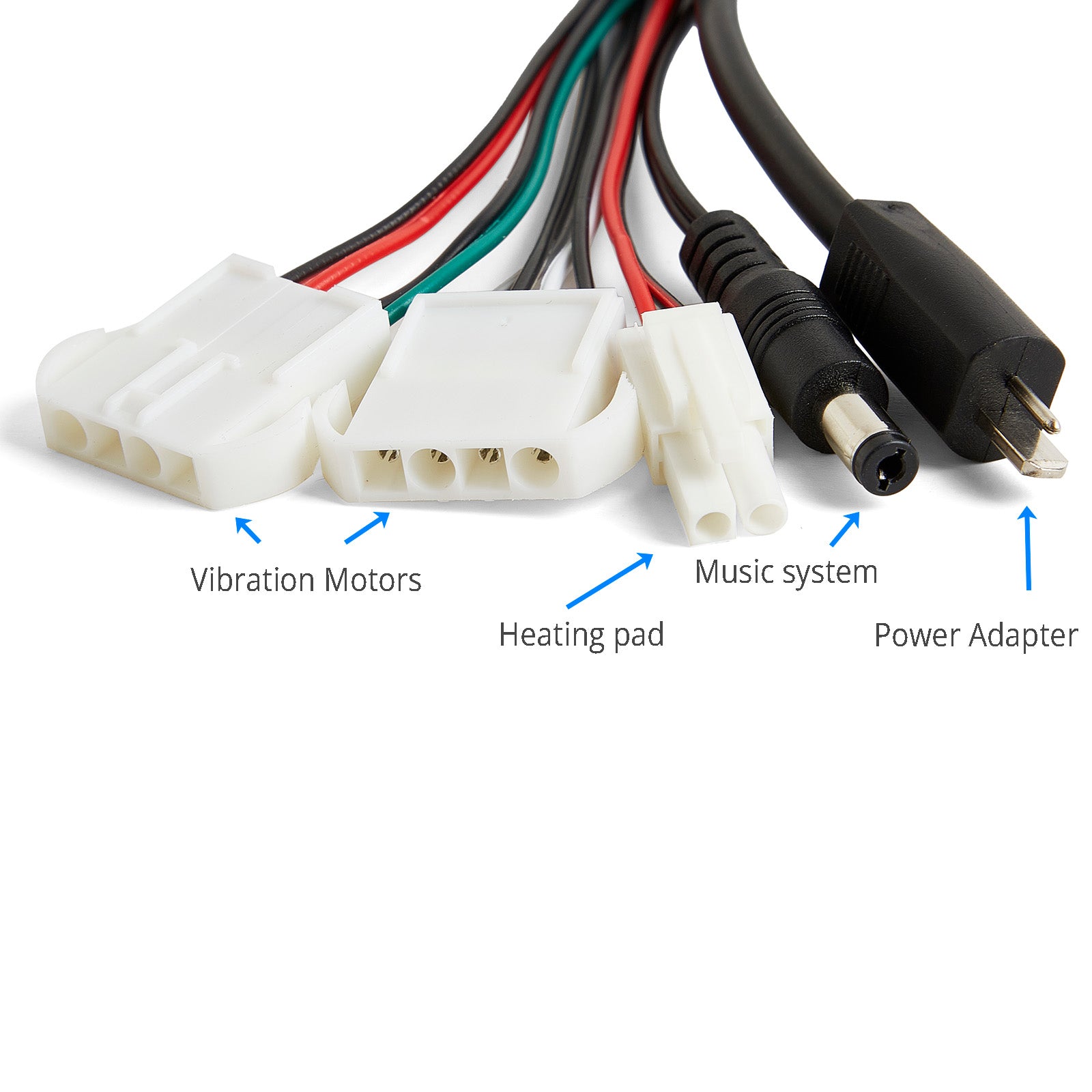

• Five leads: two 4-pin plug leads for vibration motors; one 2-pin plug lead for a heating pad; one barrel plug lead for a music system; and one 2-pin male plug lead for the power supply.

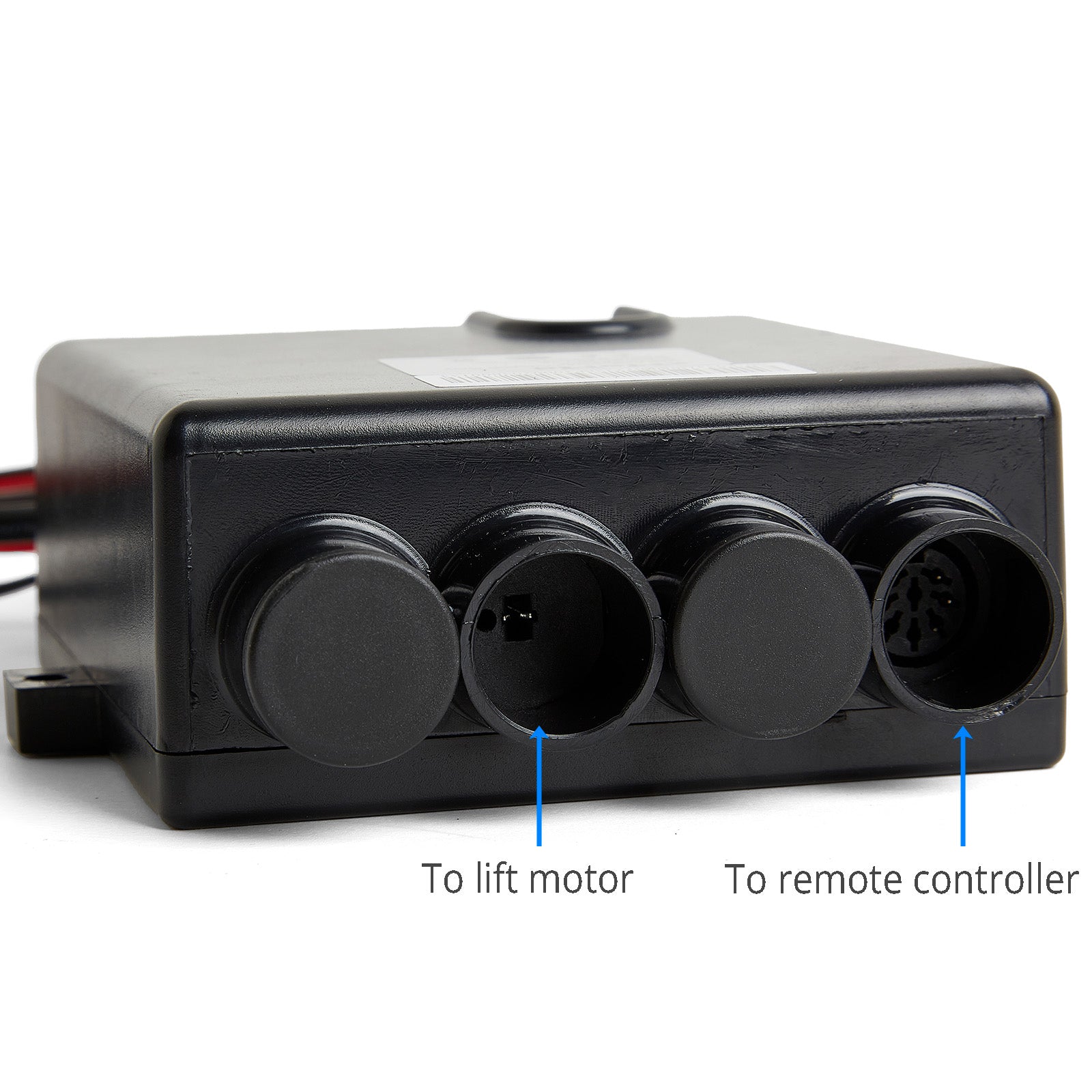

• Two sockets: one 8-pin socket for the remote controller, and one 2-pin socket for the lift motor.

Important:

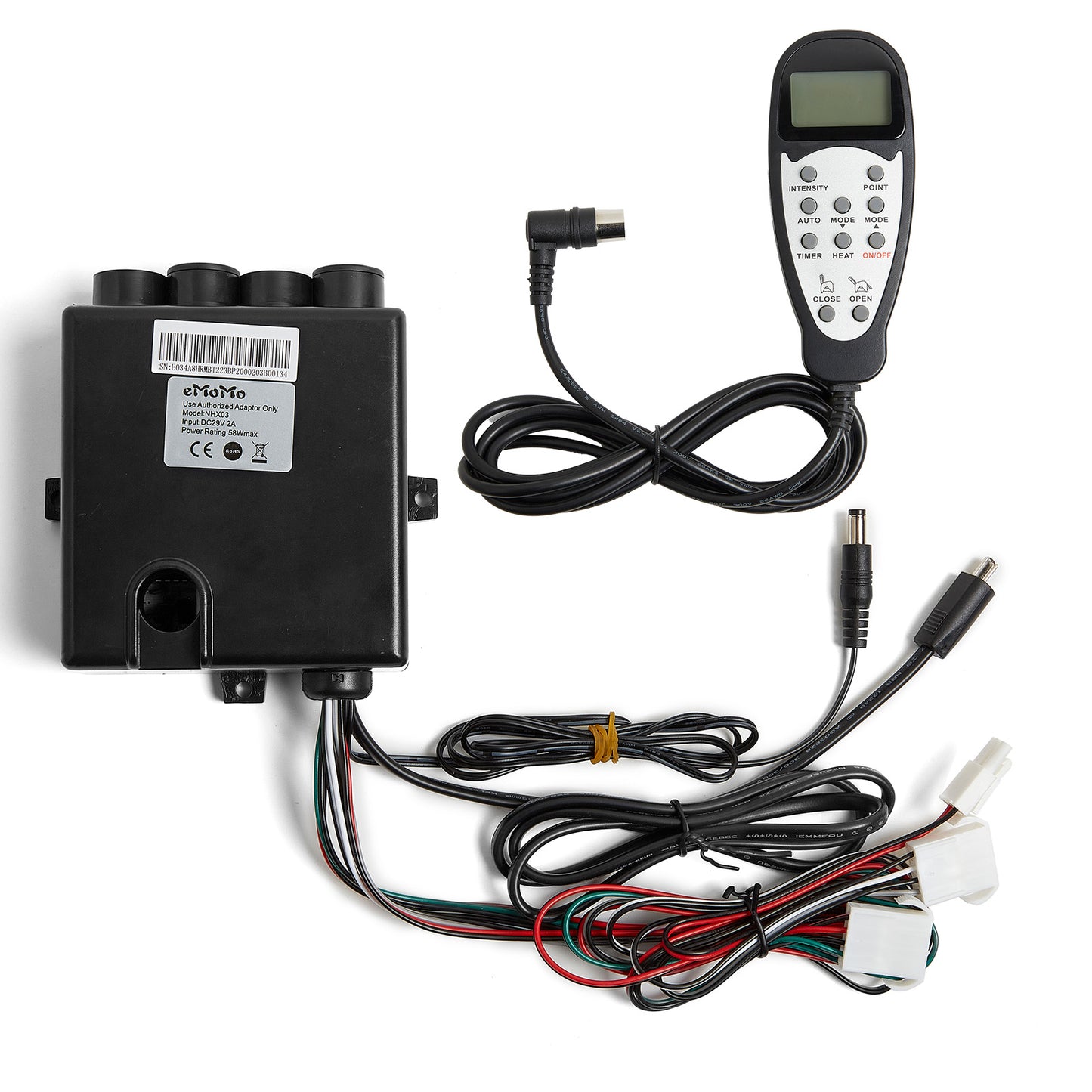

To ensure correct chair function, we strongly recommend replacing both the remote control and the control box (the second option in this listing) if you cannot definitively identify the faulty component. This prevents potential issues after replacing only one part.
