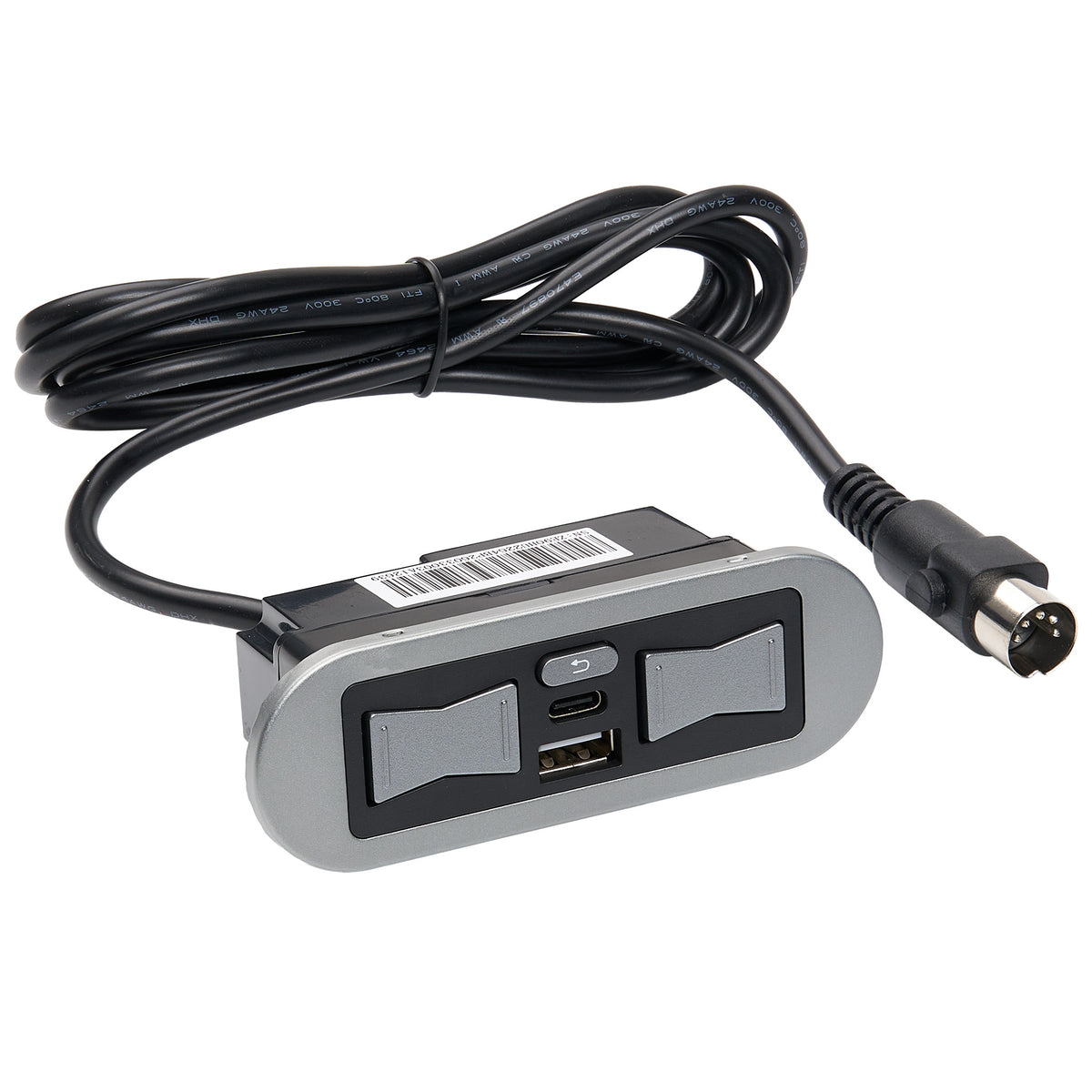

eMoMo HX90HU2 5 Button Switch with Type A+C USB Ports and 5-Pin Plug

• This is the genuine HX90HU2 switch, featuring 5 buttons, and utilizing a 5-pin male connector. Suitable for a power recliner with 2 motors.

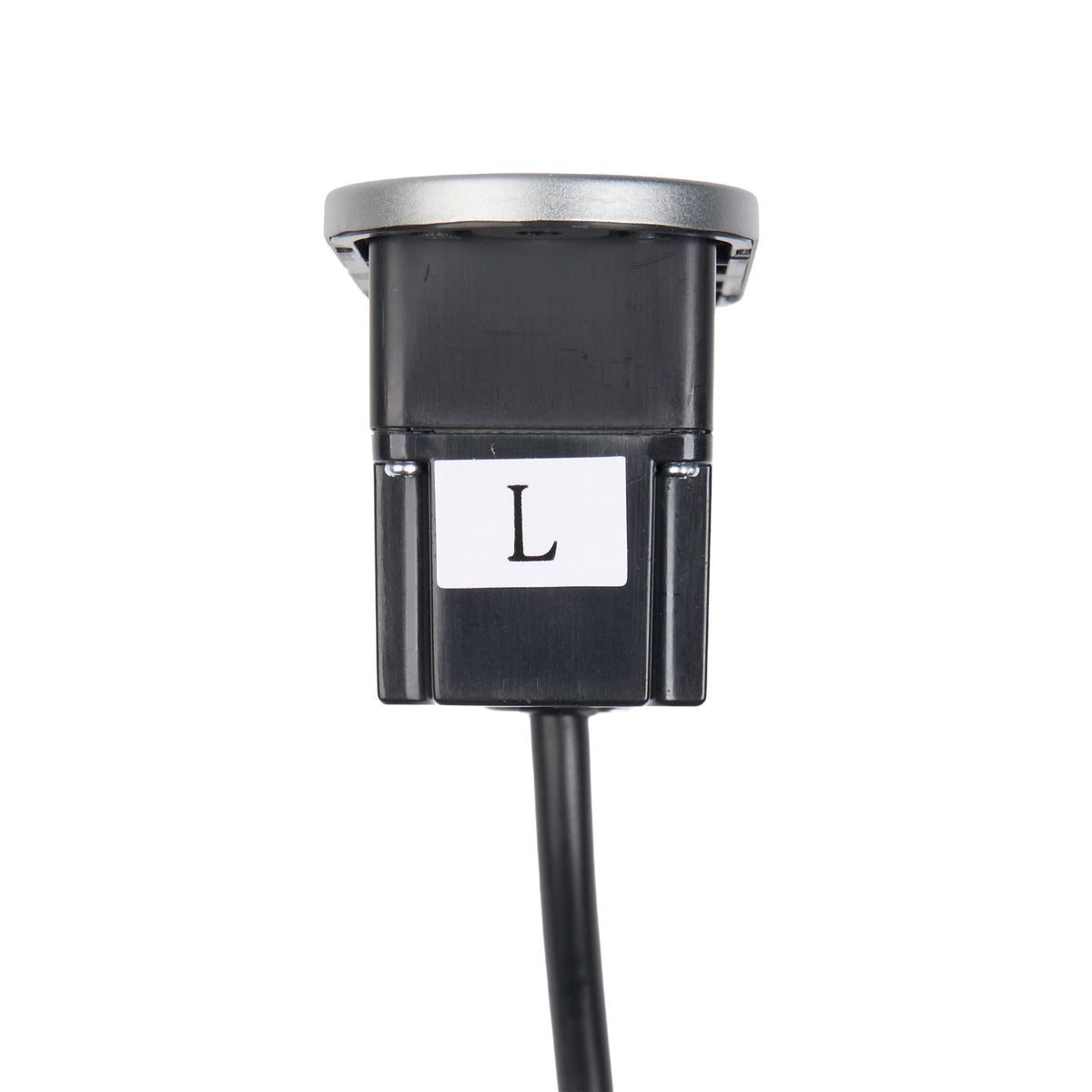

• This switch is for the left armrest of the sofa or recliner, as you are facing the chair (right side as you are sitting on the chair).

Compatibility

This unit is a sub-model of the HX90 series, with the full model HX90HU2. It is not cross-compatible with other HX90 sub-models.

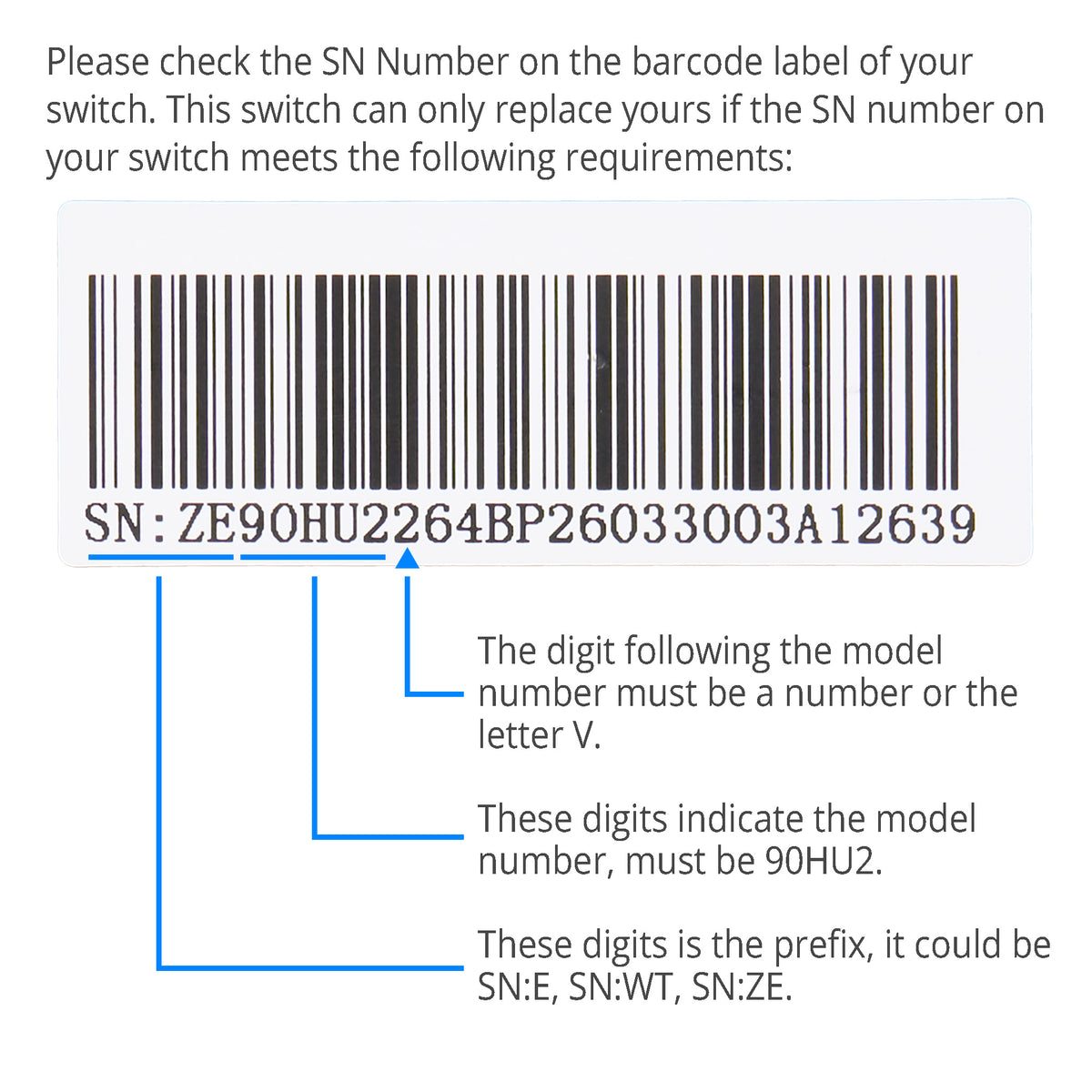

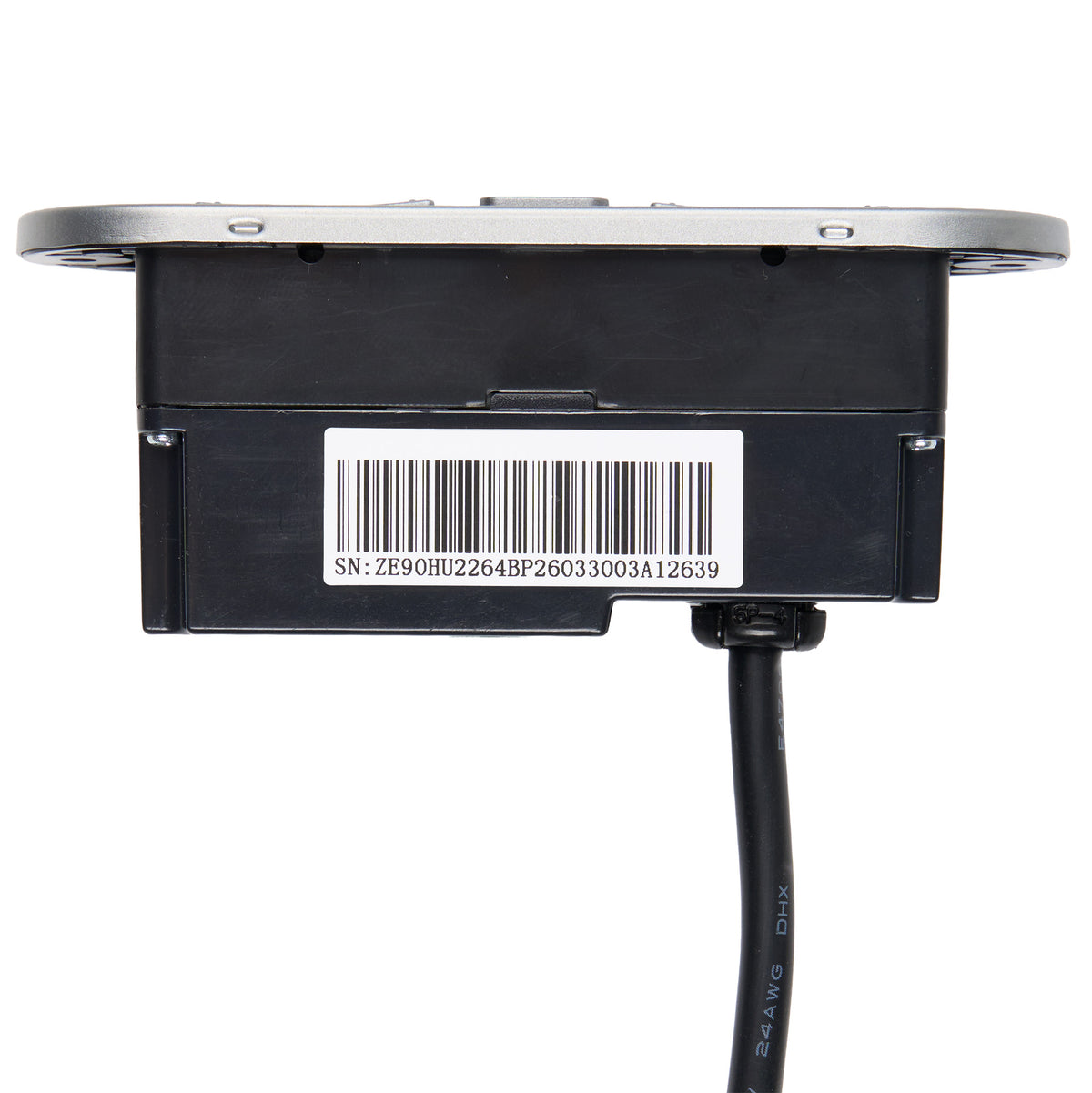

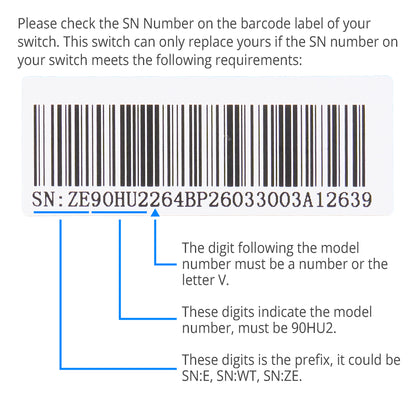

To confirm compatibility, take off your current switch from the armrest and check the serial number on its barcode sticker. Order this switch only if your serial number meets all the following criteria:

• Prefix: usually begins with SN:E, SN:WT, or SN:ZE.
• Model Code: The digits immediately following the prefix must be “90HU2”
• Check Digit: The character directly after "90HU2" must be a number or the letter V.

Features:

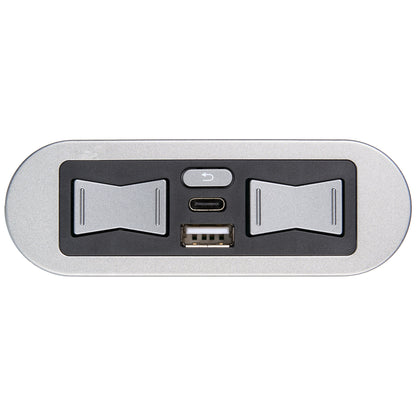

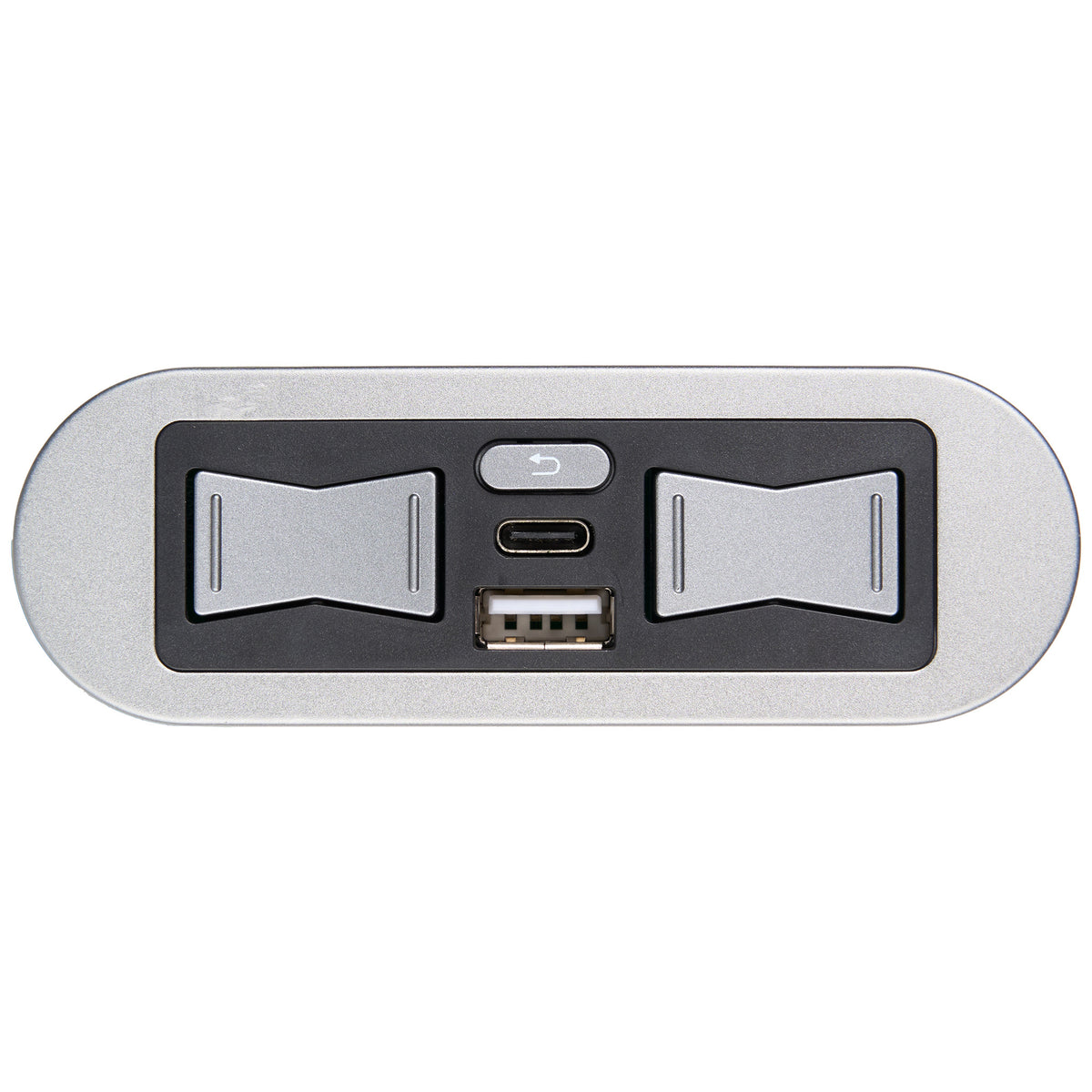

• 5 Buttons:
  • 2 buttons for chair open/close
  • 2 buttons for headrest tilt
  • The small button in the center reset the chair to home position.
• Dual USB ports: Type A + Type C USB charging ports for charging mobile devices

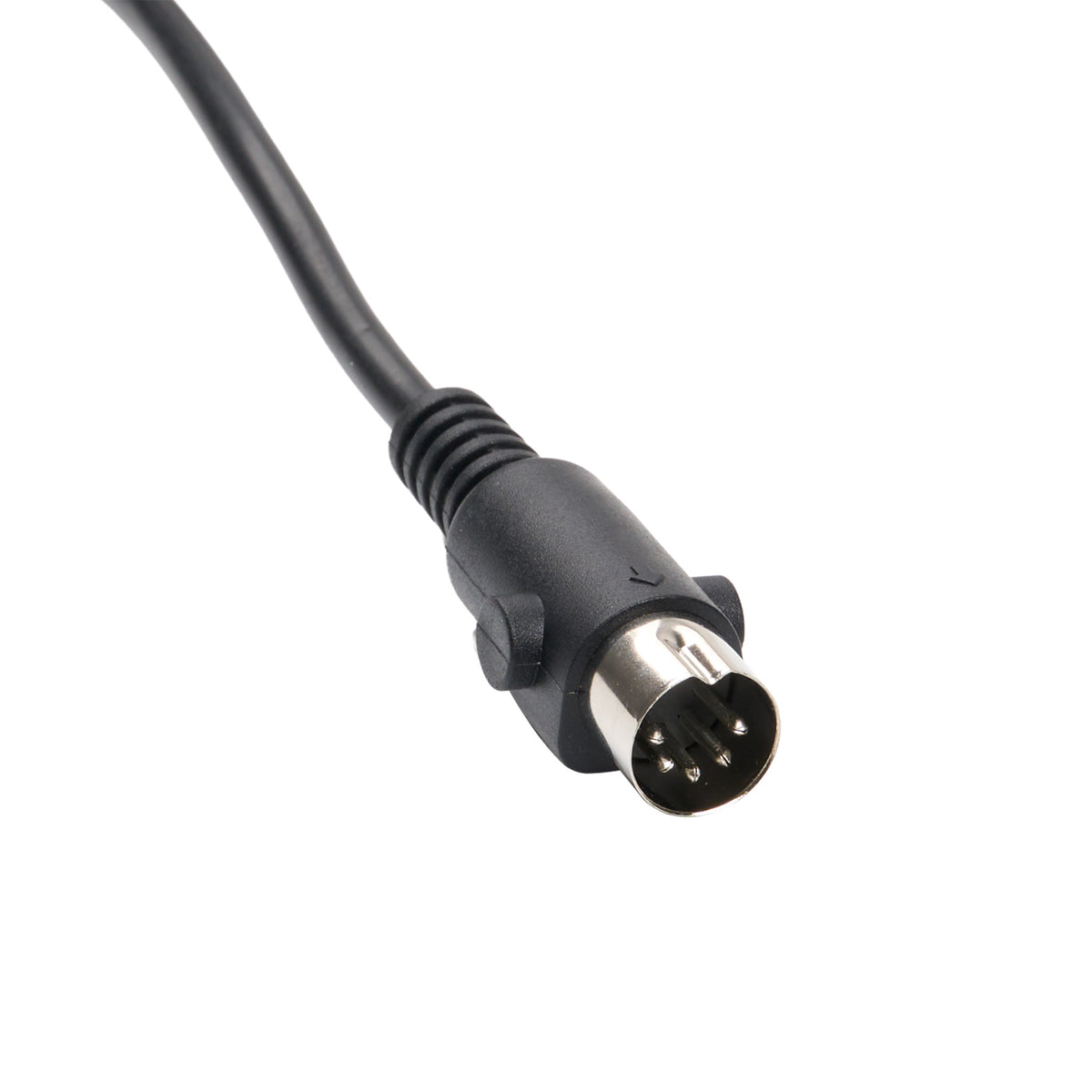

• 5-Pin male connector: connects to the master motor (usually the footrest motor).

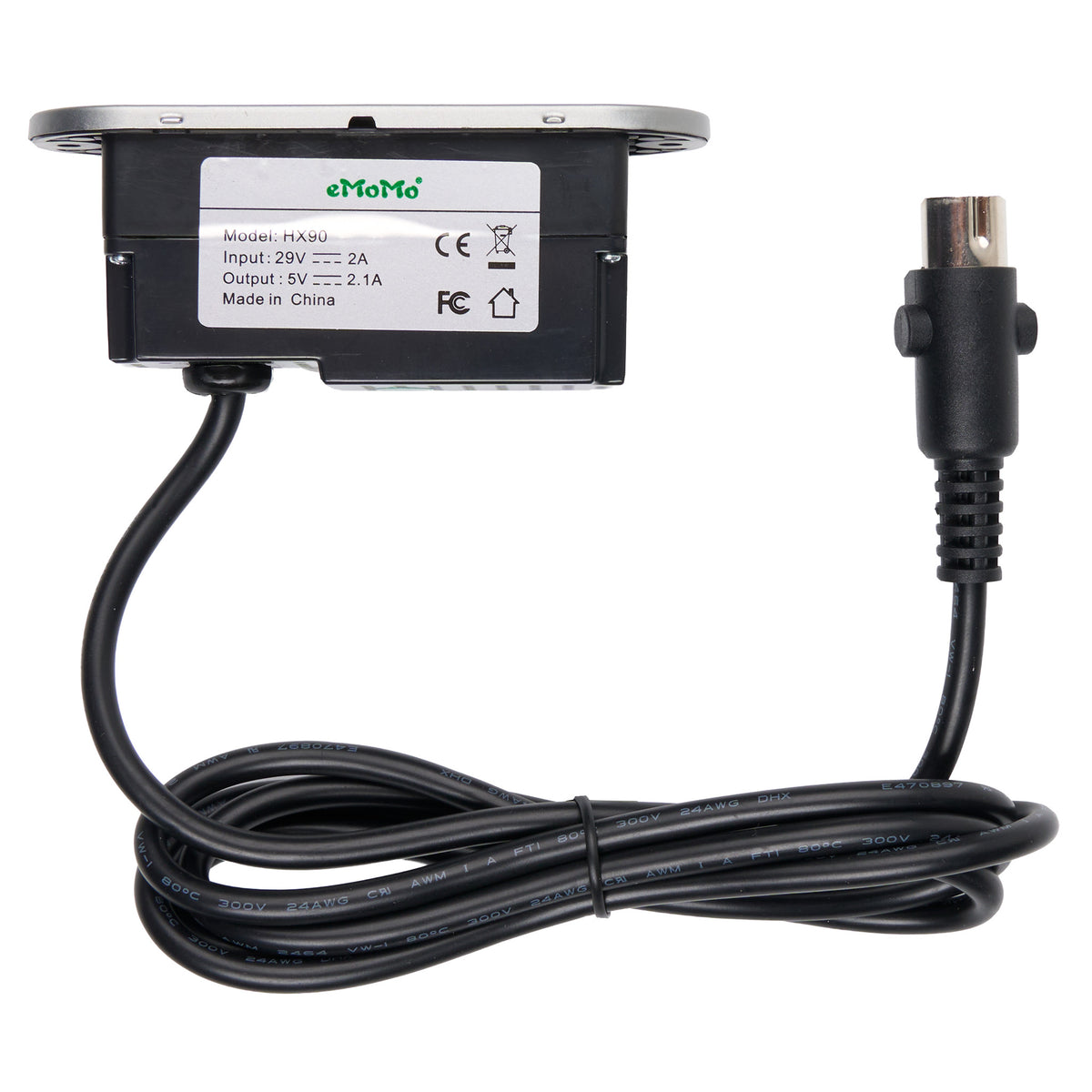

Specification:

• Model number: HX90HU2
• Input: 29V 2A
• Output: 5V 2.1A
• Button Count: 5
• Connector: 5 pin male

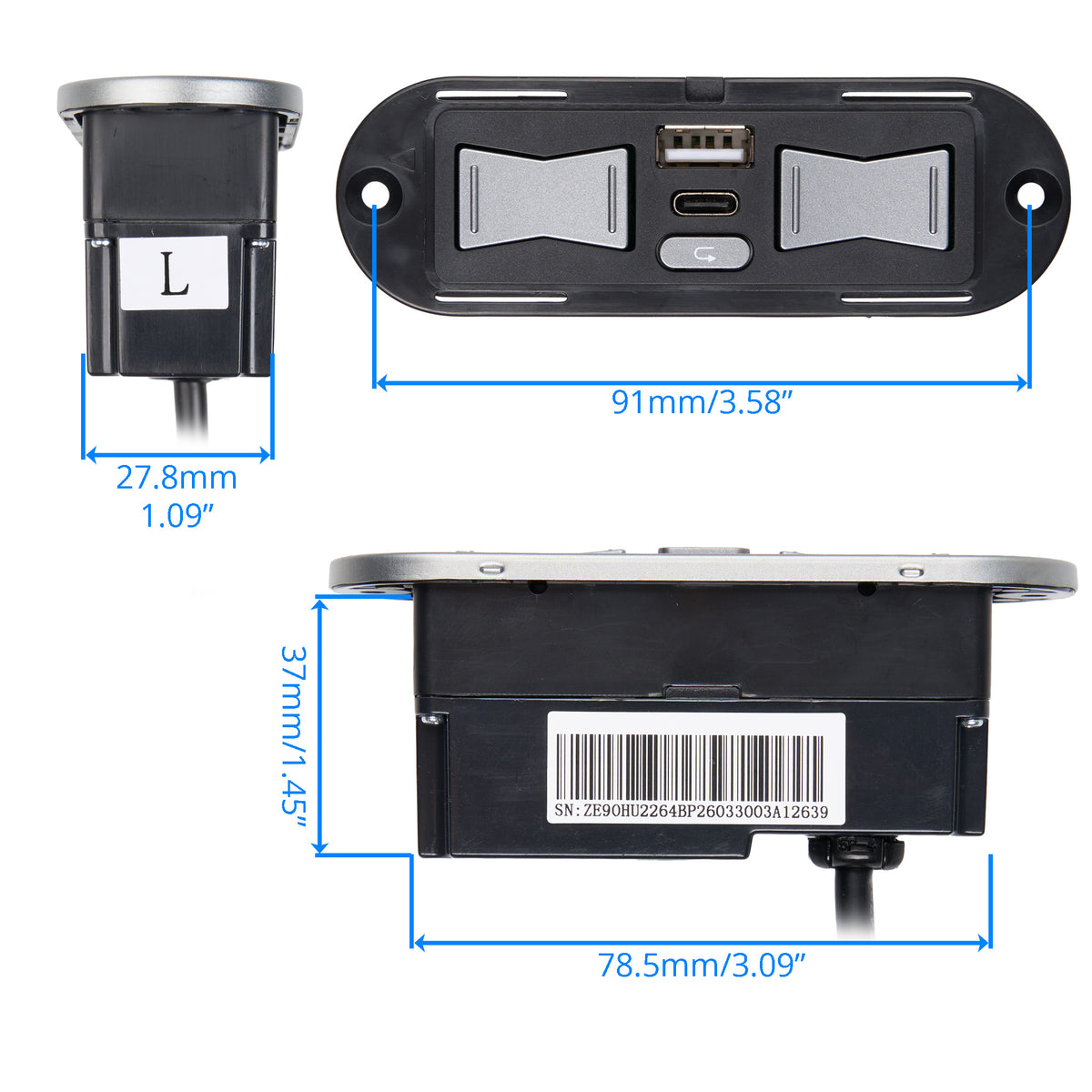

• Mounting Hole Distance: 91mm (3.58 inch)
• Install Block Dimension: 78.5X27.8X37mm (3.09X1.09X1.45 inch)
• Cable length: 1.4m (4.6ft)

Package includes:

• HX90HU2 switch x1
• Face plate x1
• Screws x2
