eMoMo HX90BEU-PR02 Switch for Lift Chair and Power Recliner with 4 Buttons and USB Port

This is the genuine eMoMo HX90BEU-PR02 switch, featuring 4 buttons, a built-in USB port, and a 5-pin male plug. It is designed for dual-motor power recliners, lift chairs, and other types of motion furniture.

Compatibility

• This switch is not cross-compatible with other eMoMo HX90 models.

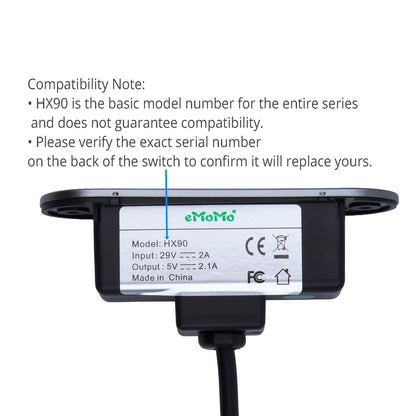

• Although the main label on the back may simply read "Model: HX90", the HX90 family includes many sub-models that are generally not interchangeable—even if they look exactly identical. Please verify your existing switch before placing your order.

• To confirm this switch is a suitable replacement, you must check the Serial Number (SN) on the barcode label of your current switch. This switch will only replace yours if the SN meets ALL of the following requirements:

  • The Prefix: The serial number usually start with SN:E, SN:WT, or SN:ZE.

  • The Sub-Model: The characters immediately following the prefix must be exactly 90BEUPR02 or 90BEU.

  • The Suffix: The character immediately following the model number must be a digit (0-9) or the letter V.

• Example of a compatible SN: SN: ZE90BEUPR0225CBP... or SN: E90BEU5...

• If your serial number doesn't match the requirements above, please send a photo of the barcode sticker to our customer support through email or the form below. We will help you verify it and find the correct replacement model.


Key Features

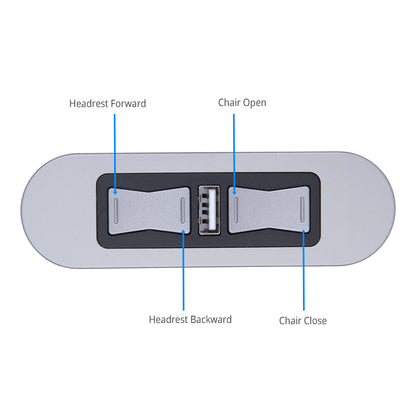

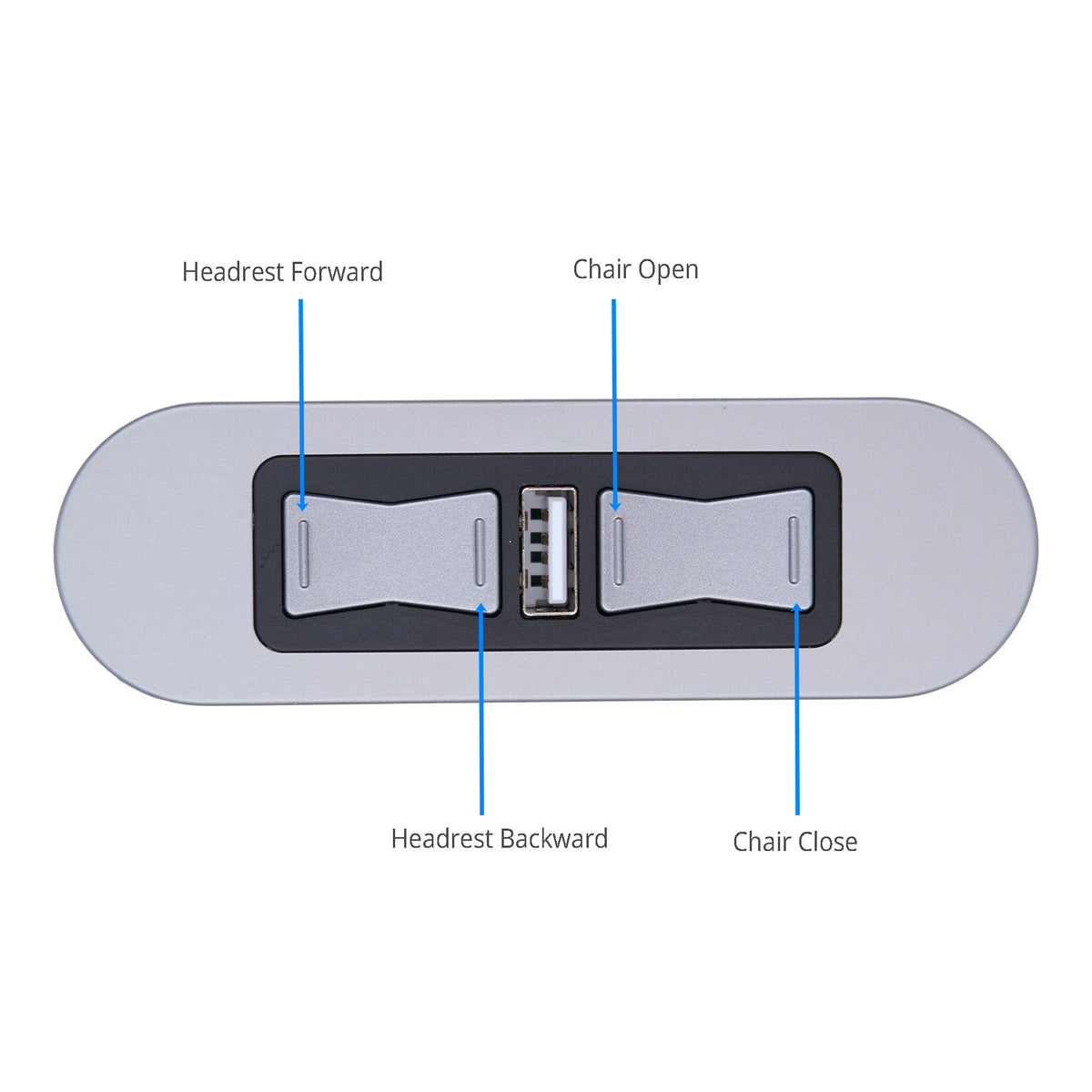

• 4-Button Control: Easily adjust the chair up/down and headrest tilt.

• USB Charging Port: Built-in USB port (5V, 2A output) for charging mobile devices.

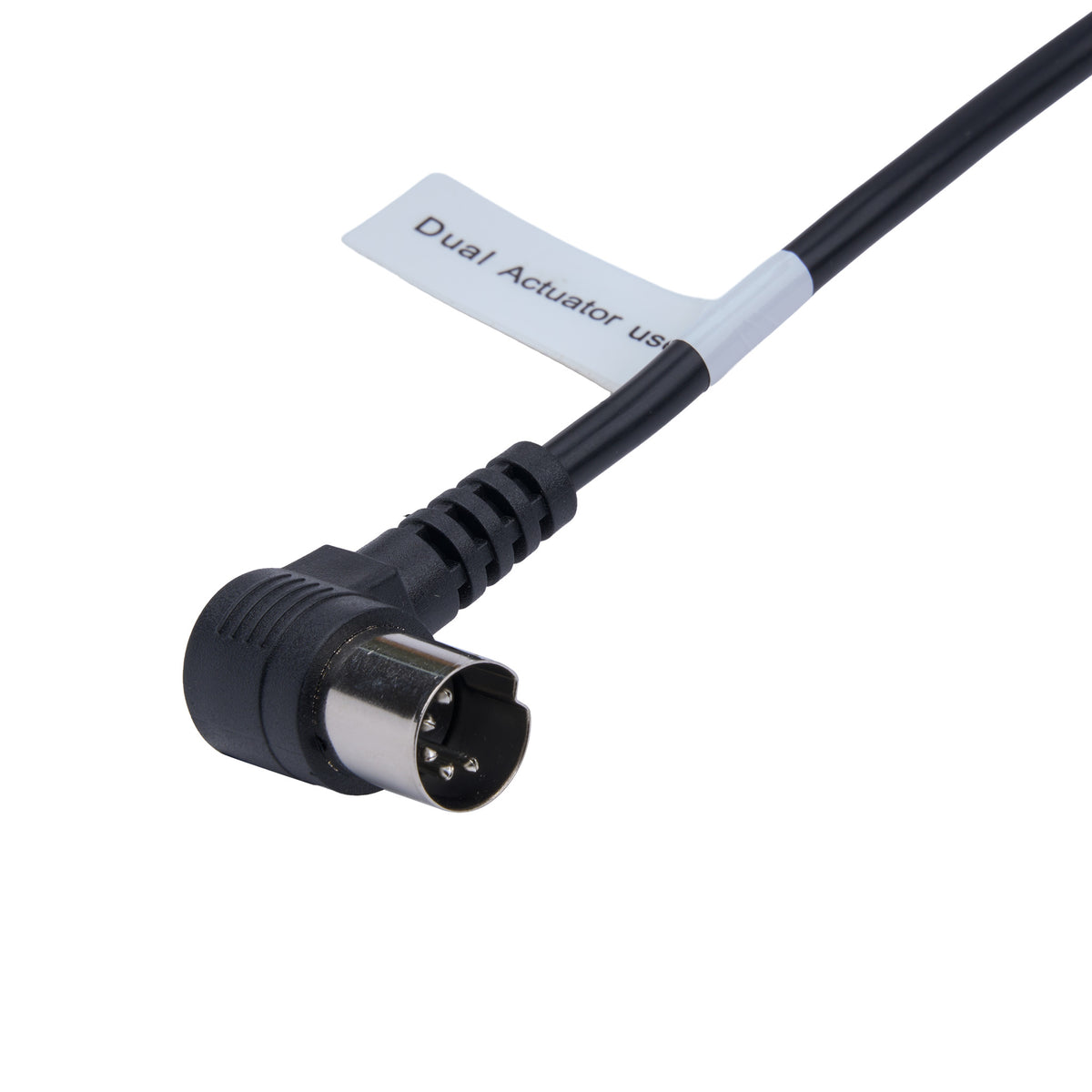

• Direct Connection: Features a 5-pin male plug to connect to the wire harness.

• Cable Length: 1.5m / 4.9ft.

Specification

• Model: HX90BEU-PR02

• Button Count: 4

• Plug Count & Configuration: 1 × 5-pin male plug

• USB Port Count: 1 (USB-A, 5V/2A output)

• Cable Length: 1.5m / 4.9ft

• Face Plate Size: 100mm × 31mm (3.94" × 1.22")

• Mounting Hole Distance: 82mm (3.23")

• Install Block Dimension: 70mm × 25mm × 25.5mm (L × W × H) / 2.76" × 0.98" × 1.00"


Package Includes

• 1 x HX90BEUP-R02 Switch

• 1 x Aluminum Switch Face Plate

• 2 x Mounting Screws
