eMoMo TRCLB 7 Button Control Switch with 4 Plugs & USB

This is the genuine eMoMo TRCLB control switch. This switch features 7 button, with 4 plugs & a USB charging port. It operates the headrest, lumbar,  chair open/close, LED light ON/OFF.

Compatibility:

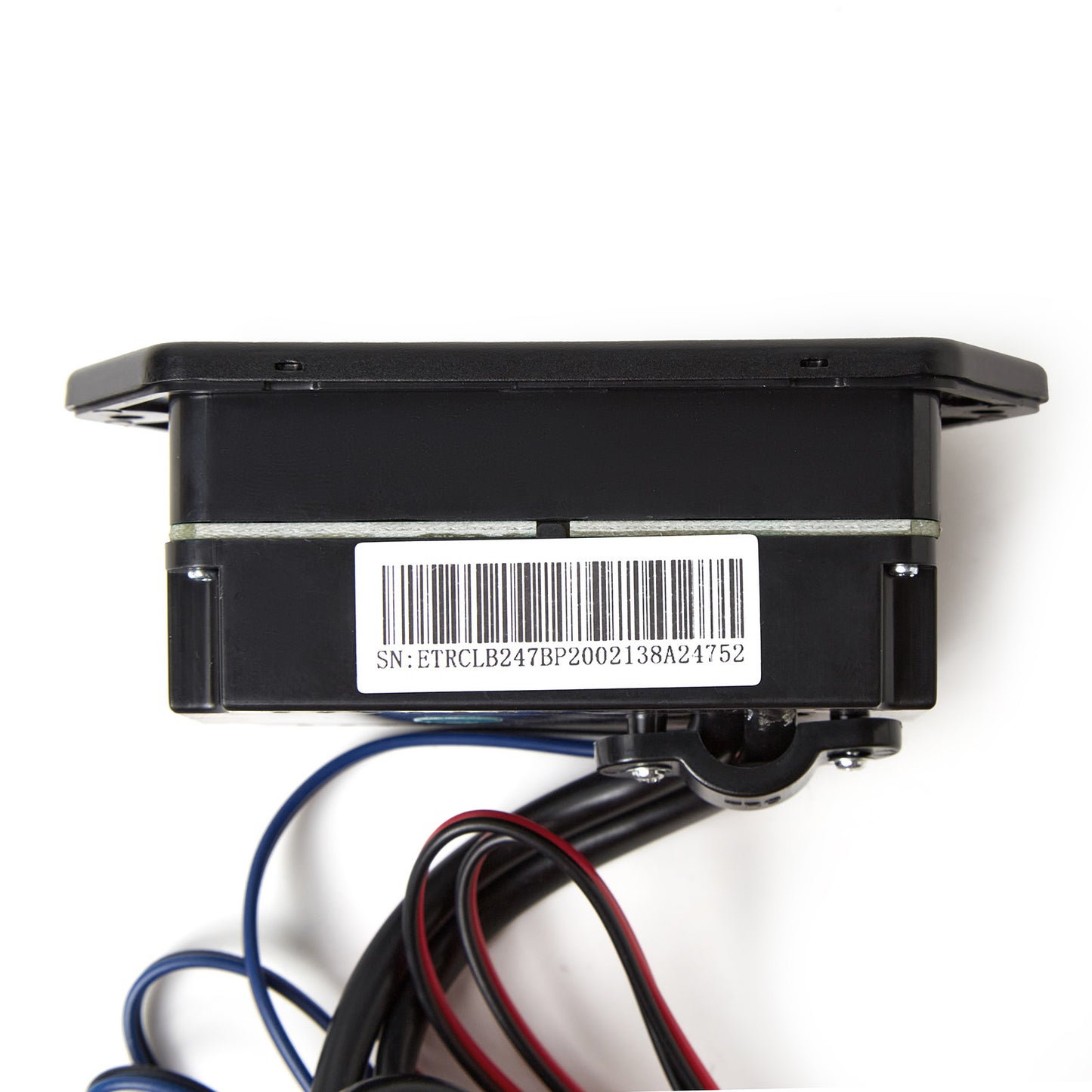

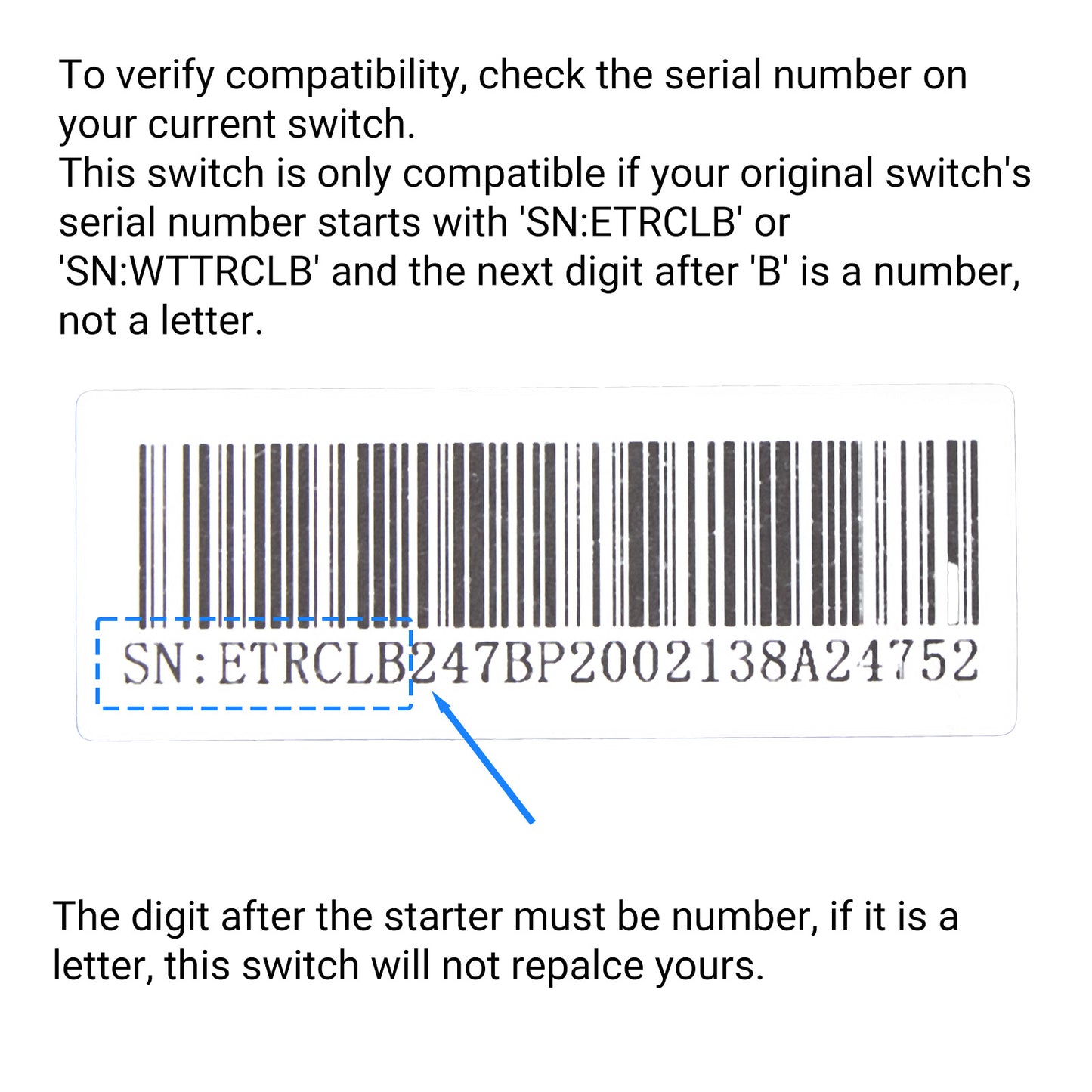

• To verify compatibility, check the serial number on your current switch.
• This switch is only compatible if your original switch's serial number starts with 'SN:ETRCLB' or 'SN:WTTRCLB' and the next digit after 'B' is a number, not a letter.

• This switch is for the left side when facing the chair (or right side when sitting on the chair.)

Features

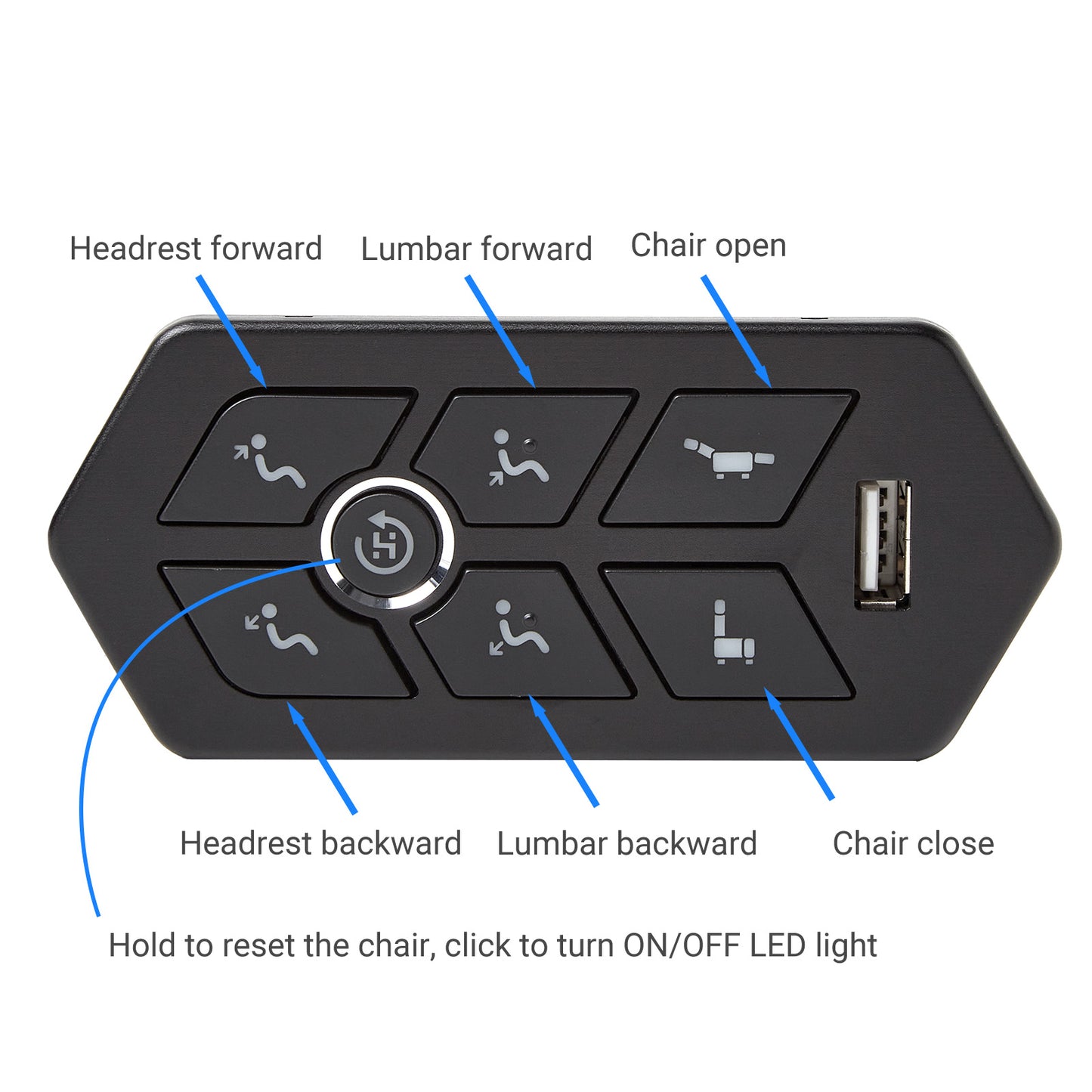

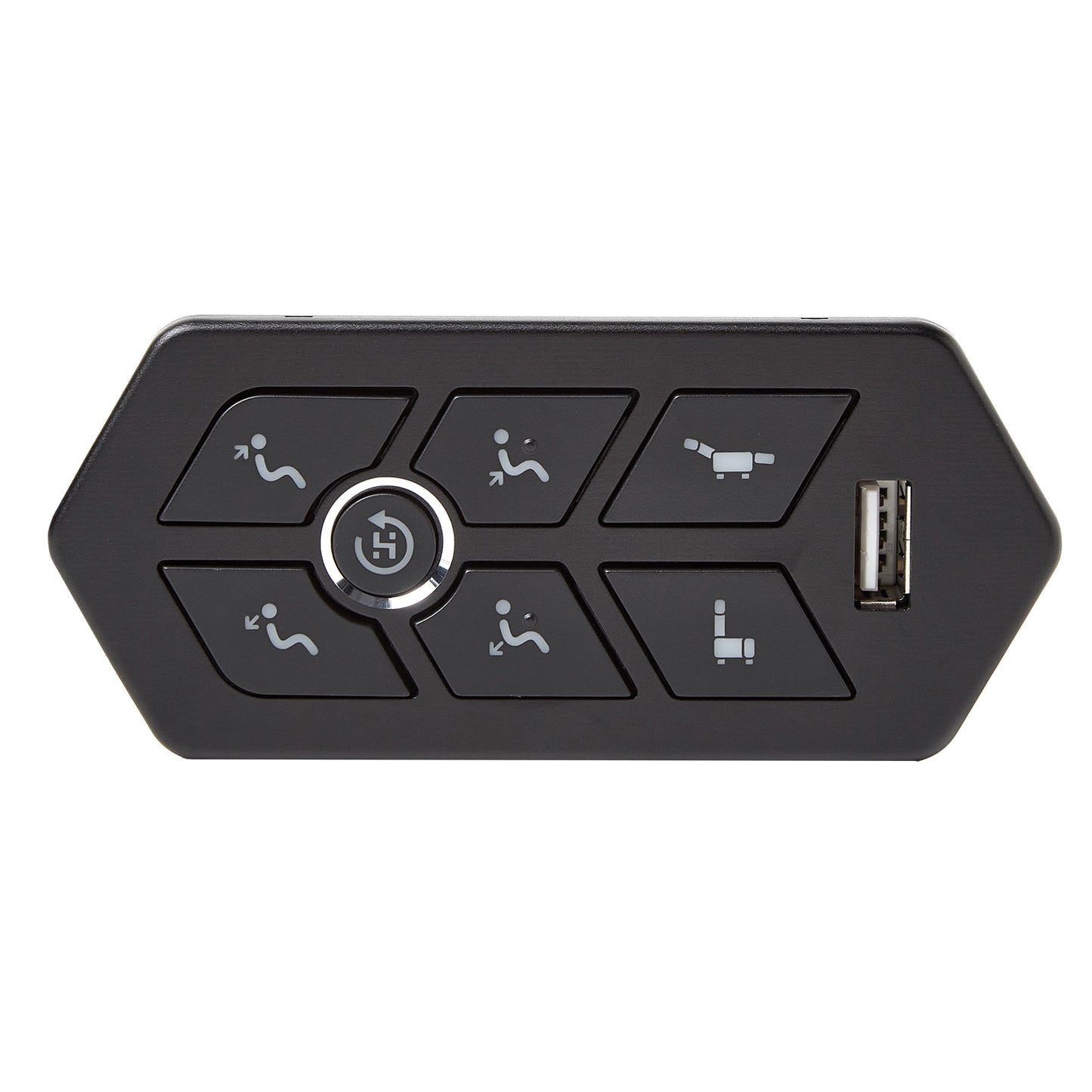

• 7 buttons :

  • 2 Buttons for headrest open/close

  • 2 Buttons for Lumbar open/close

  • 2 Buttons for the chair open/close

  • The small button in the center functions as a reset button & LED light ON/OFF button. (Hold to reset the chair, click to turn ON/OFF the LED light)

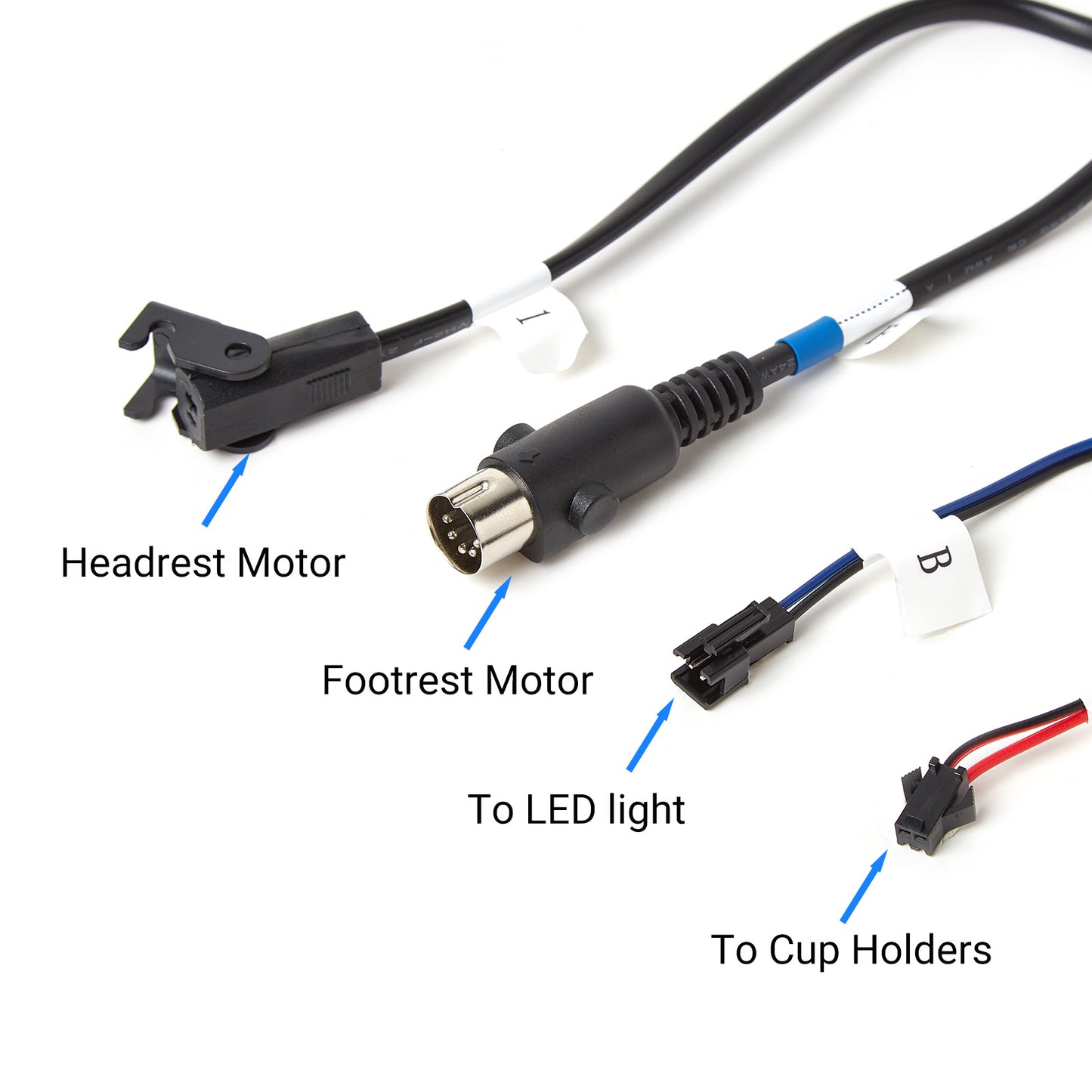

• Four plugs:

  • A Male 5 pin plug connects to the footrest motor.

  • A female 2 pin plug connects to the headrest motor.

  • A 2-pin plug with blue & black wires connects to the LED light.

  • A 2-pin plug with red & black wires connects to the cup holders.

• USB port with 5V 2A output for charging your mobile device for added convenience.

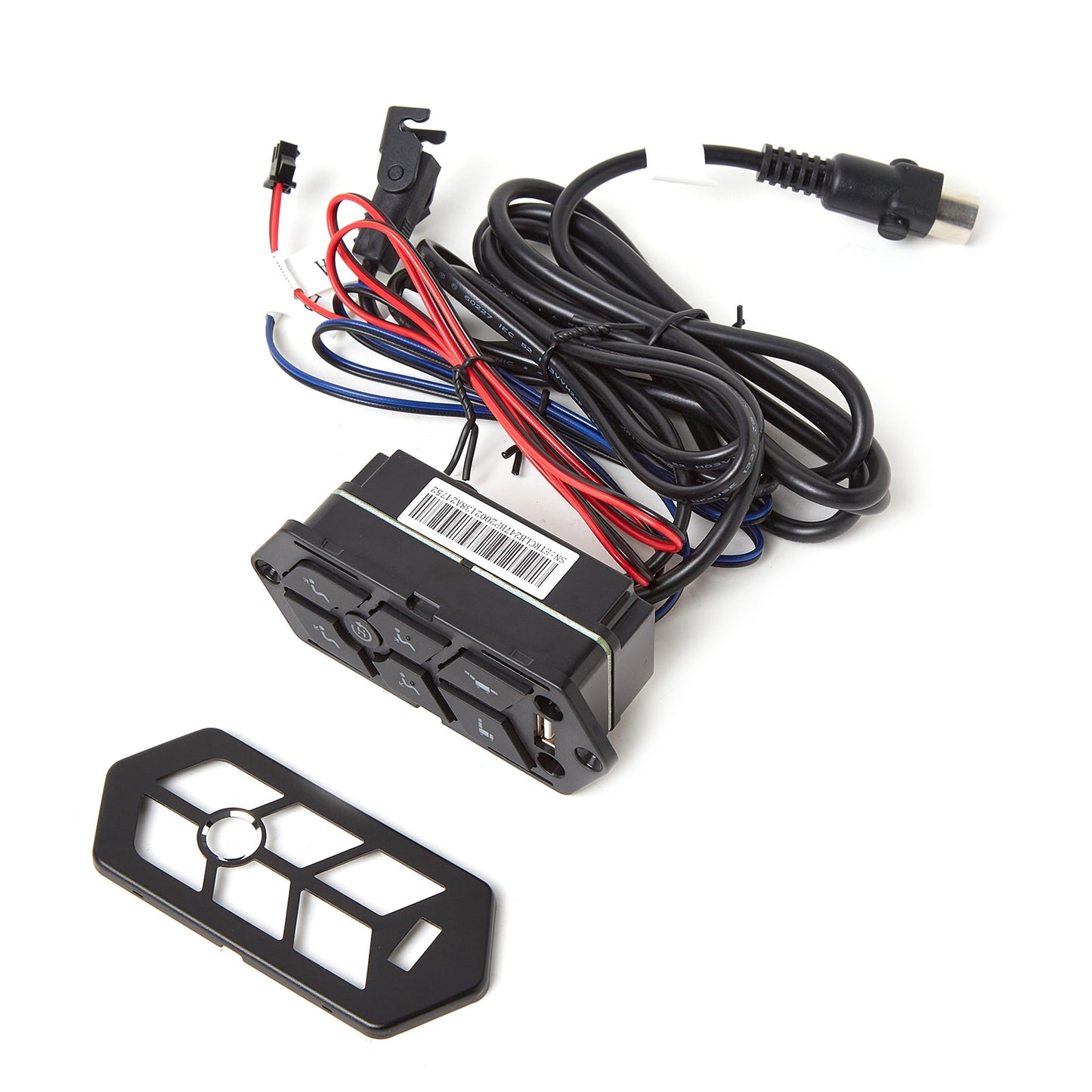

Package includes:

• TRCLB switch *1

• Face plate *1

• Screws *2
