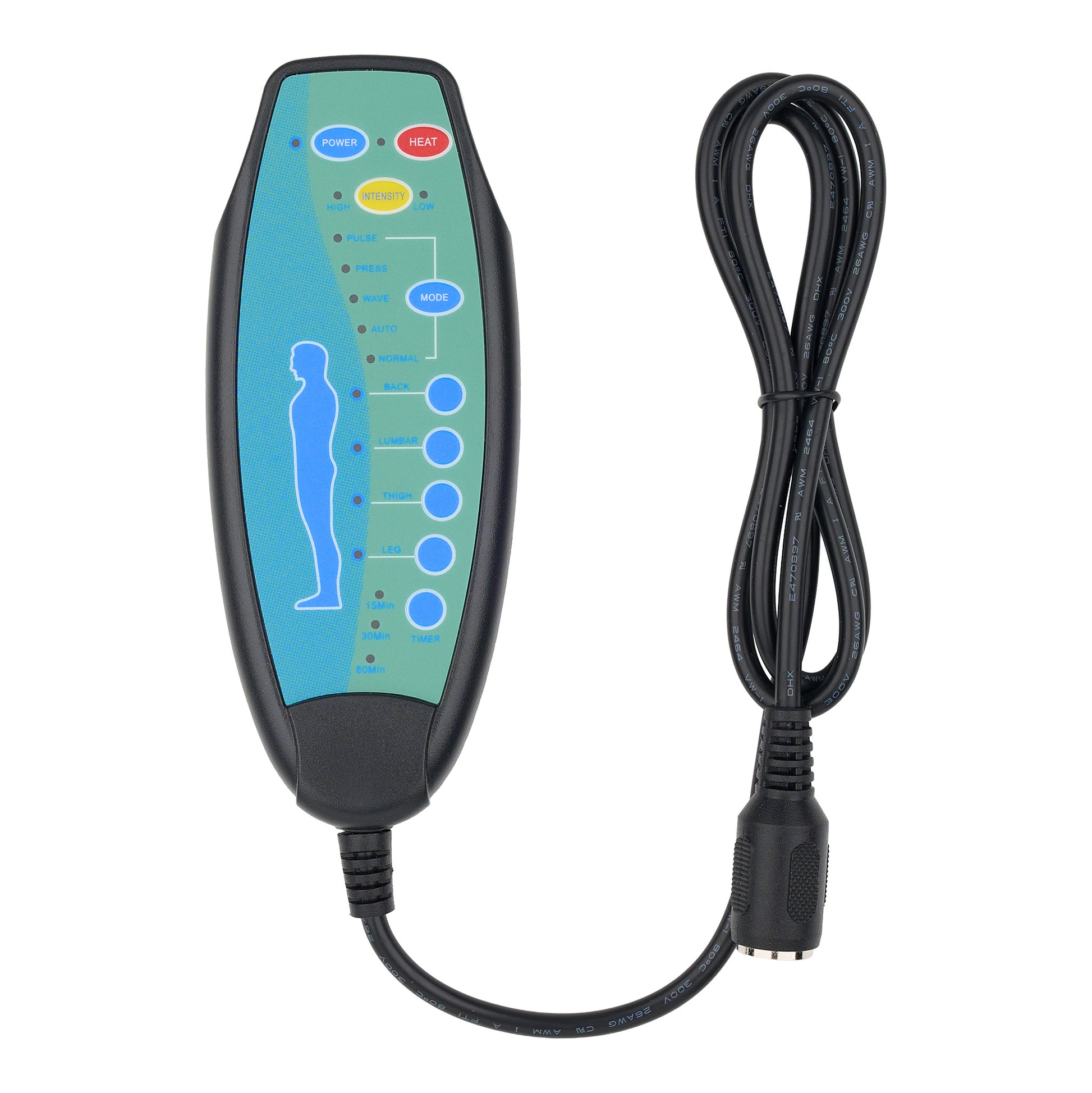

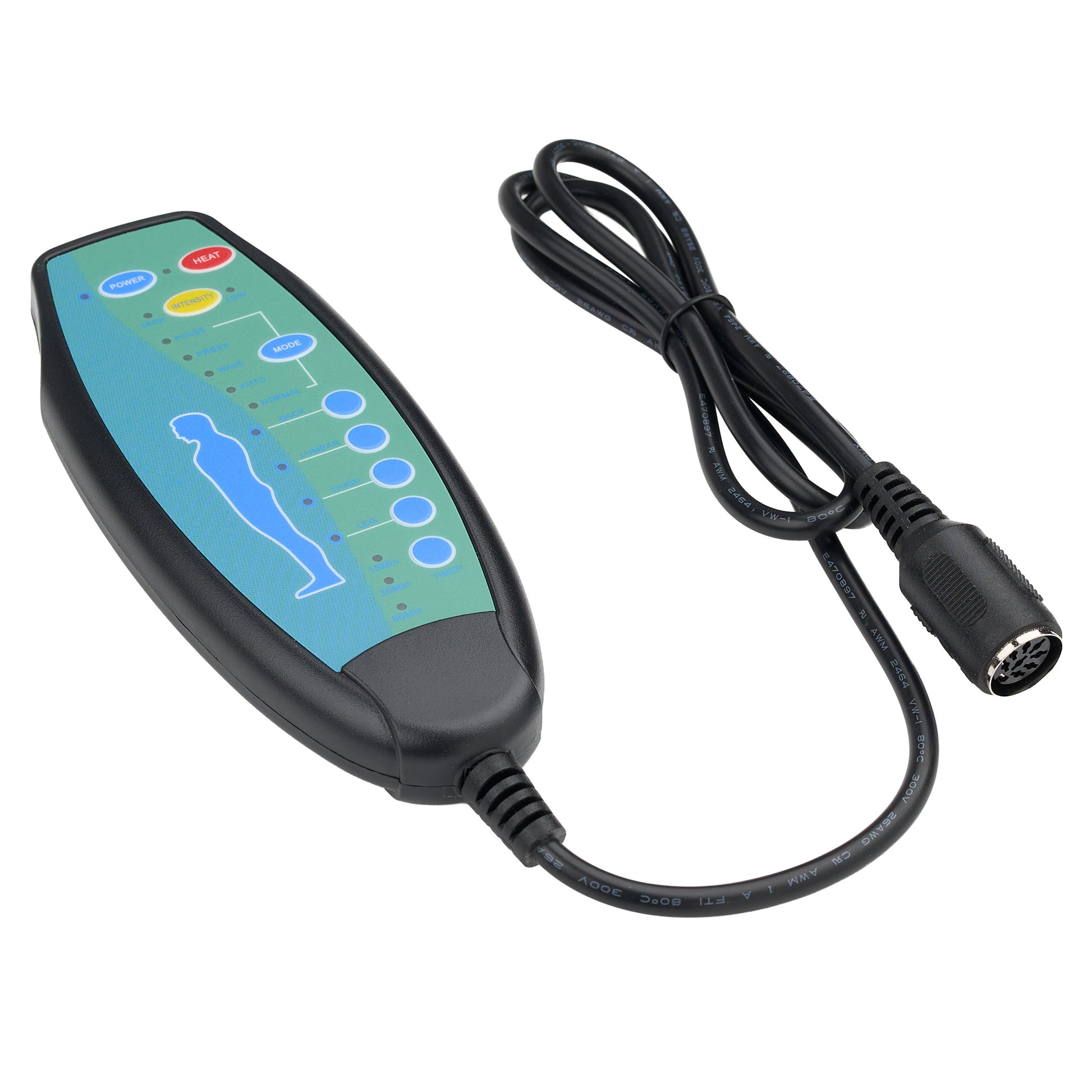

LN-207-8JR LN-A03 Remote Controller for Heat & Vibration System – 9 Button, 8-Pin Female Plug

The LN-207-8JR remote controller has a circuit board code of LN-A03X (where X can be A, B, or C). It features 9 buttons and uses an 8-pin female plug. This remote control operates the heat and vibration massage system of the chair.

Compatibility:

• This remote control uses an industry-standard mold. Do not purchase it solely based on its appearance. Carefully check your remote control according to the following instructions. Only if all requirements are met can this remote control be used to replace yours:

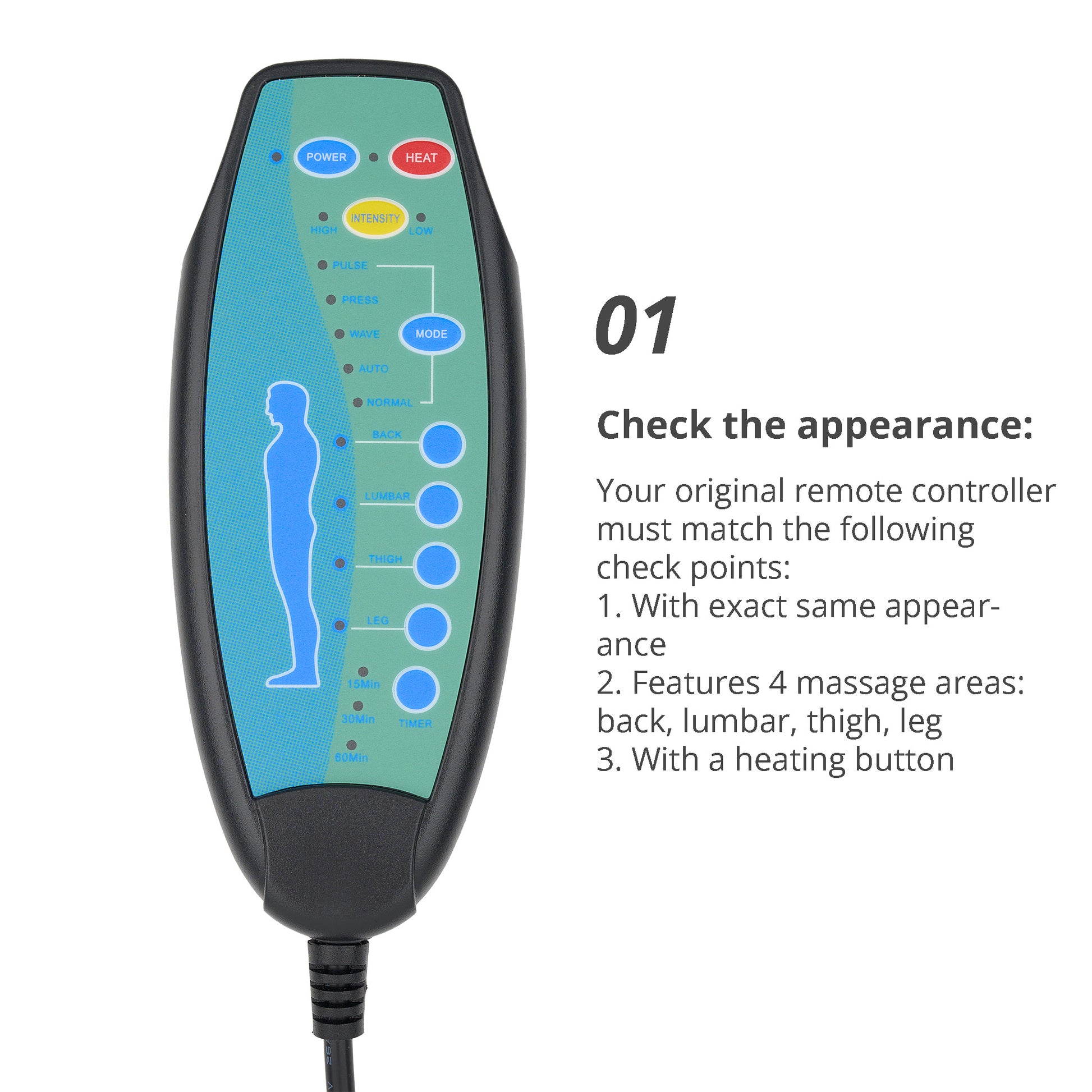

• Appearance: Your remote control must look exactly like the picture. It should have nine buttons and use an 8-pin female plug. It should include four massage zones: back, lumbar, thigh, leg, and have a heating button.

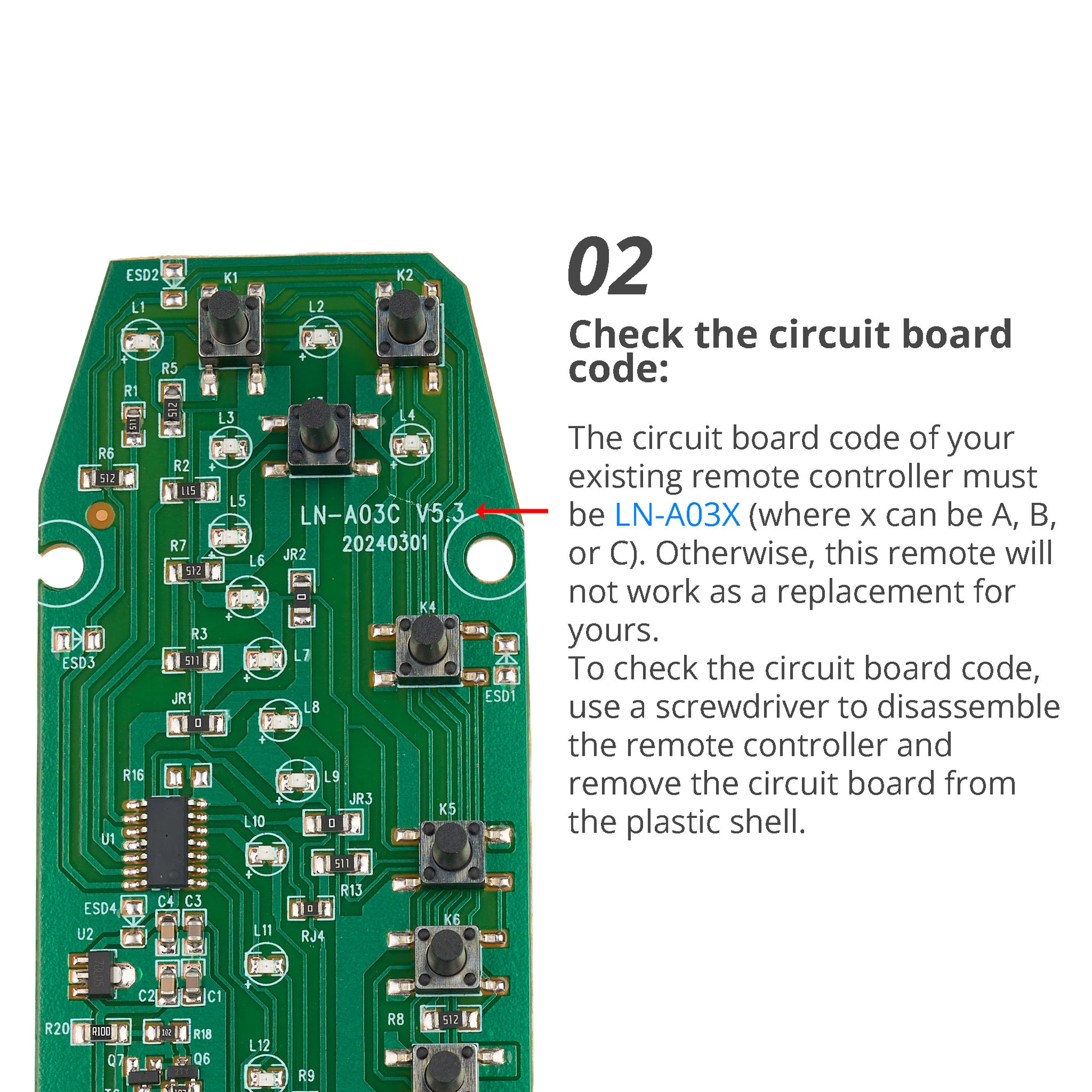

• Circuit Board Code: Your remote control's circuit board code must be LN-A03X (X can be A, B, or C).

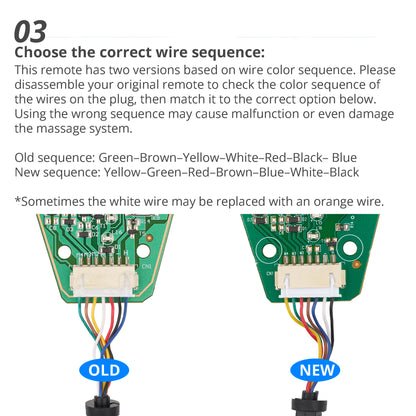

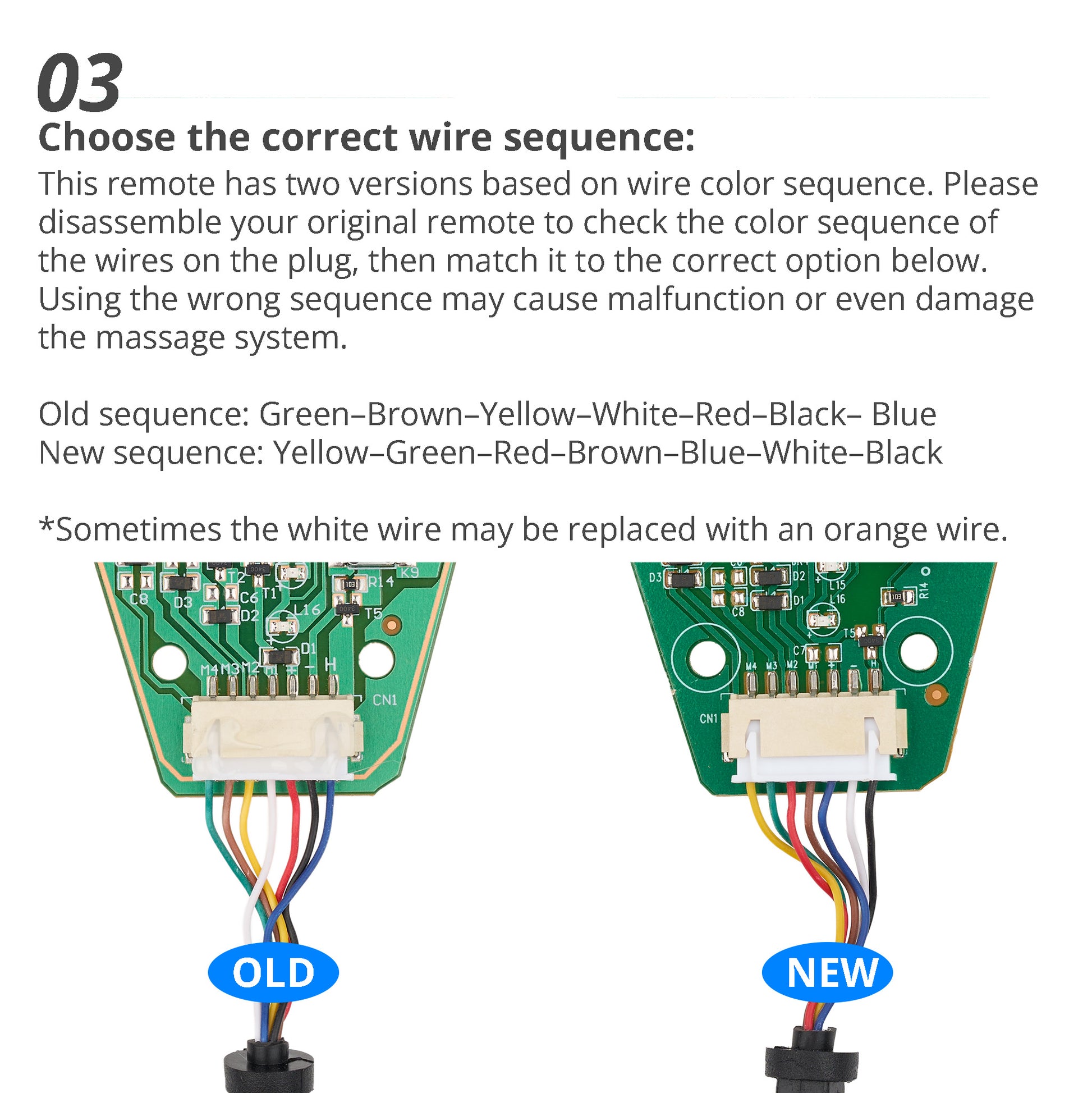

• Wiring Sequence: This remote control has two wiring sequences (see the picture below). Select the wiring sequence that matches your remote control when purchasing. If your remote control does not have either of the two wiring sequences shown in the picture, do not purchase this remote control.

Features:

• Heat ON/OFF
• Vibration intensity selection: High/Low
• Vibration modes: Pulse, Press, Wave, Auto, Normal
• Vibration area selection: Back, Lumbar, Thigh, Leg
• Timer: 15 min, 30 min, 60 min

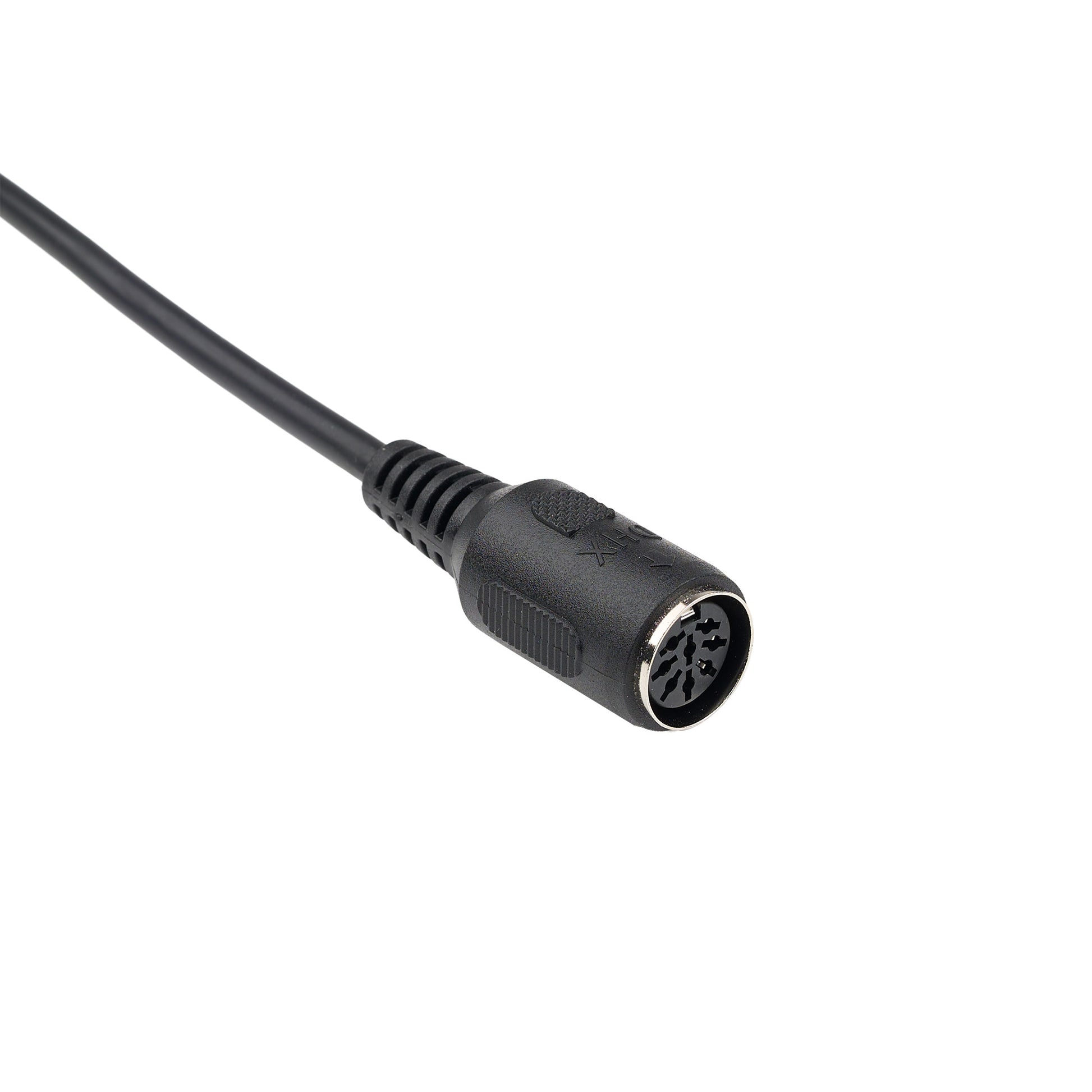

• 8-pin female plug
