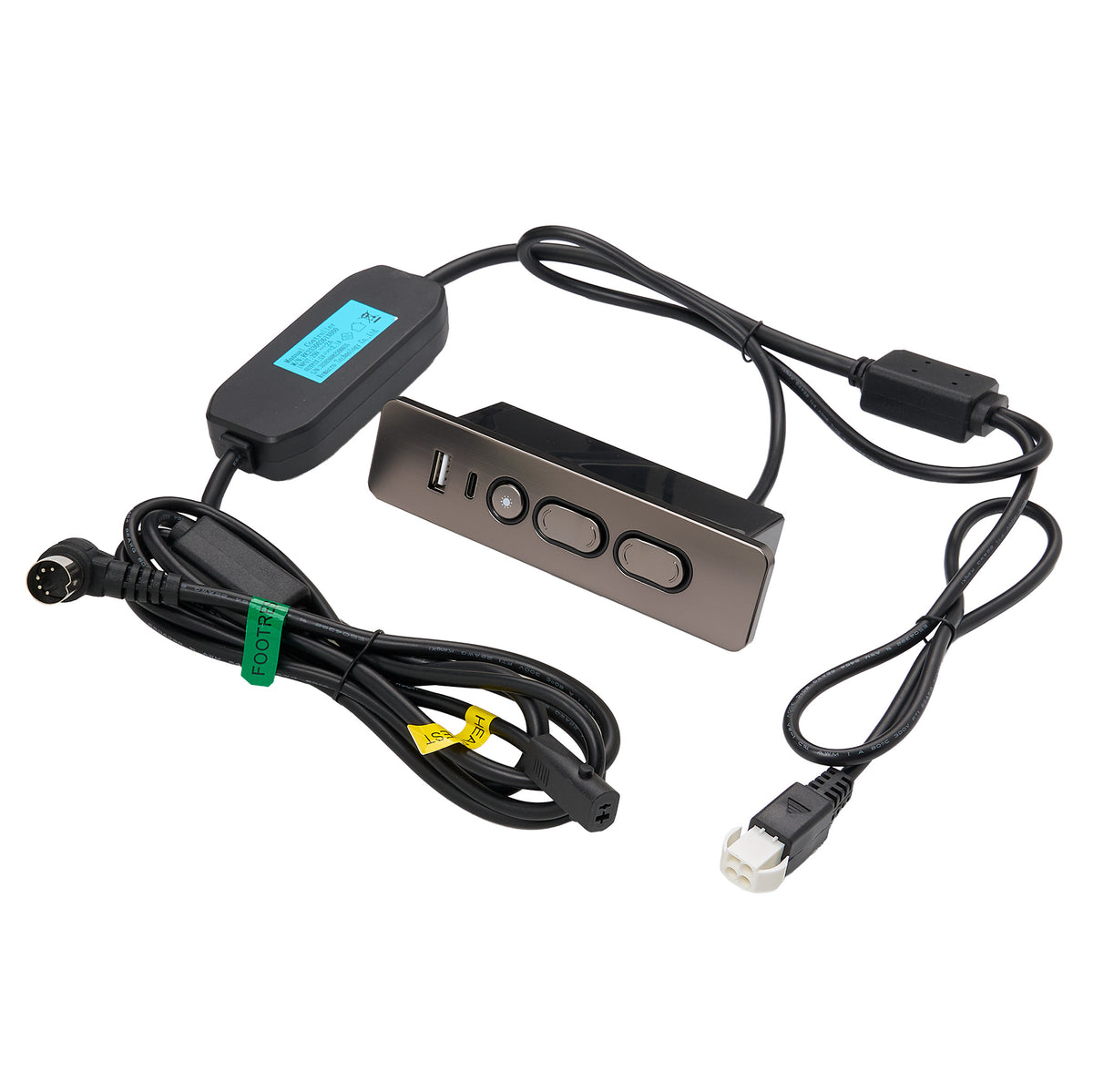

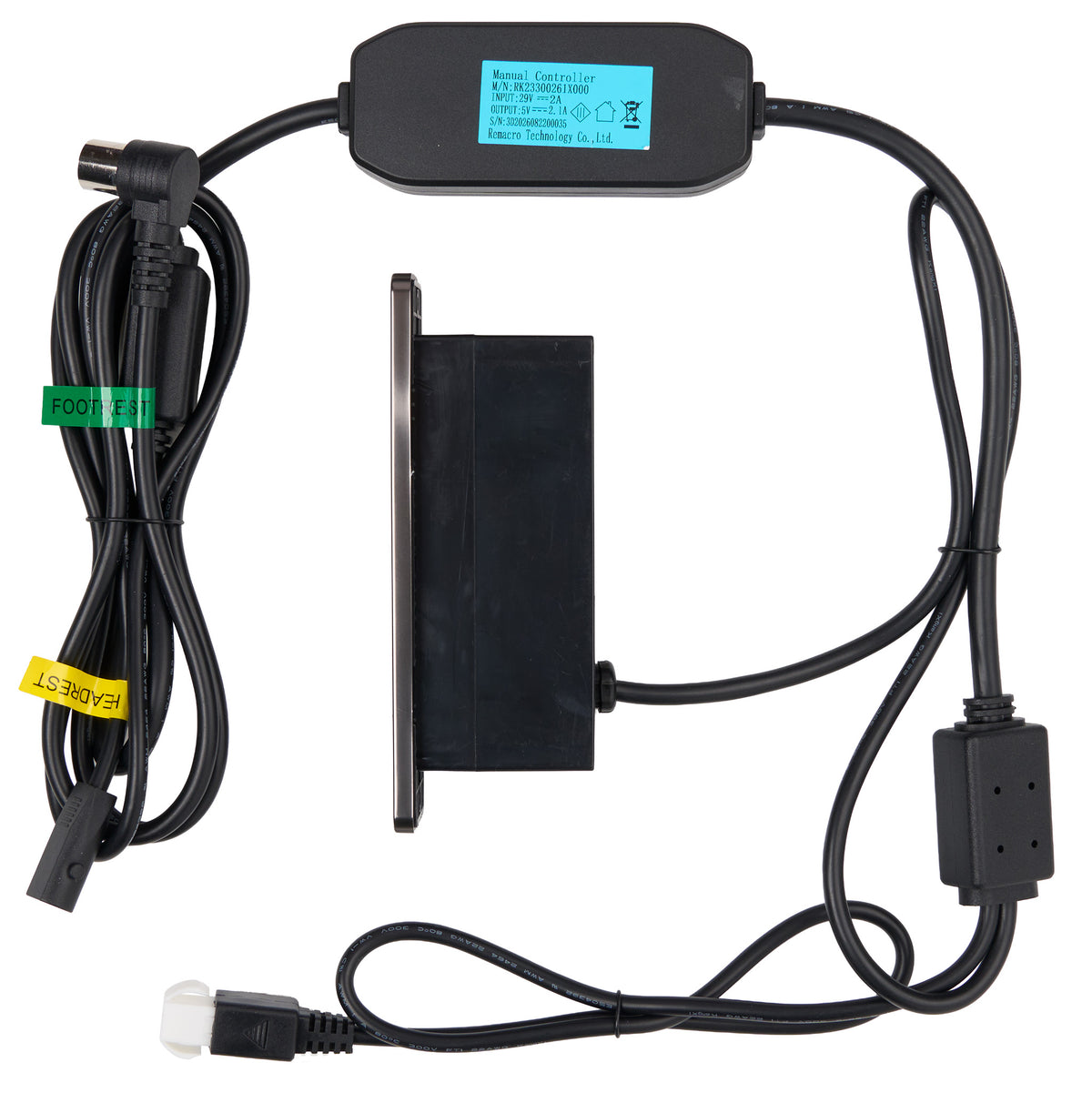

RK23300261X000 5 Button Recliner Switch with USB & Type C Three Plugs

This is the genuine RK23300261X000 recliner switch. It features five buttons and uses three connectors. It operates the chair open/close, headrest tilt, and LED light on/off. It is suitable for power recliners or lift chairs with two motors.

Compatibility

• This switch is a direct replacement for the RK23300261X000 and 23300261X000.

• Not compatible with any models other than those mentioned above.

• Please note that the part numbers RK23300261X000 and 23300261X000 are the only unique identifiers for this switch. Model WPS5C10018 ZH-C cannot be used to determine compatibility, because different switches may share the same model number, such as 23300265X000.

Features

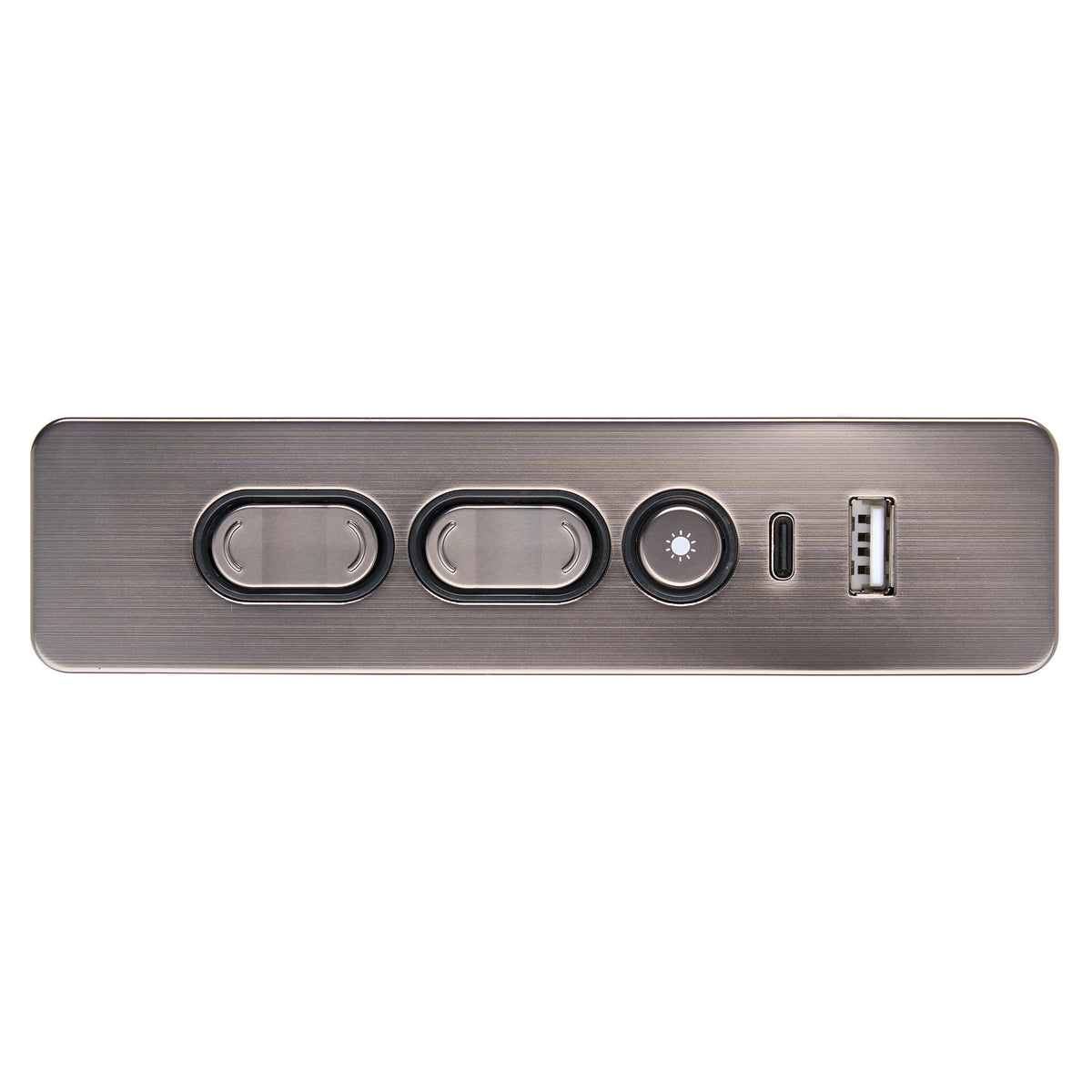

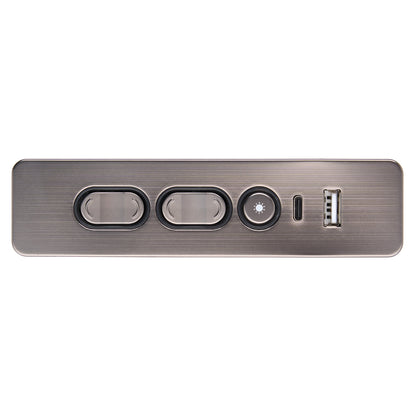

• The switch has five buttons: it controls the open/close (up/down) of the chair and the headrest forward/backward, and the round button turns the LED light on/off.

• With a USB port and a Type-C charging port, it is ideal for charging your mobile devices for added convenience.

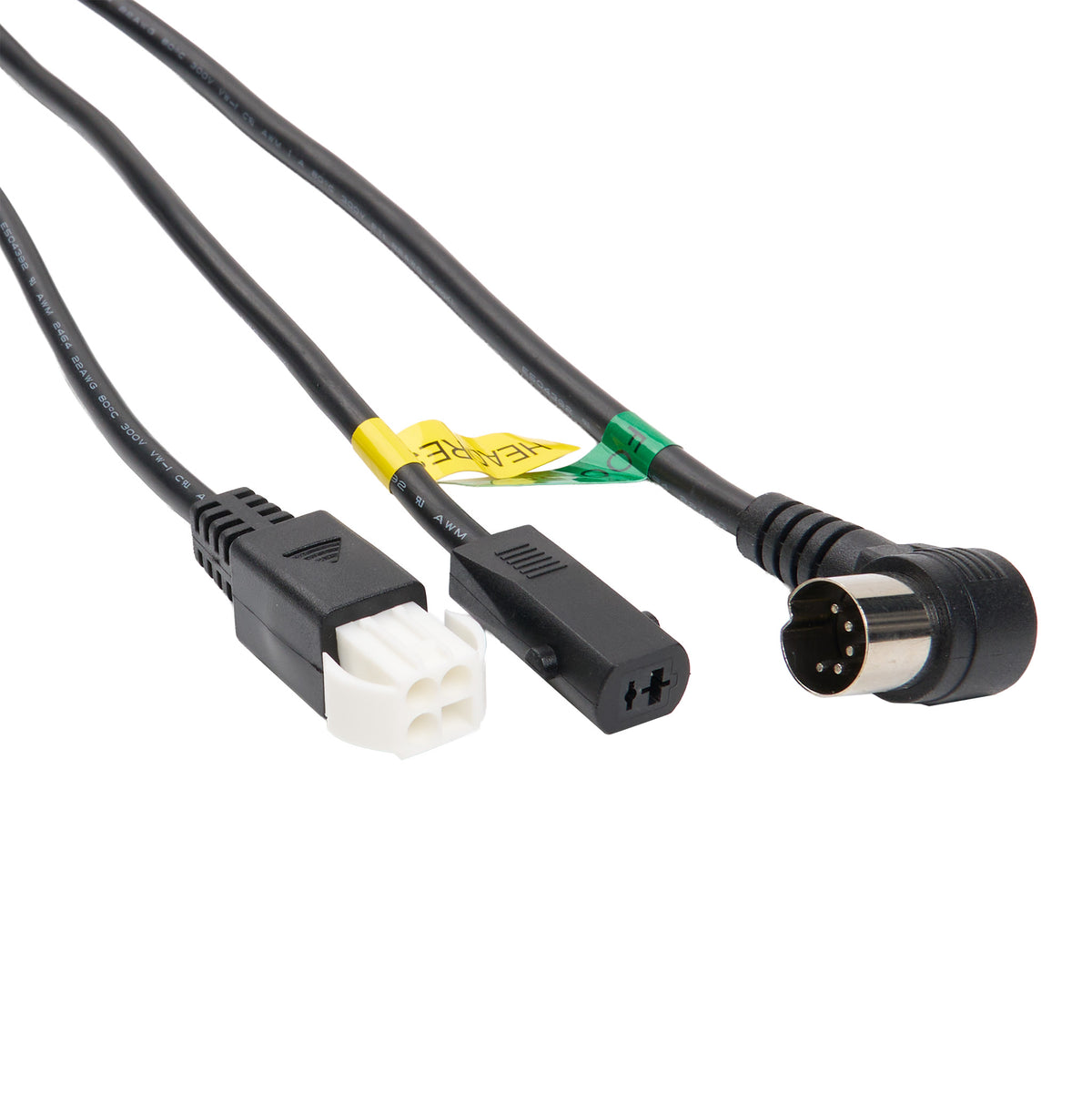

• The switch has three plugs:
  • A right-angled 5-pin male plug that connects to the footrest motor
  • A 2-pin female plug that connects to the headrest motor
  • A white 4-pin plug that connects to the LED light strip

Specification

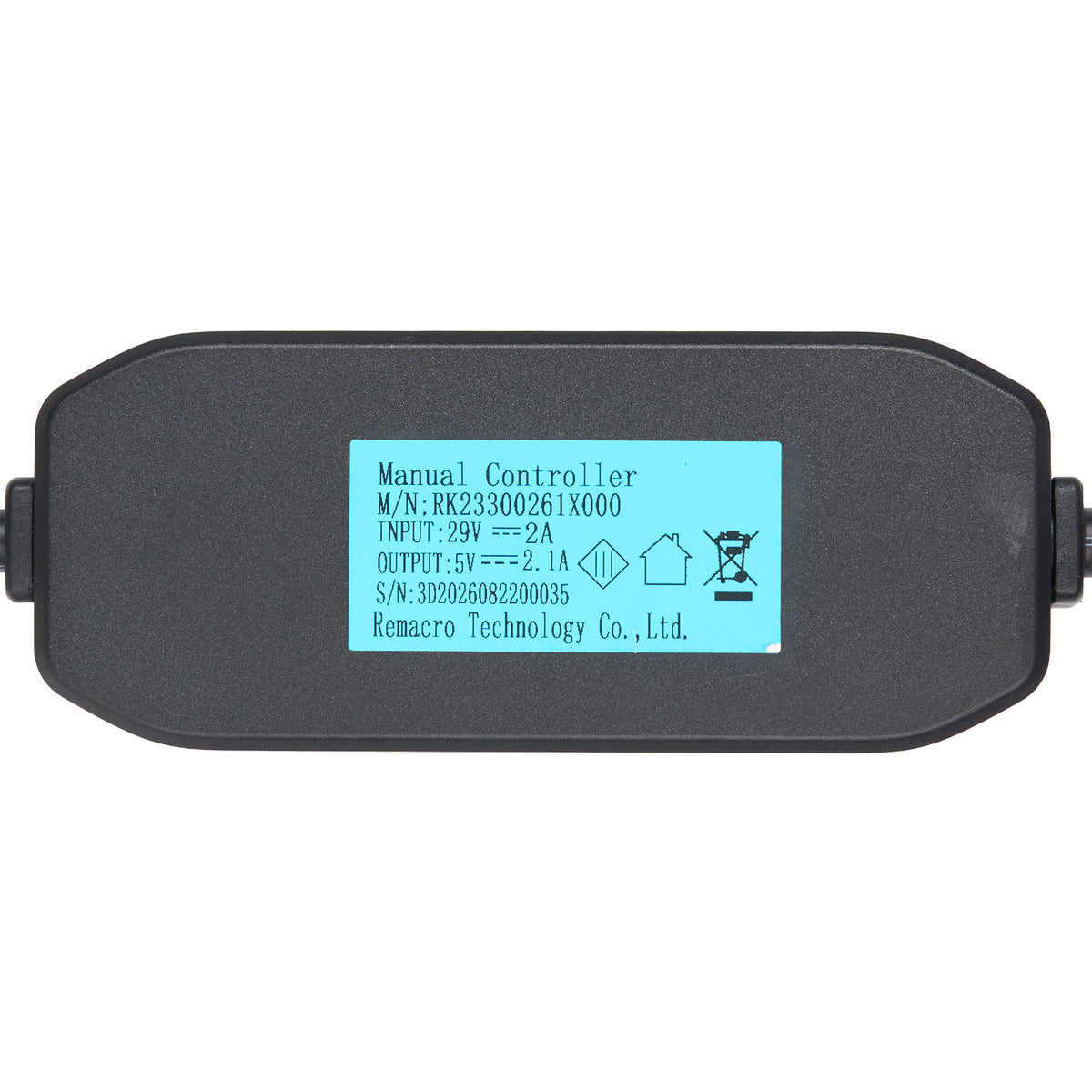

• Manufacturer Number: RK23300261X000 (or 23300261X000)

• Model Number: WPS5C10018 ZH-C

• Rated Voltage: 29V 2A

• USB Port Output: 5V 2.1A

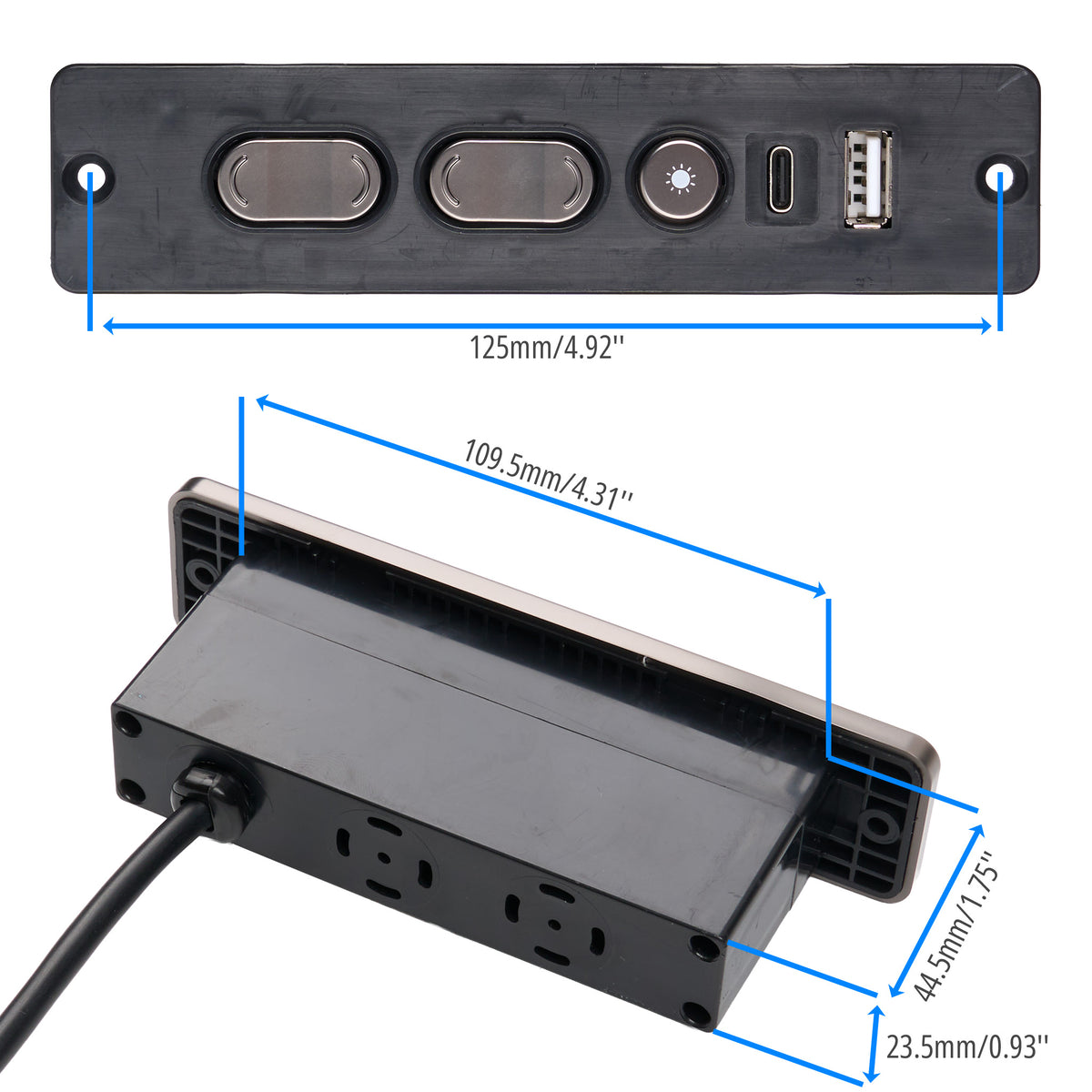

• Mounting Hole Distance: 125 mm (4.92 inches)

• Installation Block Size: 109.5 × 23.5 × 44.5 mm (4.31 × 0.93 × 1.75 inches)
