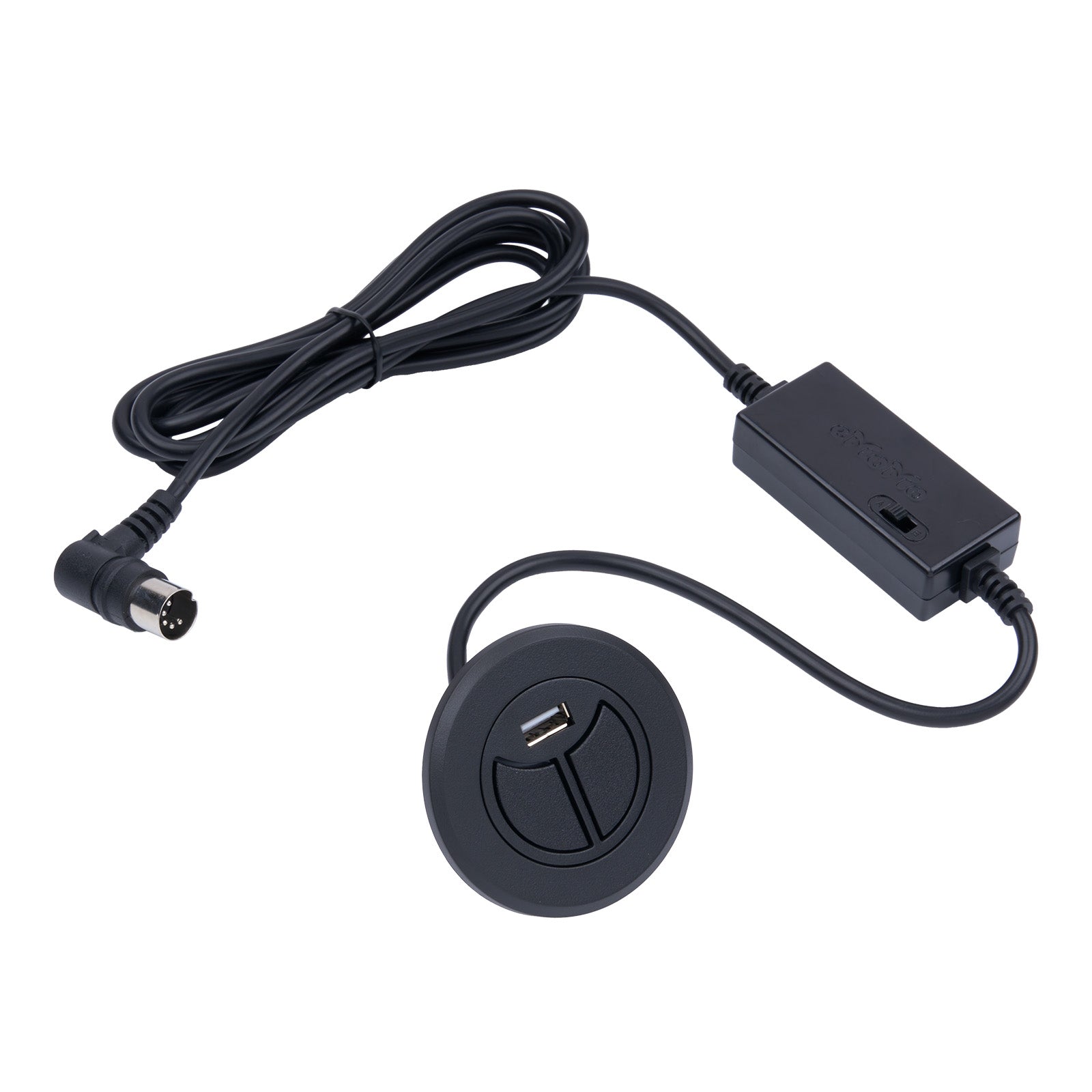

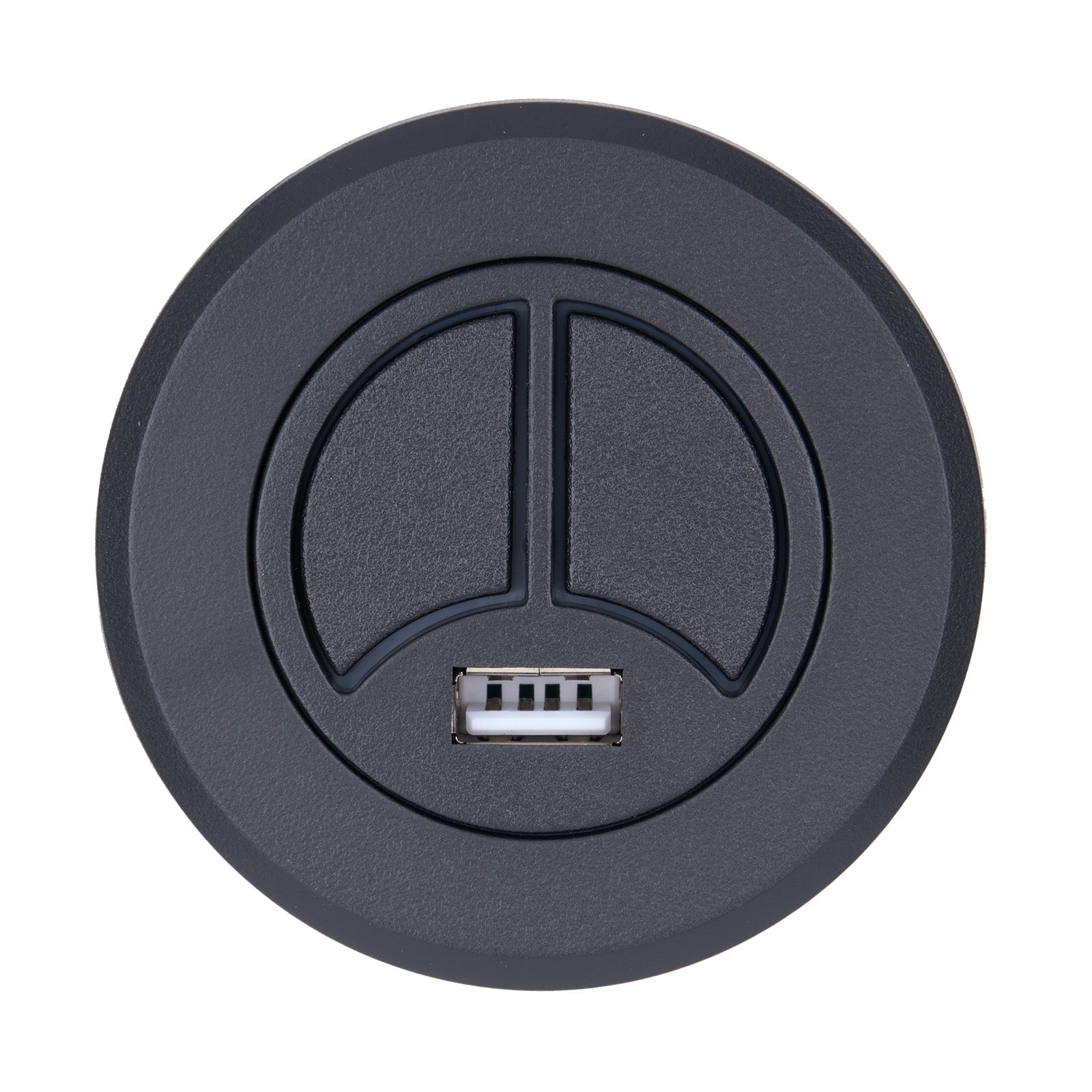

eMoMo RemoP10LR 2-Button 5 Pin Switch for Power Recliner or Lift Chair with USB

This is a genuine RemoP10LR replacement switch, featuring two buttons and a right-angled 5-pin male plug. It is designed for power recliners or lift chairs that use a single linear actuator motor.

Compatibility

The eMoMo RemoP series includes many versions that look identical but are not interchangeable. You cannot determine compatibility by physical appearance or the model name on the label.

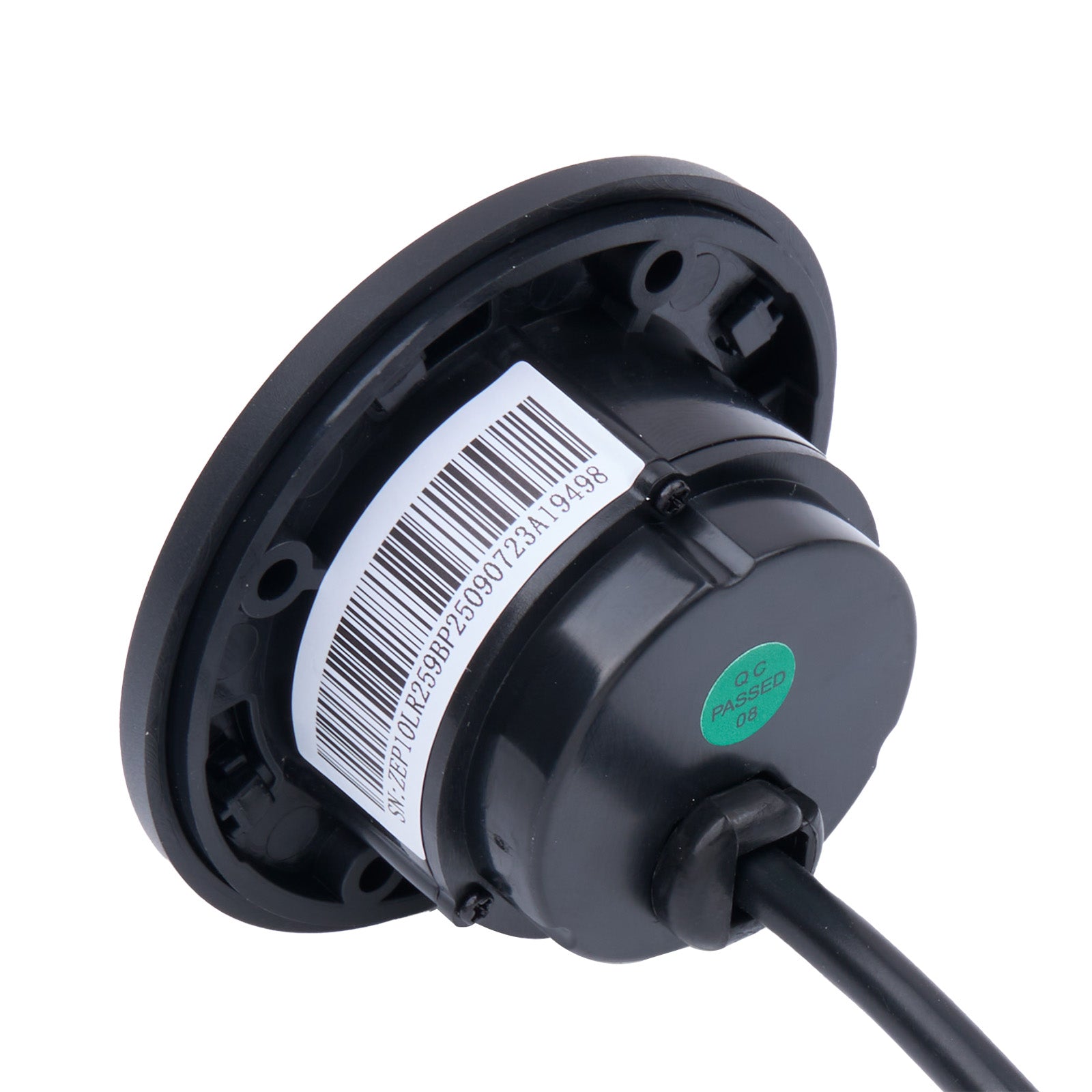

To ensure this is the correct replacement, you must remove your existing switch from the armrest and verify its barcode serial number (SN).

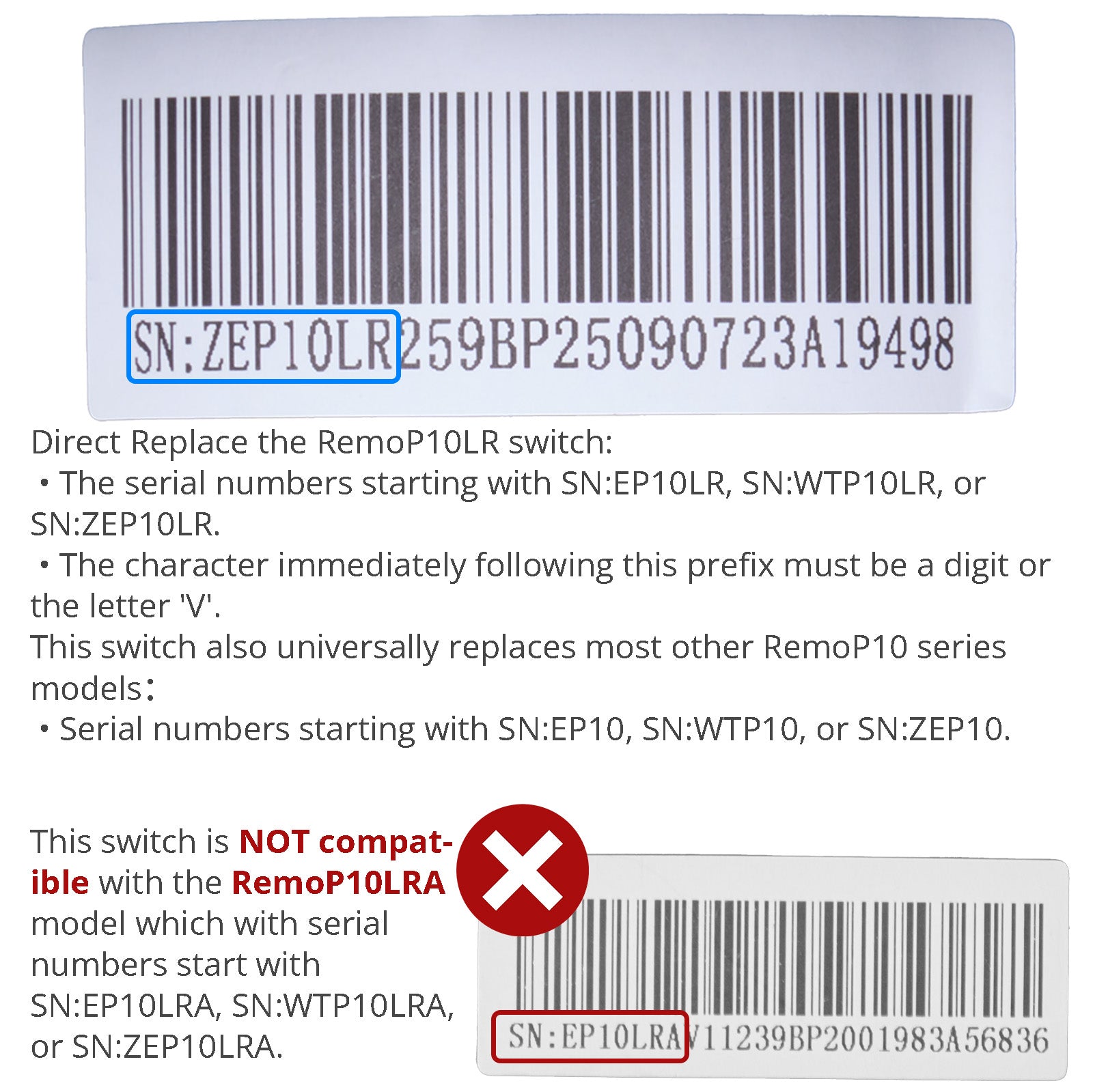

• Direct Replacement the RemoP10LR switch:

  • The serial numbers starting with SN:EP10LR, SN:WTP10LR, or SN:ZEP10LR.

  • The character immediately following this prefix must be a digit or the letter 'V'.

• This switch also universally replaces most other RemoP10 series models:

  • Serial numbers starting with SN:EP10, SN:WTP10, or SN:ZEP10.

  • Minor variations in the plug angle or button sequence will not affect its functionality.

• This switch is NOT compatible with the RemoP10LRA model which with serial numbers start with SN:EP10LRA, SN:WTP10LRA, or SN:ZEP10LRA.

Features

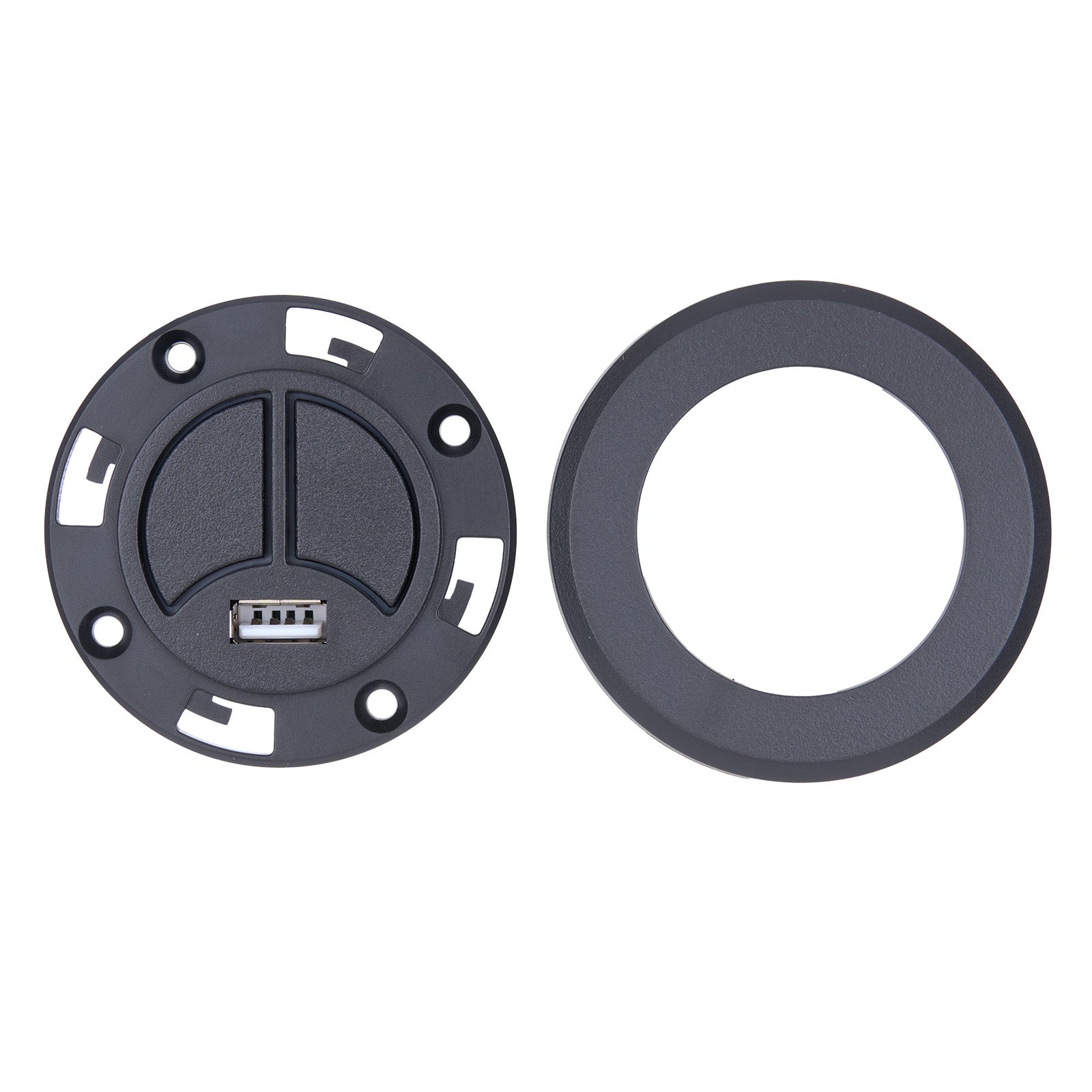

• 2-Button: Operates the open/close or up/down functions of your chair.

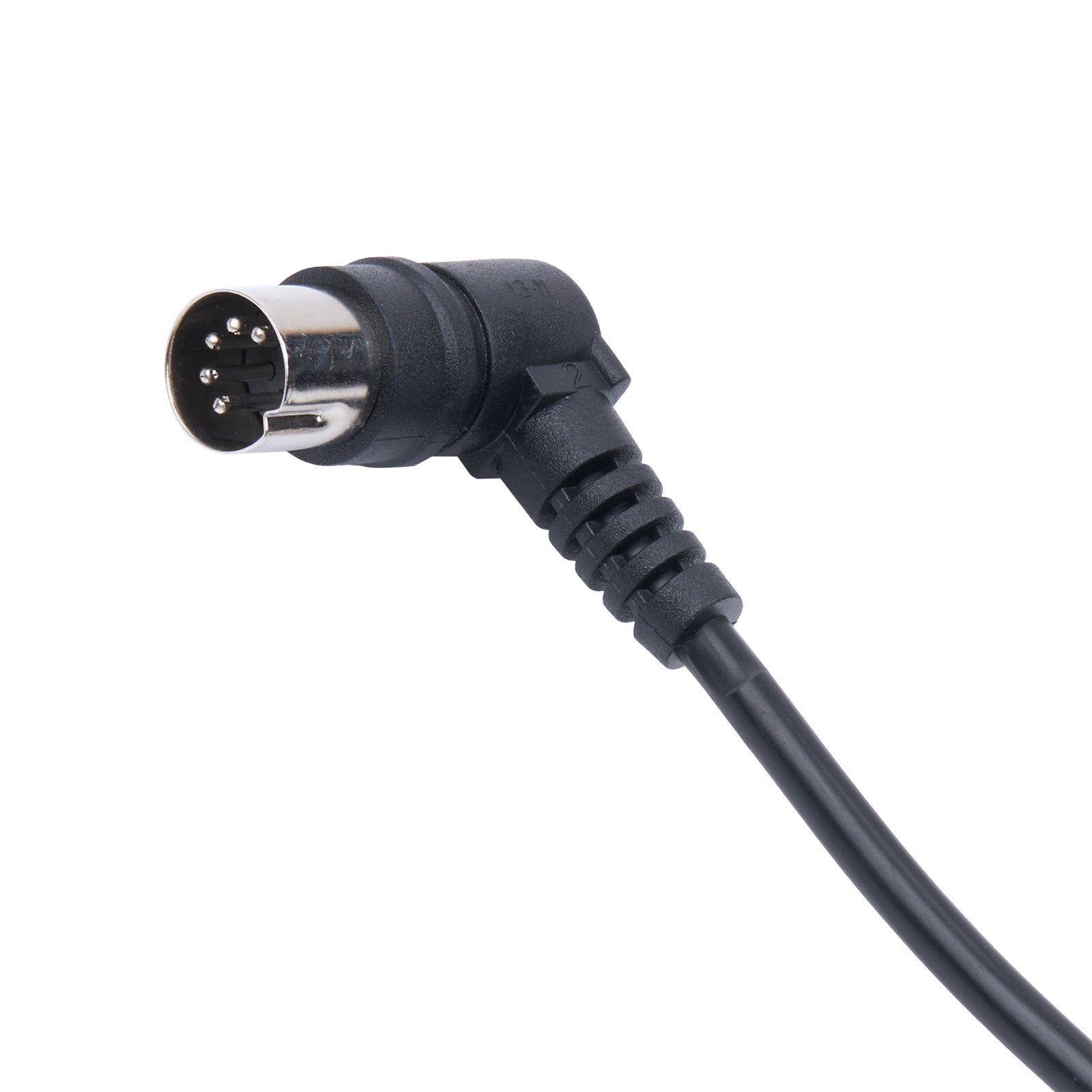

• Right-Angled 5-Pin Plug: Features a 90-degree male plug, connects to the lift motor or control box.
• USB Port: Includes a USB charging port with a 5V/2A output for powering mobile devices.

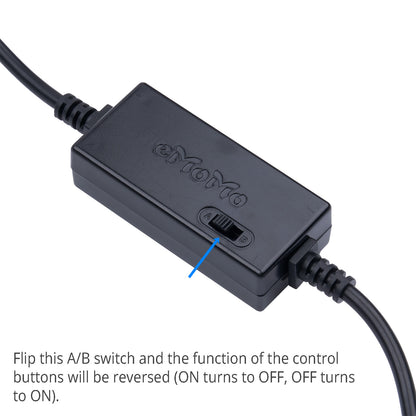

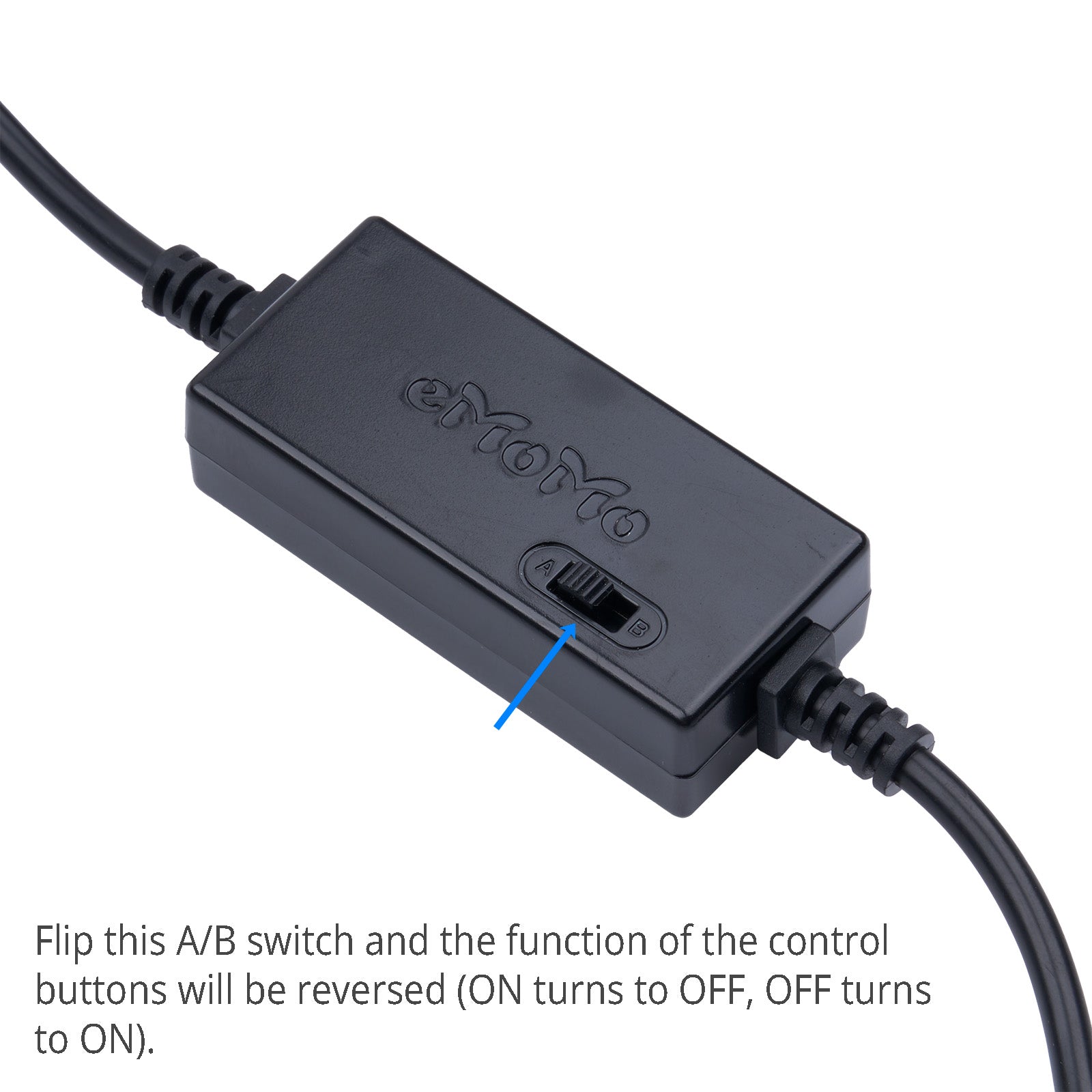

• A/B Function Switch: A toggle switch on the junction box reverses the operation of the control buttons. If the new switch's buttons work opposite to your original, flip this switch to correct it.

Specifications

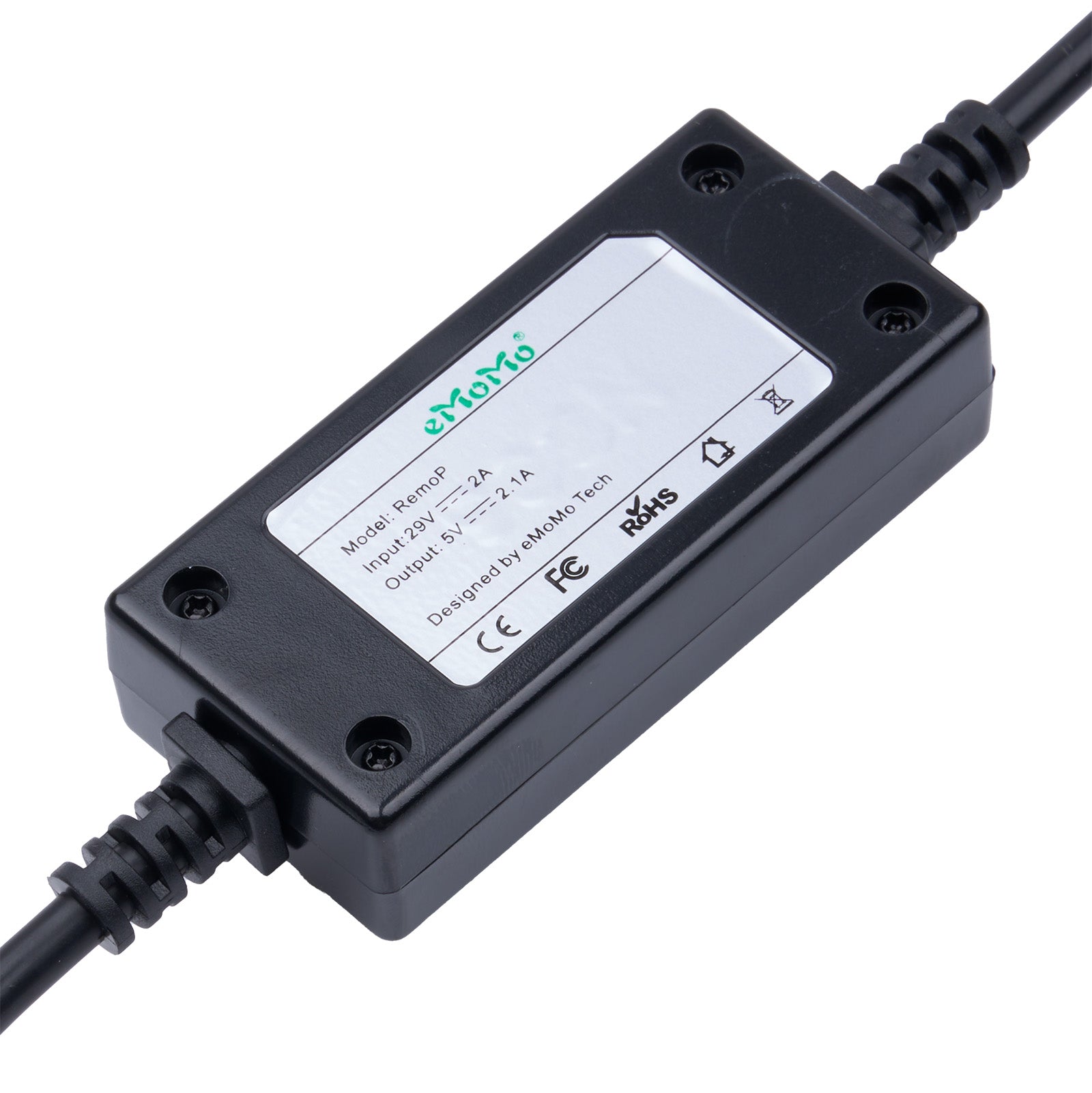

• Rated Input: 29V 2A
• USB Output: 5V 2.1A
• Face Size: 68mm / 2.67 inches
• Cable Length: 2000mm / 6.6 feet

Package Includes:

• 1 x Switch
• [List any additional items or accessories here, if applicable]
