eMoMo HX90EU 4 Button Switch with USB Port and Dual 5-Pin Plugs for Recliner Lift Chair

This is the genuine eMoMo HX90EU switch, featuring 4 buttons, 1 USB charging port, and 2 round 5-pin male plugs. It is designed for dual-motor power recliners, lift chairs, and home theater chairs to control the chair's recline and return functions.

Compatibility

• This switch is not cross-compatible with other eMoMo HX90 models.

• Although the main label on the back may simply read "Model: HX90", the HX90 family includes many sub-models that are generally not interchangeable—even if they look exactly identical. Please verify your existing switch before placing your order.

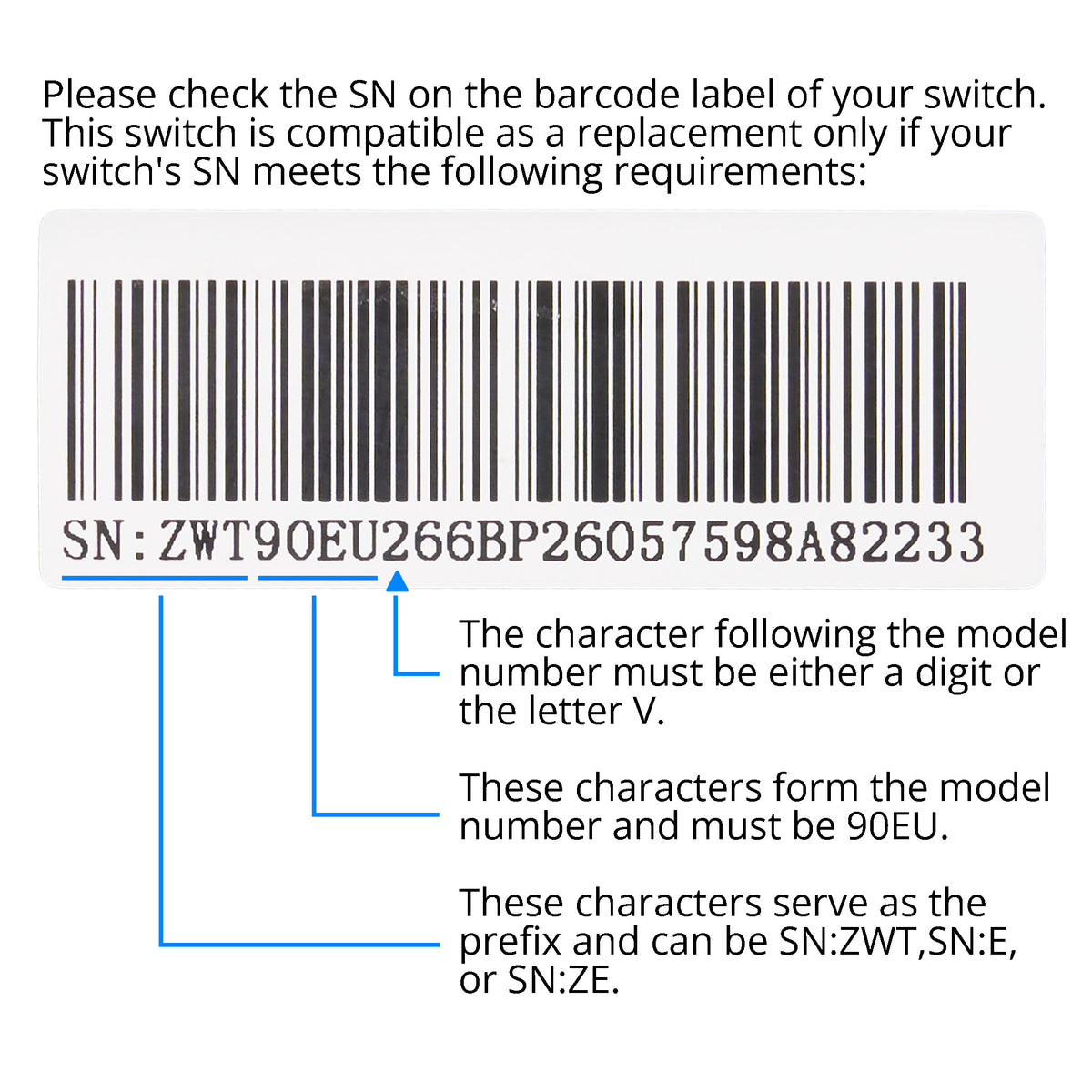

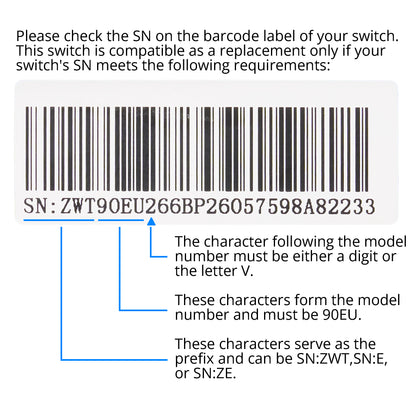

• To confirm this switch is a suitable replacement, you must check the Serial Number (SN) on the barcode label of your current switch. This switch will only replace yours if the SN meets ALL of the following requirements:

  • The Prefix: The serial number usually starts with SN:E, SN:ZWT, or SN:ZE.

  • The Sub-Model: The characters immediately following the prefix must be exactly 90EU.

  • The Suffix: The character immediately following the model number must be a digit (0-9) or the letter V.

• If your serial number doesn't match the requirements above, please send a photo of the barcode sticker to our customer support through email or the form below. We will help you verify it and find the correct replacement model.


Key Features

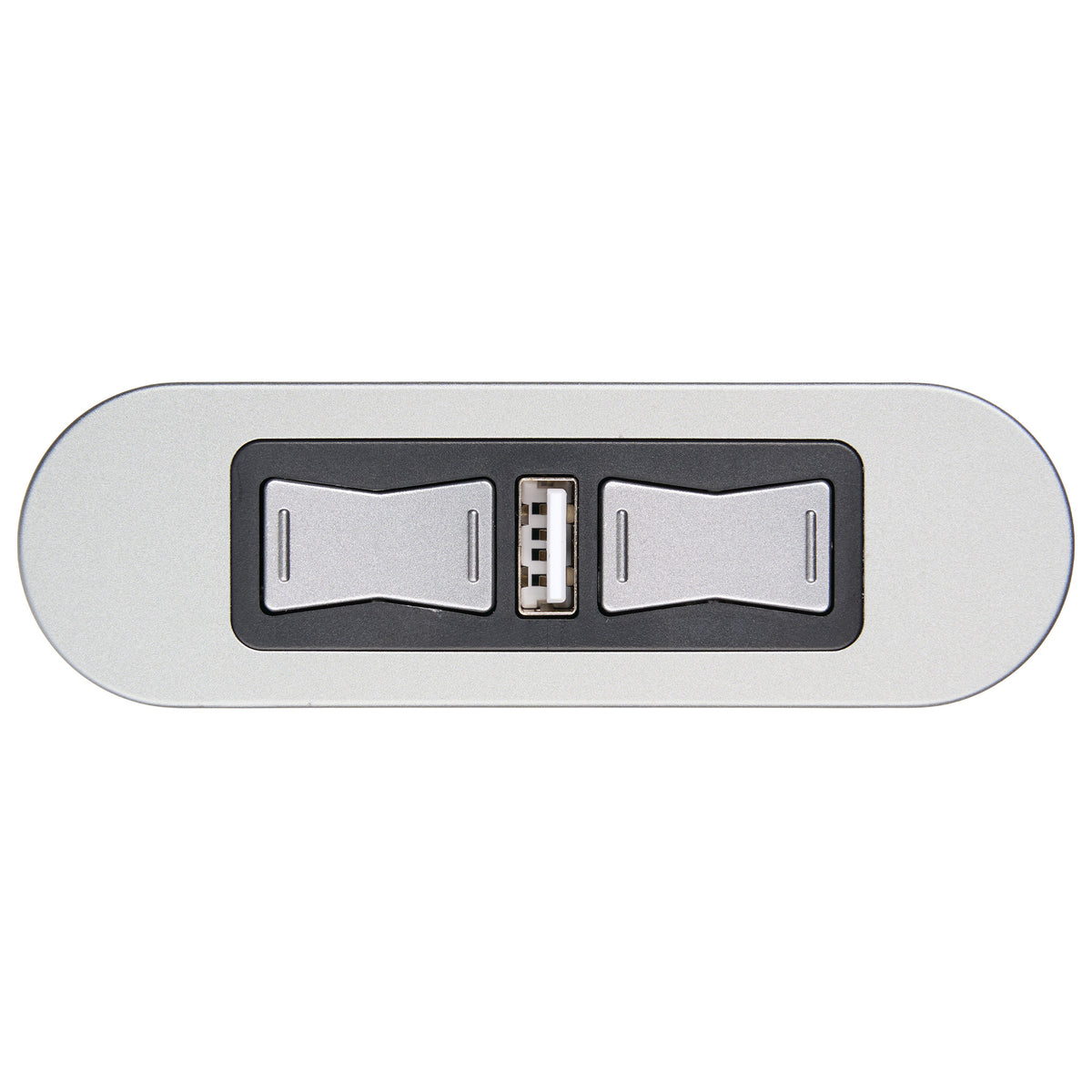

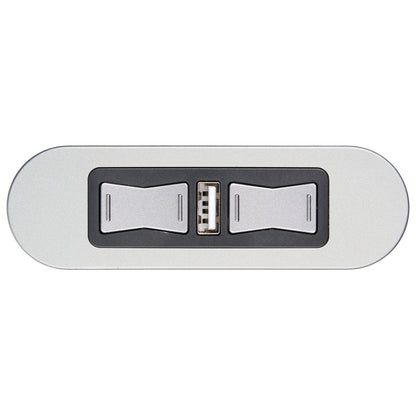

• 4-Button Control: Easily operate the chair's up and down functions.

• USB Charging Port: Built-in USB port (5V, 2.1A output) for charging mobile devices.

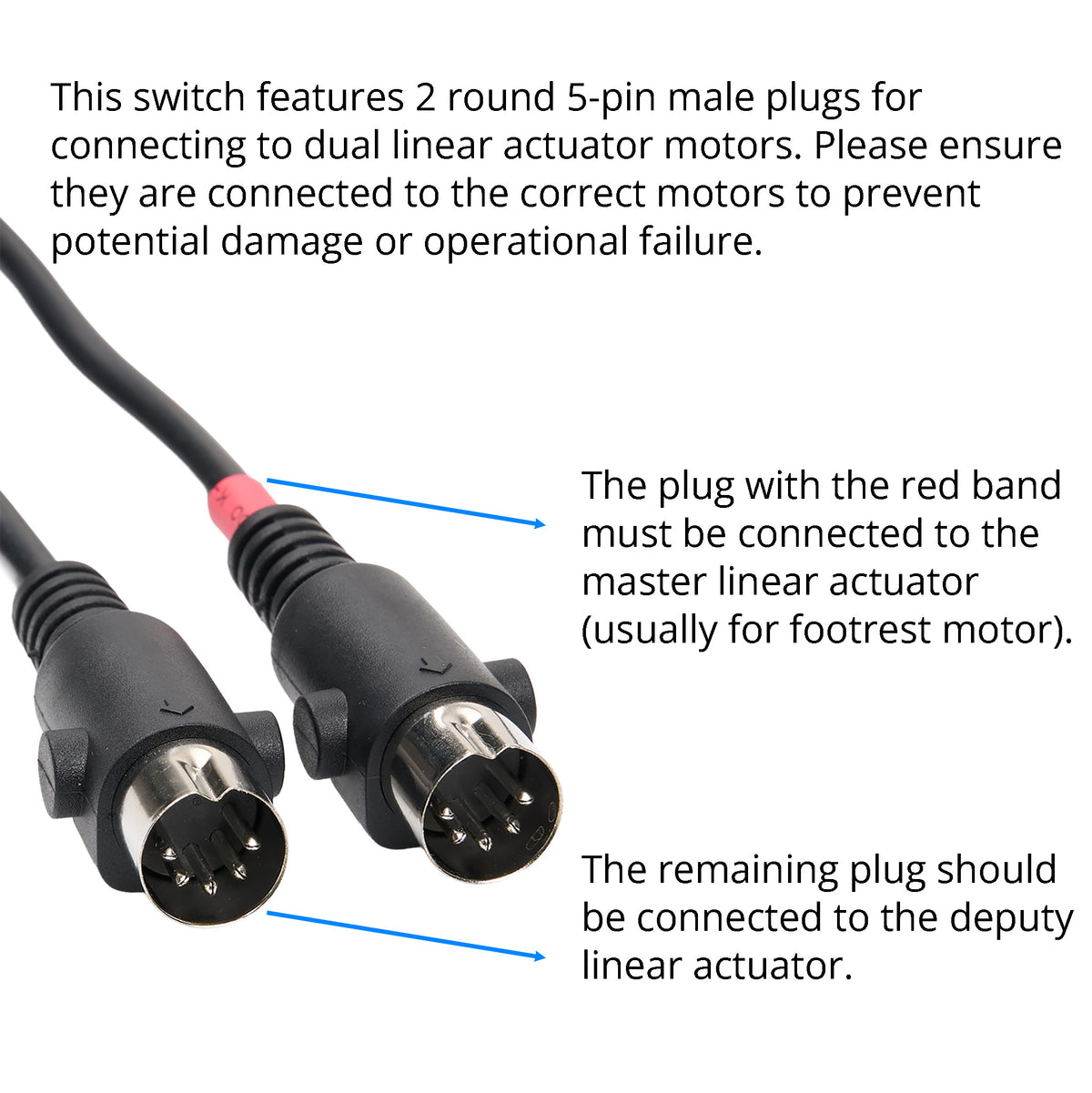

• Direct Connection: Features dual 5-pin male plugs to connect to the wire harness.

• Cable Length: 1.5m (4.9ft) main cable with two 1m (3.3ft) motor cables for flexible installation.


Specification

• Model: HX90EU

• Button Count: 4

• Plug Count & Configuration: 2 × 5-pin male plugs

• USB Port Count: 1 (USB-A, 5V 2.1A output)

• Cable Length: 1.5m (4.9ft) main cable + 2 × 1m (3.3ft) motor cables

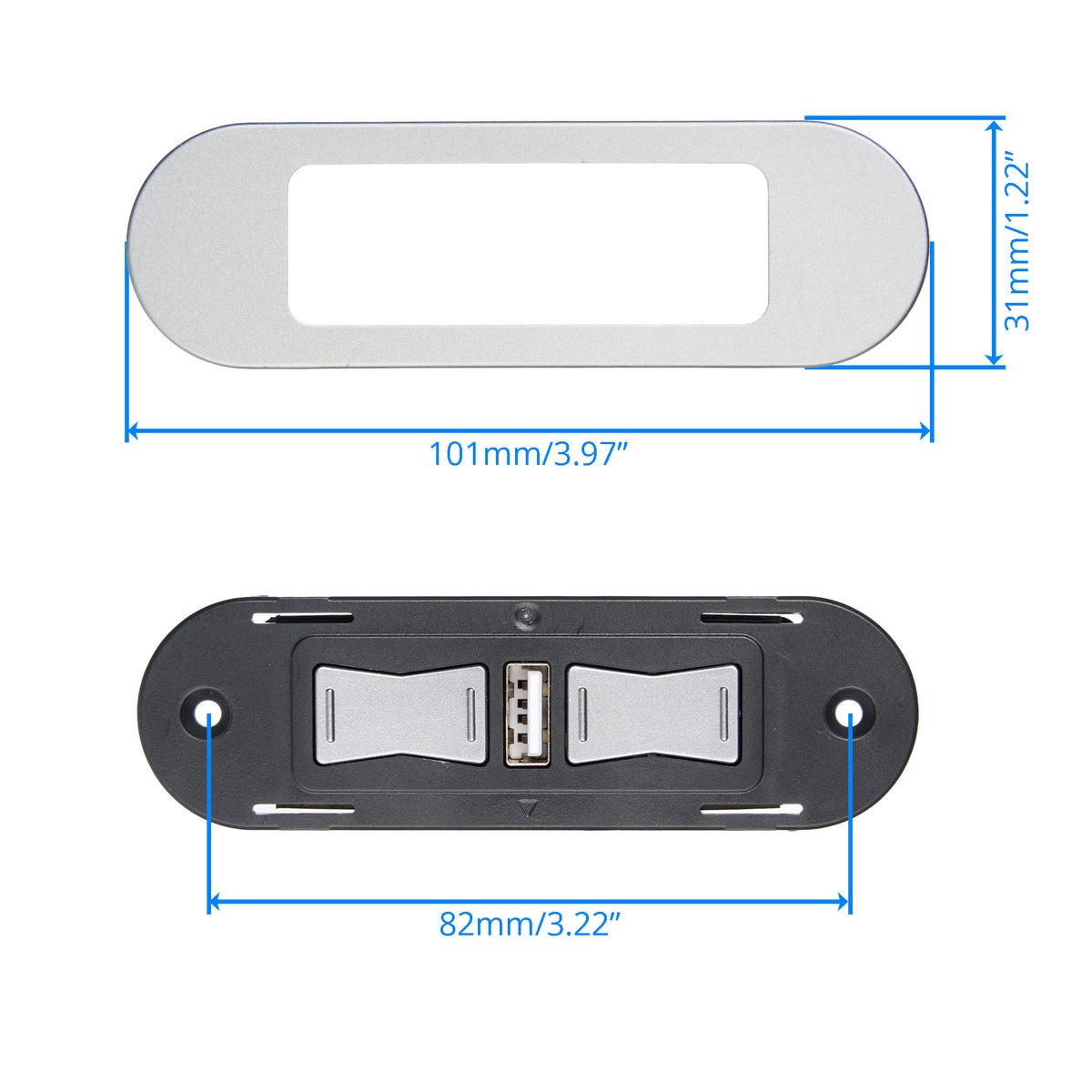

• Face Plate Size: 101mm × 31mm (3.97" × 1.22")

• Mounting Hole Distance: 82mm (3.22")

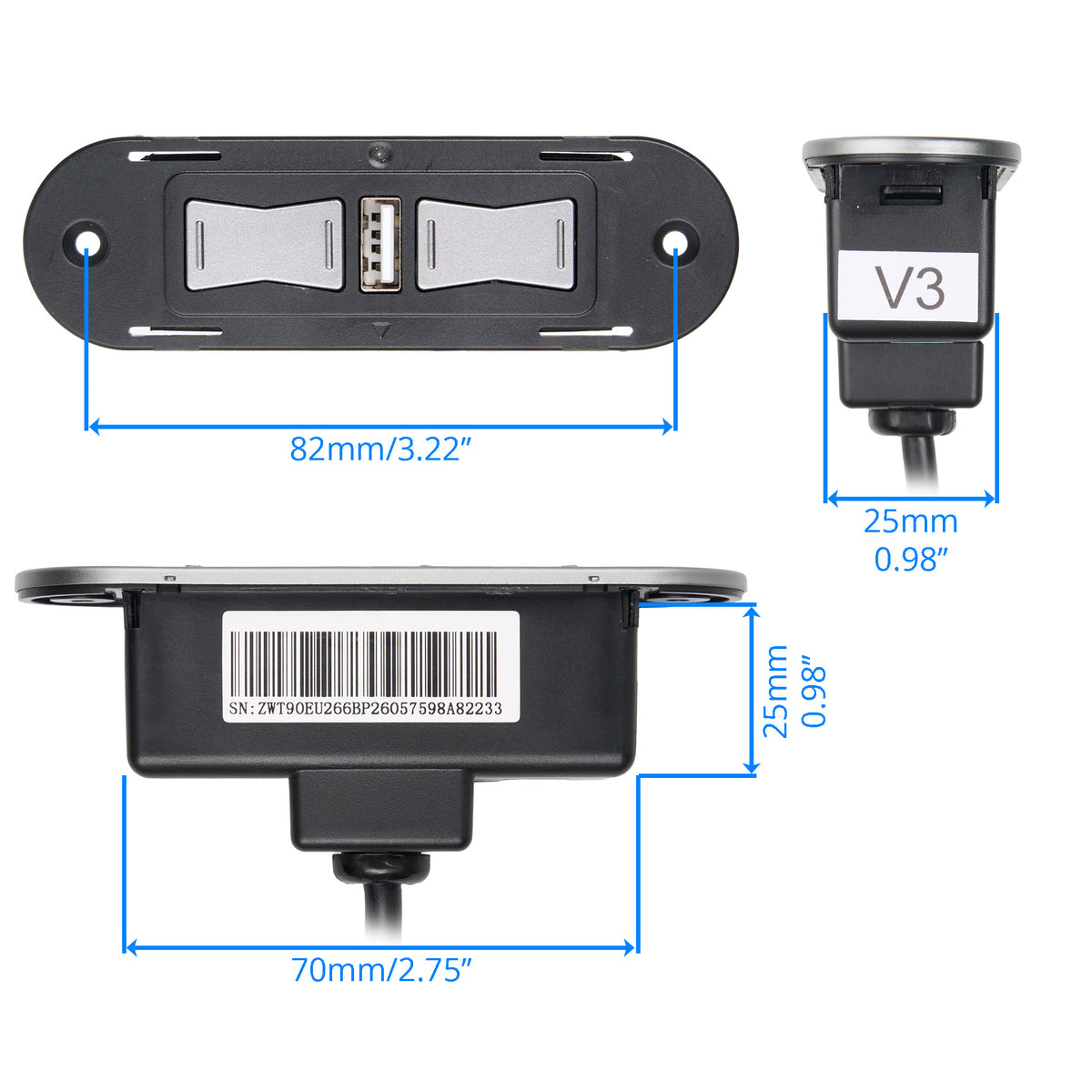

• Install Block Dimension: 70mm × 25mm × 25mm (L × W × H) / 2.75" × 0.98" × 0.98"


Package Includes

• 1 x HX90EU Switch

• 1 x Aluminum Switch Face Plate

• 2 x Mounting Screws
