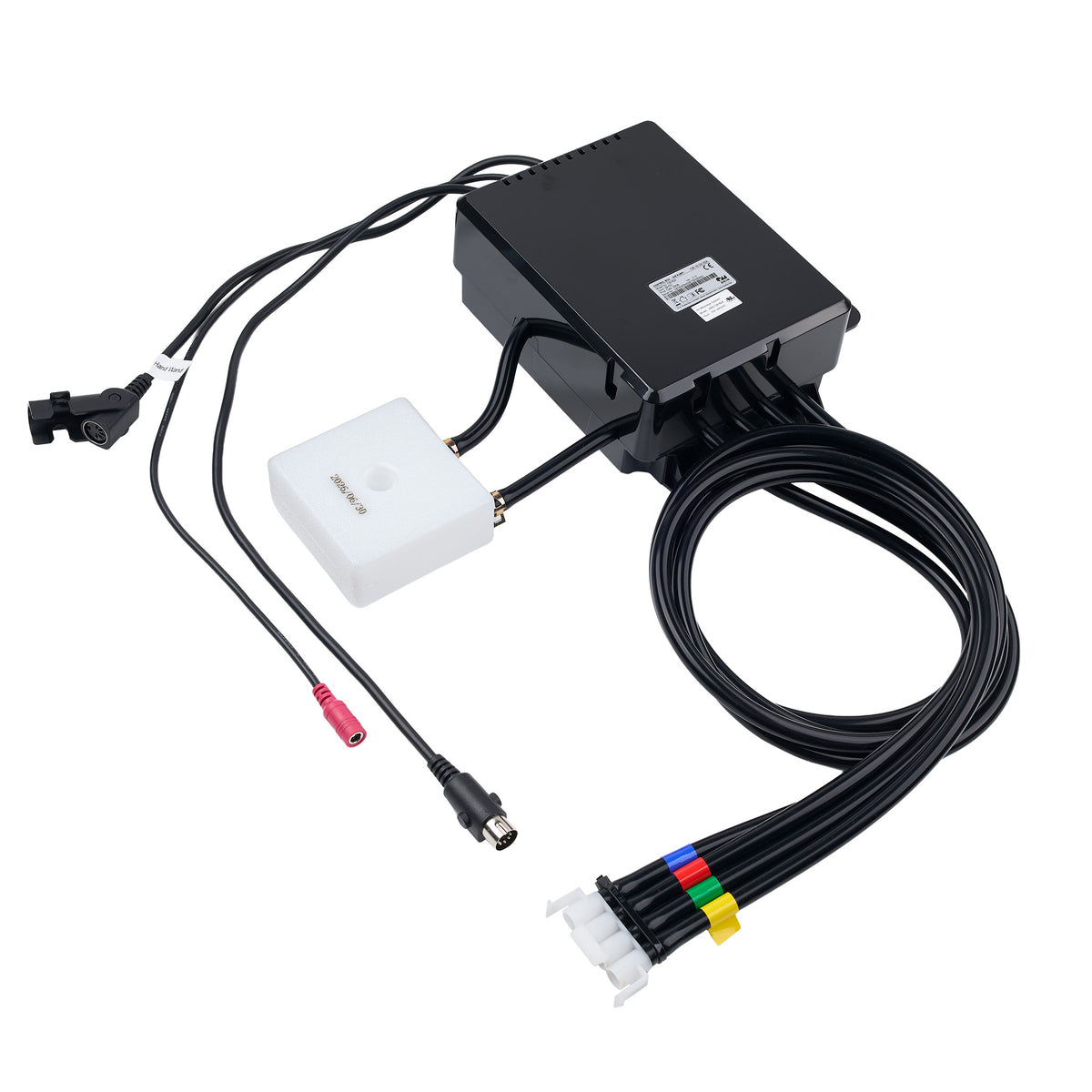

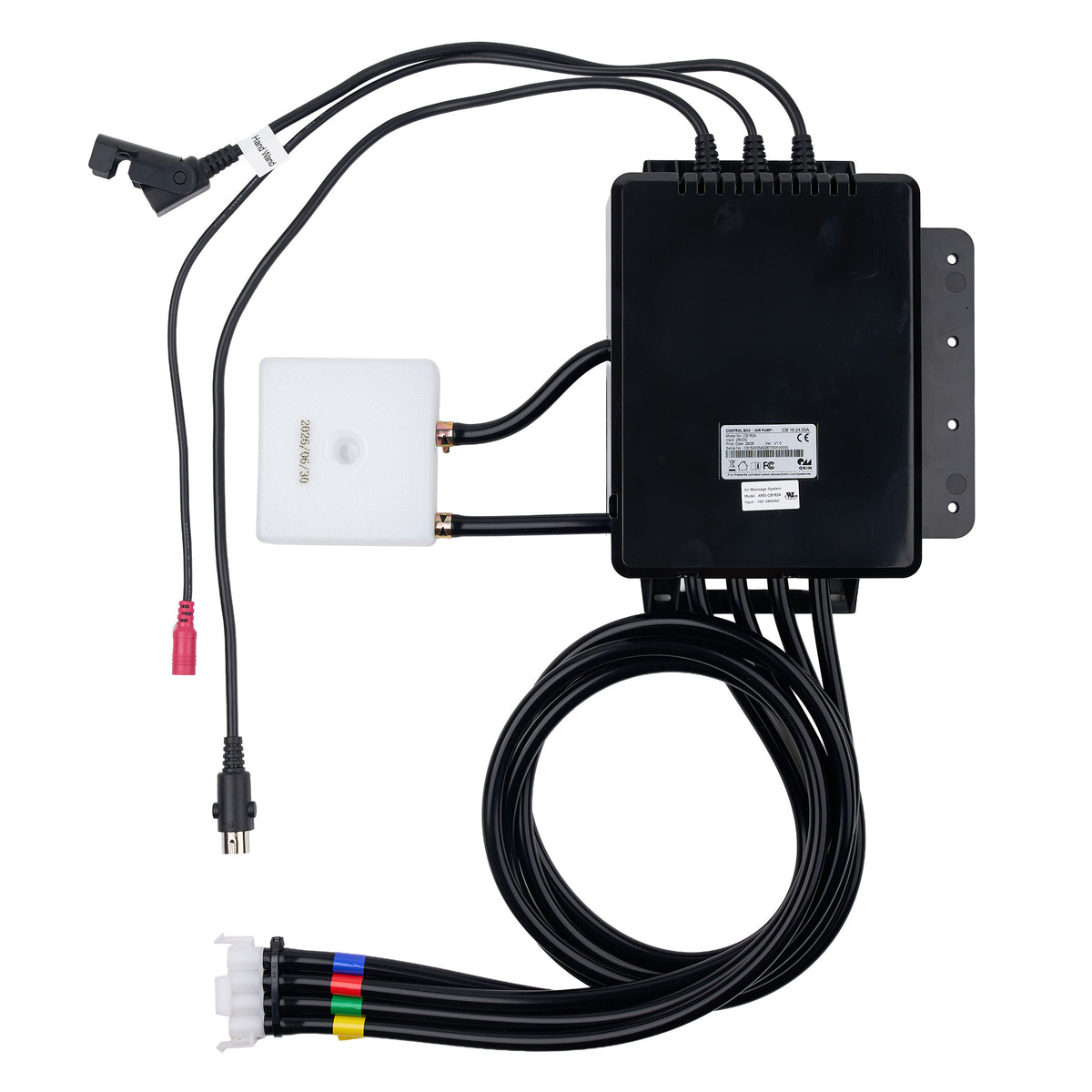

OKIN CB.16.24.05A Control Box with Air Pump for AMS-CB1624 air massage system

• This is a genuine OKIN CB.16.24.05A control box, also widely known as a junction box. It is the core part of the AMS-CB1624 air massage system.

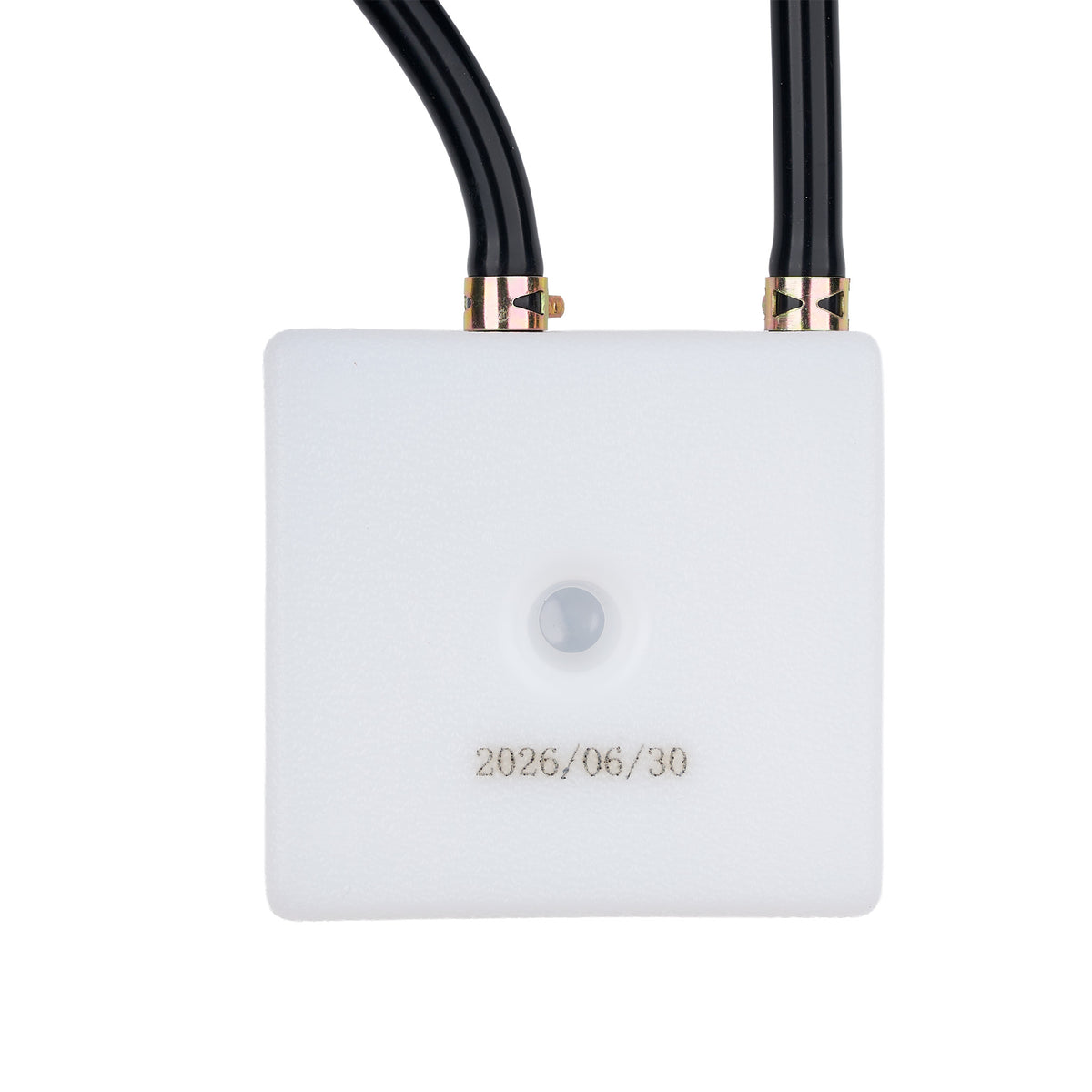

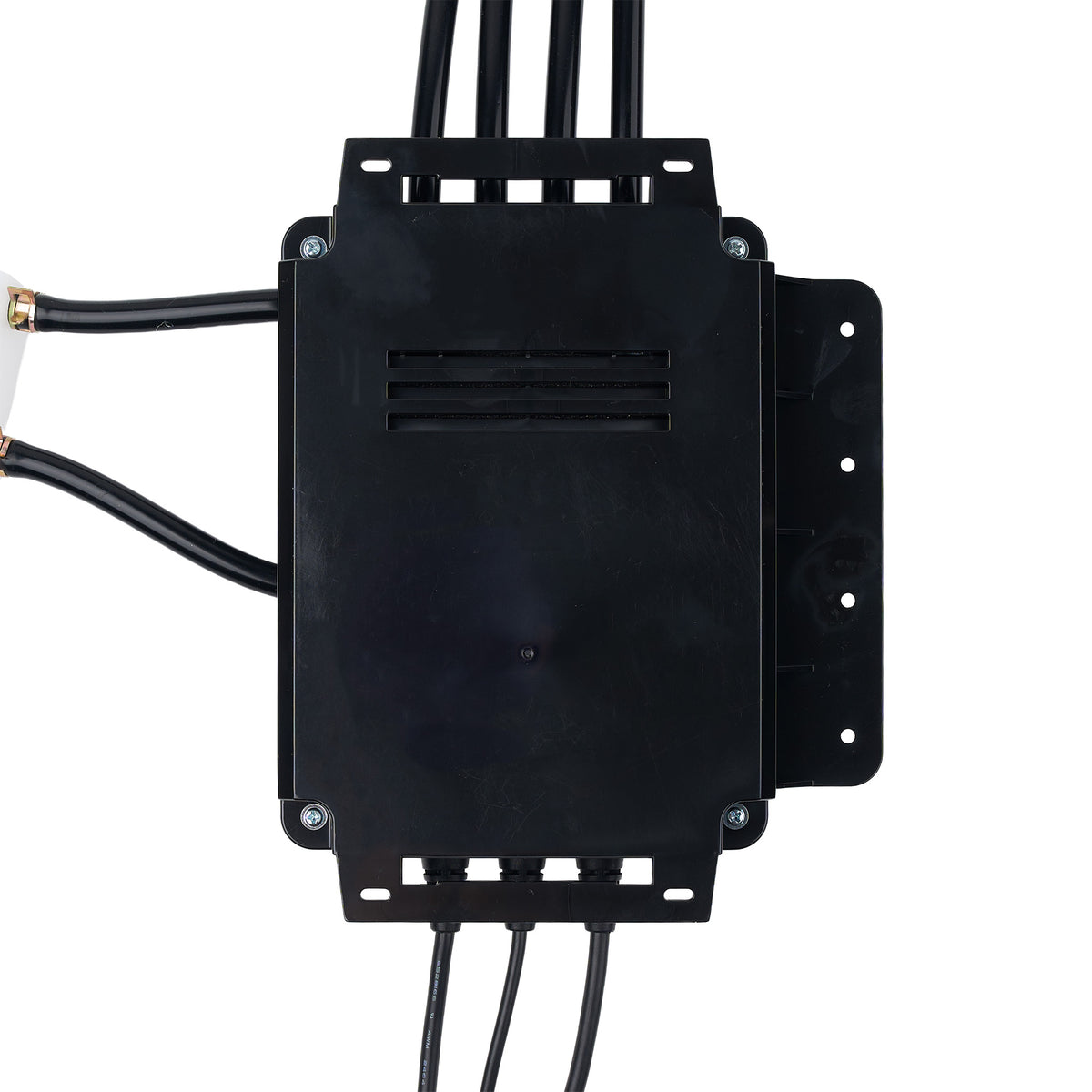

• This unit contains an integrated air pump, a plastic airflow buffer box, and the central control system. Suitable for power recliners or lift chairs.

Compatibility:

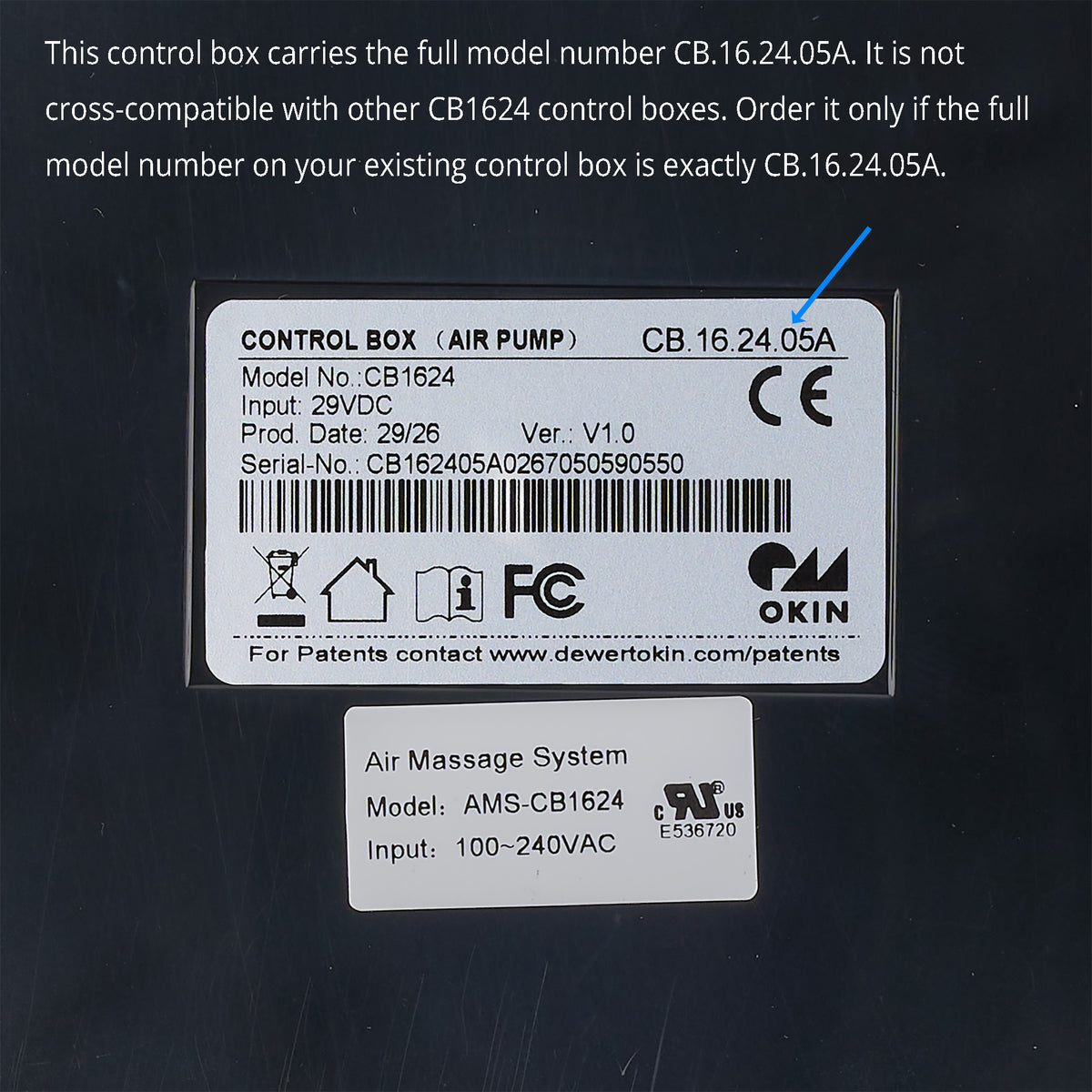

The full model number of this control box is CB.16.24.05A. It is not cross-compatible with other CB1624 control boxes. Check the full model number printed on the top right of the label on your existing control box, and order this control box only if it shows exactly CB.16.24.05A.

Features:

• The control box provides three plug connections and four air outputs:

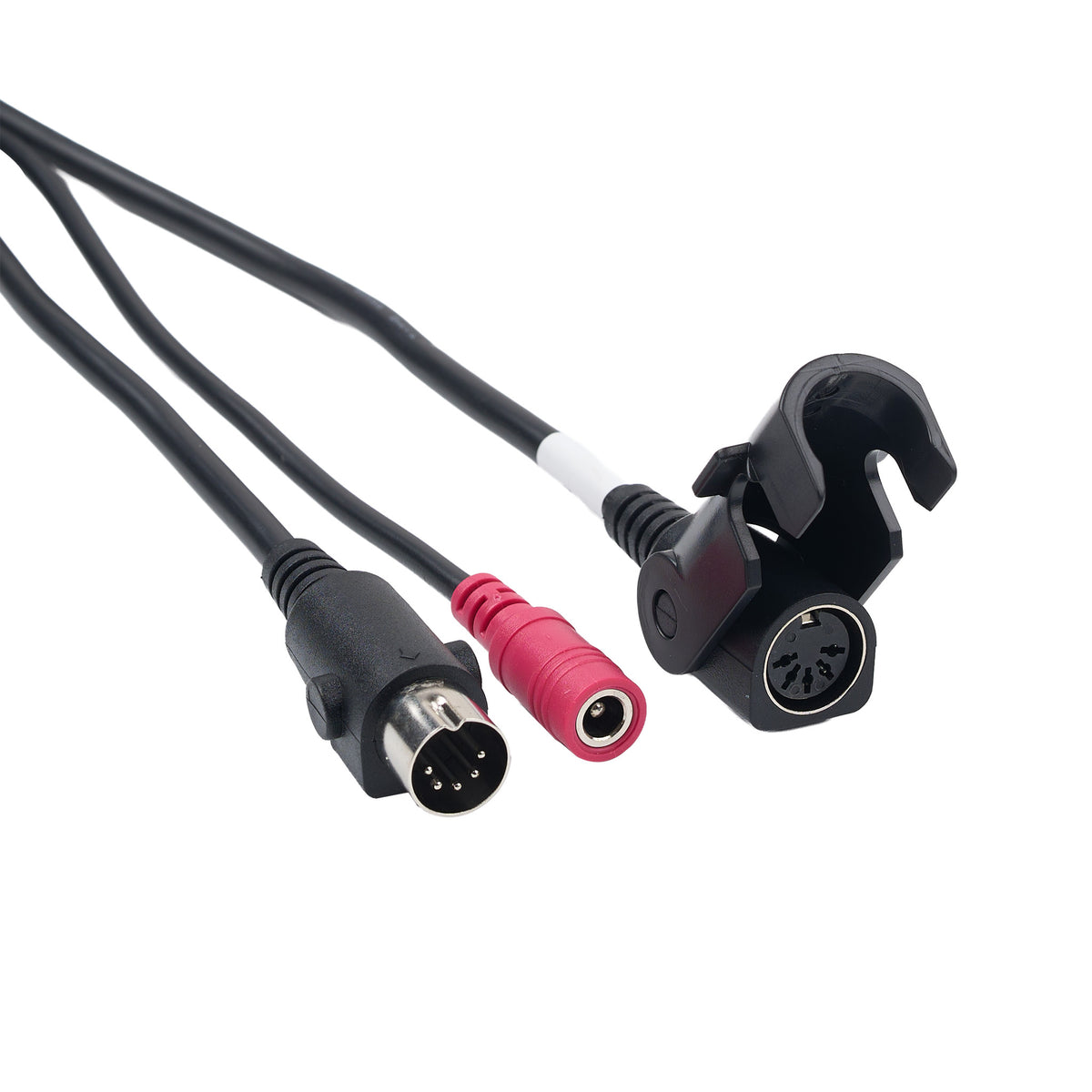

• Master Motor Connection: A male 5-pin plug that connects directly to the master motor of the chair.

• Handset Connection: A female 5-pin plug that connects with the handset or remote controller.

• Heating Pad Connection: A female barrel plug that connects with the heating pad.

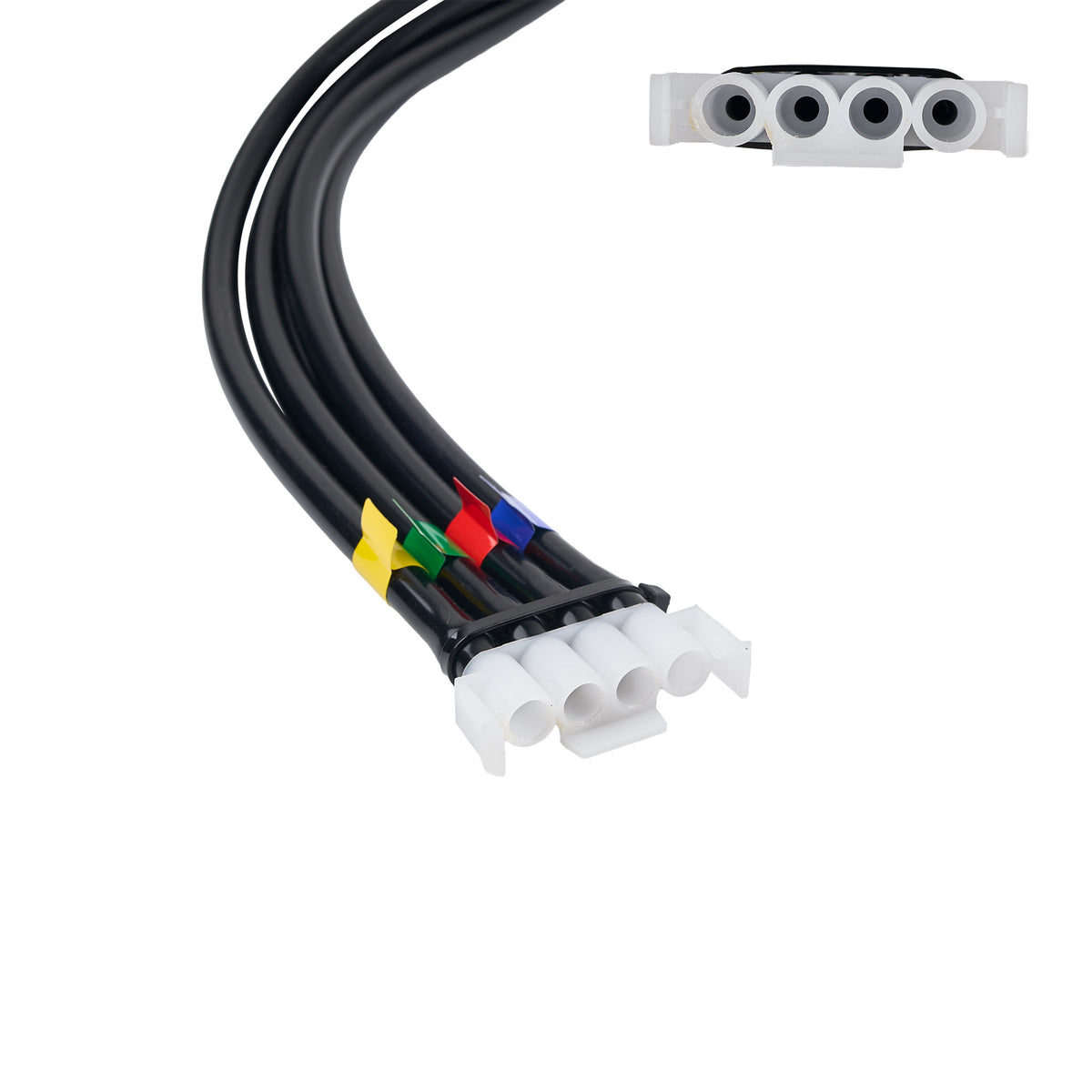

• Air Bag Connections: Four individual air hoses that connect with the chair's air bags.
