Mulin AC108-2MA-1U01 5-Button Switch for Power Recliner with USB, 6-Pin, MOT-TS-63

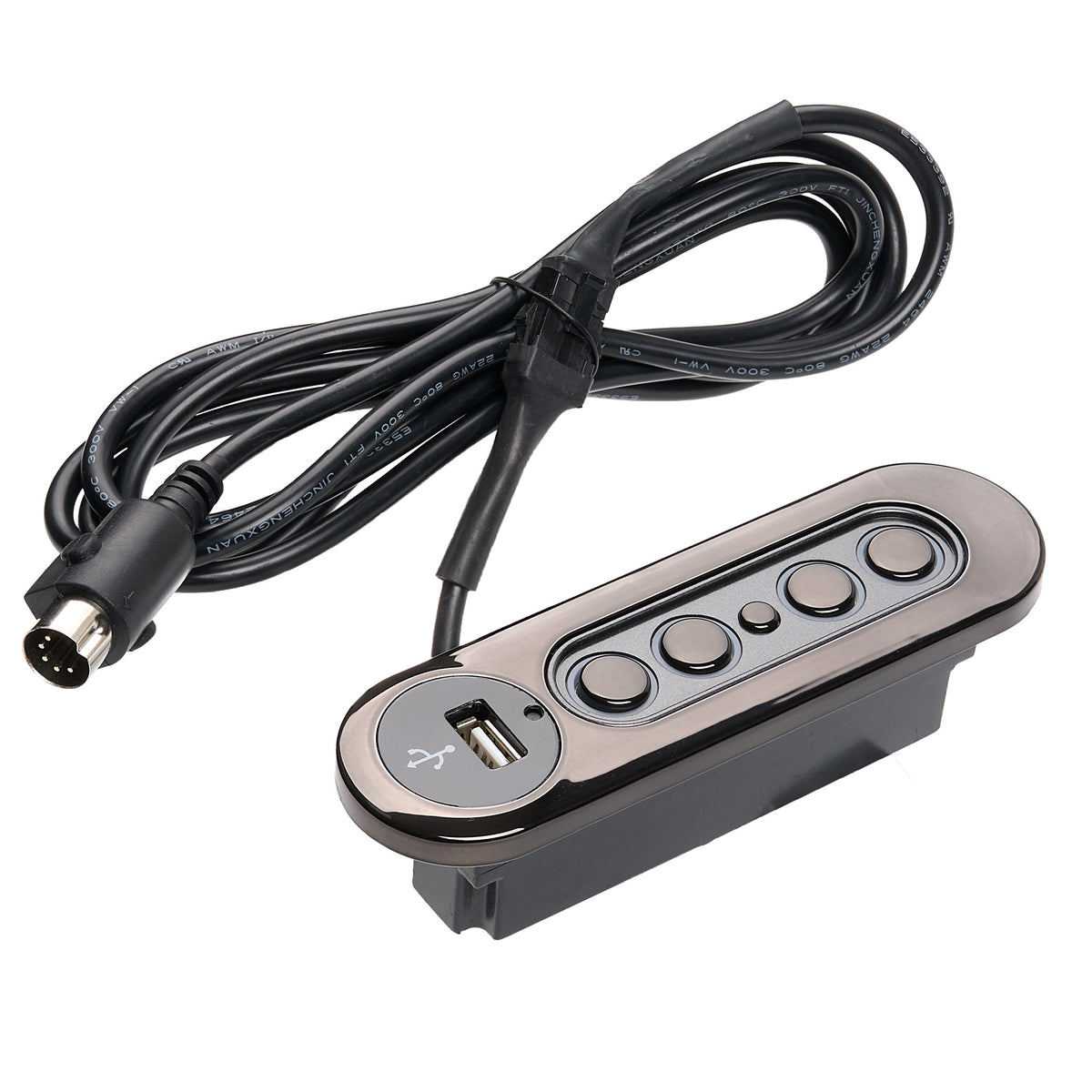

• The genuine AC108-2MA-1U01 switch kit from Mulin, manufacturer part number MOT-TS-63. The kit includes a switch and a wire harness.

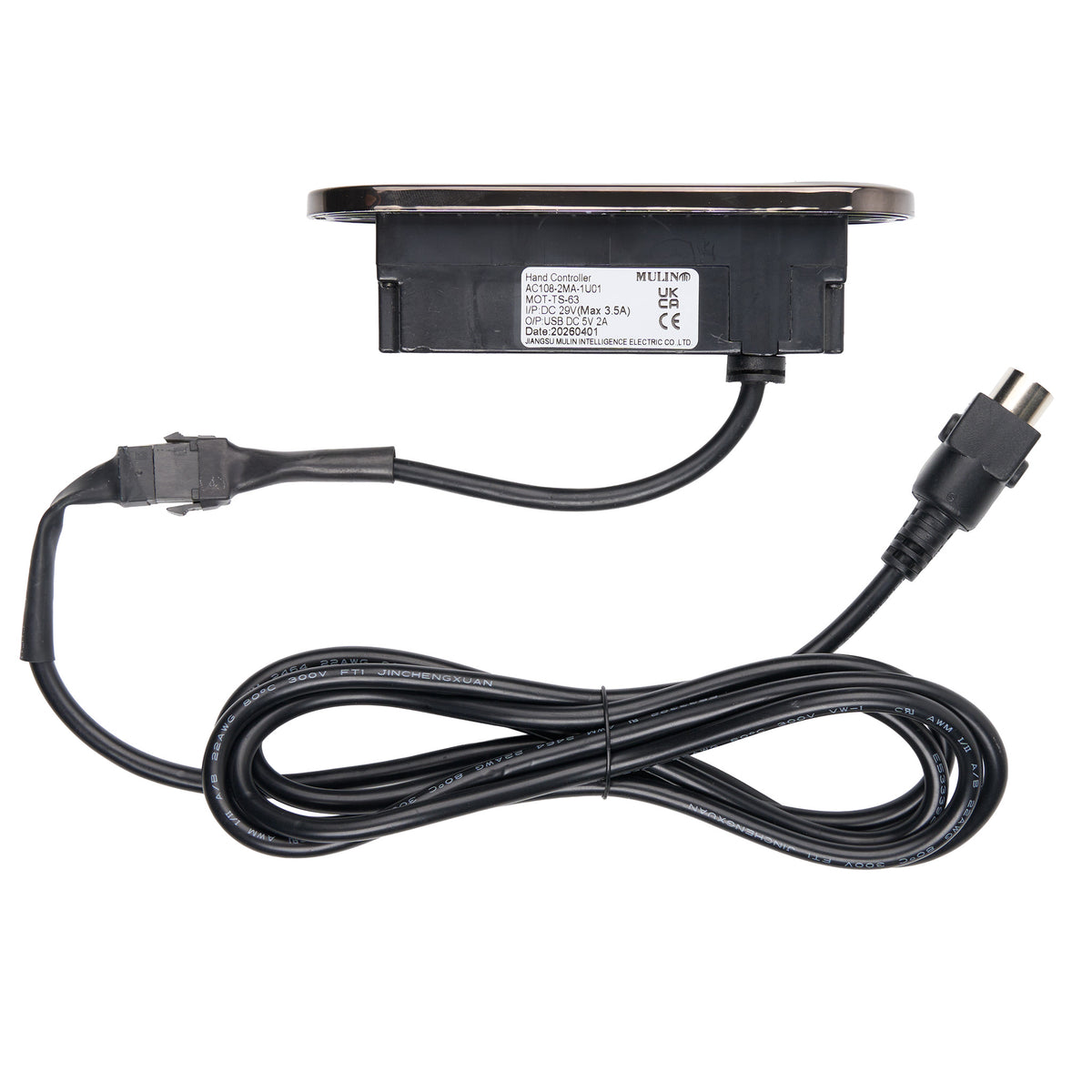

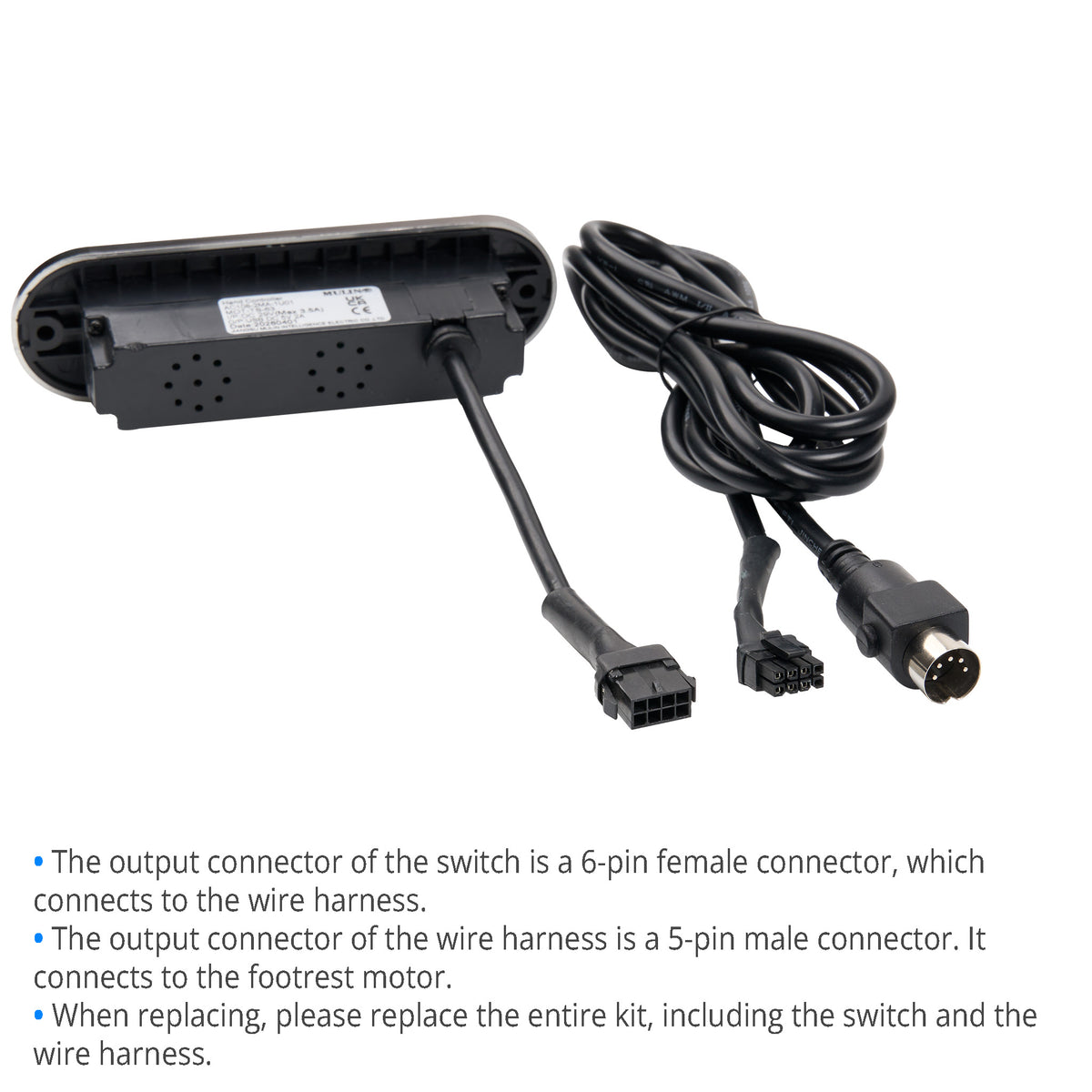

• The switch has 5 buttons and a 6-pin female connector. The wire harness has a 6-pin male connector that connects to the switch, and a 5-pin male connector that connects to the footrest motor.
• This switch is used on a power recliner or lift chair with 2 motors.

Compatibility

• This switch is not cross-compatible with other switches. Please order it only if the switch you are replacing shows the exact same model number: AC108-2MA-1U01.
• The manufacturer part number may differ between production runs. As long as the model number is the same, this does not affect compatibility.

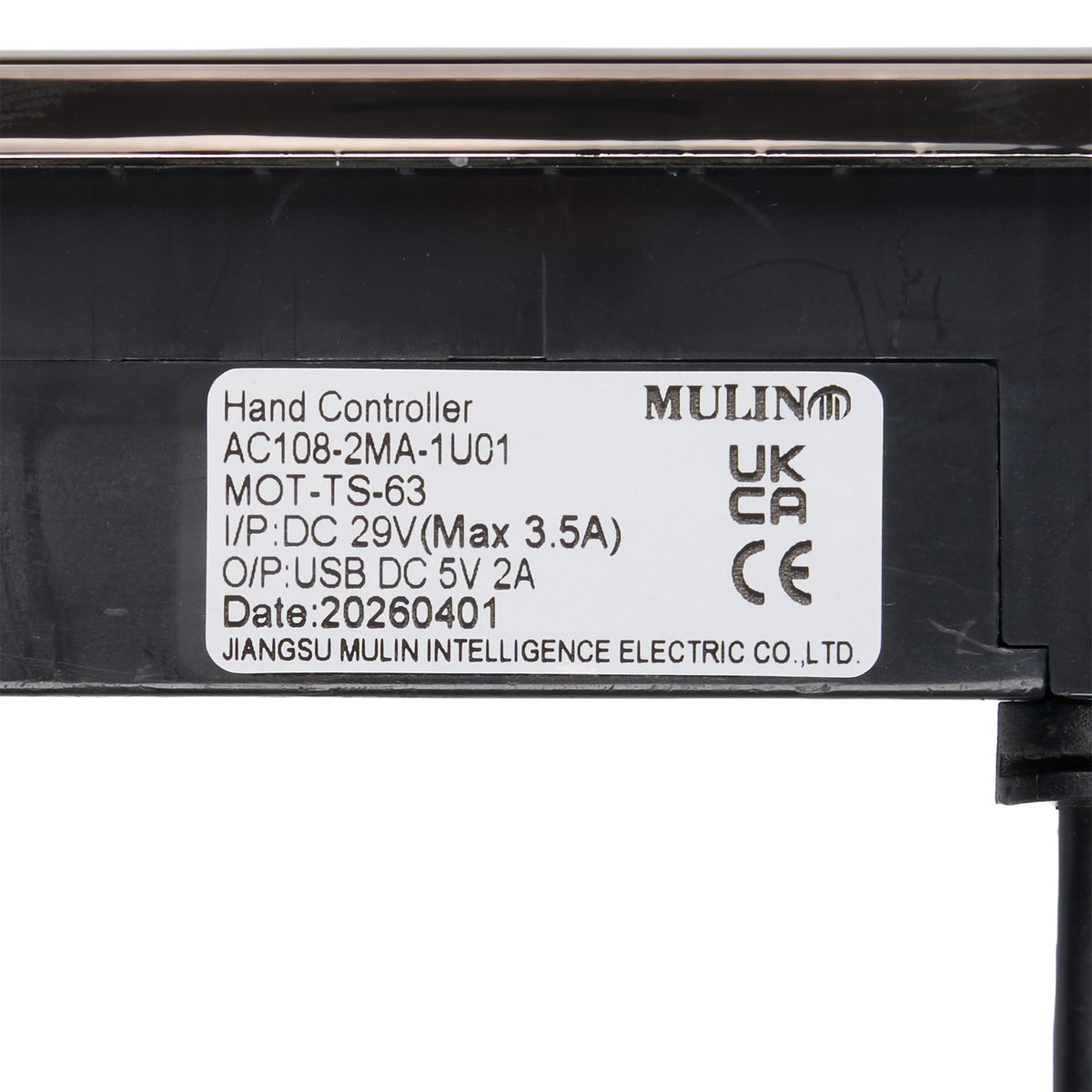

• Do not order based on appearance alone. Remove the original switch from the armrest and check the model number printed on it before ordering.

Features

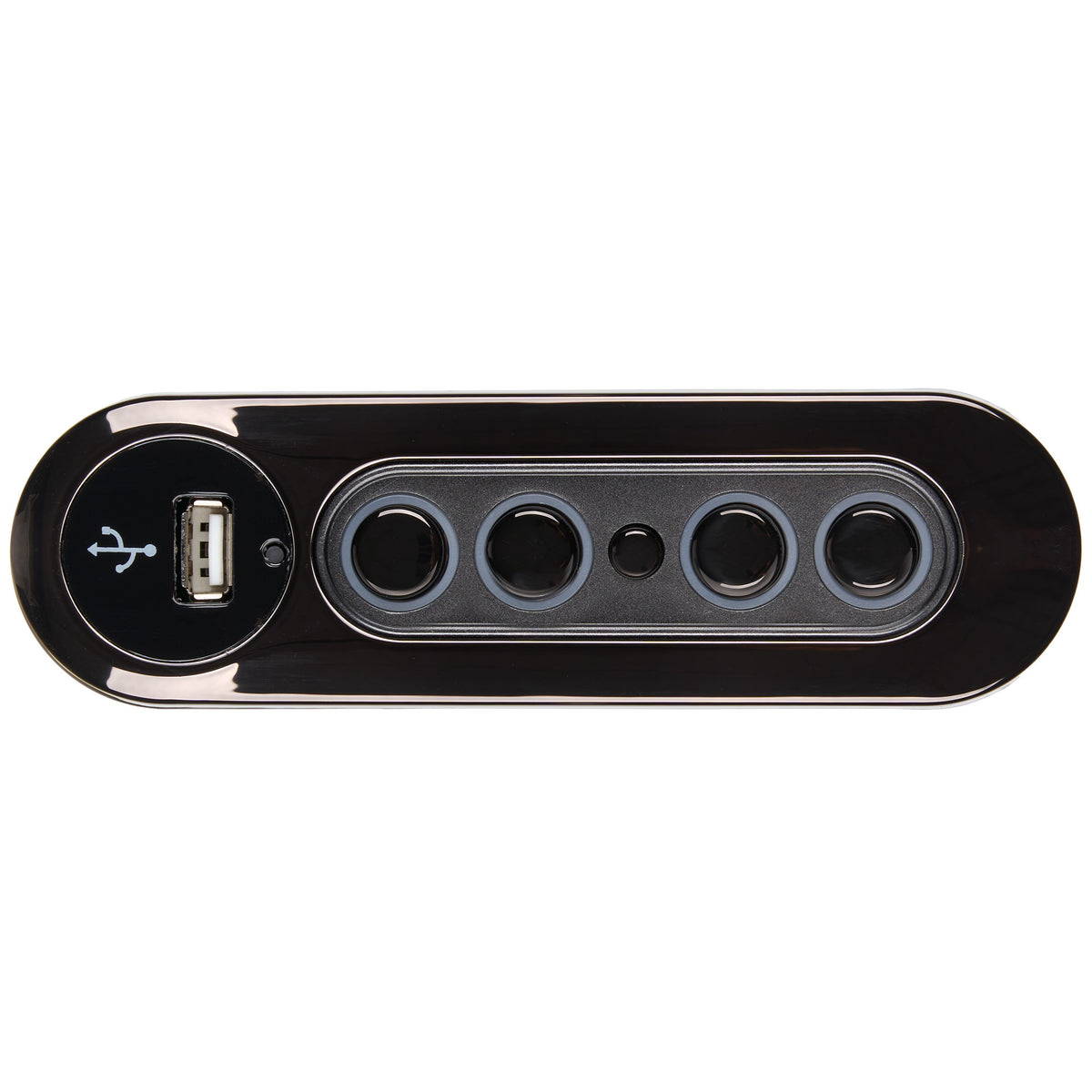

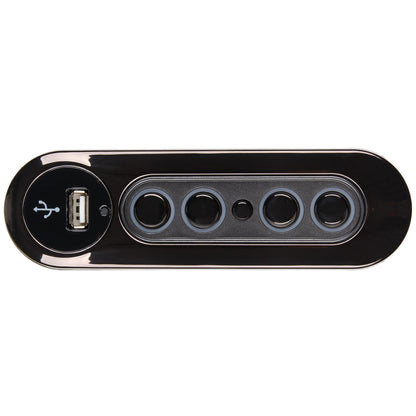

• 5 buttons: four large round buttons operate the open and close of the chair and the tilt of the headrest; a small round button returns the chair to the home position.
• 6-pin female connector: connects to the wire harness.
• USB charging port with an ON/OFF button: 5V 2A output, suitable for charging mobile devices. The tiny ON/OFF switch lets you shut off the USB port to avoid battery drain.

Specifications

• Model: AC108-2MA-1U01
• Manufacturer Part Number: MOT-TS-63
• Button Count: 5
• Connector: 6-pin female
• Input: DC 29V (Max. 3.5A)
• Output: USB DC 5V 2A

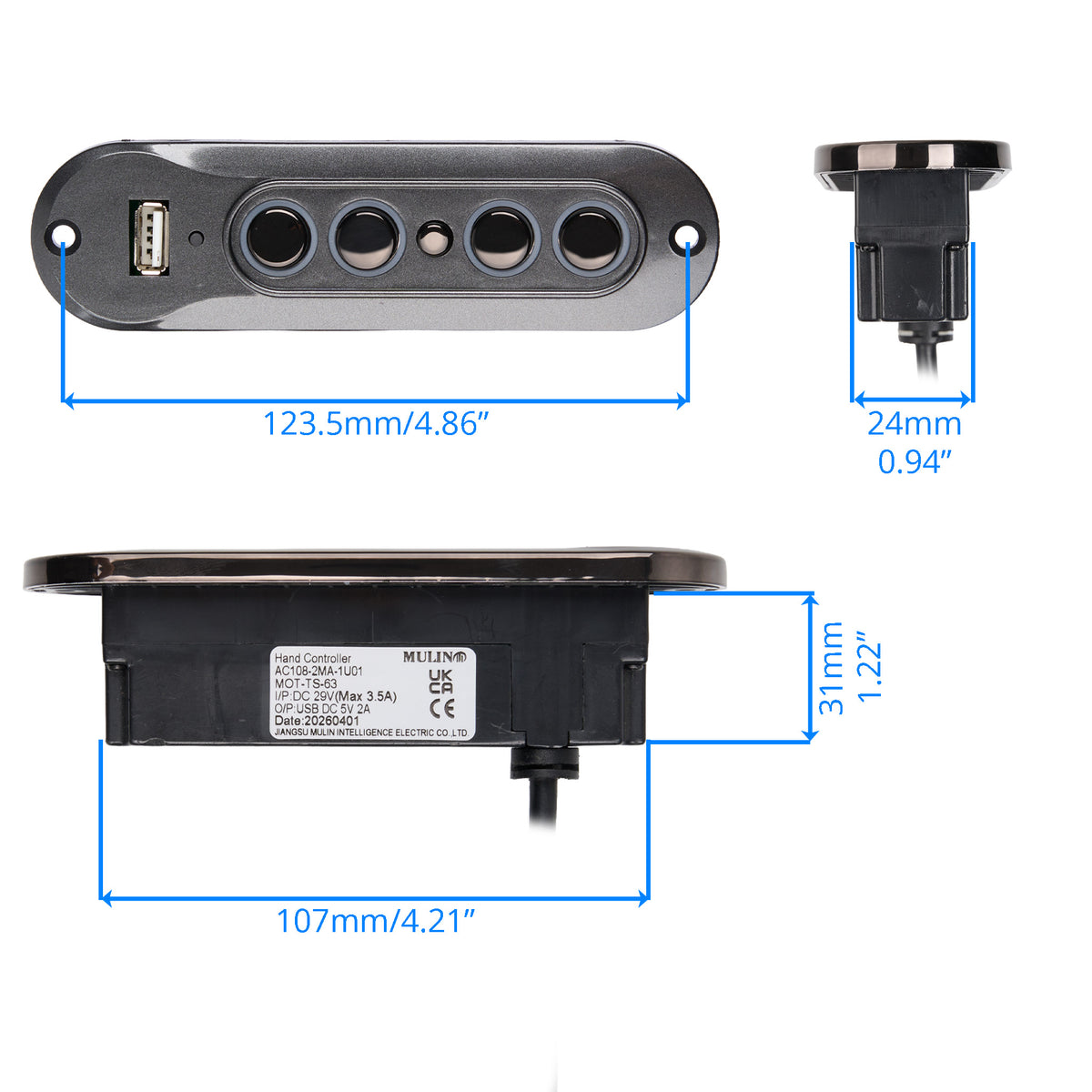

• Mounting Hole Distance: 123.5 mm (4.86 in)
• Installation Block Dimensions: 107 × 31 × 24 mm (4.21 × 1.22 × 0.94 in)

Package Includes

• 1 × AC108-2MA-1U01 switch
• 1 × Wire harness
• 1 × Face plate cover
