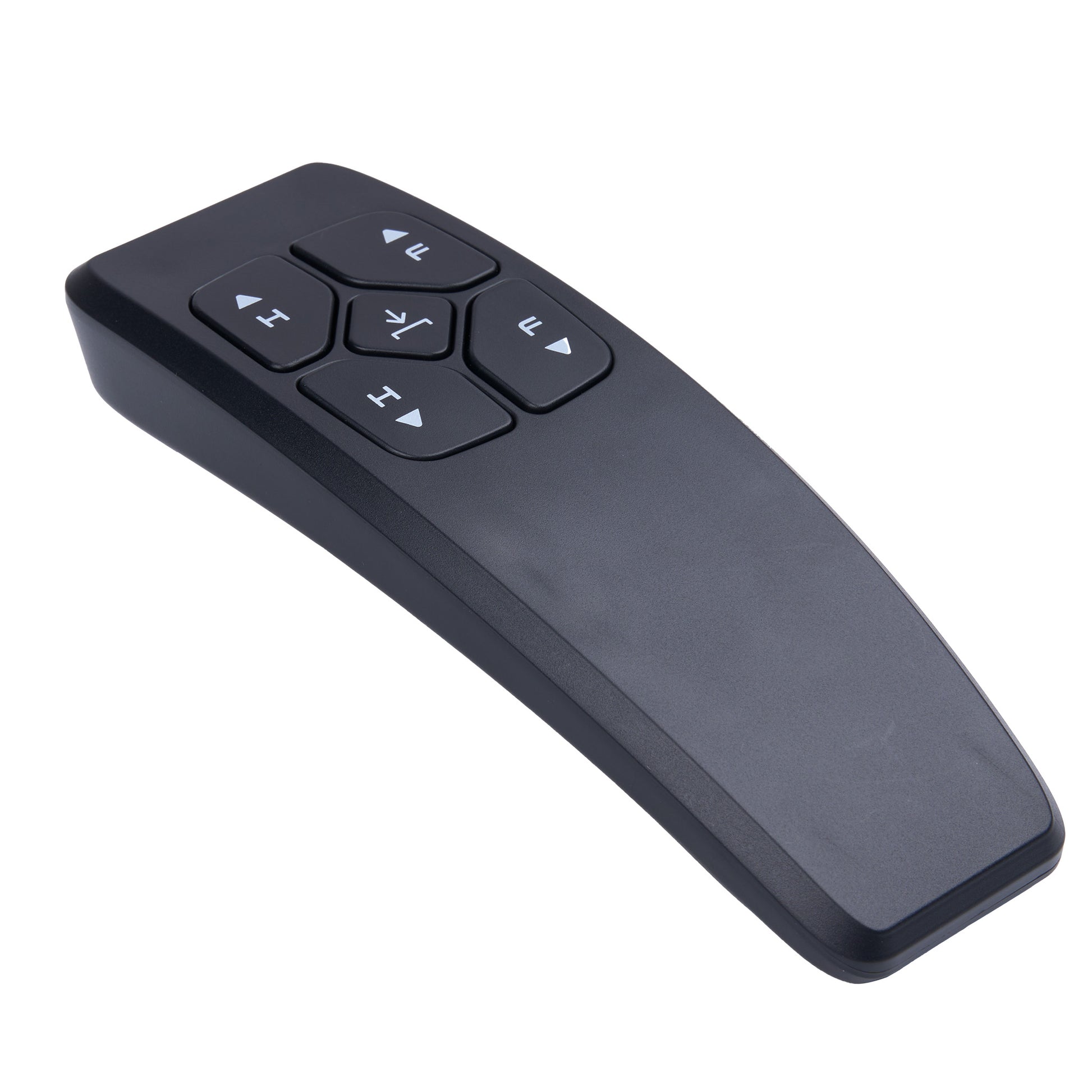

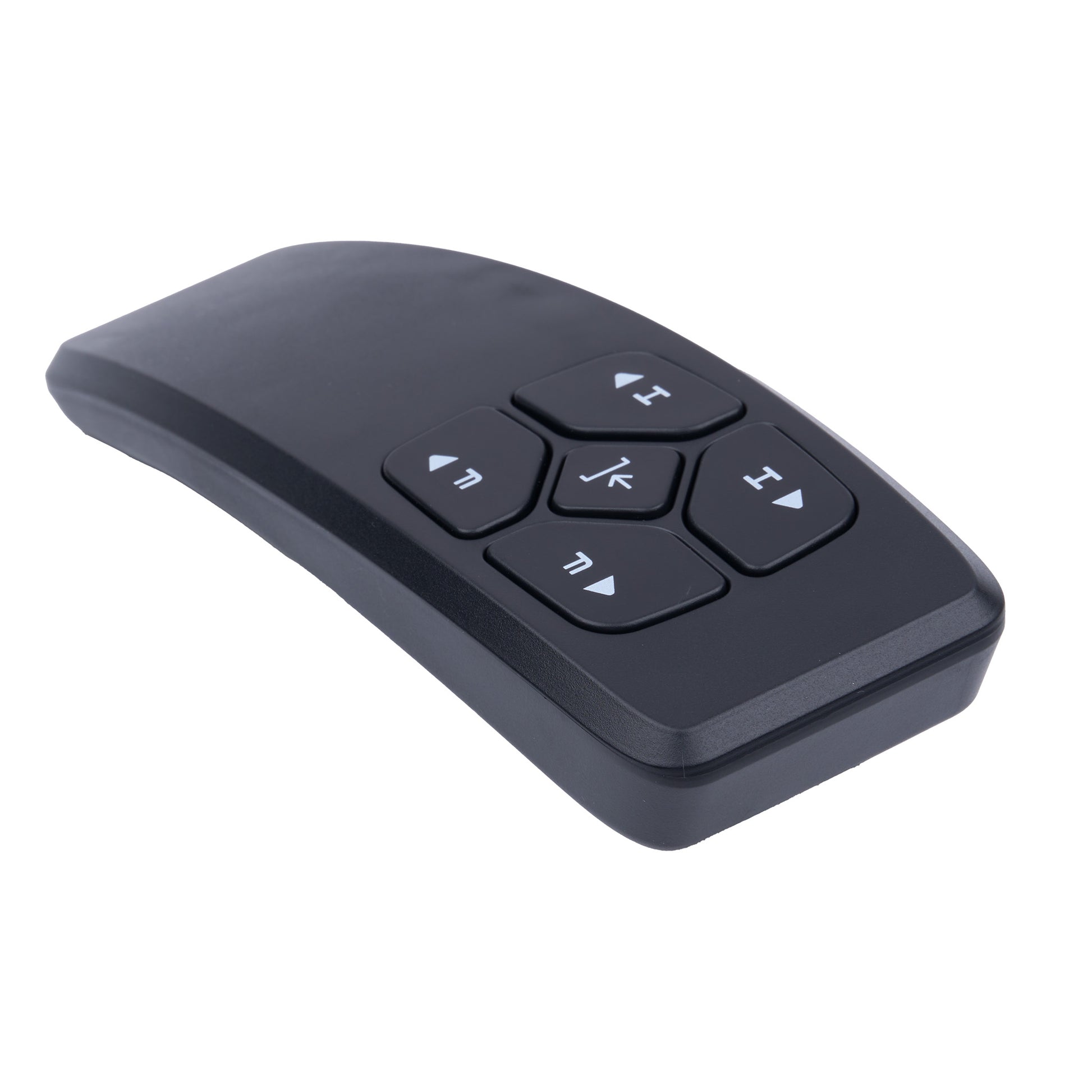

KDH139-Y001 5 Button Wireless Remote Controller for Adjustable Bed Base

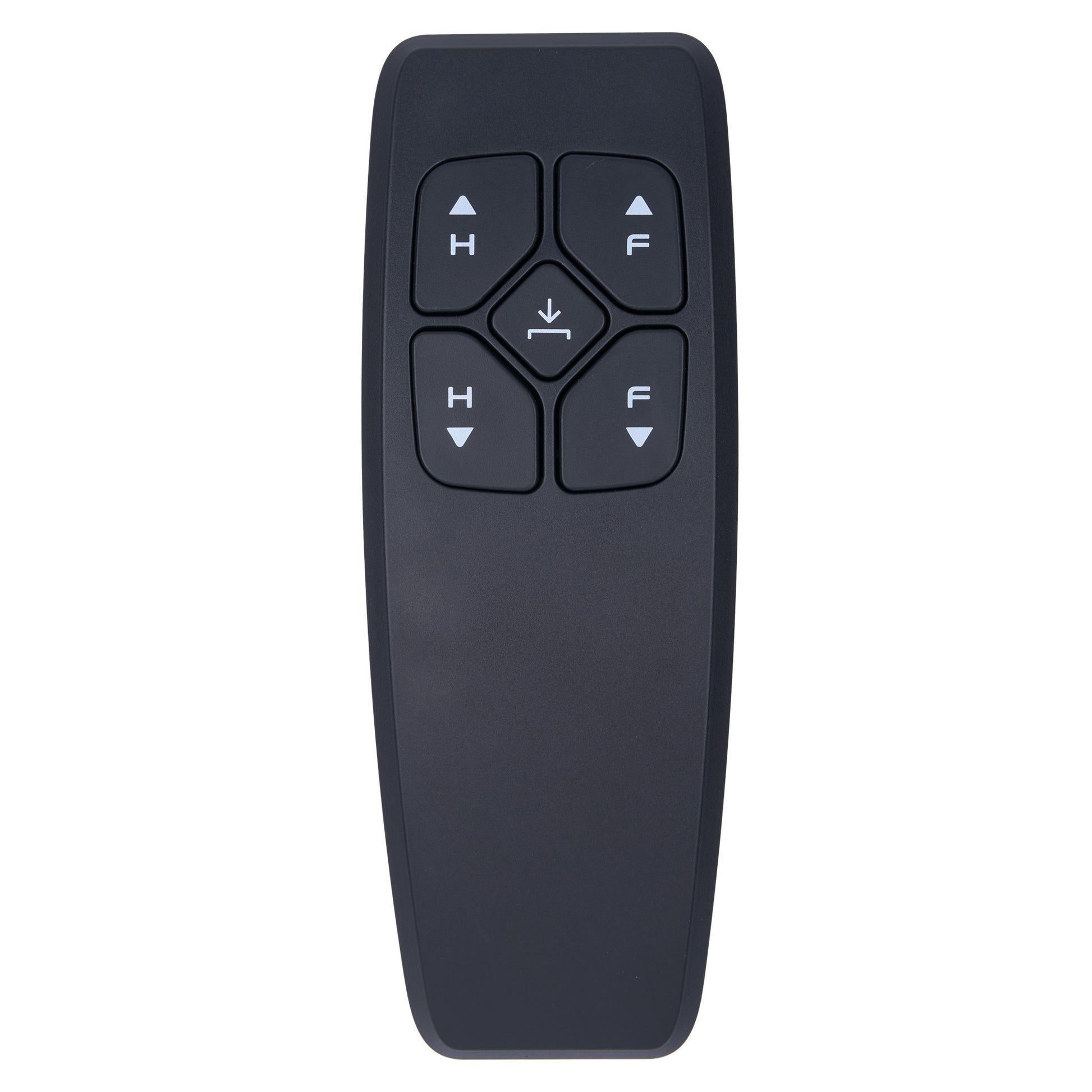

The KDH139‑Y001 is a 5‑button remote controller designed for adjustable bed bases with two motors.

Compatibility

This remote is model‑specific and is not cross‑compatible with other models. It should be ordered only as a replacement for an existing remote that bears the exact model number KDH139‑Y001.

Note:

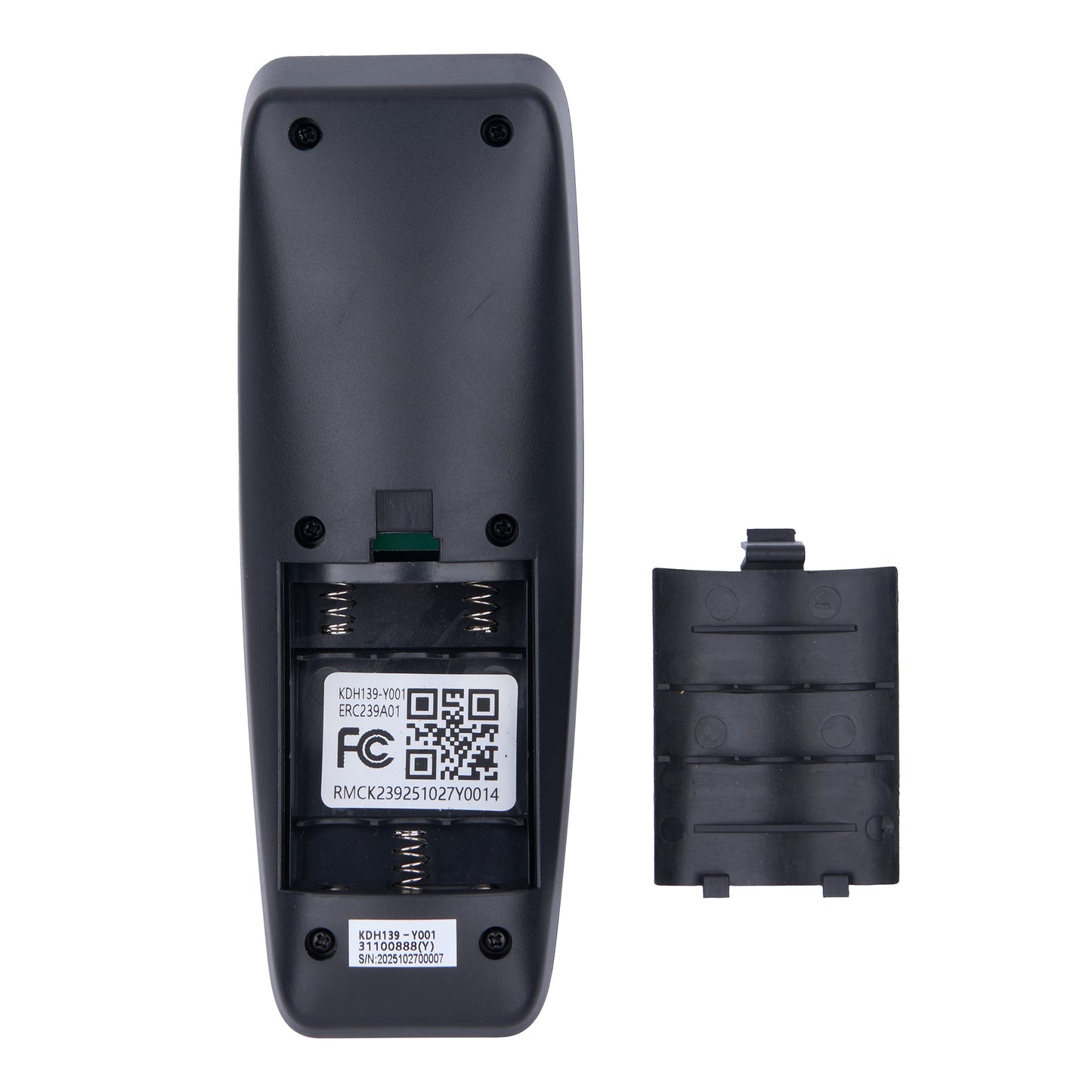

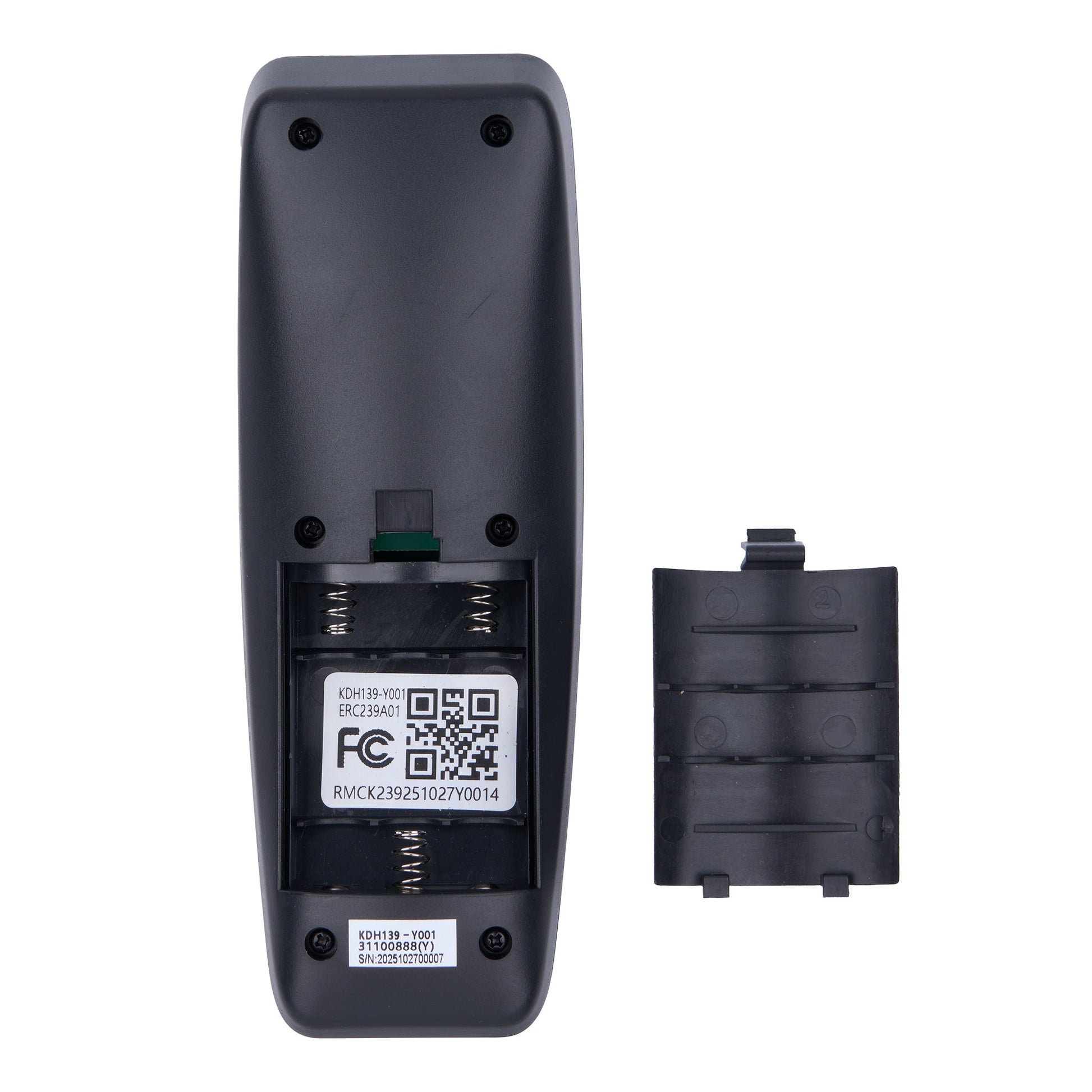

• This remote control requires three AAA batteries (not included).

• Before the first use, you will need to pair the remote with your bed's control box. For details, please refer to the pairing instructions below.

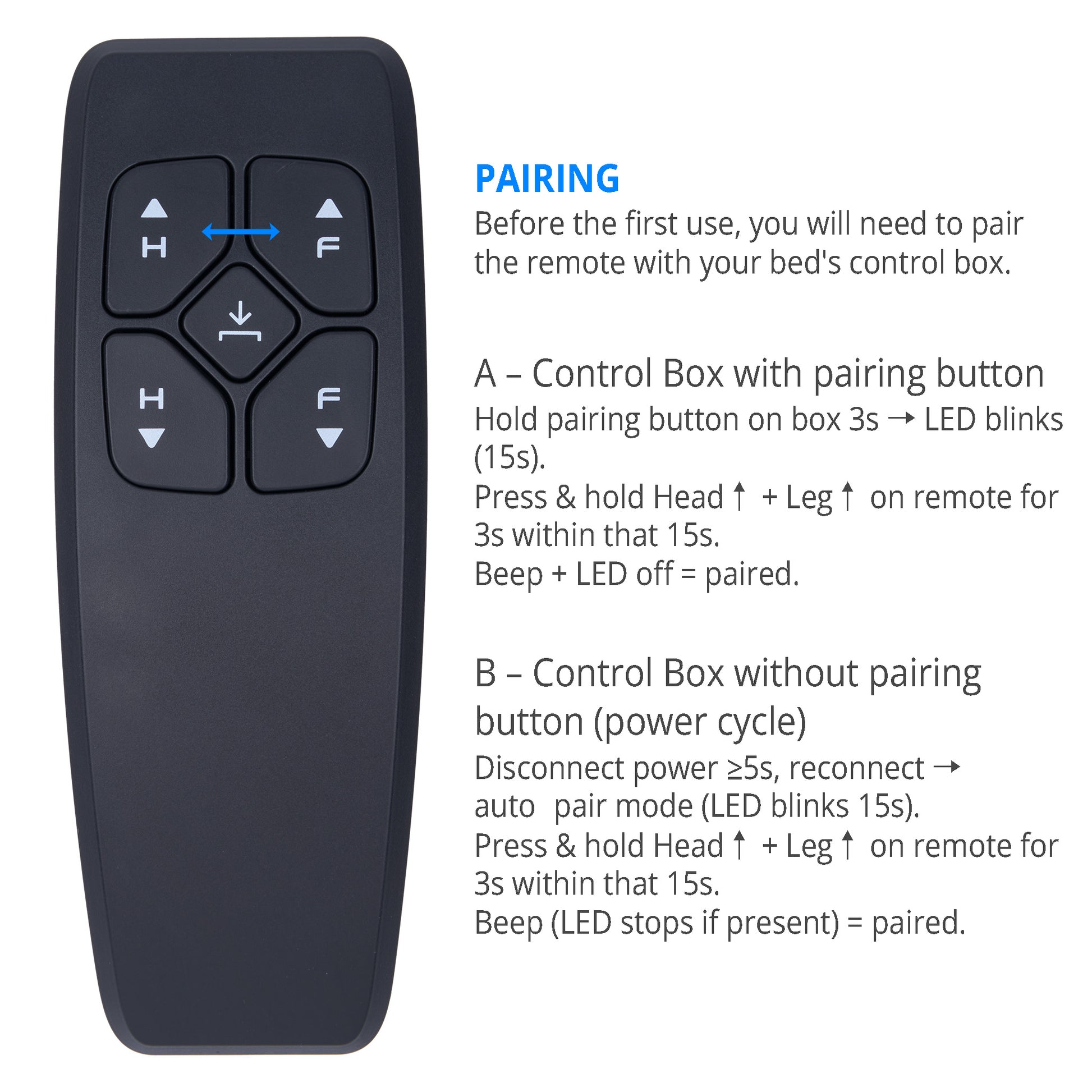

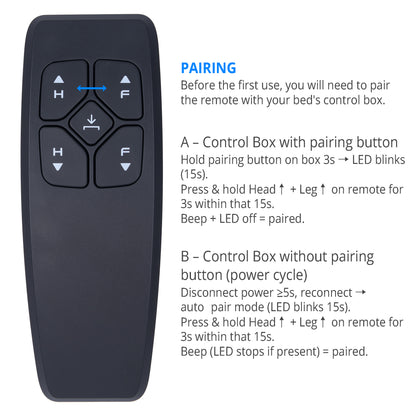

Pairing Instructions

Scenario A – Control Box with a Pairing Button

1. Press and hold the pairing button on the control box for about 3 seconds. The control box enters pairing mode.
2. The pairing button's LED starts flashing. Pairing mode remains active for 15 seconds.
3. Within those 15 seconds, simultaneously press the head‑up button and the leg‑up button on the remote and hold them for 3 seconds.
4. Successful pairing is confirmed by a single beep from the control box, after which the pairing LED stops flashing.

Scenario B – Control Box without a Pairing Button (Power‑Cycle Method)

1. Disconnect power from the control box for at least 5 seconds, then reconnect the power.
2. The control box automatically enters pairing mode (the pairing LED, if present, will flash). This mode lasts for 15 seconds.
3. Within those 15 seconds, simultaneously press the head‑up button and the leg‑up button on the remote and hold them for 3 seconds.
4. Successful pairing is confirmed by a single beep from the control box, and the flashing stops (if an LED is available).

Important Pairing Rules (Applicable to Both Scenarios)

• Maximum remotes per control box: 2.
• Overwrite rule: Pairing a third remote erases the first remote's pairing.
• Power‑off memory: Paired remotes remain stored after a power loss; re‑powering does not clear them.
• Simultaneous operation: Only one remote can operate at a time. The second remote can work only after the first enters standby.
• First and second controllers: After pairing the first remote, repeat the same process to pair the second remote.
• Single remote: When only one remote is paired, only its functions are active.
