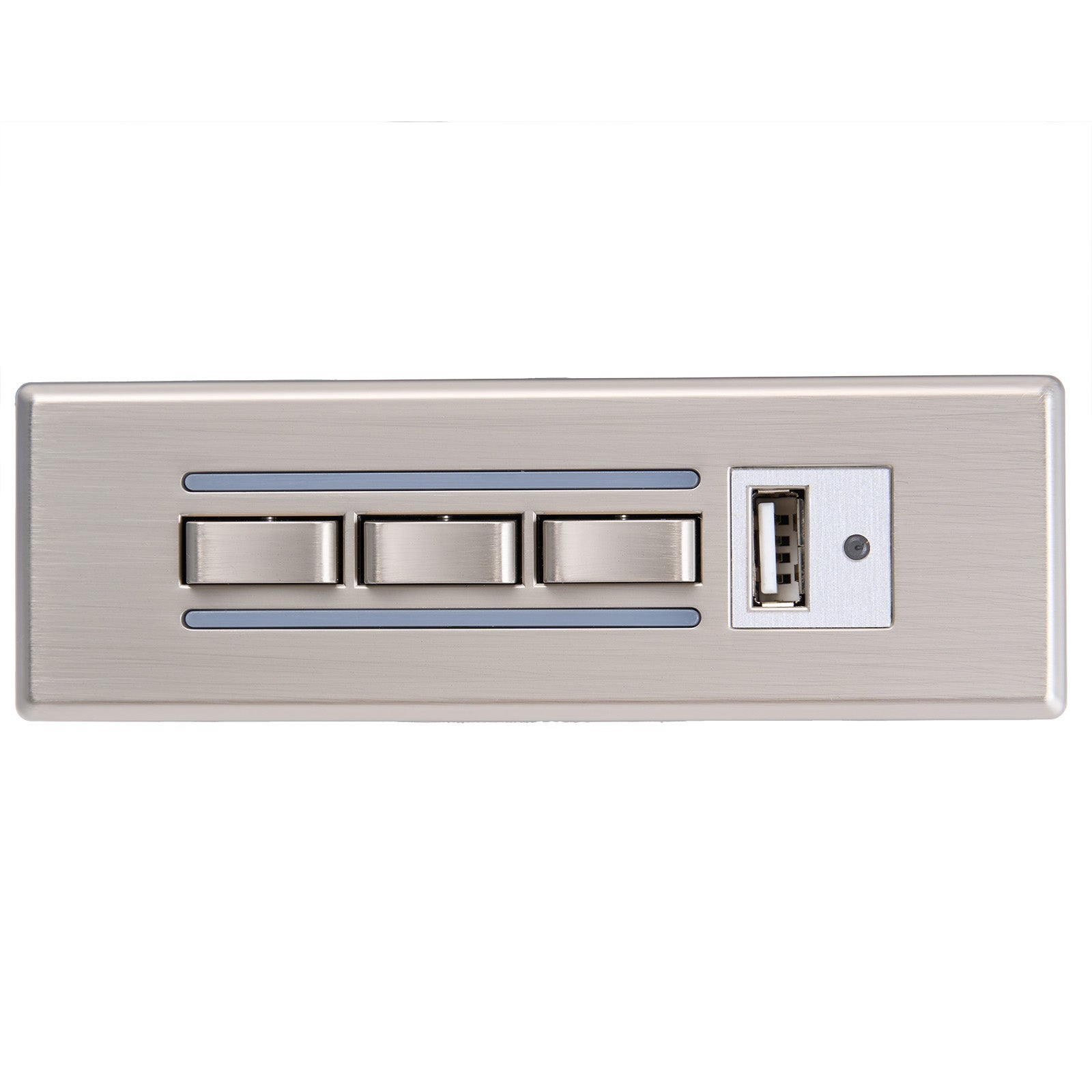

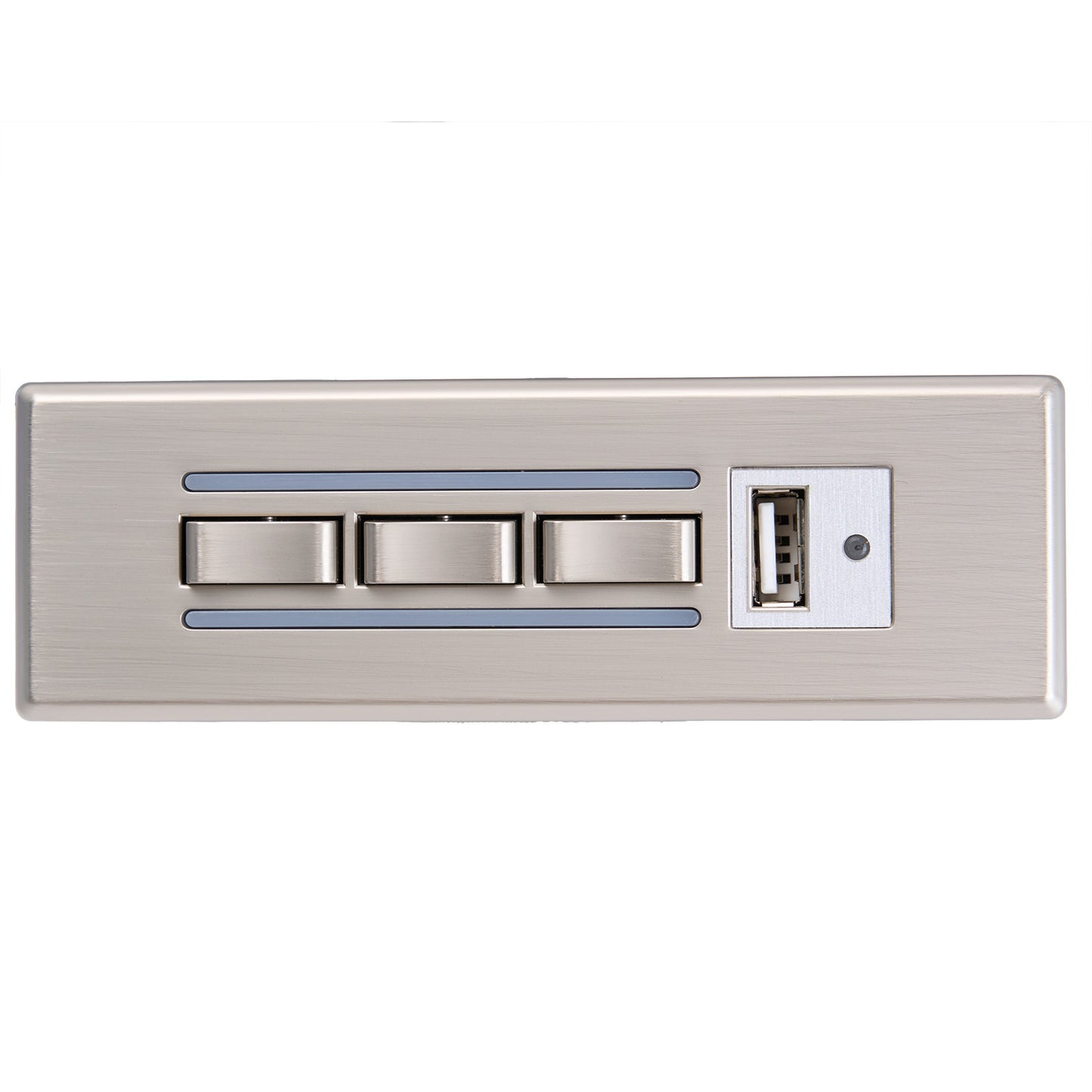

KDH134E-013 6-Button 8-Pin Switch for Power Recliner or Lift Chair with USB

Compatibility:

• Direct replacement for the KDH134E-013 switch.

• Compatible with other KDH134E-series switches using a single 8-pin male plug.
• Note: Button functions may vary from original switches due to differences in wire sequencing.

• Not compatible with non-KDH134E-series switches or models requiring 2-3 plugs.

Features:

• Six-button control: Operates motion furniture with three linear actuator motors.

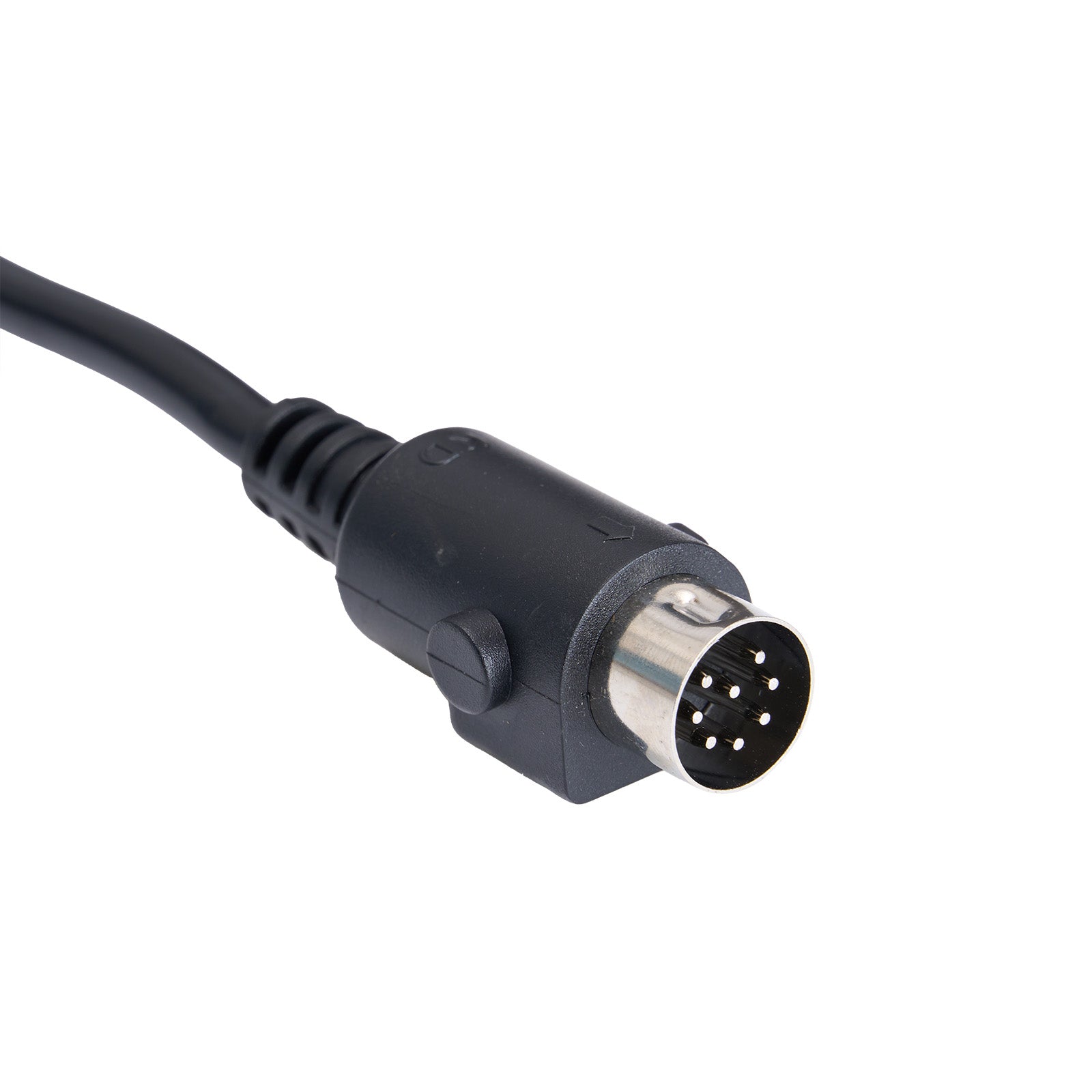

• 8-pin male plug: Round connector for secure attachment to the main motor.

• USB charging port: 5V/2A output for charging mobile devices.

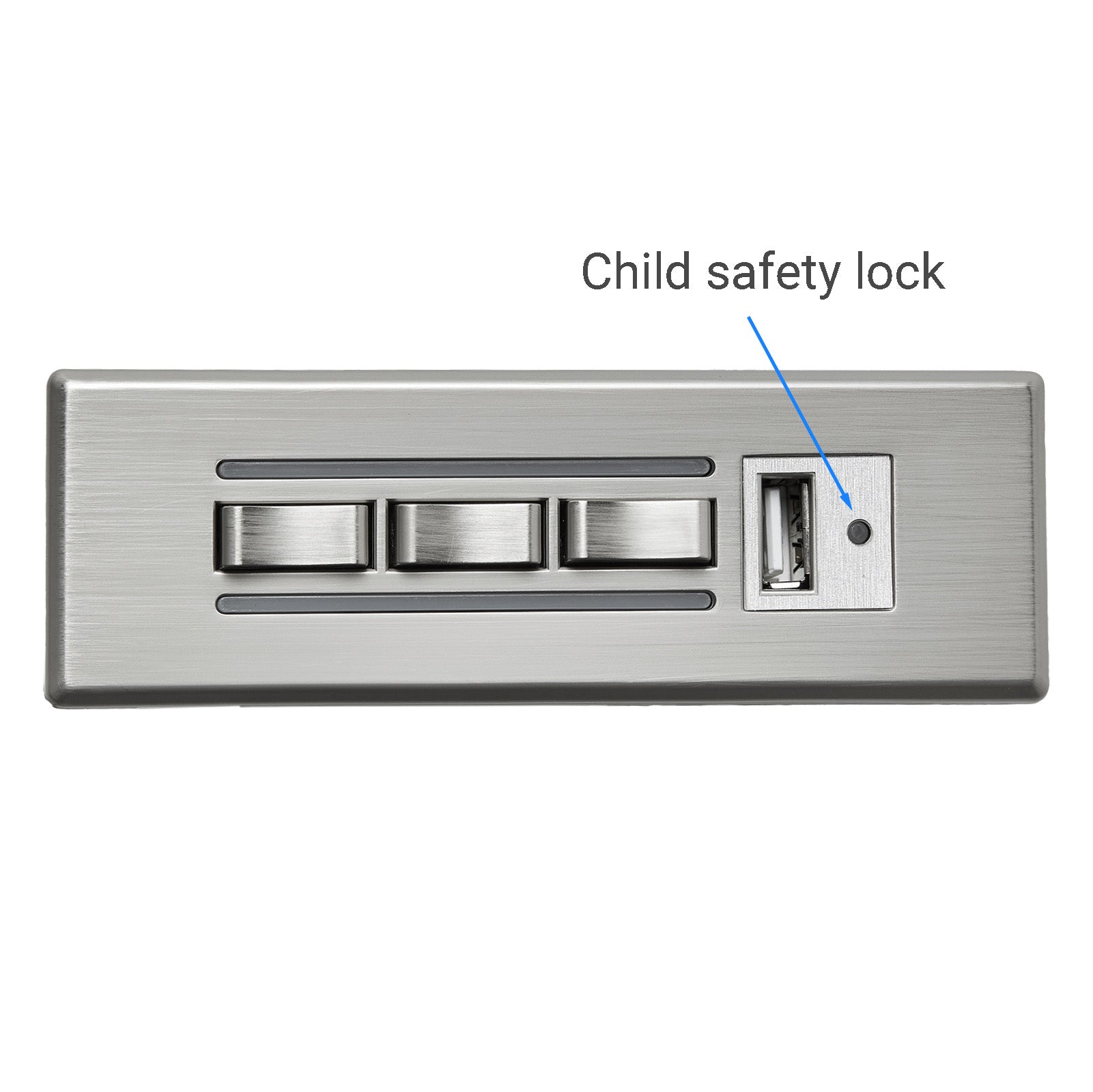

• Child safety lock: A small button near the USB port disables the six main buttons to prevent accidental activation by children.

Specification:

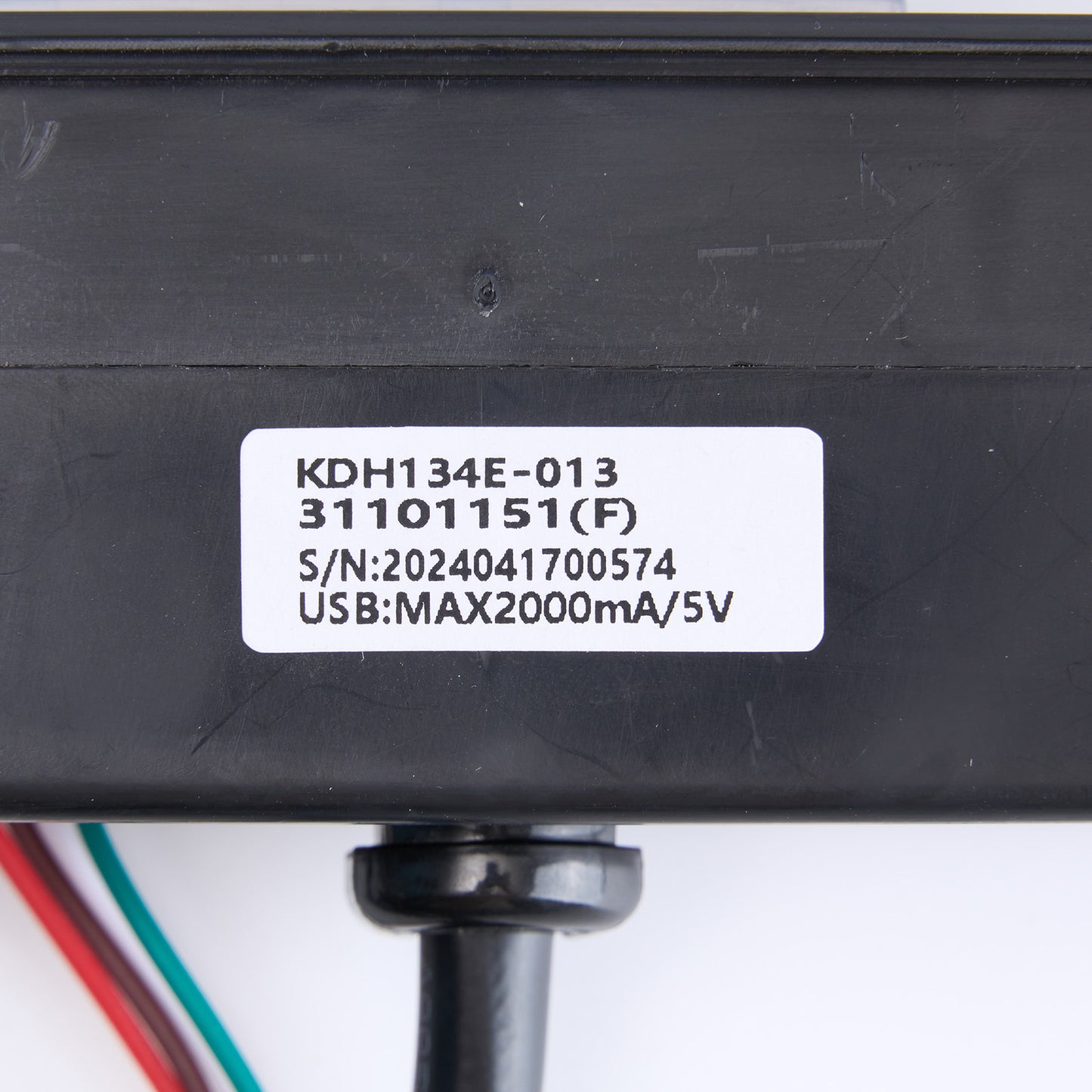

• Model number: KDH134E-013
• Part Number: 31101151 (F)
• USB: 5V 2A

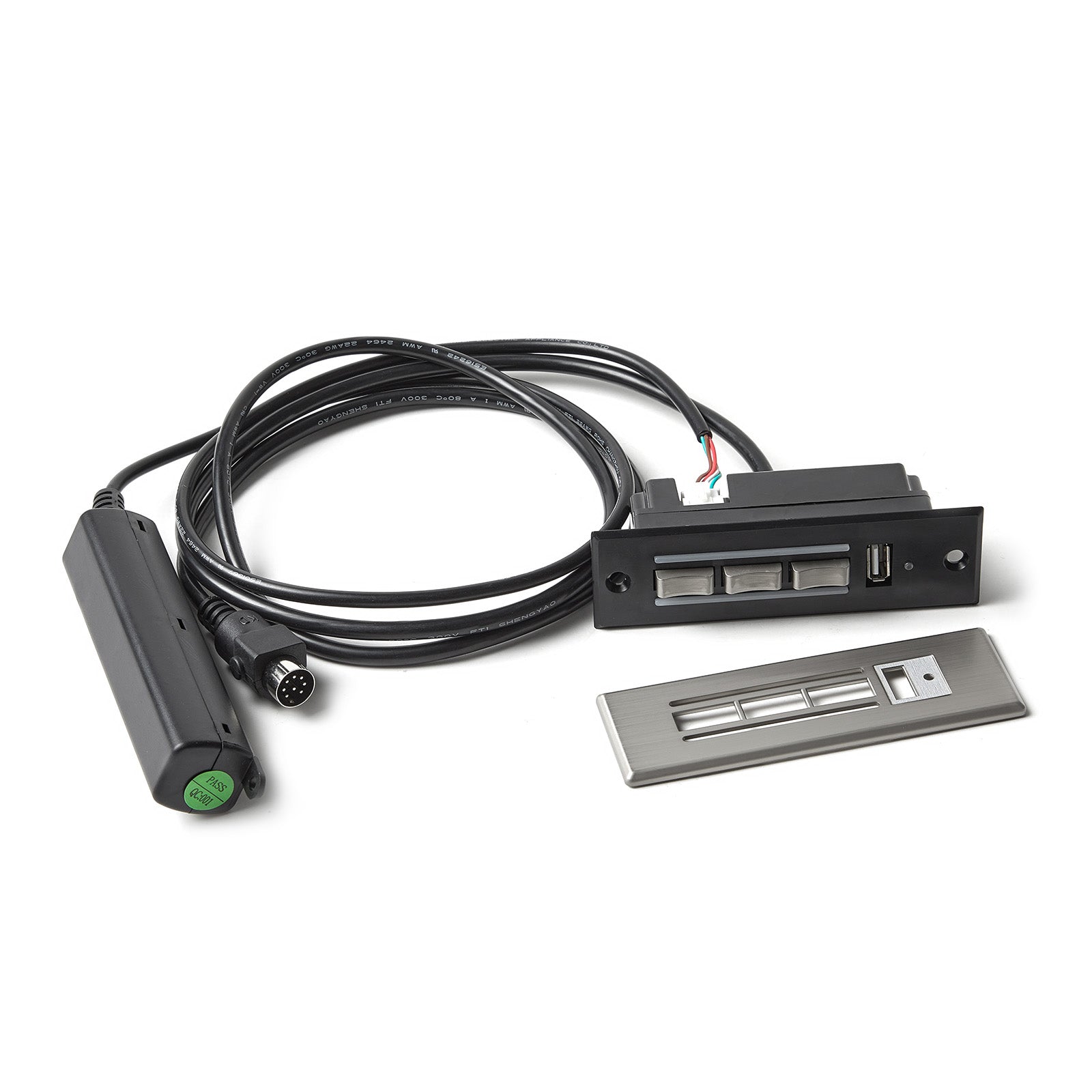

Package includes:

• Switch ×1

• Face plate ×1

• Wire harness (as shown in product images)
