KDH120A-010 Switch for Recliner 2 Button 5 Pin with USB

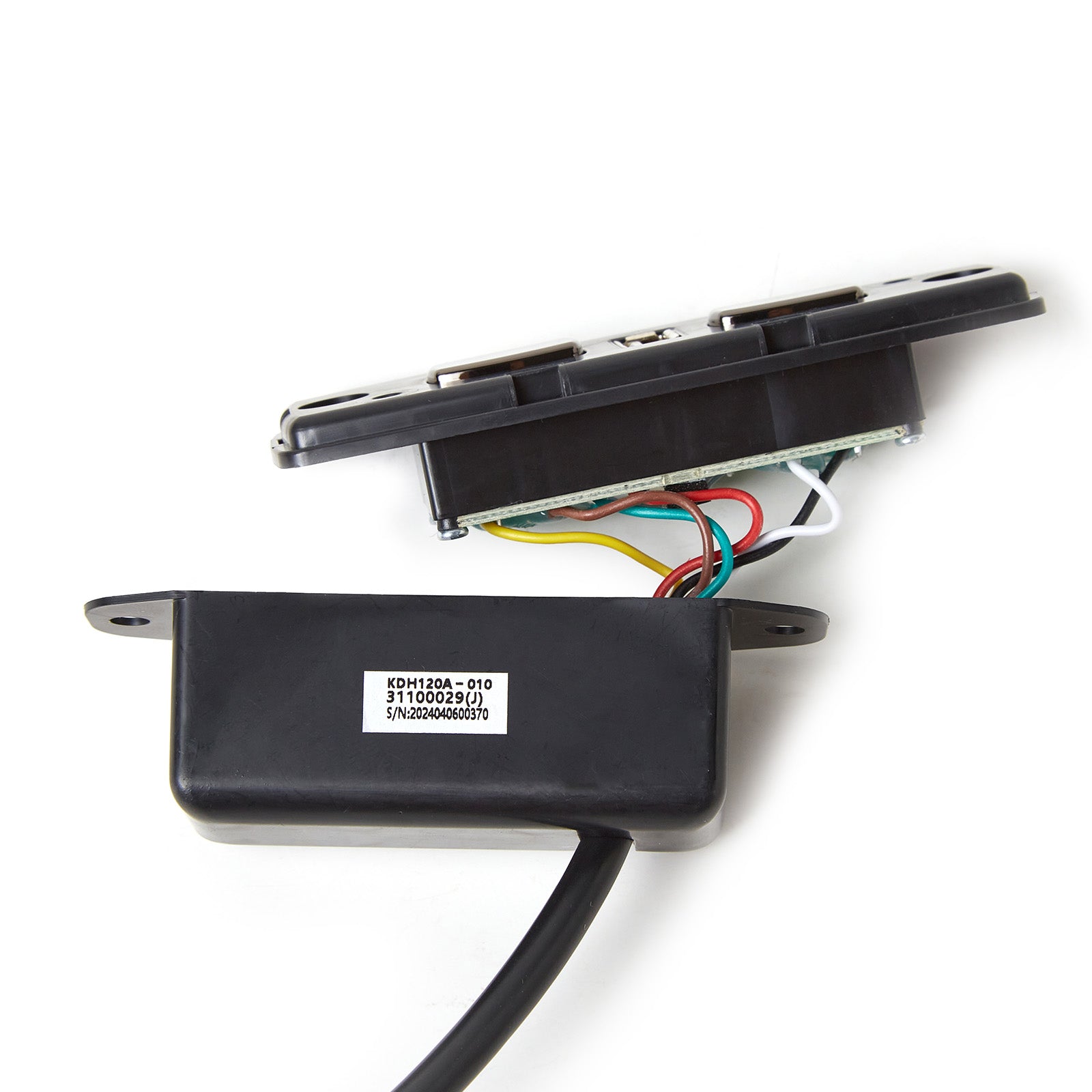

This is the genuine KDH120A-010 switch. This switch features two buttons and uses a standard 5 pin plug. Suitable for power recliner or lift chair which has only one motor.

Compatibility:

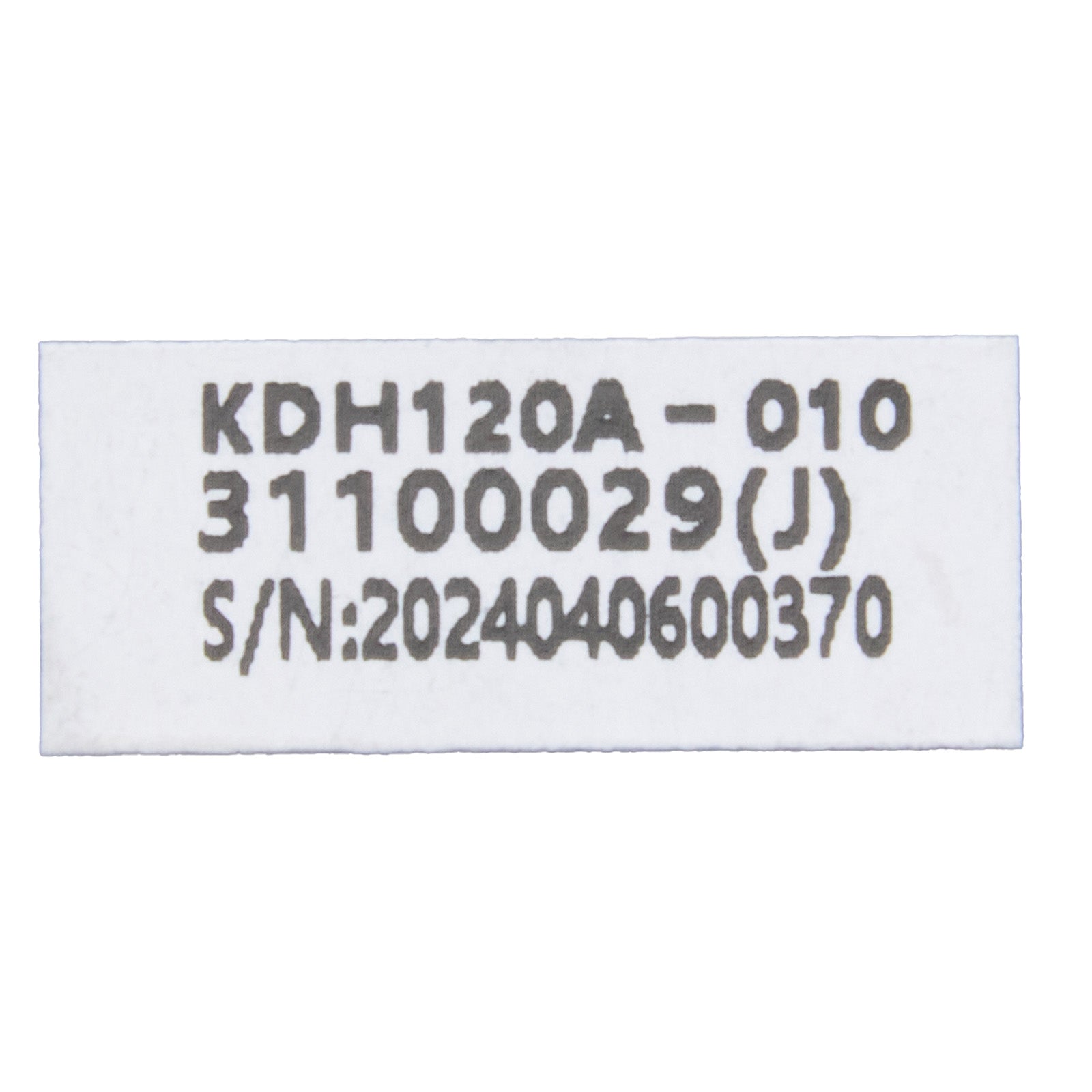

• Perfect fit: If the model number of your existing switch is KDH120A-010, this switch will replace it seamlessly.

• Almost fit: this switch replaces other KDH120A switches that with the same plug (e.g. KDH120A-001, KDH120A-003). However, the direction of the buttons might be reversed due to potential inner wiring differences, and the color of the control panel might be different.
• Not fit: This switch CAN NOT replace KDH120 or KDH120B switches. These two series are for two motor chairs, and KDH120A is for single motor chairs.

Feature:

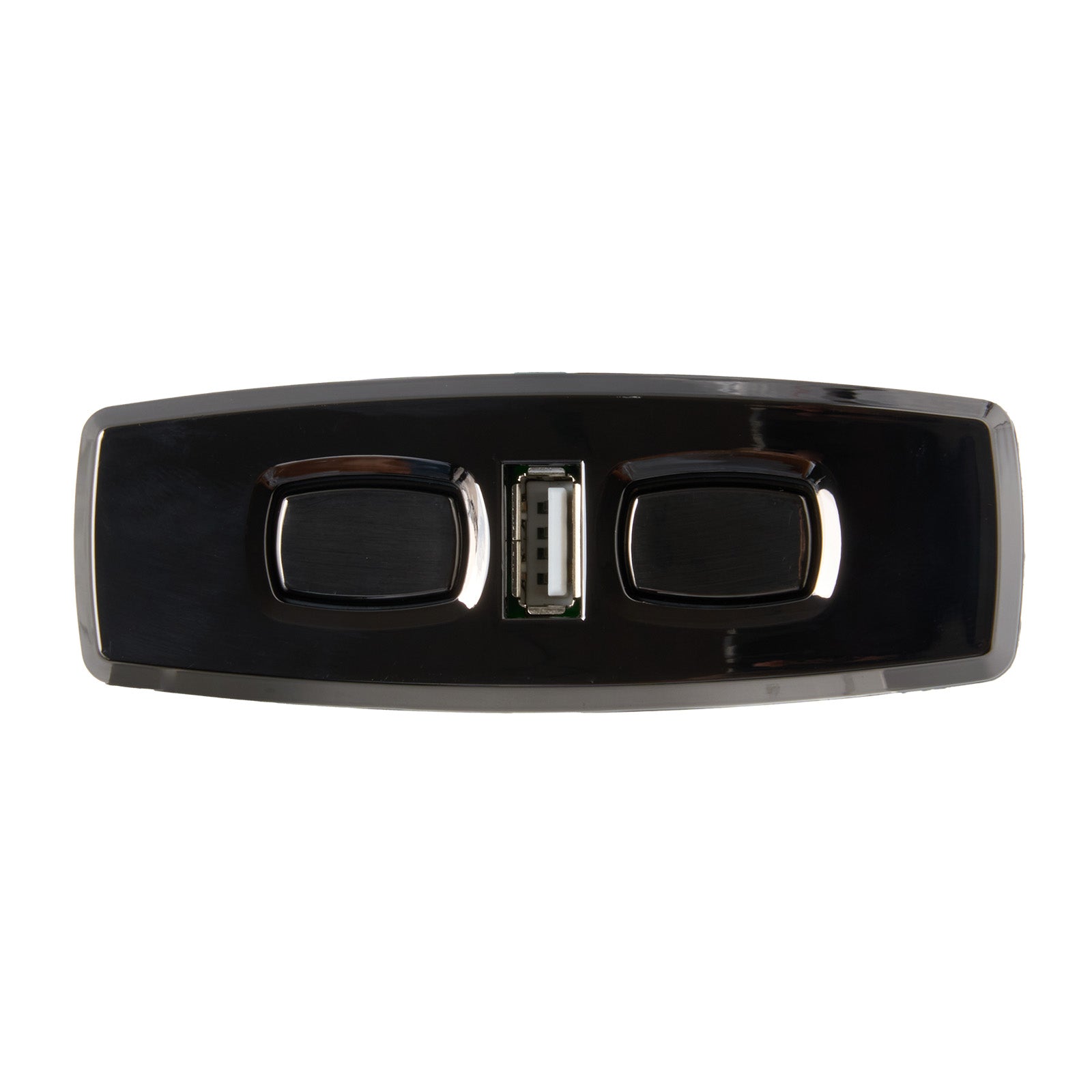

• The switch has 2 buttons, it controls the open/close (up/down) of the chair. It is suitable for power recliners or lift chairs with single linear actuator motor.

• The switch has a USB port, with a 5V 2A output, ideal for mobile device charging for added convenience.

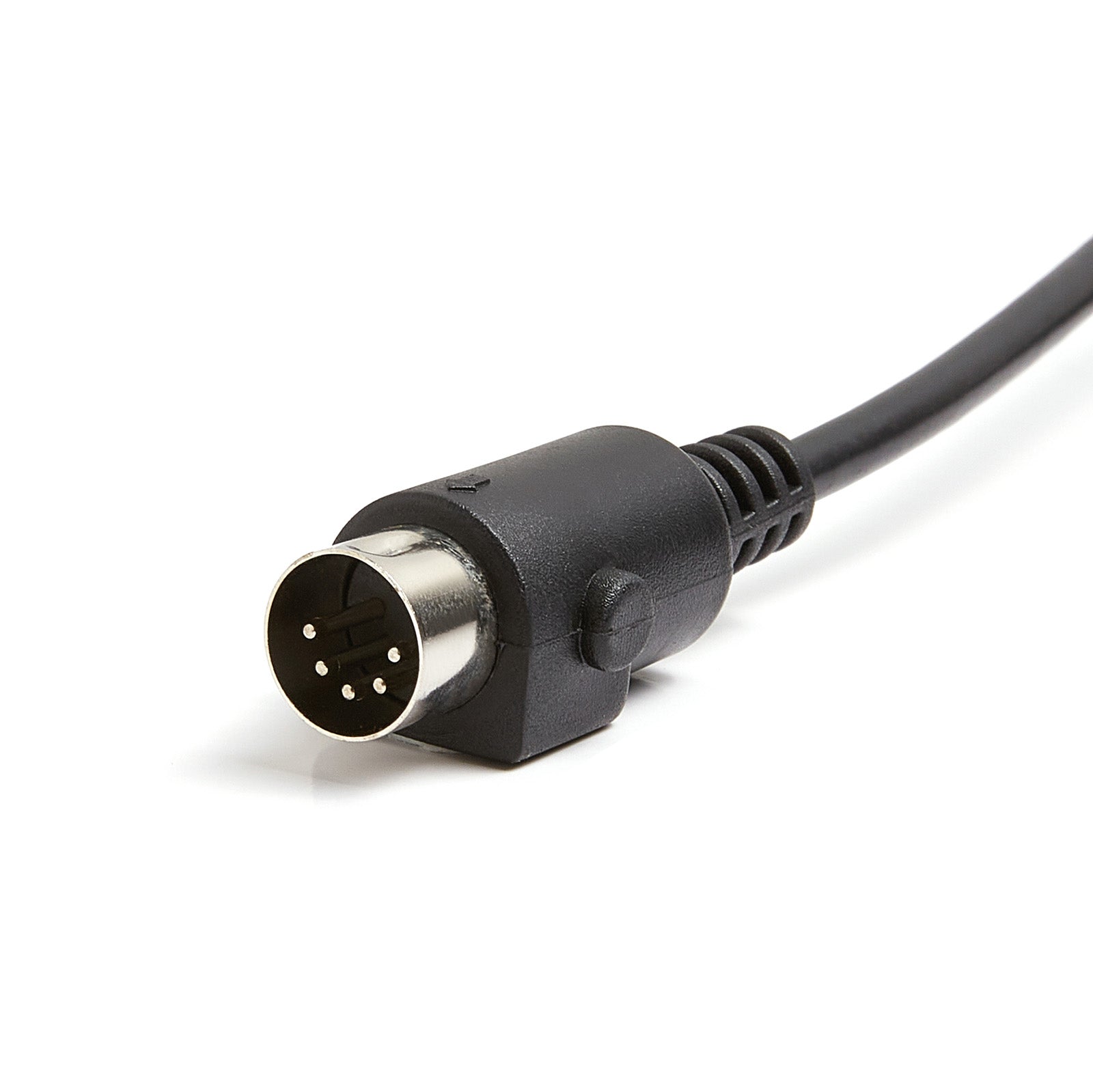

• This switch has a male 5 pin plug, it connects to the footrest motor.

Package includes:

• 1 x Switch (KDH120A-010)

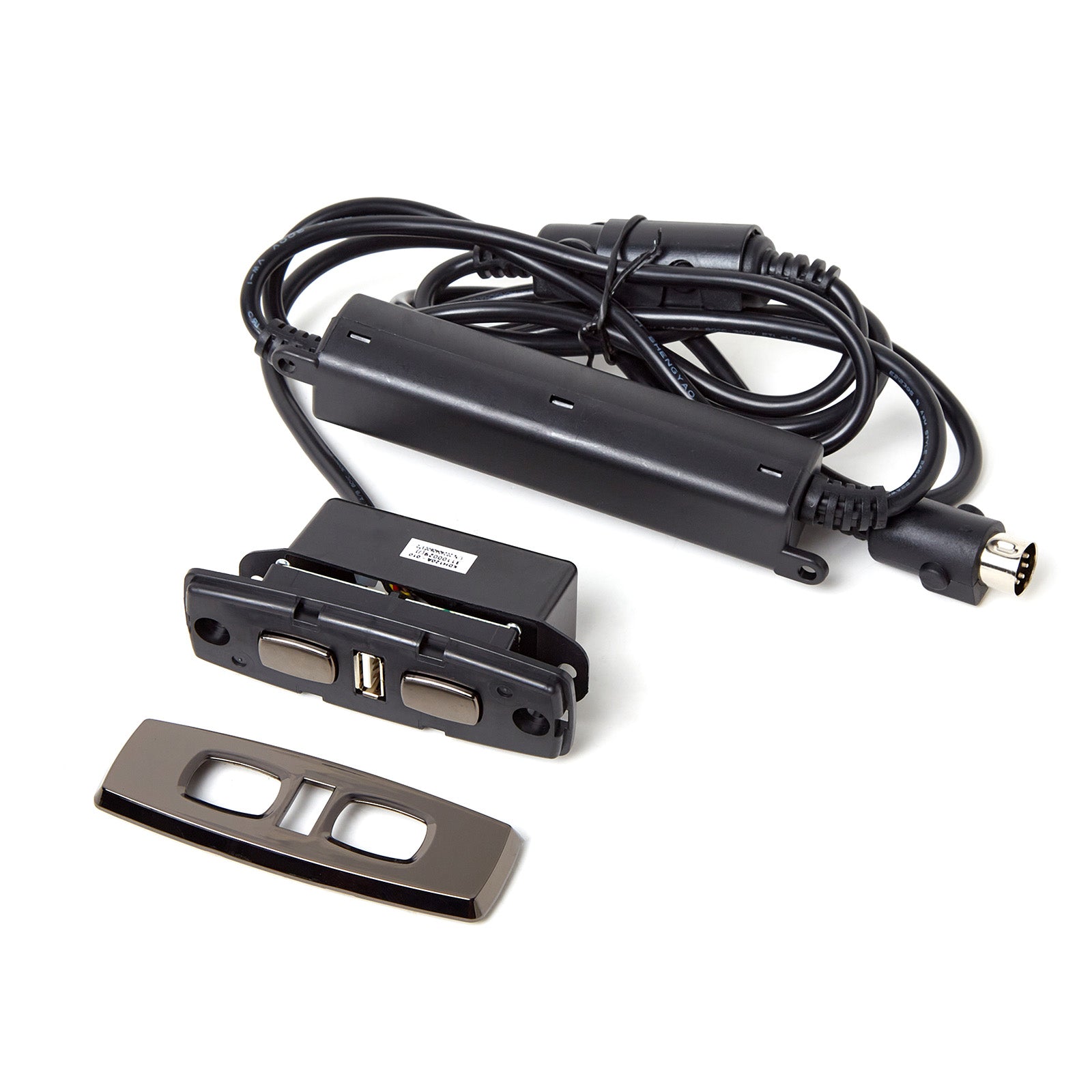

• The wire harness shown in the pictures is included.
