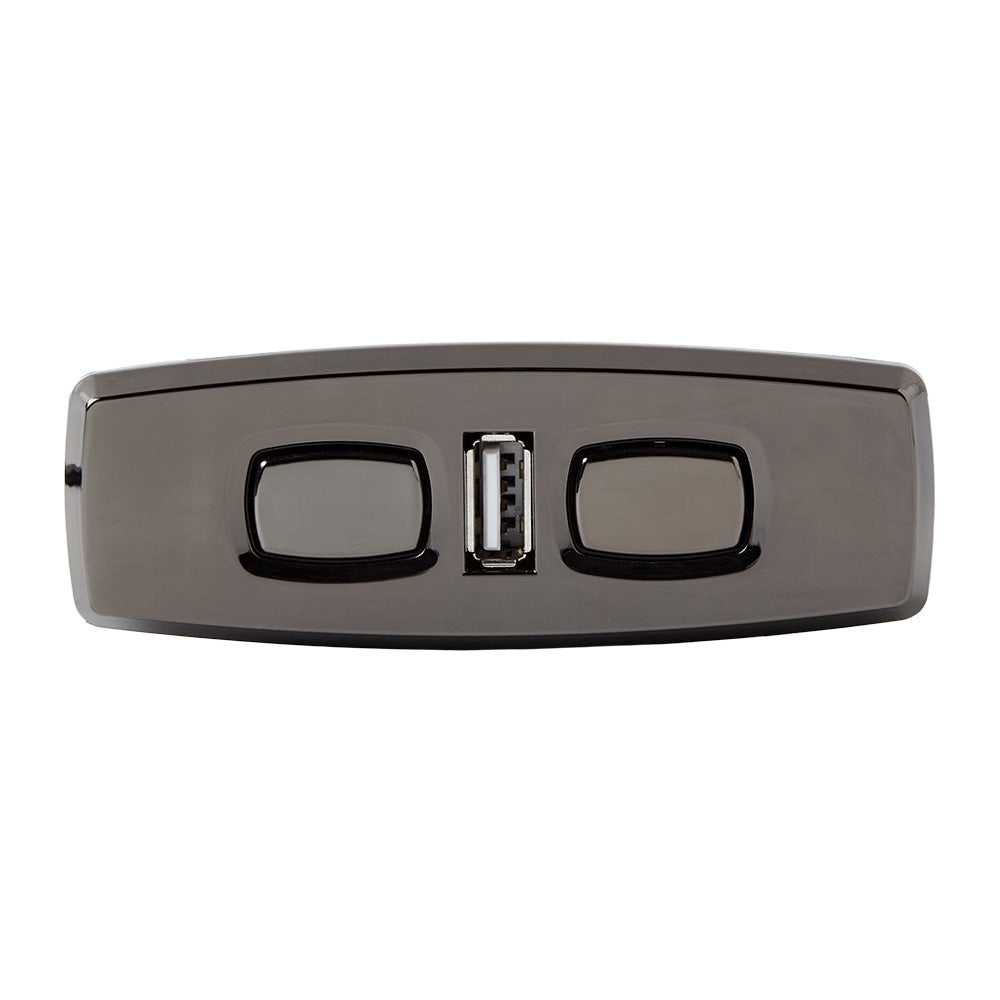

KDH120-013 4 Button Switch for Power Recliner or Lift Chair

• This is the genuine KDH120-013 switch. If your switch has the same model, this switch will replace it perfectly.
• This switch is suitable for recliners/lift chairs with two linear actuator motors.

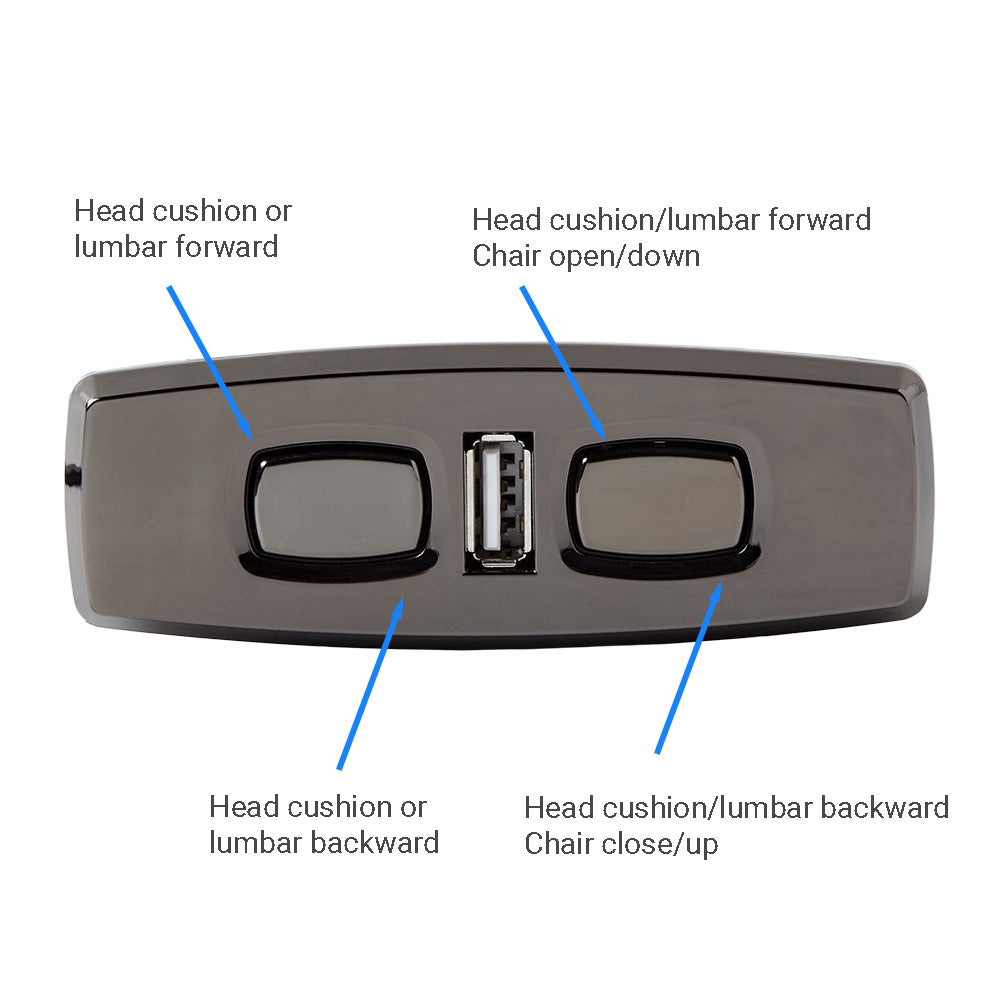

• It has 4 buttons which operate the head cushion or lumbar forward/backward, and chair open/close (or up/down).
• The switch has a USB charging port, with a 5V 2.4A output.
• This switch uses a round 5 pin plug.
• The switch is in dark chrome color.

Compatible Disclaimer

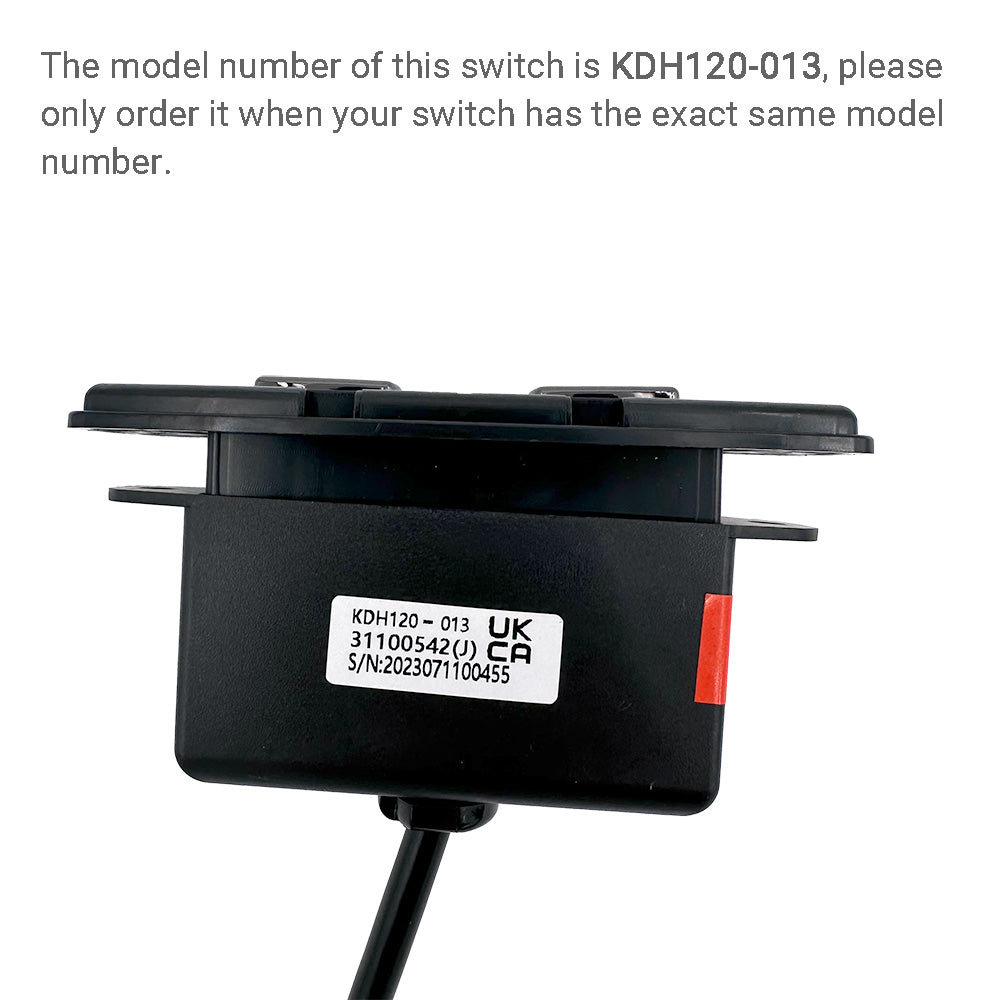

• If your switch model is KDH120-013, then this switch can replace yours perfectly.
• If the model number of your switch is not KDH120-013, this switch cannot replace yours, please do not buy it.
• We can provide other KDH switches and remote controls, if you need a different model, please feel free to contact us for a quotation.

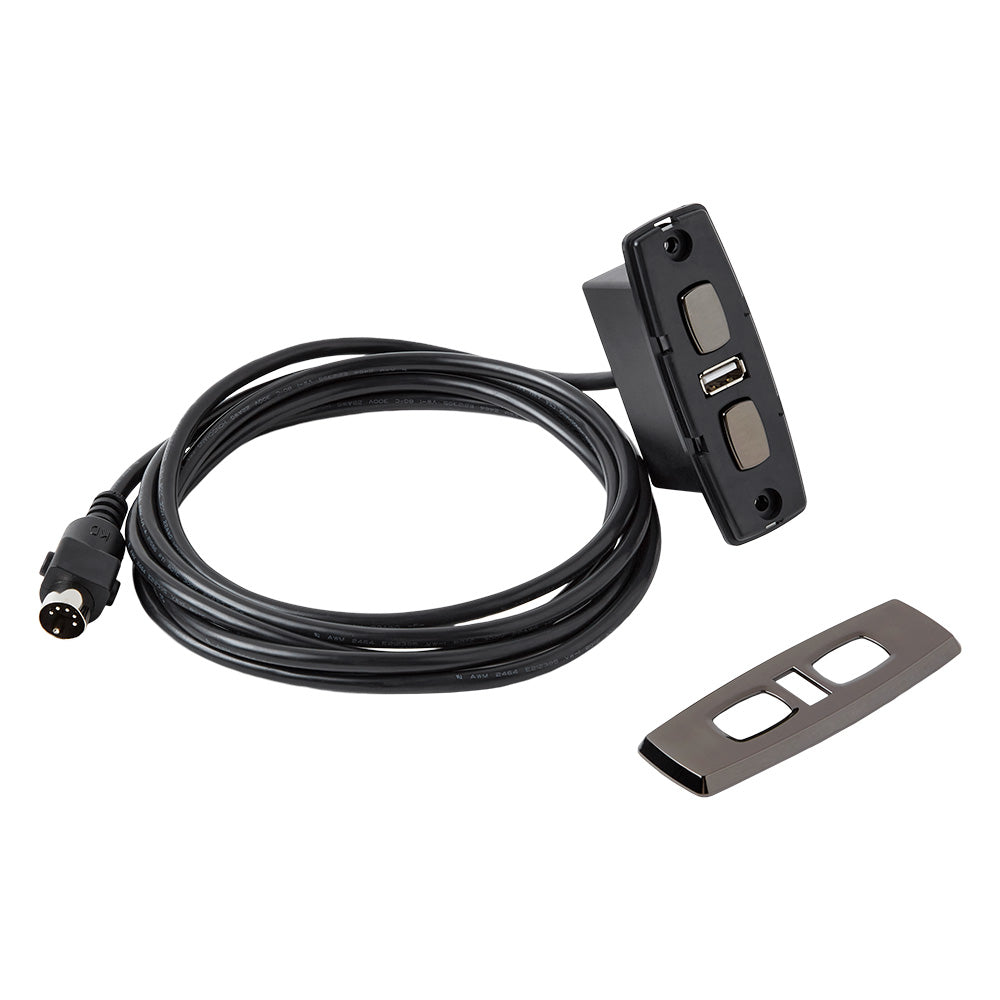

Package includes:

• 1* switch
• 1* plastic cover

Notes:

• The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
• When you are installing the switch, do not install the plastic cover until everything is done.
• After installing this switch to your chair, please operate the chair to the highest and lowest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, and quick operation is more likely to cause damage to the switch.
