KDH103-301 2 Button Switch for Power Recliner or Lift Chair

KDH103-301 2 Button Switch for Power Recliner or Lift Chair

Regular price $45.00 USD
Regular price Sale price $45.00 USD
Sale Sold out
Shipping calculated at checkout.
  • This is the genuine KDH103-301. If your switch has the same model, this switch will replace it perfectly.

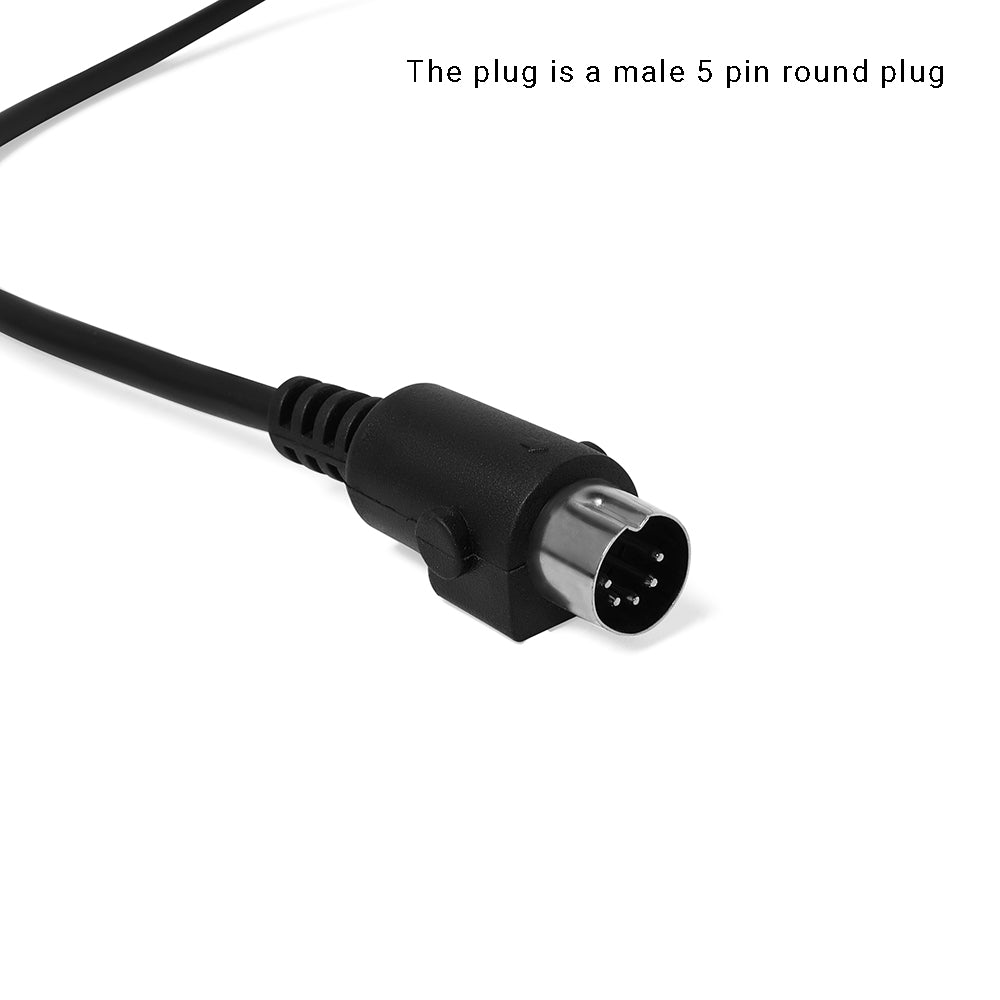

  • It has 2 buttons and uses a round 5-pin plug. It is suitable for recliners/lift chairs with only one linear actuator motor.

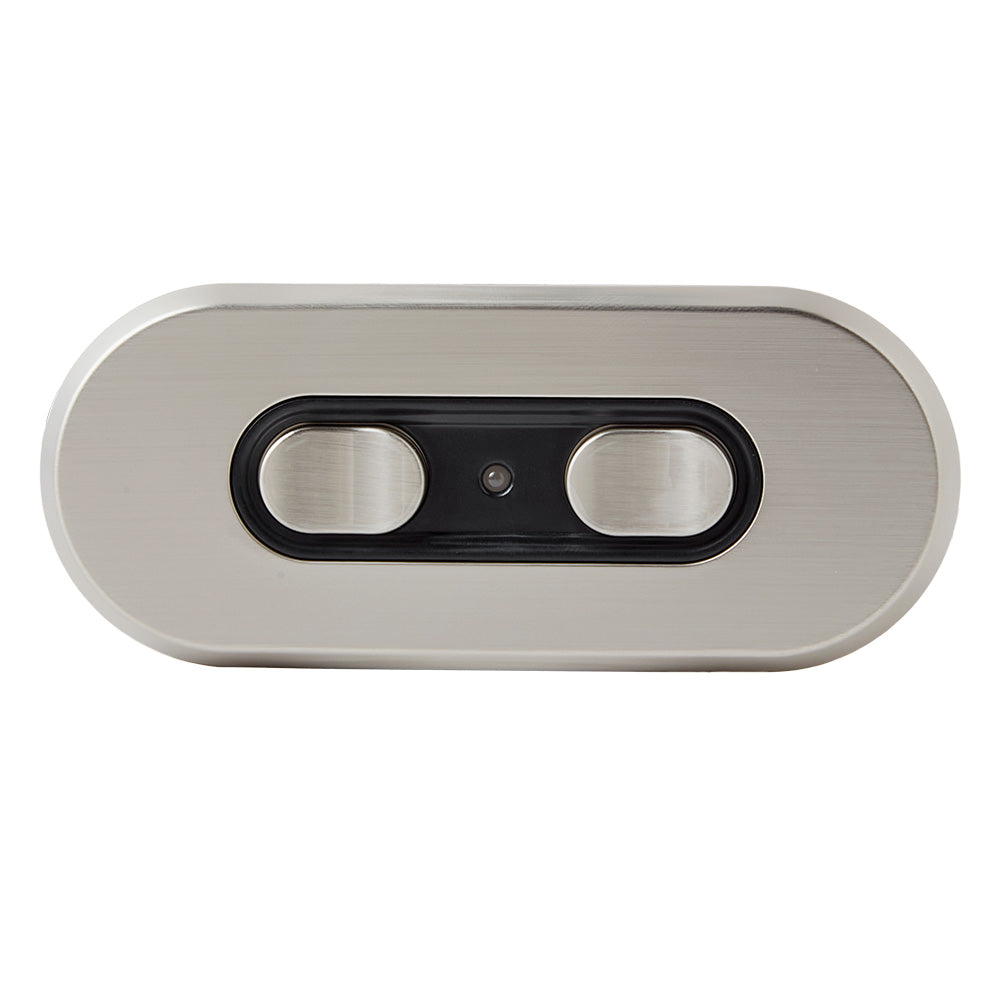

  • There is a blue indicator light in the middle of the switch that lights up when you press the button.


Compatible Disclaimer

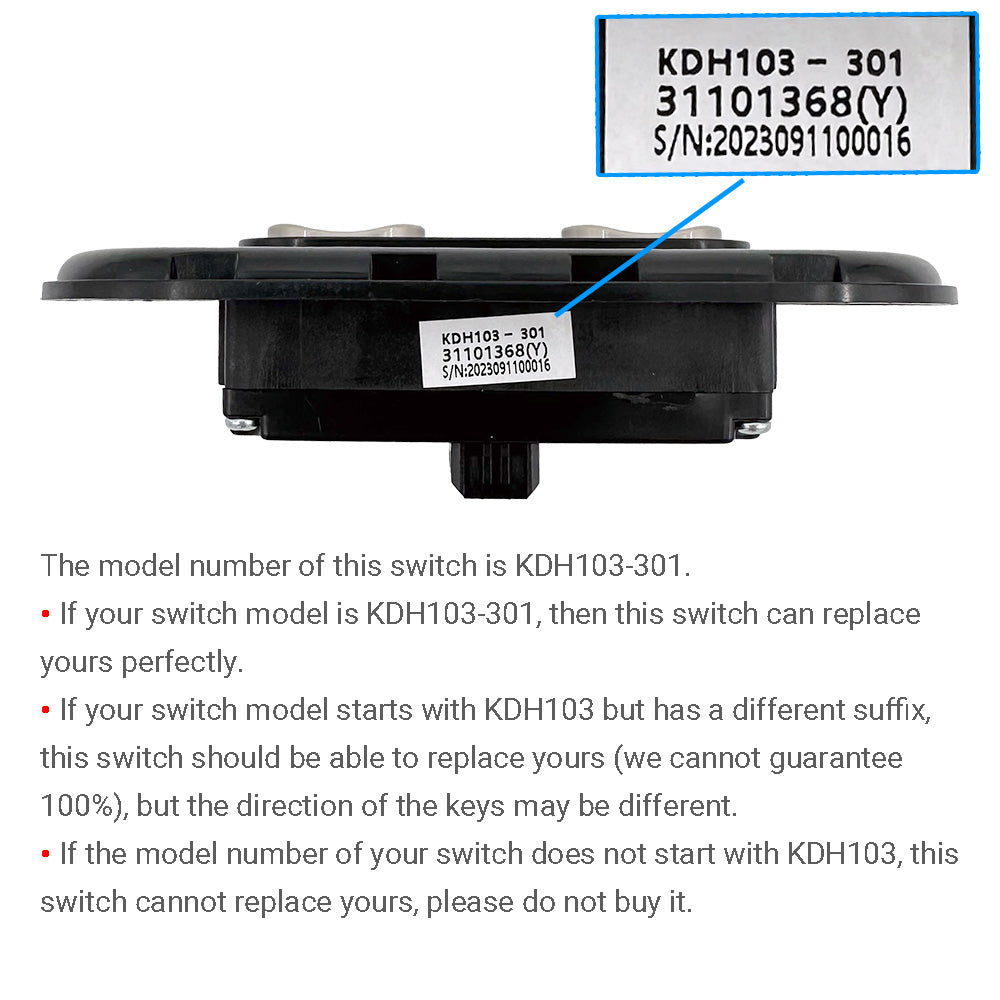

  • If your switch model is KDH103-301, then this switch can replace yours perfectly.
  • If your switch model starts with KDH103 but has a different suffix, this switch should be able to replace yours (we cannot guarantee 100%), but the direction of the keys may be different.
  • If the model number of your switch does not start with KDH103, this switch cannot replace yours, please do not buy it.
  • We can provide other KDH switches and remote controls, if you need a different model, please feel free to contact us for a quotation.

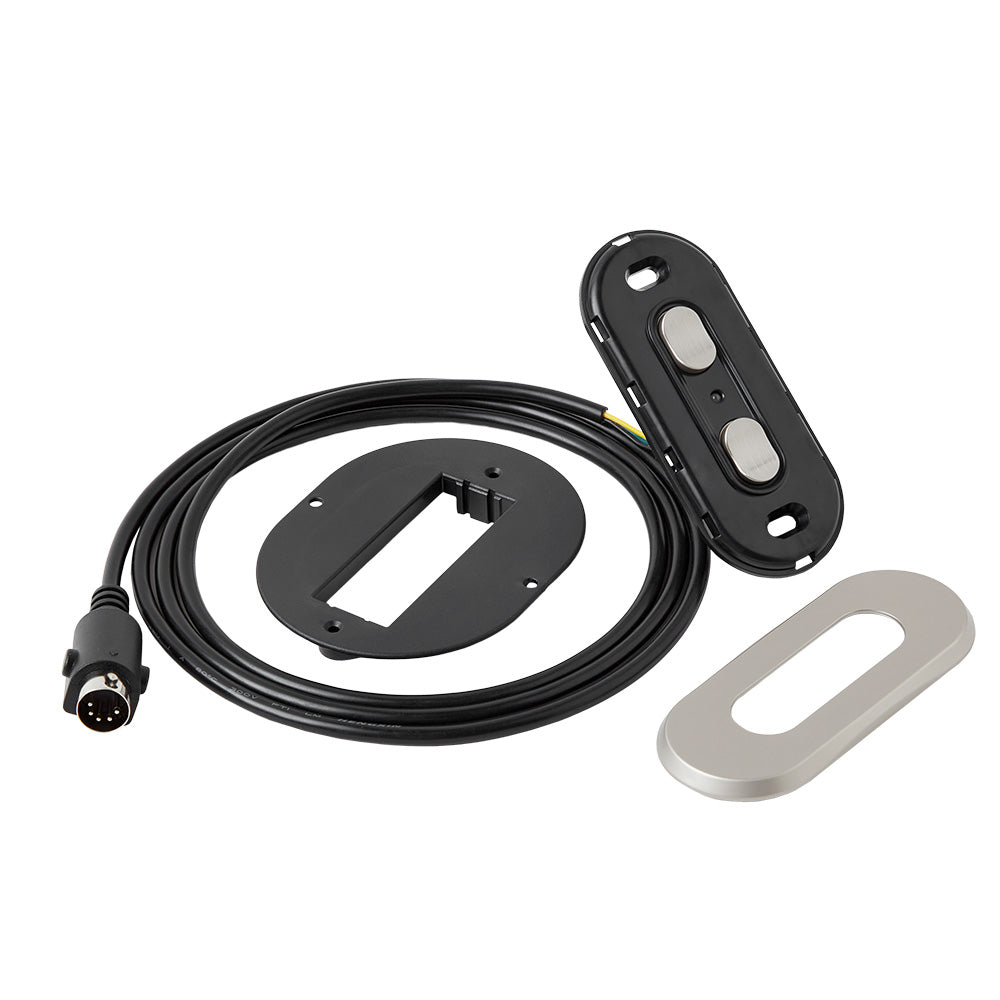

Package includes:

  • 1* switch
  • 1* plastic cover



  • The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
  • When you are installing the switch, do not install the plastic cover until everything is done.
  • After installing this switch to your chair, please operate the chair to the highest and lowest position a couple of times, so that the switch can identify the stroke of the motor.
  • Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, and quick operation is more likely to cause damage to the switch.

Not the part you are looking for?
If you cannot find the part you need on our website, please fill out the form below.We will get back to you with a quotation within 1-2 business days.
