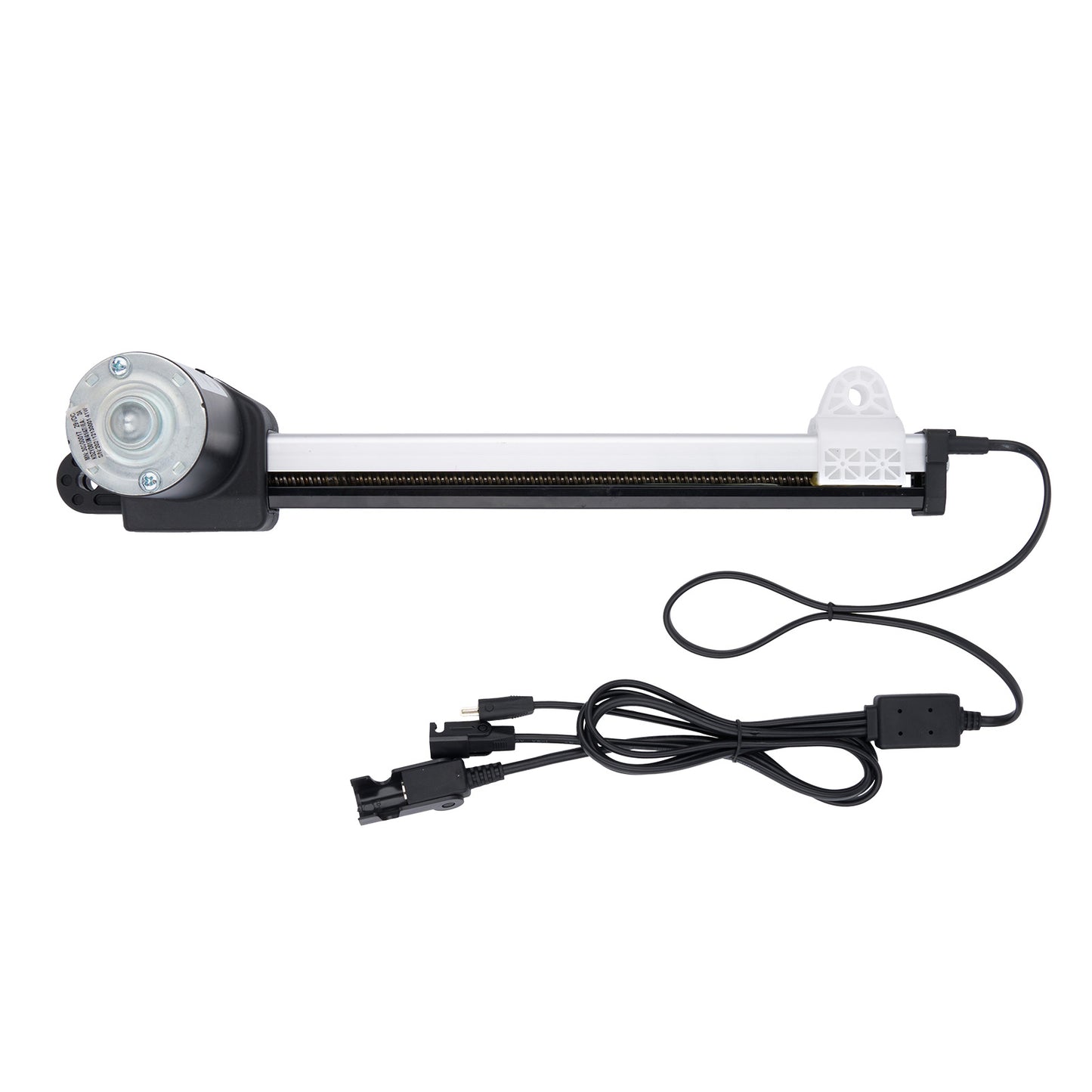

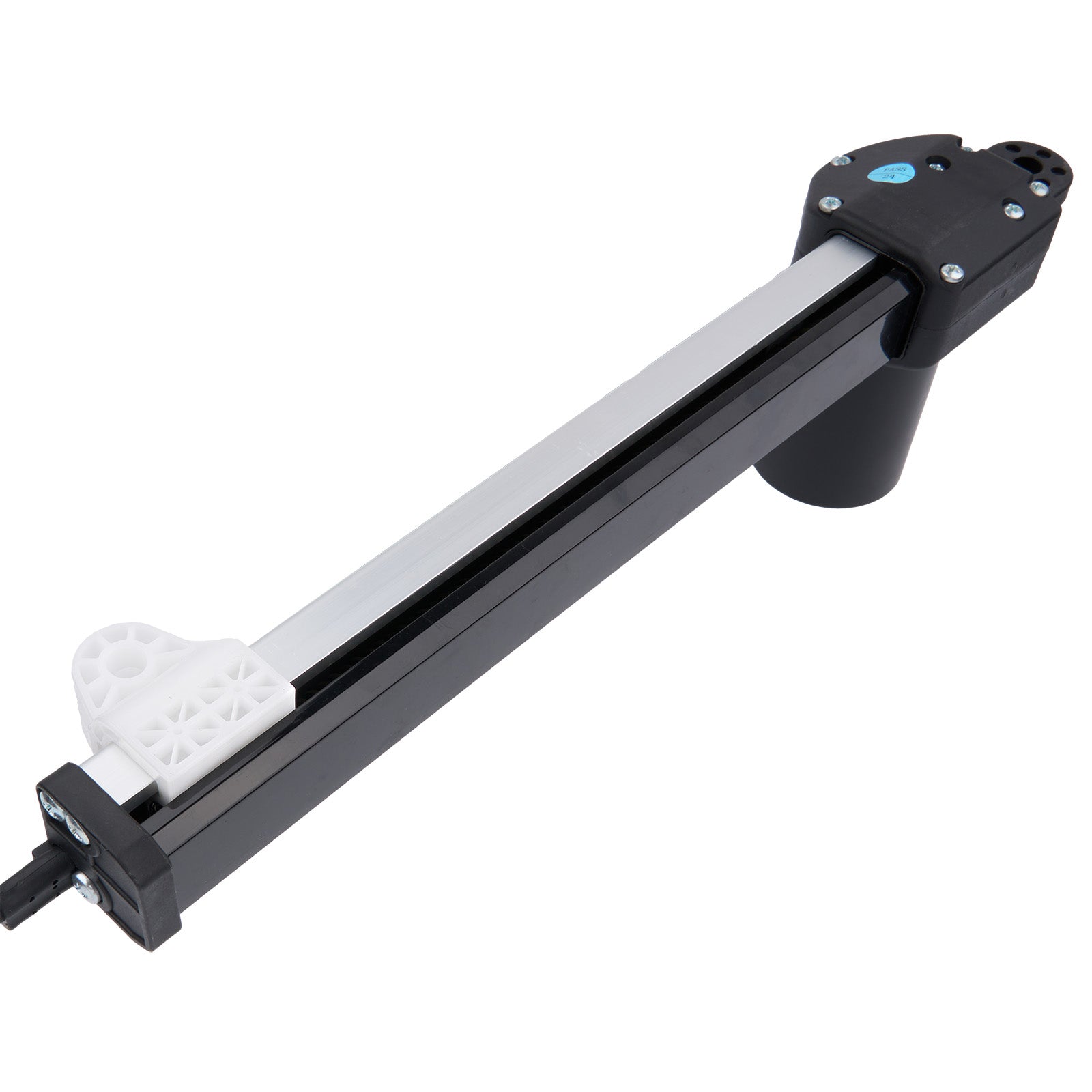

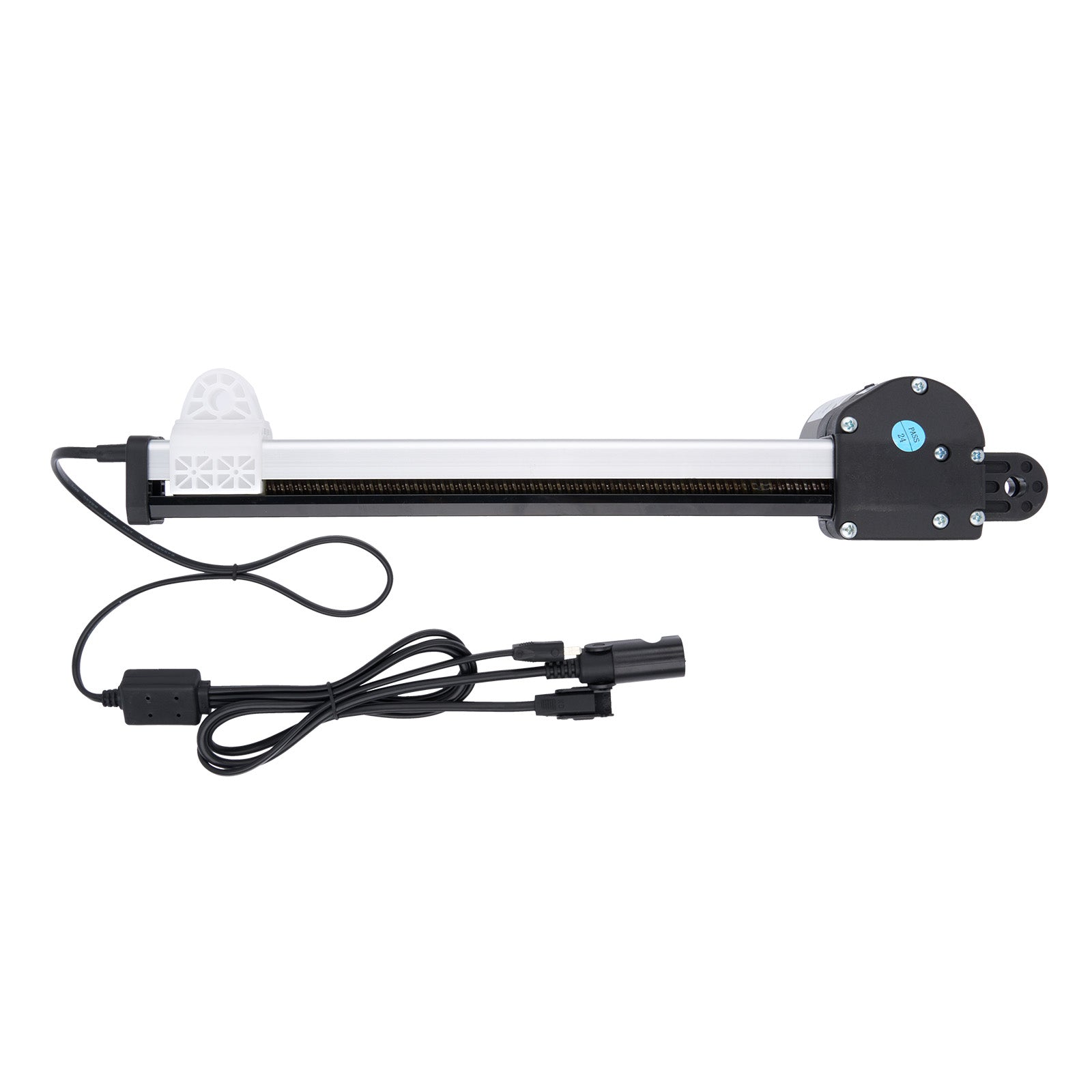

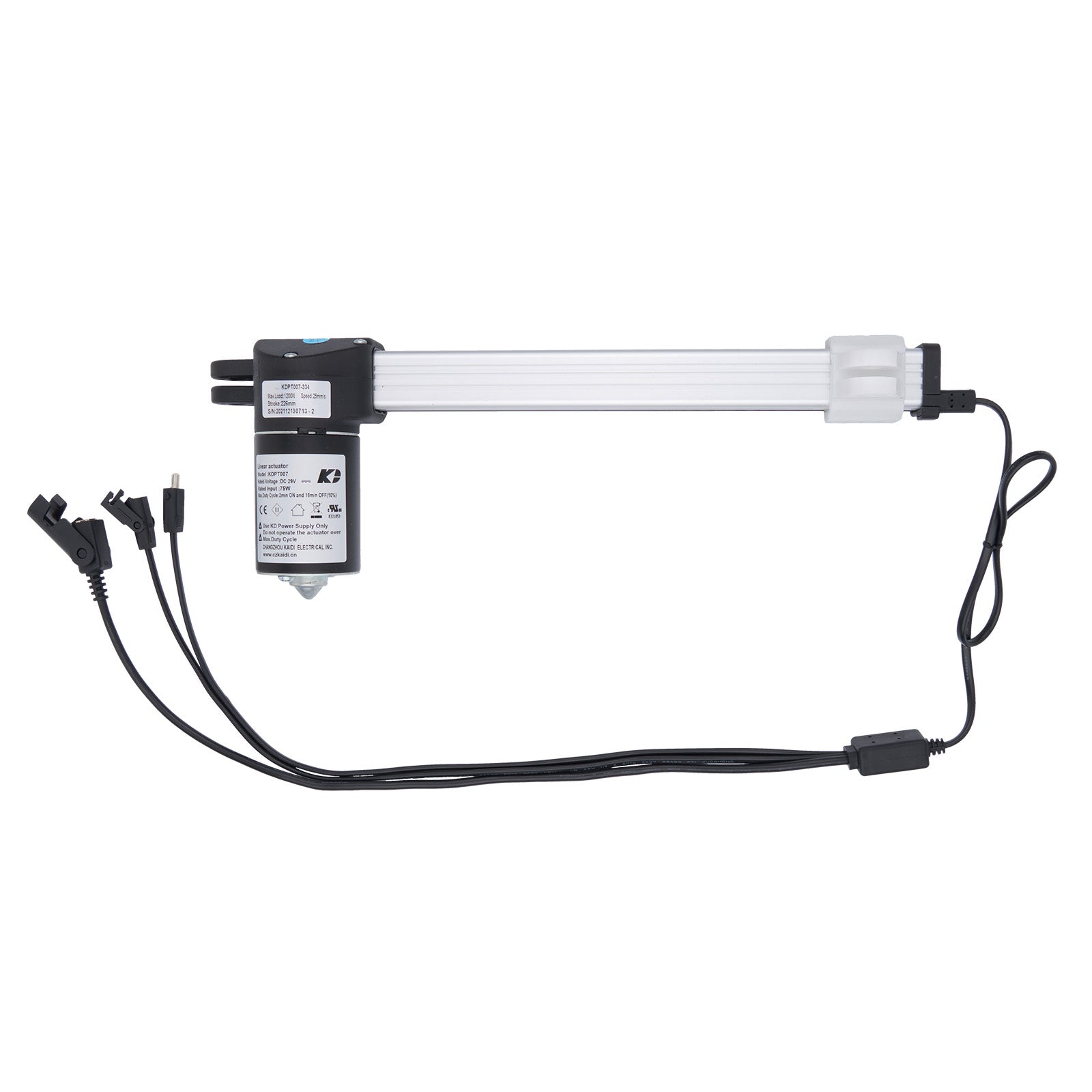

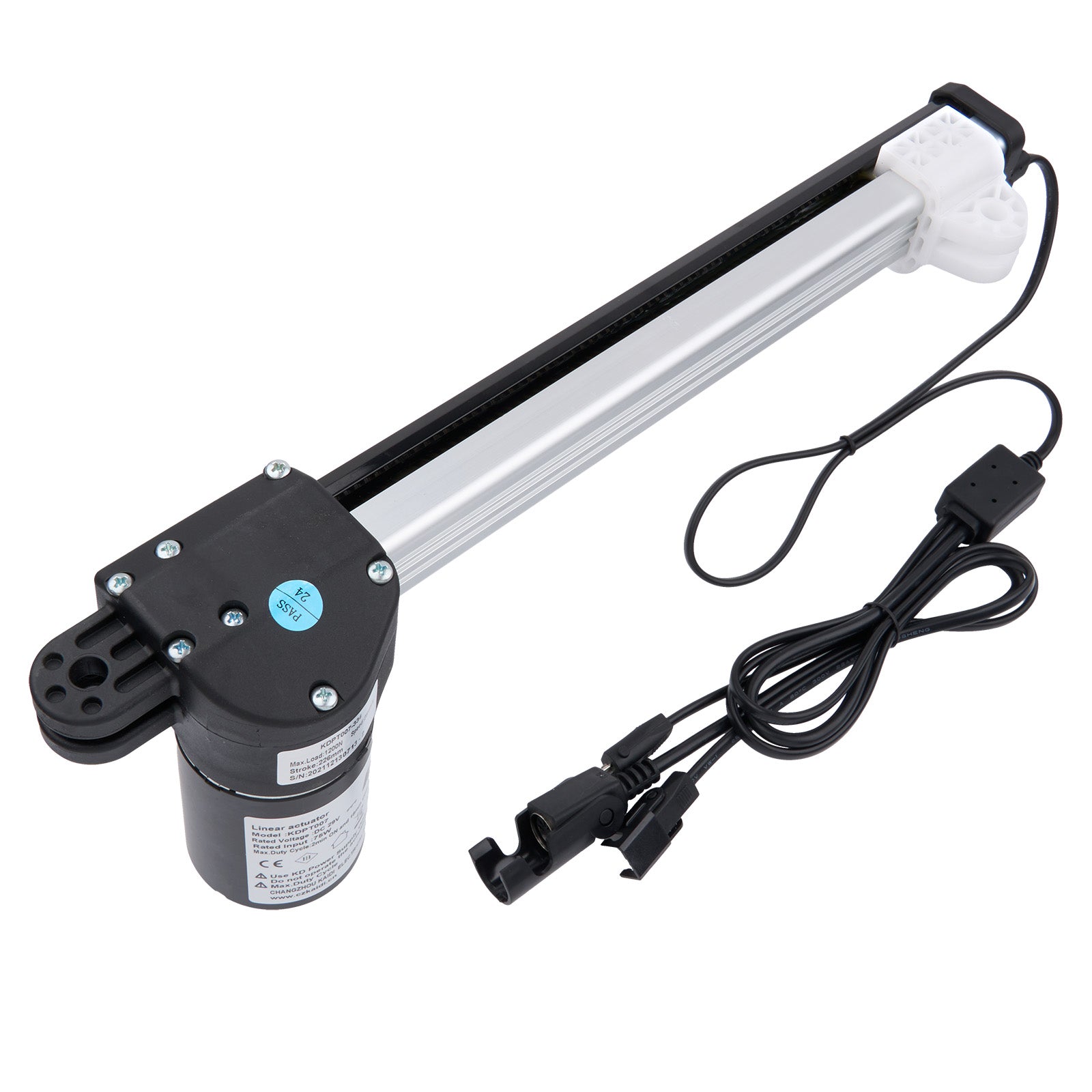

Genuine Kaidi KDPT007-334 Linear Actuator Assembly

This is the genuine Kaidi KDPT007-334 linear actuator assembly. It's designed for motion furniture like power recliners, lift chairs, couches, and loveseats, specifically for the open/close (up/down) function.

The stroke length of this linear actuator is 226 mm (8.9 inches).

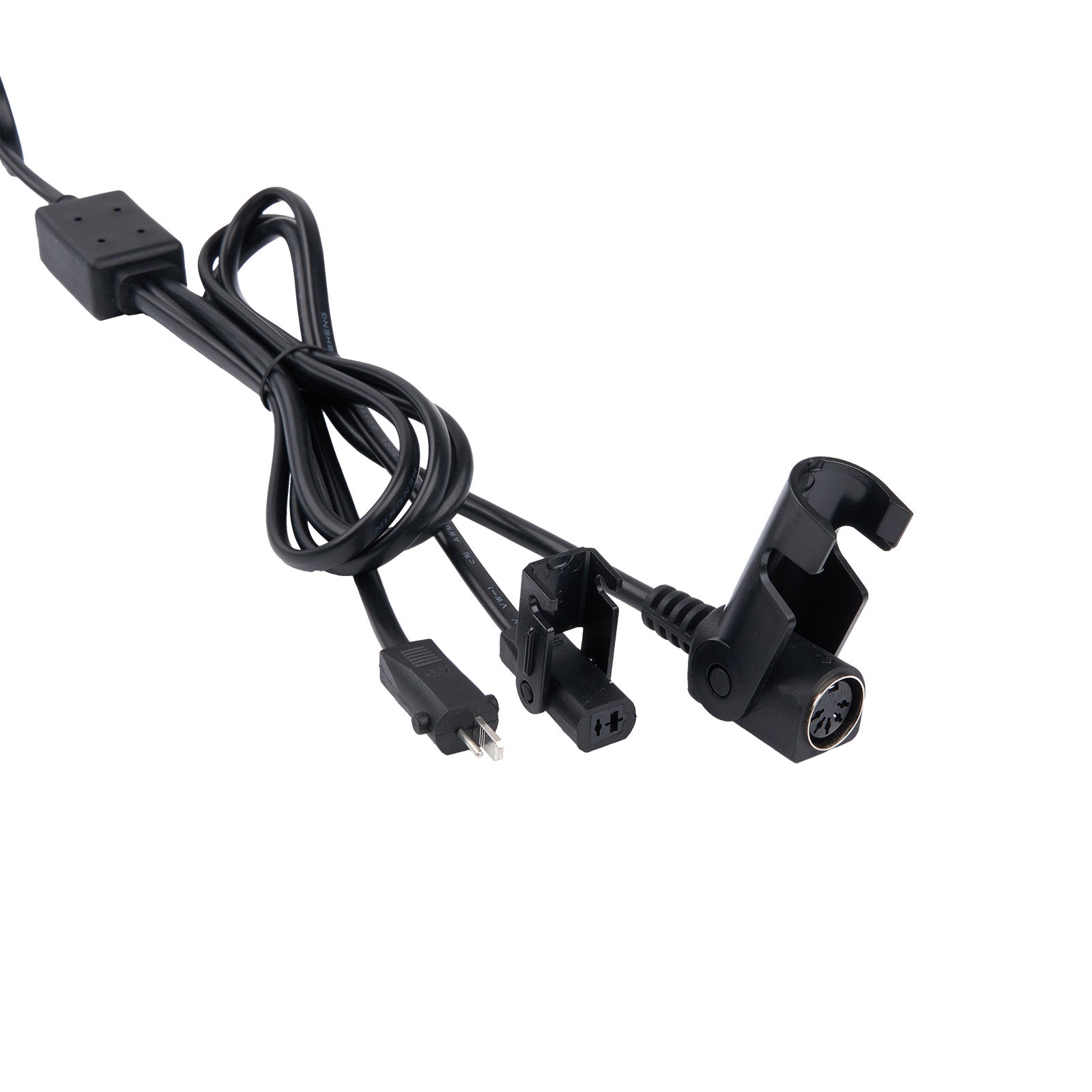

Three-wire connection:

• 2-pin male plug for the power supply
• 2-pin female plug for deputy motor (usually for head cushion/lumbar/back)
• 5-pin plug for the remote controller

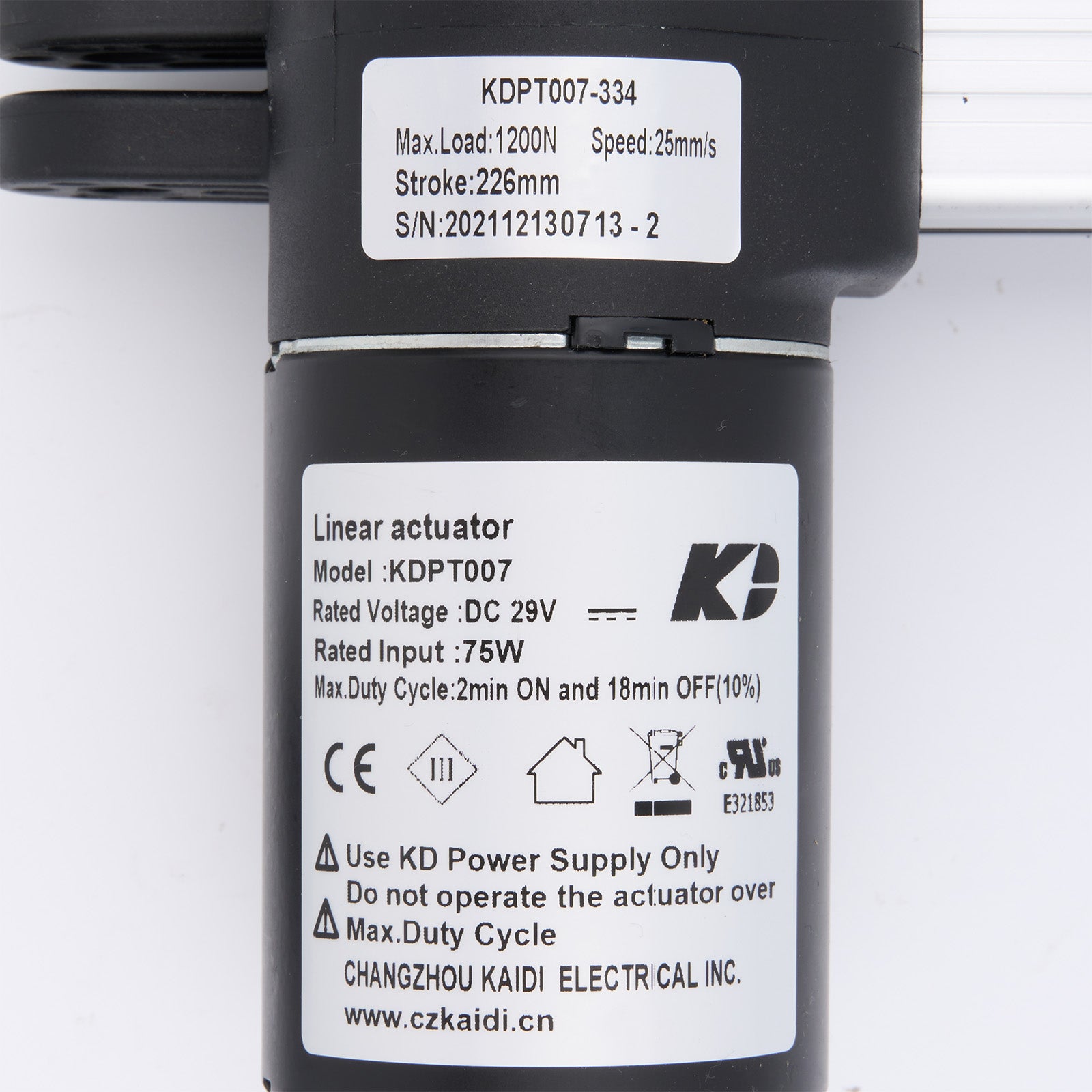

Specifications:

• Model: KDPT007-334
• Maximum Load: 1200N
• Speed: 25mm/s
• Stroke: 226mm (8.9 inches)
• Rated Voltage: DC 29V
• Rated Power: 75W
• Maximum Duty Cycle: 2 minutes ON / 18 minutes OFF

Important Information:

• Compatibility: This actuator is not universally compatible. Ensure your existing unit has the exact model number (KDPT007-334) before ordering.
• Return Policy: This item is not returnable or refundable. Please avoid test purchases.
• Troubleshooting: We recommend troubleshooting the power adapter, remote controller, switch, junction box, and cables before purchasing a replacement actuator.
• Lead Time: Delivery lead time is 2-20 business days depending on stock availability.
• Need a Different Model? Contact us for a quote on alternative models.
