eMoMo HX90ALU 3 Button Switch for Lift Chair and Power Recliner with 2 Plugs and a USB Charging Port

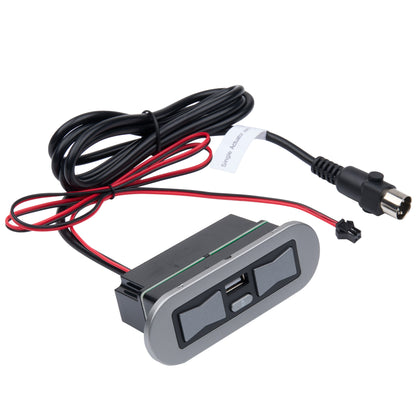

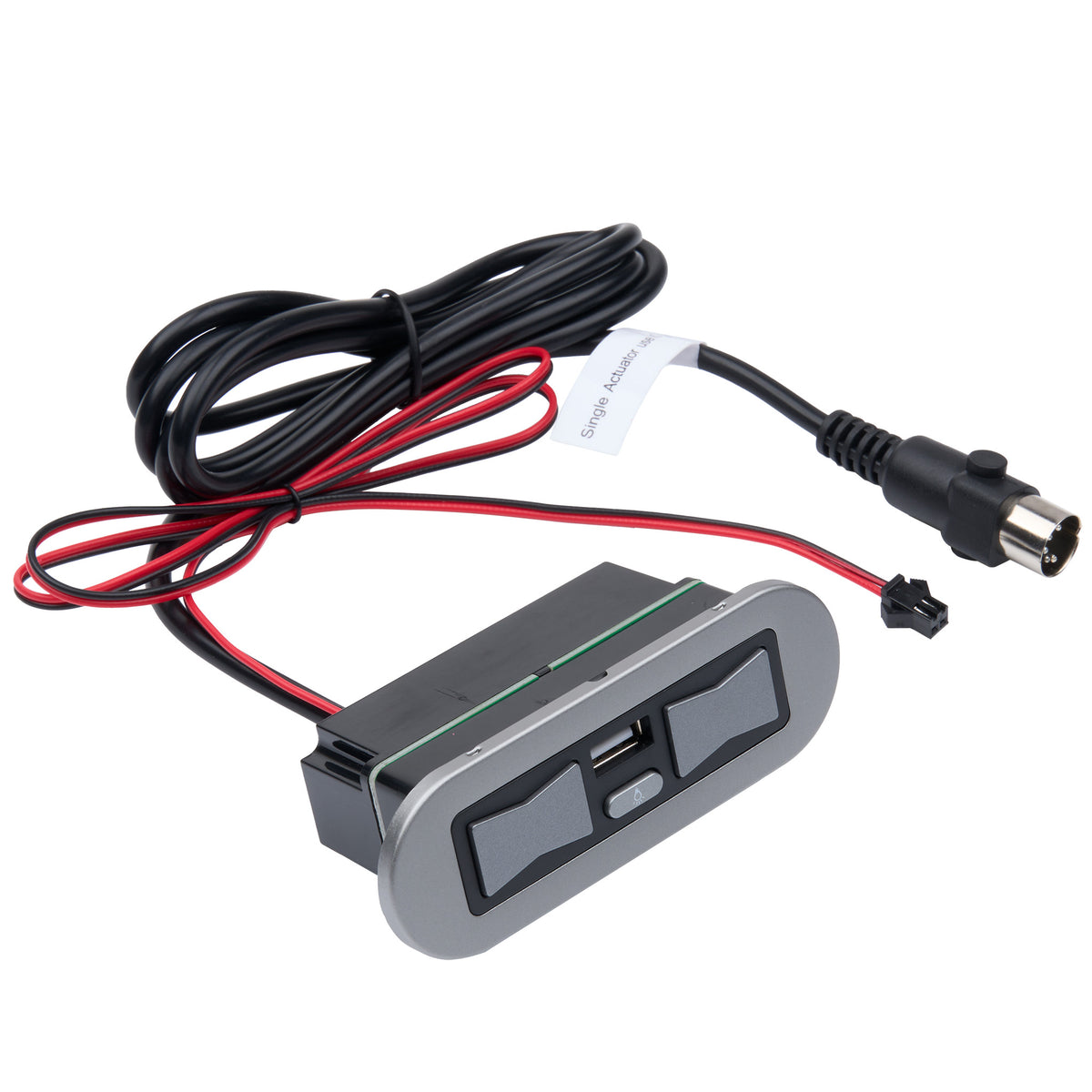

This genuine eMoMo HX90ALU switch features 3 buttons, a built-in USB port, a 5-pin male plug, and a 2-pin female connector. It is suitable for single-motor recliners, lift chairs, and other motion furniture.

Compatibility

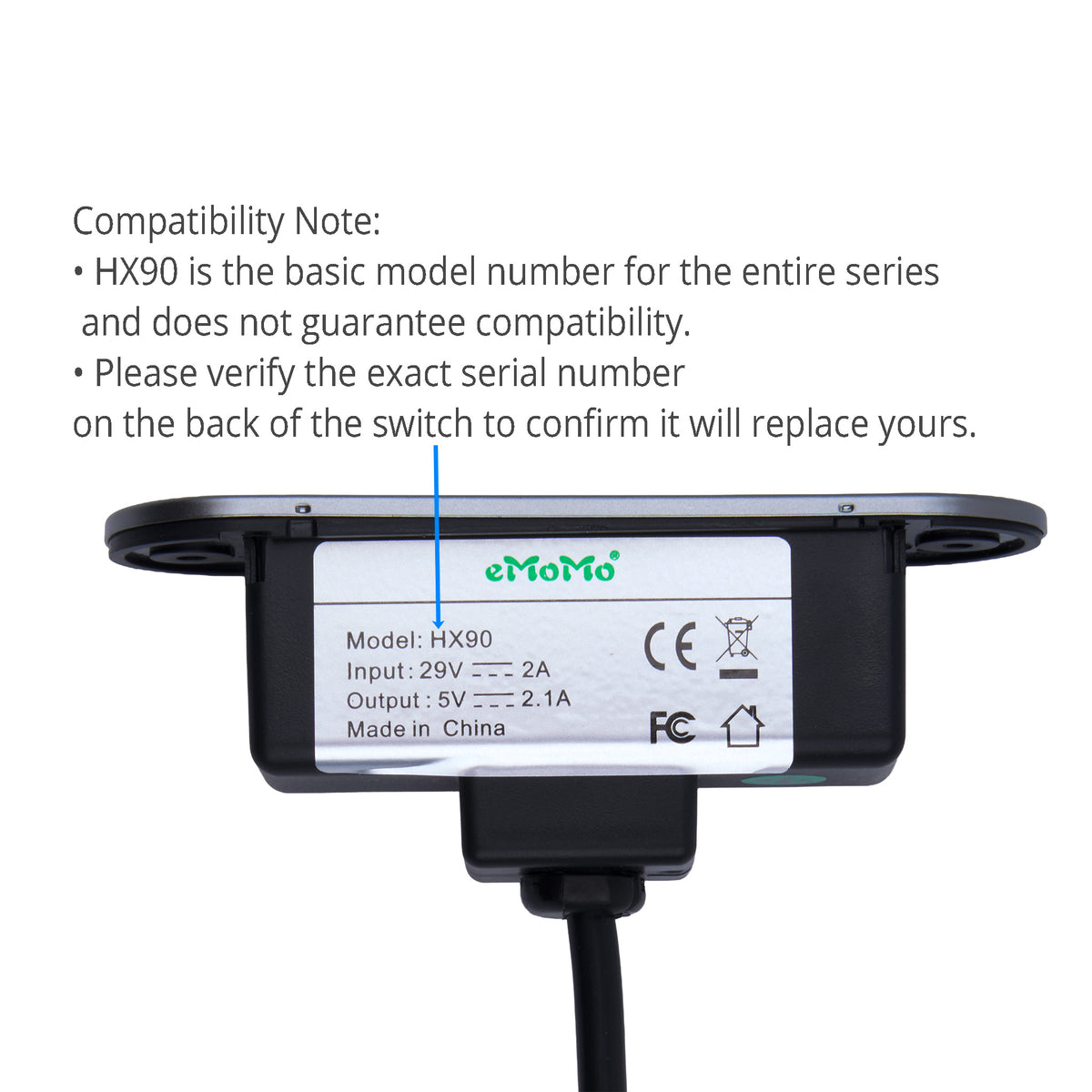

• This switch is not cross-compatible with other eMoMo HX90 models. The HX90 family includes many sub-models that are not interchangeable even if they look identical, and the back label may only read "Model: HX90". Please check your existing switch before ordering.

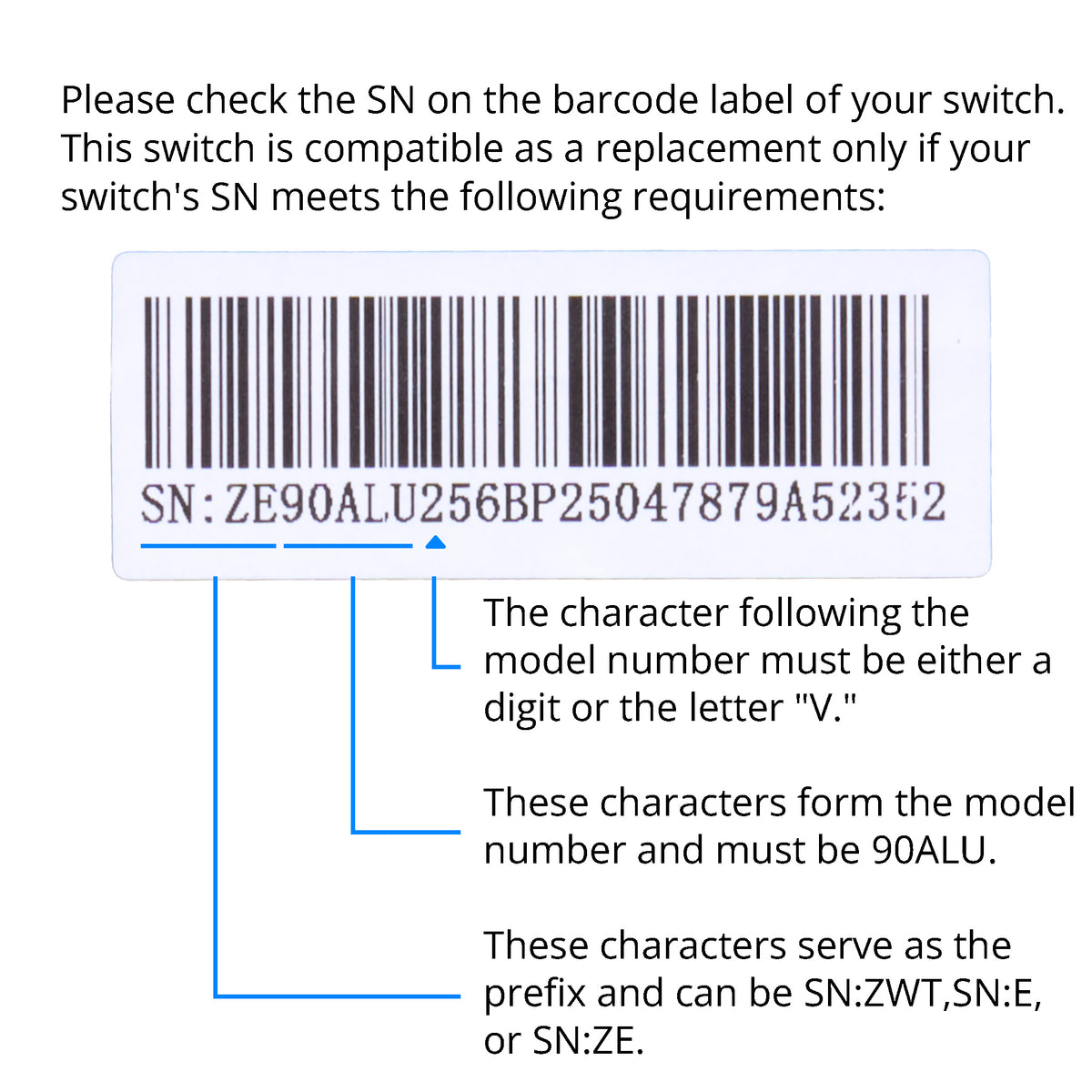

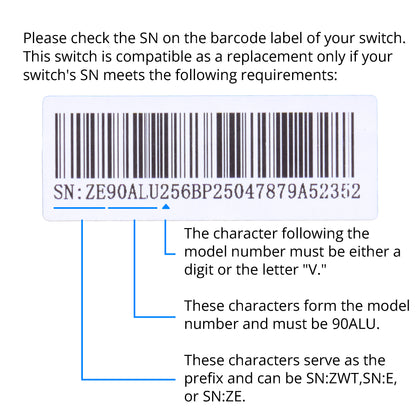

• To confirm this switch will replace yours, check the Serial Number (SN) on the barcode label of your current switch. The SN must meet all three requirements below:

  • Prefix: The SN usually starts with SN:E, SN:ZWT, or SN:ZE.

  • Sub-Model: The characters immediately after the prefix must be exactly 90ALU.

  • Suffix: The character immediately after 90ALU must be a digit (0–9) or the letter V.

• If yours does not match these requirements, send a photo of the barcode label to our customer support by email or through the form below, and we will help you find the correct replacement model.


Key Features

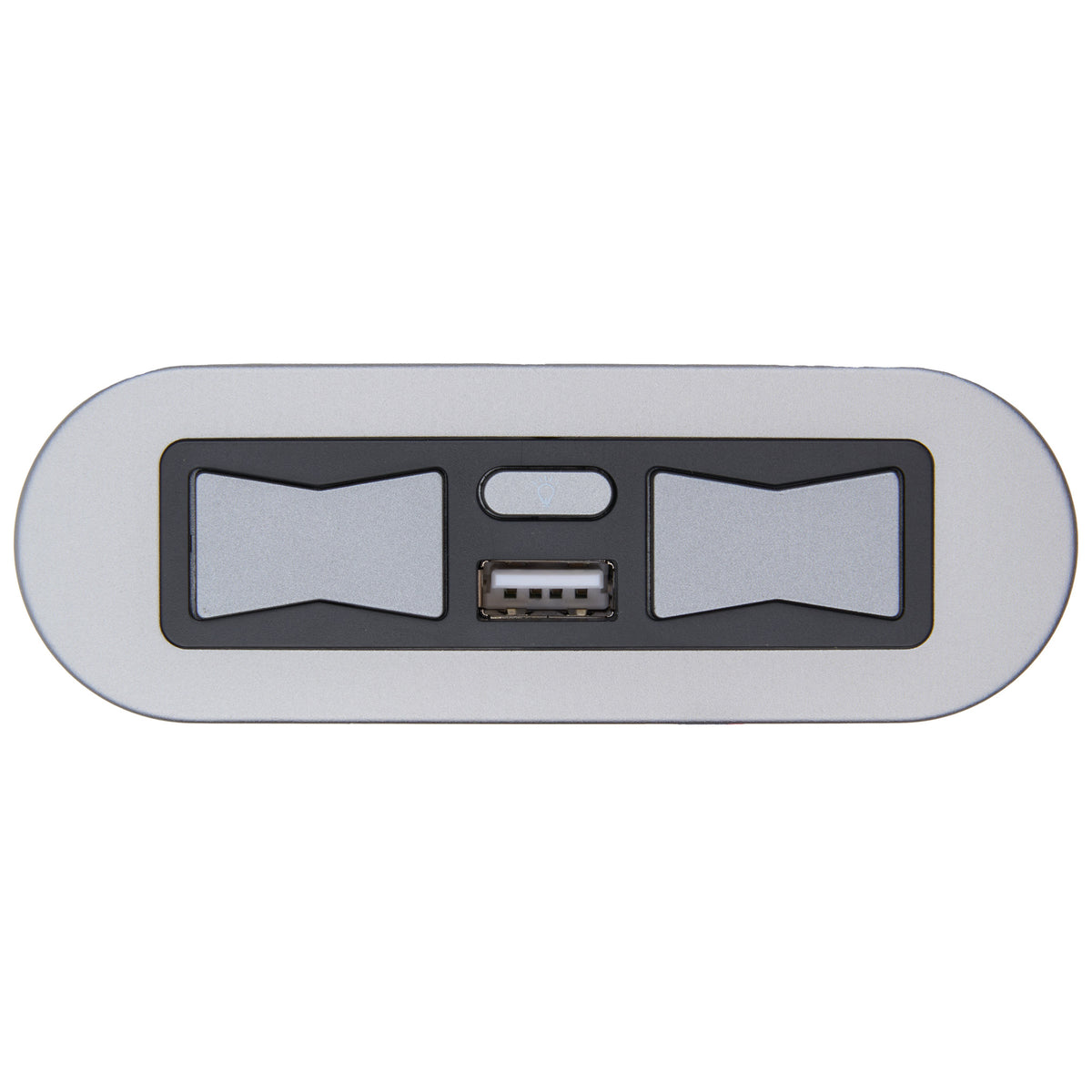

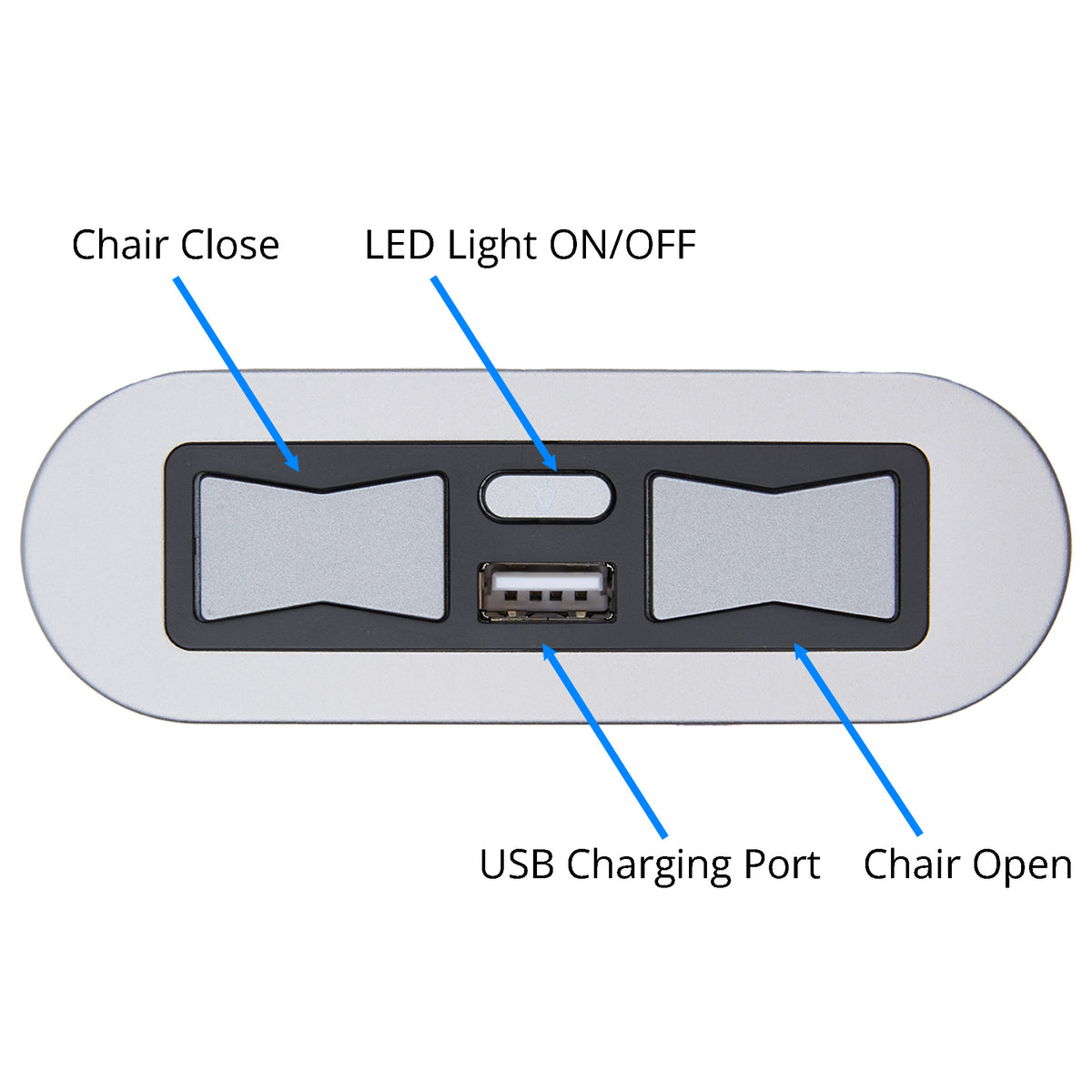

• 3-Button Control: Two butterfly buttons adjust the chair open/close, and the center button controls the light on/off.

• USB Charging Port: Built-in USB port (5V, 2.1A output) for charging mobile devices.

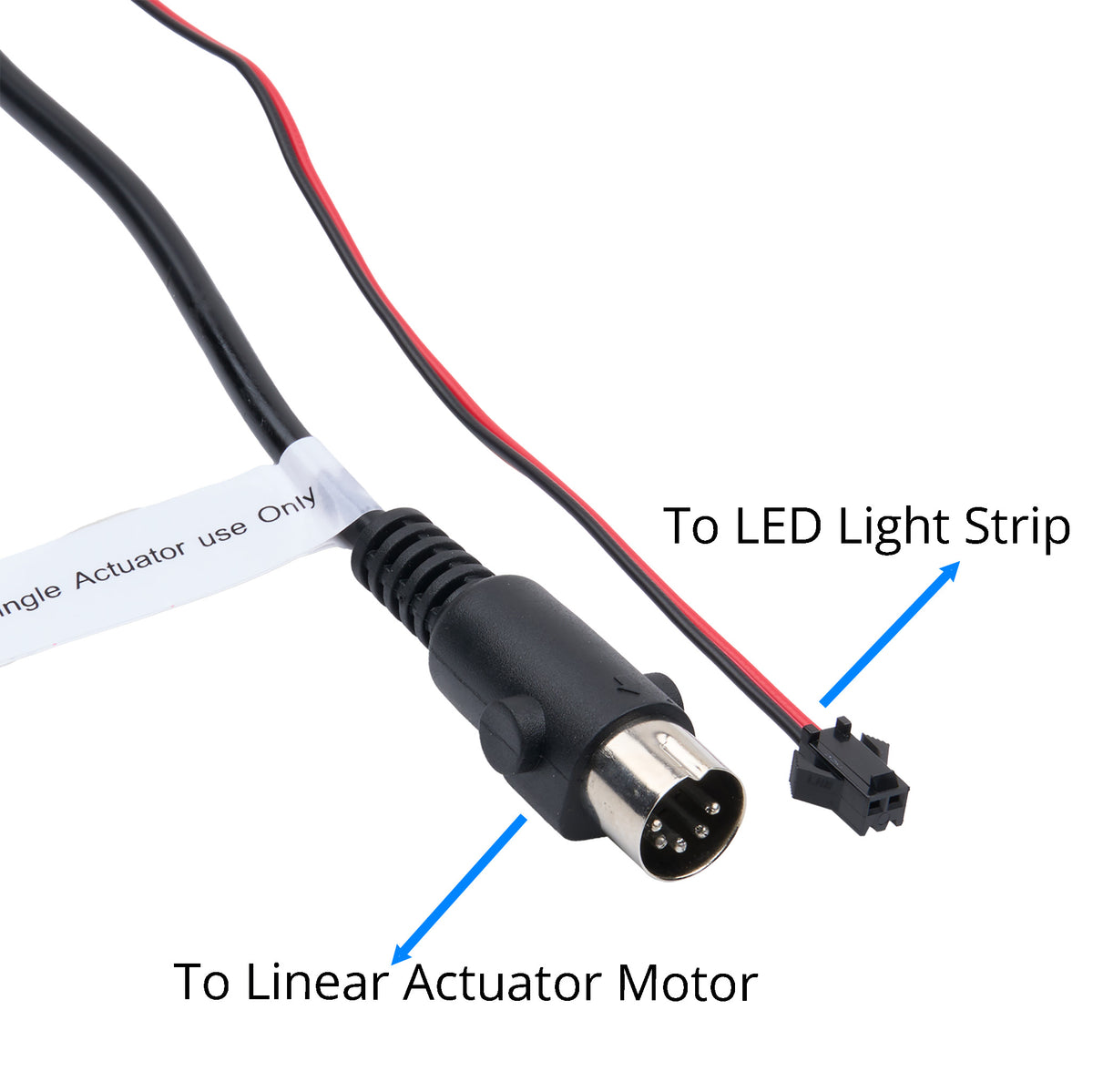

• Two Connectors: A 5-pin male plug for the linear actuator motor, and a 2-pin female connector for the LED light strip.

• Cable Length:
  • Main cable: 1.45m (4.75ft) main cable
  • LED light cable:  0.8m (2.6ft)


Specification

• Model: HX90ALU

• Button Count: 3

• Plug Count & Configuration: 1 × 5-pin male plug+1× 2-pin female connector

• USB Port Count: 1 (USB-A, 5V/2.1A output)

• Cable Length: 1.45m (4.75ft) main cable + 0.8m (2.6ft) LED light cable

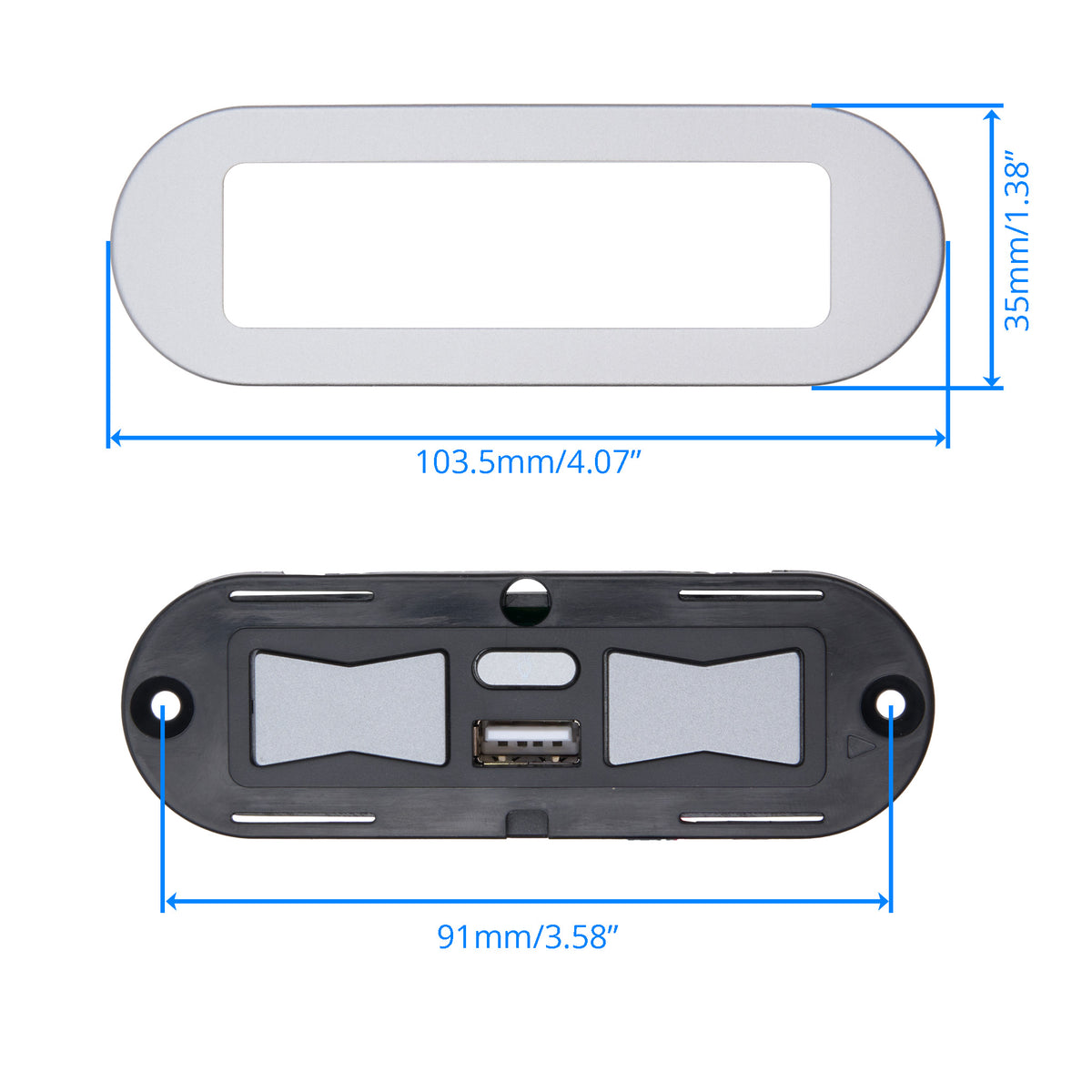

• Face Plate Size: 103.5mm × 35mm (4.07" × 1.38")

• Mounting Hole Distance: 91mm (3.58")

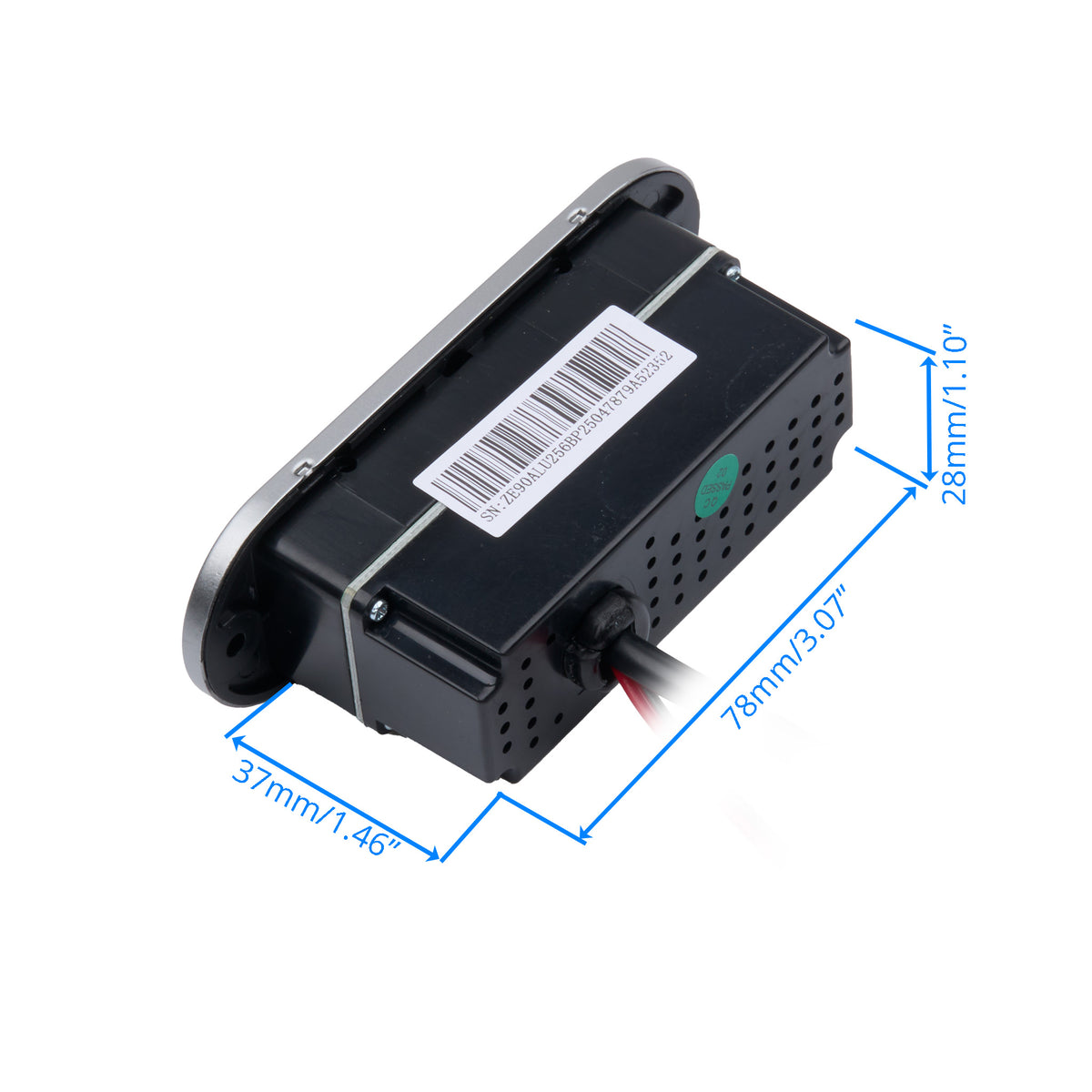

• Install Block Dimension: 78mm × 28mm × 37mm (L × W × H) / 3.07" × 1.10" × 1.46"


Package Includes

• 1 x HX90ALU Switch

• 1 x Aluminum Switch Face Plate

• 2 x Mounting Screws
