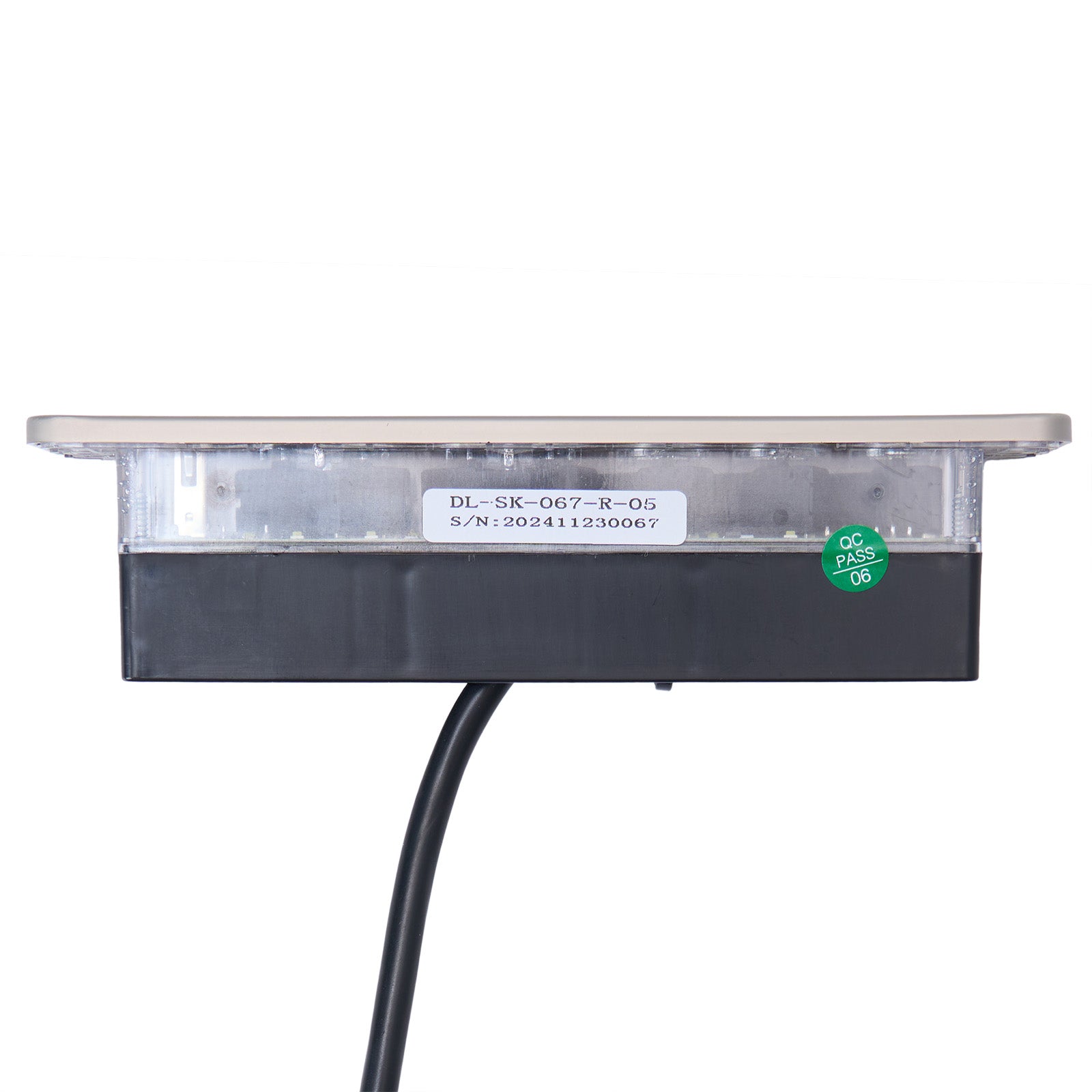

DL-SK-067-R-05 7 Button 8 Pin Switch with Control Box and USB

This is the genuine DL-SK-067-R-05 switch and control box set. It includes 7 buttons and is designed for use with power recliners, lift chairs, or sofas that operate with two motors.

Compatibility:

• This switch is not cross compatible with other models. Only order if your existing switch has the exact model number DL-SK-067-R-05.

• Do not order based on appearance alone. Other switches may look identical but are not compatible. Always remove the switch from the armrest and check the model number before ordering.

Features:

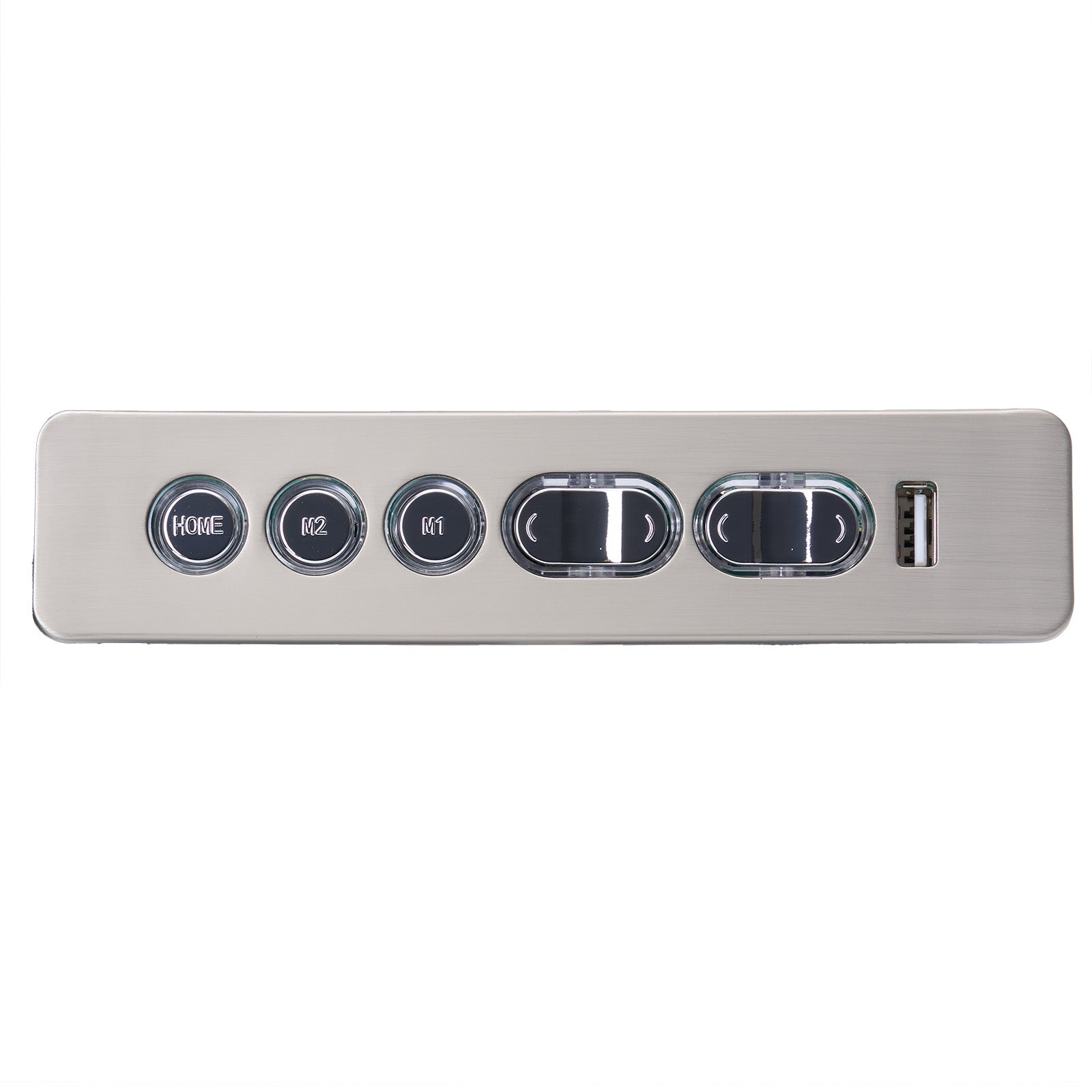

• 7-button control:

  • Two rocker buttons adjust headrest tilt and chair recline.
  • Two memory buttons: Store favorite positions for quick and easy access.
  • Home button: Returns all motors to the original position.
• USB port: Conveniently charge mobile devices.
• 8-pin connection: The switch uses an 8-pin male plug to connect to the control box.

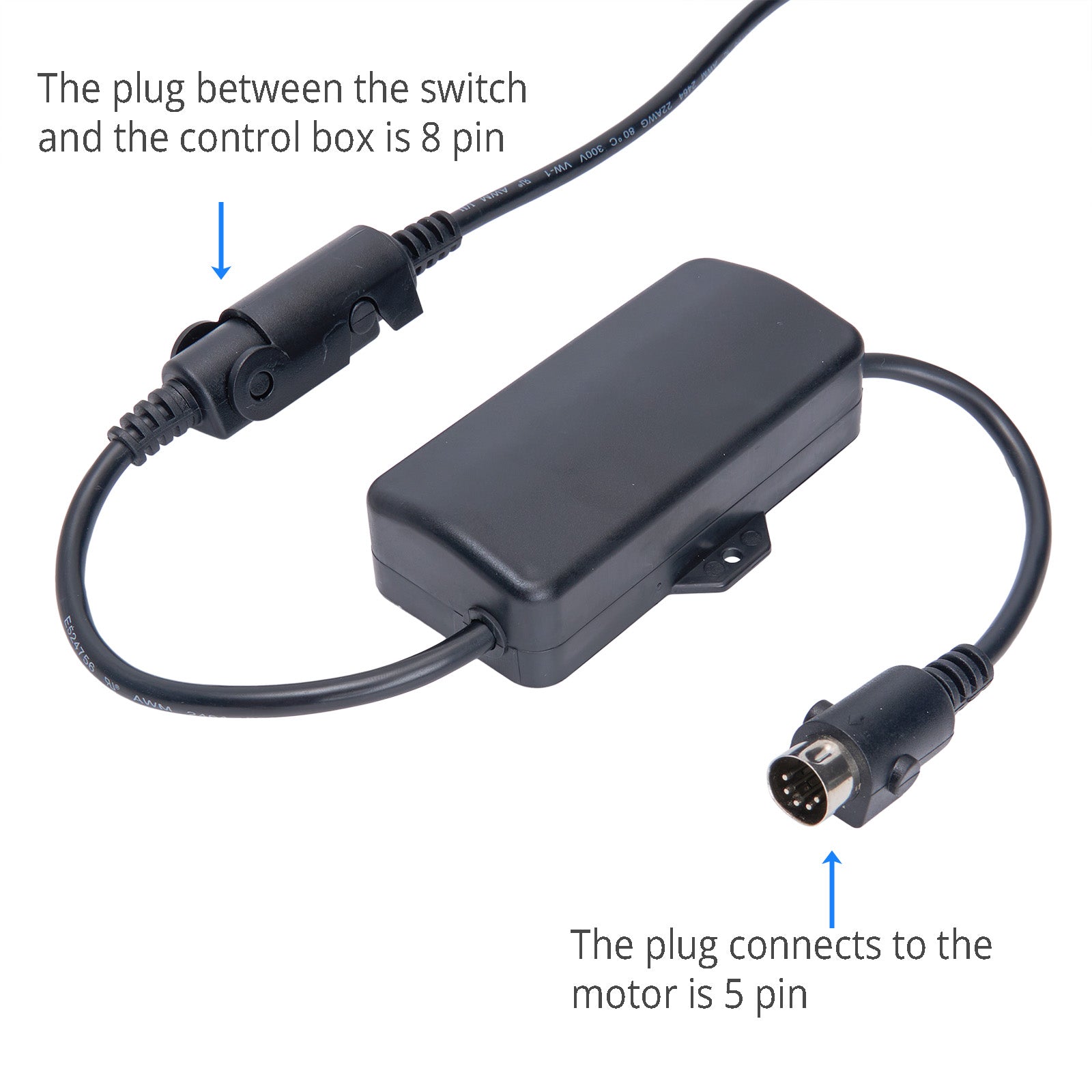

• Control box included: The set includes a control box with an 8-pin female socket for the switch and a 5-pin male plug for the master motor.
• Mounting side: Designed for the right side of the chair when facing the chair. Installs on the outer surface of the armrest.

Specifications:

• Model: DL-SK-067-R-05
• Number of buttons: 7
• Face plate size: 157 x 35 mm (6.18 x 1.38 inches)
• Back block size: 132 x 23 x 35 mm (5.2 x 0.91 x 1.38 inches)
• Mounting hole distance: 143 mm (5.63 inches)
